Airtraq A-390 Manual

PL-C390-920-NA Rev 3.0 2023-07
A-390 WI-FI CAMERA
For Software version 2.00 and posteriors
For Serial Numbers higher than M-20000
Instructions For Use
The Instructions for Use may be updated without further notice.
The latest version is available on www.airtraq.com.
To check for latest software versions available connect A-390 to
'Airtraq Cam' application on PC or visit www.airtraq.com
INDEX
1. A-390 Intended Use and Basic information
2. A-390 Components
3. A-390 Switches, indicators and connectors
4. A-390 Battery charge & charge status checking
5. Mounting the A-390 onto the Airtraq
6. Turn On/Off
7. Touch Panel & Menus
8. Airtraq Cam app for PC and Mobile devices
9. Initial Set Up
10. Paediatric Mode
11. Image Rotation
12. Record, Auto-Record and Snapshot
13. Play recorded videos and view Snapshots on A-390
14. Download videos and snapshots to a PC/MAC. Delete videos
and snapshots
15. Connecting Wi-Fi and recording with Tablet / Phone / PC
16. View System Information
17. Updating A-390 Internal Software
18. Troubleshooting
19. Cleaning Instructions
20. Operating, Storage And Transport Conditions
21. Technical Data
22. Regulatory
23. Disposal Instructions
24. Manufacturer's Warranty
25. Important Safety Instruction
26. User Assistance Information
27. Glossary of Symbols
1. A-390 INTENDED USE AND BASIC INFORMATION
Code: A-390
Description: Airtraq Wi-Fi Camera
The A-390 is an accessory for the Airtraq Video Laryngoscope. It is
compatible with all Airtraq Video laryngoscopes models.
Intended Use: The A-390 shall be attached to an Airtraq Video Laryngo-
scope and its intended purpose is to provide full colour, real-time images
on its 2.8 inch integrated touch screen.
A-390 is powered by an internal rechargeable 3.7 V Li-Po battery.
A-390 does not work while connected to a battery charger. A-390
battery shall be charged at least 1.8 m. away from the patient.
In case A-390 is not operative by any cause (battery not charged, etc)
the user can still intubate looking directly through the eyecup of the
Airtraq Video Laryngoscope.
Auxiliary Functions: The A-390 provides the following additional
functions that are not included in its intended purpose: sending real time
images via Wi-Fi to a mobile device; video playback on A-390´s screen;
wire connection to a PC for video downloading or software update. A
temporary failure of any of these functions, due to an abnormal
circumstance, will not increase the patient´s risk and will not compromise
A-390´s intended use, therefore it would be acceptable.
2. A-390 COMPONENTS
2.1. A-390 Camera
CMOS video camera with integrated touch screen and rechargeable
ENGLISH
Li-Po Battery.
2.2. USB-C cable
To be used to connect the A-390 to a PC for video downloading or for
camera's settings administration.
May also be used to charge the A-390 directly from a USB power source.
2.3. Silicon protective case
Provides additional protection against shocks.
It can be easily installed onto or removed from the camera.
2.4. Battery charger
Must be connected to mains supply to charge the 3.7 volts, Li-Po Battery.
2.5. Docking station
Accessory to facilitate charge of A-390.
Docking Station can also be used to charge the A-360 Airtraq Wi-Fi Camera.
The mains power supply is connected to the Docking Station through its
micro USB-C connector.
2.6. Neoprene pouch
Can be used to store some of the A-390 accessories.
2.7. Storage case (two sizes)
Can be used to store all or some of the above items. It is recommended
that the A-390 be stored and transported inside the storage case to
protect the camera while not in use.
A-390 can be charged when it is inside the storage case by connecting the
USB-C cable directly to the camera and zipping the case partially closed
allowing room for the cable to exit the case and plugged into power.
3. A-390 SWITCHES, INDICATORS AND CONNECTORS

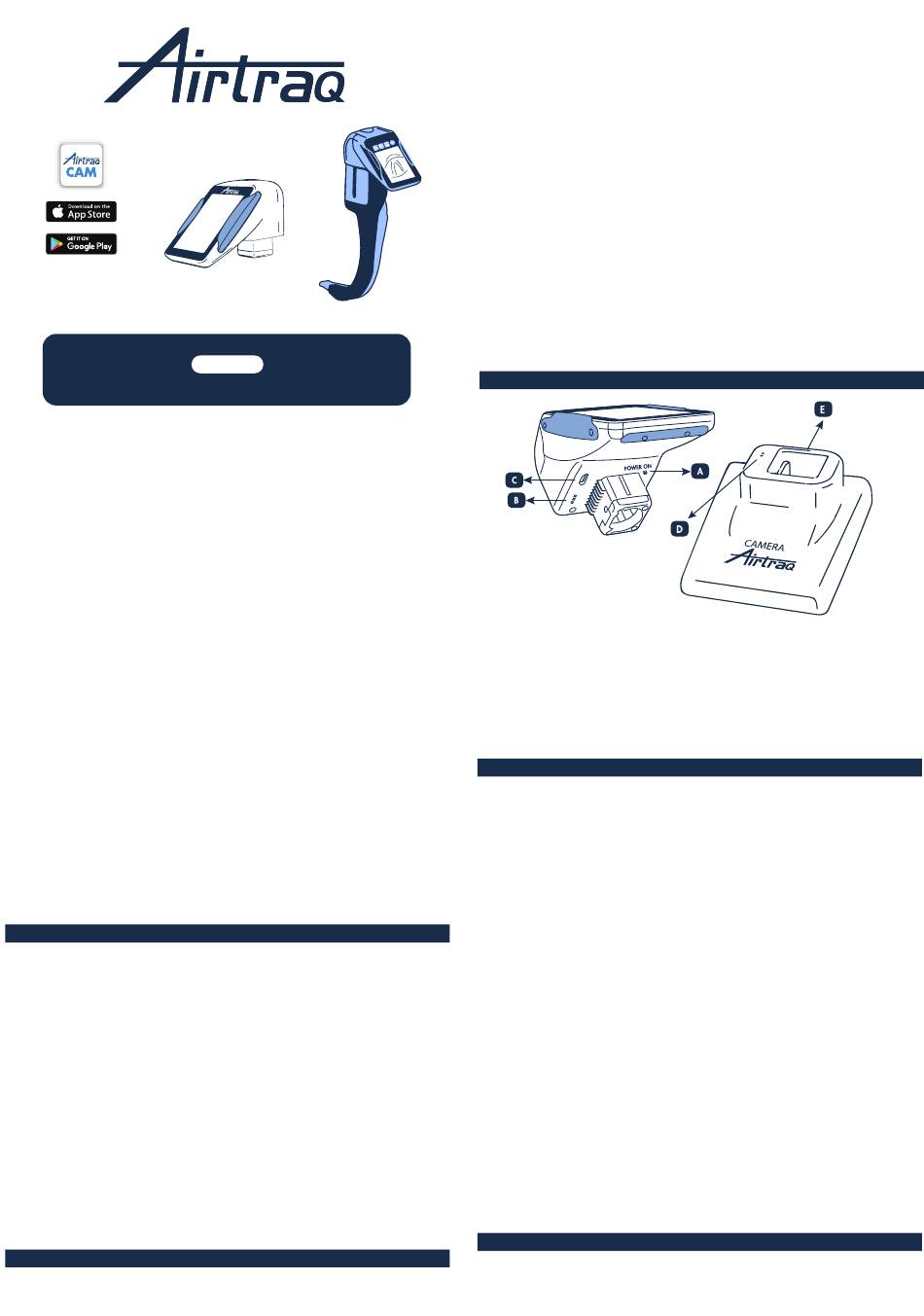

A. Automatic power button: This button is automatically pushed when the
A-390 is inserted onto any Airtraq. It can also be pushed manually to turn on
the A-390. To turn off the A-390 press the corresponding icon on the menu.
B. Battery charge connector: Brass surface connectors that connect to
docking station for battery charge.
C. USB-C female connector: to connect to PC or to battery charger.
D. Battery charge connector: Brass surface connectors that connect to
Camera for battery charge.
E. USB-C female connector: to connect to mains power supply.
4. A-390 BATTERY CHARGE AND CHARGE STATUS CHECKING
The A-390 DOES NOT WORK WHEN IT IS BEING CHARGED.
IT SHOULD BE CHARGED AT LEAST 1.8 M AWAY FROM THE PATIENT
It is recommended to perform a full charge/discharge cycle of the battery
before starting to use the A-390 for clinical purposes.
After a full charge, the A-390 can operate for around 120 minutes when
Wi-Fi is deactivated and for around 90 minutes when Wi-Fi is activated.
Recharging takes approximately 110 minutes.
Without use, the battery will discharge at a rate of around 1% per day.
If the A-390 can be turned on, then a minimum of 10 minutes of
operating time is guaranteed.
When the A-390 is turned on, a battery charge status icon and available
minutes of operating time appear on the screen.
To charge battery:
1. Connect the battery charger to Docking station and to mains electrical supply.
2. Place A-390 onto docking station.
3. A-390 can also be charged connecting directly the battery charger
provided to the USB-C connector of the A-390.
Upon starting to charge battery the A-390 will automatically turn Off.
Also, touching the screen while charging or when fully charged will show
available minutes of operating time and a battery icon.
When in use, the battery charge indicator on the header of the screen will show
available minutes of operating time and a battery icon in different colours.
Service life for the rechargeable battery depends upon the number of
charge-discharge cycles performed. Battery can be expected to lose
around 25% of its capacity after 500 charge cycles. At around 75%,
(after 500 cycles) the camera should continue working well; it just won't
provide as many minutes of service per charge.
The A-390´s battery can only be replaced by the manufacturer. The
A-390 should never be opened by unauthorized personnel. It could result
in a HAZARDOUS SITUATION and will void the warranty.
5. MOUNTING THE A-390 ONTO THE AIRTRAQ
To mount the A-390 onto the Airtraq:
• Remove eyecup from Airtraq.
• Place A-390 onto Airtraq's proximal end. Make sure the A-390 is fully
1/4
