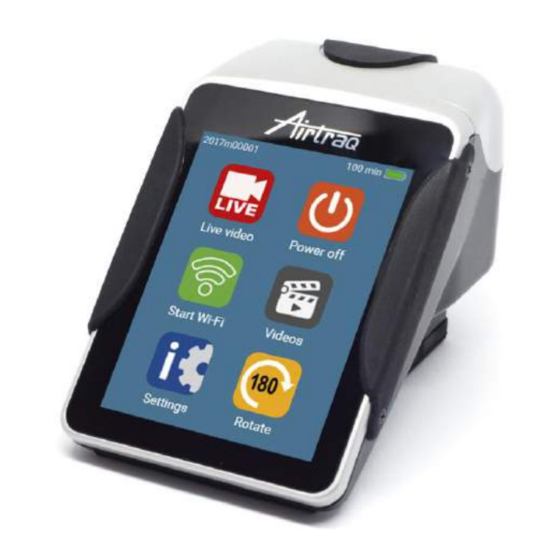

A-390 WI-FI CAMERA
Getting Started
Please read full Instructions for Use
February 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-390 and is the answer not in the manual?

Questions and answers

Related Manuals for Airtraq A-390

Summary of Contents for Airtraq A-390

  • Page 1 A-390 WI-FI CAMERA Getting Started Please read full Instructions for Use February 2022...
  • Page 2 A390 to the PC. • Free download from www.Airtraq.com/downloads/ 3. ‘Airtraq Cam’ App for iOS (Apple) and Android: • Needed on each mobile device to connect Wi-Fi to A390. • Free download from Apple Store or Google Play...

  • Page 3: Battery Charge

    Battery Charge • Use provided AC Charger. • Use provided Docking Base. USB-C cable is also available. • Operating Time: • 120 min. • 80 min (Wi-Fi on). • Full charging cycle = 110 min. • Camera will not power on unless remaining battery level is at least 10 min.
  • Page 4 A-390 Initial Set Up • Download ‘Airtraq Cam’ app for PC/Mac from www.Airtraq.com/downloads/ • Connect A-390 through USB to PC (Windows or Mac). • Open ‘Airtraq Cam’ App in PC. • Go to “Settings”...
  • Page 5 A-390 Initial Set Up • Upon first connection, register activate your new A390’s warranty...
  • Page 6 A-390 Initial Set Up • Update Software, if required. • Select Language • Set Cam Id • Date & Time Auto-Sync • Create / Change Wi-Fi Password • Set Auto-Recording On/Off • Set maximum video recording time for auto recording.
  • Page 7 A-390 Attach to Airtraq blade • Place onto Airtraq until it is fully inserted. A390´s screen shall be in the opposite direction of Airtraq blade´s tip. • Friction keeps A-390 securely attached to Airtraq. • A-390 automatically turns on (in 4 secs) in ‘Live Video’...
  • Page 8 Menu, Header, Icons Wi-Fi Device ID Rec Counter Battery Level LIVE VIDEO MAIN MENU Disabled Disabled...
  • Page 9 • Insert A-390 onto Airtraq blade • Manually press Power On pin • To turn off press on main menu. • Automatic shut down, if no user action, after: • 30 min if inserted onto Airtraq. • 5 min if not inserted onto Airtraq.
  • Page 10 Pediatric mode When using an Infant or When ‘Pediatric’ mode is on: Pediatric Airtraq always A confirmation message is • press displayed on the lower area of the screen. It adjusts light and zooms Icon changes to • image.

  • Page 11: Image Rotation

    Image rotation To facilitate face to face intubation rotate image by pressing • Image will be flipped to maintain correct anatomy orientation. •...

  • Page 12: Video Recording

    Video Recording Recording is only available when A-390 is inserted onto an • Airtraq blade. • When Wi-Fi is activated, recording on the A-390 internal memory is not available. REC icon turns grey • User can record on the Wi-Fi connected device.

  • Page 13: Auto-Record

    When Auto-Rec mode is activated recording starts automatically each time the user enters into Live Video mode. Activate Auto Recording on • Settings screen or using Airtraq Cam App/Settings. • User can define maximum length (min.) and size (mb.) of auto recorded videos.

  • Page 14: Video Gallery

    Video Gallery • Go to Main Menu >> Video Gallery Videos are listed in order from • newest to oldest • Press up and Down icons to navigate through the Gallery pages. • Select a video, it will begin to automatically play Videos previously viewed are shown •...

  • Page 15: Video Playback

    Video Playback • Select a video from Video Gallery, it will begin to automatically play. A timer indicating the length of the • selected video will appear at the top of the screen. • Use fast-forward, rewind and pause icons as desired. •...
  • Page 16 Download & Delete videos using “Airtraq Cam” App for PC • Connect A-390 through USB (only one camera at a time). • Open “Airtraq Cam” App on PC. It will automatically recognize camera connected. Select “Manage Videos”. • Select Videos to be downloaded.
  • Page 17 View and add additional notes to downloaded videos • Videos downloaded using “Airtraq Cam” App on PC are stored in the App´s “Gallery on PC”. • “Gallery on PC” location can be selected by the user. • Videos can be played in “Gallery on PC”.
  • Page 18 • Activate Wi-Fi on A-390 • A-390 creates its own Wi-Fi hotspot. Range approx. 10 m. • A-390 can be connected to iOS & Android mobile devices and to PC (Windows or Mac). Only one device at a time. • When Wi-Fi is activated, recording on A- 390’s internal memory is not available.
  • Page 19 ’Airtraq Cam’ app download Download and Install Android (Windows and Mac OS X) www.Airtraq.com/downloads/ Apple and the Apple logo, iPad and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
  • Page 20 ’Airtraq Cam’ app Wi-Fi connection Open Airtraq Cam App on tablet or phone and click the “Scan Cam ID” or “Type Cam ID” Icons Scan Cam ID Type Cam ID...
  • Page 21 ’Airtraq Cam’ app Wi-Fi connection Type Cam ID Manually enter Serial # & Device ID *Case Sensitive...
  • Page 22 ’Airtraq Cam’ app Wi-Fi connection Scan Cam ID Use Tablet or Phone’s camera to capture QR code displayed the QR code which auto-populates Press “QR” Icon settings.
  • Page 23 ’Airtraq Cam’ app Wi-Fi connection Click “Save” Choose the Camera you want to connect to from the list...
  • Page 24 ’Airtraq Cam’ app Wi-Fi connection Device is now connecting to the A-390 Wi-Fi Click “Join” signal...
  • Page 25 ’Airtraq Cam’ app Wi-Fi connection...
  • Page 26 ‘Airtraq CAM’ app for PC (Settings). Password is deactivated by default. When a device is connected for the first time to an A-390, if password is activated, “Airtraq Cam” App will prompt to input password on the connected mobile device.
  • Page 27 Video recording when Wi-Fi is activated • Connect Wi-Fi A390 to an Smartphone, Tablet or PC and open “Airtraq Cam” App. To start recording press • A counter is displayed on the lateral bar . • • Icon changes to Videos are stored on the connected devices •...
  • Page 28 A390 inside Small Nylon Hard Case provided to ensure protection during storage and transportation. • When there is space available keep A390 inside hard nylon case provided to ensure protection during storage and transportation. Airtraq recommends it for abusive environments.

  • Page 29: Cleaning Instructions

    Cleaning Instructions Wipe down the exterior surfaces of the A-390. Be careful to keep running liquid off the surfaces. Blot dry the A-390 using an individual sterile surgical towel. The following cleaning solutions may be used: • Enzymatic Cleaning Solutions (e.g.: ENZOL Enzymatic Detergent).

  • Page 30: Troubleshooting

    “Airtraq Cam” App to delete videos or snapshots. • When connecting to a PC through USB, avoid manipulating A390´s files directly. Use of “Airtraq Cam” App to upload and manage videos is recommended. • If problems persist perform a “Hard Reset” back to factory settings.
  • Page 31 Verify that you have the latest version of the Airtraq Cam App from the Airtraq.com website. • Connect A-390 to Airtraq Cam app on PC via provided USB cable. Ensure the PC has internet access and there are no restricting IT policies or firewalls affecting the Airtraq Cam app. The app will automatically check the connected A-390’s software with the latest available software from the Airtraq.com website.
