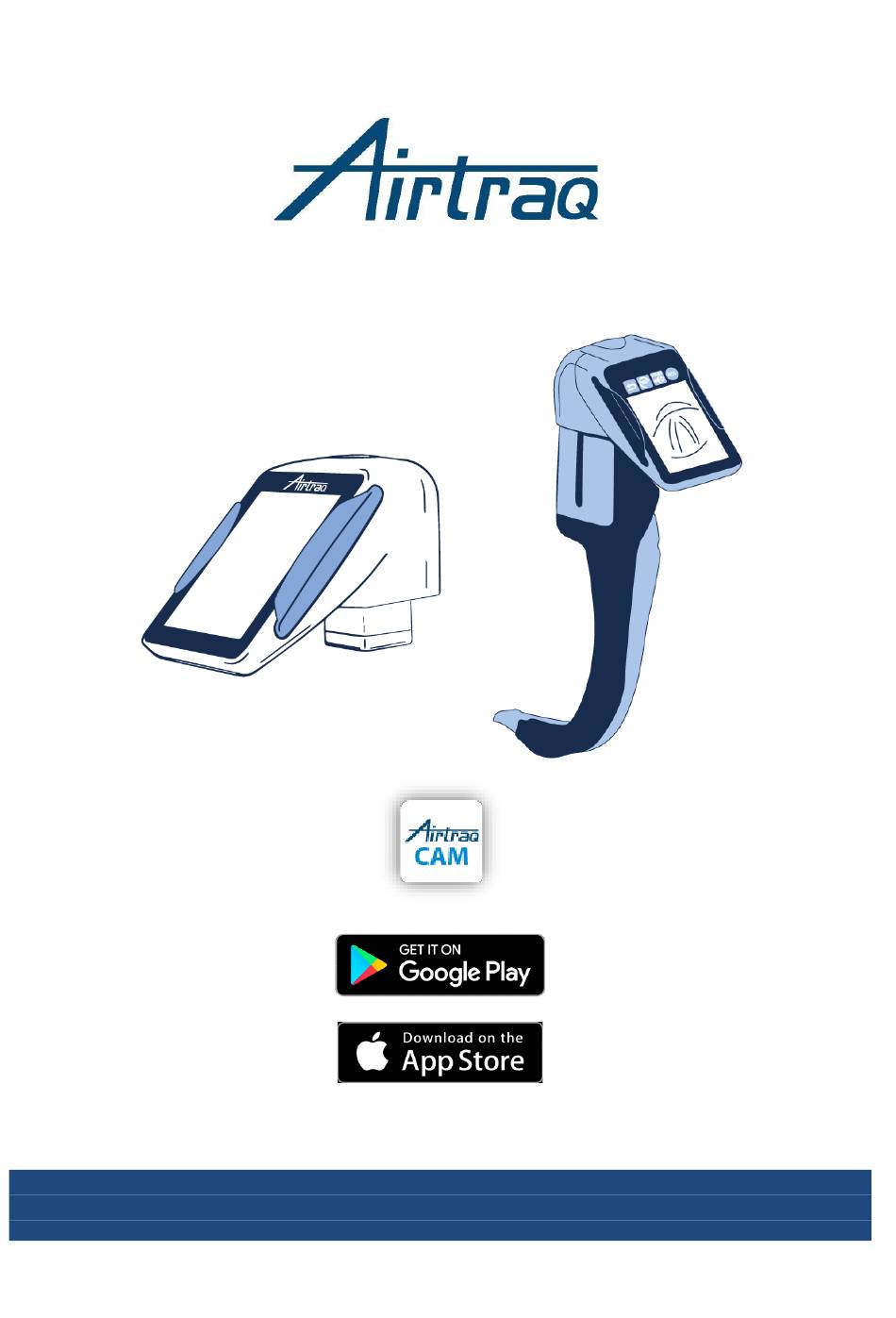

PL-C390-921 Rev. 2.2 2022-04
A-390 WI-FI CAMERA
For Software version 2.00 and posteriors
For Serial Numbers higher than
M-20000uctions
Instructions For Use
English
The Instructions for Use may be updated without further notice. The latest version is available on www.airtraq.com.
To check for latest software versions available connect A-390 to "Airtraq Cam" application on PC or visit www.airtraq.com
1 of 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-390 and is the answer not in the manual?

Questions and answers

Related Manuals for Airtraq A-390

Summary of Contents for Airtraq A-390

  • Page 1 Instructions For Use English The Instructions for Use may be updated without further notice. The latest version is available on www.airtraq.com. To check for latest software versions available connect A-390 to “Airtraq Cam” application on PC or visit www.airtraq.com 1 of 20...
  • Page 2 11. Image Rotation 12. Record, Auto-Record and Snapshot 13. Play recorded videos and view Snapshots on A-390 14. Download videos and snapshots to a PC/MAC. Delete videos and snapshots. 15. Connecting Wi-Fi and recording with Tablet / Phone / PC 16.
  • Page 3 A-390 is powered by an internal rechargeable 3.7 V Li-Po battery. A-390 does not work while connected to a battery charger. A-390 battery shall be charged at least 1.8 m. away from the patient. In case A390 is not operative by any cause (battery not charged, etc) the user can still intubate looking directly through the eyecup of the Airtraq Video Laryngoscope.
  • Page 4 Can be used to store some of the A390 accessories. 2.7. Storage case (two sizes) Can be used to store all or some of the above items. It is recommended that the A-390 be stored and transported inside the storage case to protect the camera while not in use.
  • Page 5 Without use, the battery will discharge at a rate of around 1% per day. If the A-390 can be turned on, then a minimum of 10 minutes of operating time is guaranteed. When the A-390 is turned on, a battery charge status icon and available minutes of operating time appear on the screen.

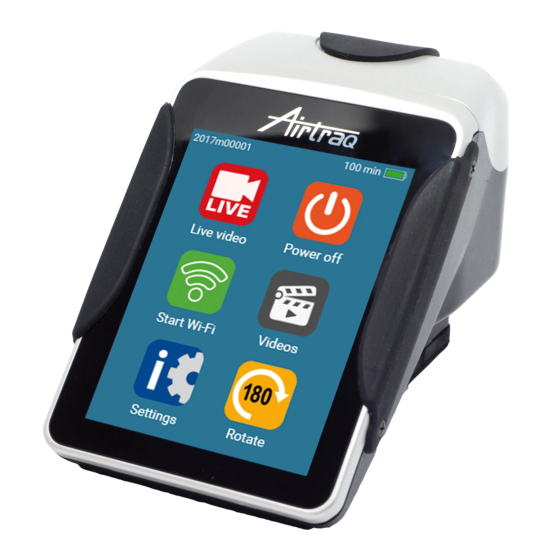

  • Page 6: Touch Panel & Menus

    • Boot up will take approximately 7 seconds. To turn off the A-390 press the “Power off” icon on the main menu. The unit will show a message to the user and a “cancel” icon will appear and it will automatically shut down in 3 seconds unless the user cancels the action.
  • Page 7 • Download videos recorded in A-390 (A-390 connected to PC through USB). • Live Video on PC connecting via Wi-Fi to A-390. • Recording Video in PC while A-390 and PC are connected via Wi-Fi. Environments & versions: • Windows and MacOS...
  • Page 8 Some options can also be selected directly on the Settings screen of the A-390. When the App is launched a screen will show up with the A-390 connected to the PC. App will prompt the user to register the warranty. Manufacturer recommends registering the warranty before starting to use A-390.

  • Page 9: Image Rotation

    • Set Auto Recording Mode: The auto-recording function will automatically start a new video recording every time the A-390 goes into Live Video. Set it on or off as desired. This option can also be set in the A-390 Settings screen.
  • Page 10 Multiple Snapshots can be taken at a maximum speed of 1 picture every 2 seconds. Snapshots are stored on the A-390´ s internal memory as a jpeg file and can be viewed in the snapshot gallery Free memory available is displayed in the Setting/ info Screen.
  • Page 11 When the App is launched, a screen will show up with the A-390 connected to the PC. Only one A- 390 at a time can be connected to the PC.

  • Page 12: View System Information

    Connect A-390 to a PC (Windows or Mac) through the USB cable provided. When “Airtraq Cam” app is launched a screen will appear with the A-390 connected to the PC. If there is a newer version available a message will prompt the user to update.

  • Page 13: Troubleshooting

    To reset A390 connect A-390 to a PC, open the “Airtraq Cam” app and click on “RESET A390” in the app toolbar and carefully follow the prompts. The reset process can be performed even if the A-390 is not recognized by the PC as a mass storage device and its screen is totally black.

  • Page 14: Operating, Storage And Transport Conditions

    • Do not autoclave. • Do not rinse under running water. • Do not soak in liquids. • Avoid liquid or moisture from going into the A-390. • Avoid touching the lens of the A-390. 20. OPERATING, STORAGE AND TRANSPORT CONDITIONS 1.
  • Page 15 Cable length: 1.9 m. 22. REGULATORY This device, when working as an accessory for Airtraq Video Laryngoscopes, meet the requirements of ISO 8600, ISO 14971, ISO 62304, ISO 62366, ISO 10993, European Medical Devices Regulation MDR (EU) 2017/745 of 5 April 2017. The Declaration of Conformity (DoC) is available from the manufacturer.
  • Page 16 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s).

  • Page 17: Disposal Instructions

    The A-390 and related accessories contain batteries, that cannot be removed, and other environmentally hazardous materials. When A-390 has reached the end of its useful service life, it must be disposed of in accordance with WEEE or other national and local regulations on disposal of electronic and electrical equipment.

  • Page 18: Important Safety Instructions

    19. 3. Heed all warnings in these instructions. 4. The A-390 does not work when it is being charged. It should be charged at least 1.8 m away from the patient.

  • Page 19: User Assistance Information

    16. A-390 shall only be connected to Airtraq video laryngoscopes. Connection to other ME Equipment or ME System may cause unexpected harm. 17. That before each use or after a change of viewing modes / settings, the operator should check to ensure the view observed through the device provides a live image (rather than a stored one) and has the correct image orientation.

  • Page 20: Storage And Transport Conditions

    Temperature: between -5ºC/23ºF and 55ºC/131ºF; Humidity: STORAGE AND TRANSPORT CONDITIONS: between 10% and 95% ; Pressure: between 500 to 1060 hPa Temperature: between -5ºC/23ºF and 40ºC/104ºF; Humidity: between 10% OPERATING CONDITIONS : and 95% ; Pressure: between 500 to 1060 hPa 27.
