Ubisys 2 Series Manual

Router R0 (Series 2)
Zigbee and Bluetooth
Item No.: 1182
Specifications
The Router R0 is a Zigbee radio operated router and is used to extend the re-
ach of Zigbee-data in larger buildings and industrial complexes. In the current
in-wall version, it is compatible to every standard in-wall mounted housing. It
is not only suitable for new buildings but also for renovations – for due to the
use of radio technology, retrofitting with ubisys components has no special
requirements for the electrical installation. The Router R0 offers full func-
tionality when combined with other components of the ubisys Smart Home
product line or other Zigbee systems.
Note:
The Router R0 is to be understood as an additional option. The components
D1(-R), J1(-R), S1(-R), S2(-R), C4 and G1 also include the router function.

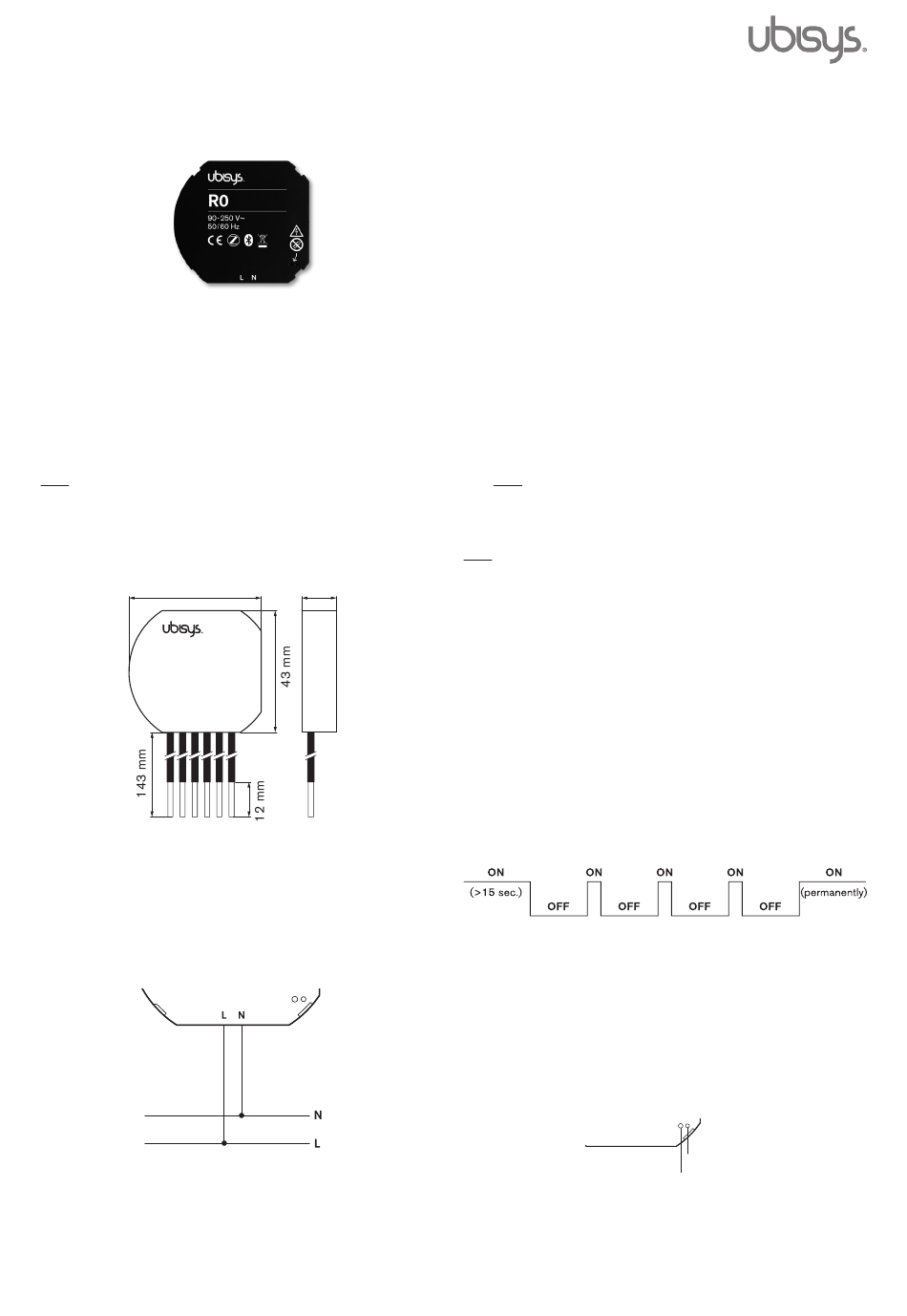

Dimensions
Leistungsschalter S1
Funkvernetzt mit
17 mm 47 mm
Stromverbrauchsmessung
230 V ~ / 50 Hz, 3.680 VA
2 1
Jalousiesteuerung J1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 500 VA
2 2
1 1
Installation
LED
The Router R0 is designed for installation in flush mounted sockets according
Button
to DIN 49073. For installation behind a switch or power socket, the use of
Router R0
deep sockets is recommended.
Funkvernetzt
Leads:
AC 230 V ~ / 50 Hz
When connecting the Router R0 the included push-wire terminals can be
used.
Leistungsschalter S2
Funkvernetzt mit
12 mm
Stromverbrauchsmessung
230 V ~ / 50 Hz, 2 x 500 VA
2
Universaldimmer D1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 500 VA
2 1
LED
47 mm
Button
Bedieneinheit C4
Funkvernetzt
AC 230 V ~ / 50 Hz
4
2
4 3 2 1
Router R0
90 - 270 V~ , 50/60 Hz
(12 - 400 V=)
LED
Button
Zigbee Initial Commissioning via Gateway or Hub
1. Connect the unit to a power source (according to the leads).
2. Open a Zigbee network: when using the ubisys gateway, tap Confi-
guration -> Basic Configuration -> Open for new devices in the
ubisys app (if you are using third-party gateways or apps, follow the
corresponding procedure).
3. The Zigbee network is open and the device joins.
4. The device appears in the component list: Configuration -> Basic
Configuration -> Components.
Zigbee Direct (Bluetooth) Initial Commissioning – without Gateway or
Hub
Zigbee Direct allows for integration and control of Zigbee devices directly
via Bluetooth. With Zigbee Direct, users can seamlessly interact with their
Zigbee networks via smartphone, tablet or other Bluetooth-enabled devices:
1. Connect the unit to a power source (according to the leads).
2. When using the ubisys iOS app, tap on Settings -> Facilities -> Pen
top right -> New Facility -> Create via Bluetooth.
3. Select the R0 from the list of available components.
Note: The last four digits of the serial number are displayed.
4. Confirm the creation of a new system with this device.
5. Under Configuration -> Basic configuration -> Components the
virtual gateway will be displayed together with the R0.
Note:
Zigbee Direct supports many commissioning options and is an open stan-
dard. Zigbee Direct also allows further settings, such as the configuration of
47 mm 12 mm
inputs, links, groups and scenes, in third-party systems that do not provide
these functions themselves. It is also possible to update the firmware this
way. Just one Zigbee Direct device in the network is sufficient to set up and
control all the other Zigbee devices.
1 2 1
Factory Reset
Via Power-Cycle Sequencing: To reset the device to factory settings without
directly accessing the device itself (only the power supply), follow this on/off
2 2
1 1
sequence:
1. Power on for at least 15 seconds.
Leistungsschalter S1
2. Power off for at least 15 seconds.
Funkvernetzt mit
3. Power on for at least 0.5 seconds but no more than 2 seconds.
Stromverbrauchsmessung
4. Repeat steps 2.-3. three more times (four times in total). The final
230 V ~ / 50 Hz, 3.680 VA
power-on must last at least 30 seconds until the device resets and
restarts (see step 5.).
LED
12 mm 47 mm
Button
5. The device will automatically reboot to the original factory settings.
Via button on the device: To reset the device to its factory fresh settings
(e.g. in order to join it to another network afterwards), press the button in the
3 2 1
larger of the two holes on the front for more than 10 seconds until the LED
starts flashing rapidly.
Only use the electrically isolated tool provided with the device to press the
Router R0
button in the hole.
Funkvernetzt
AC 230 V ~ / 50 Hz
LED
Button
47 mm
2 1
Leistungsschalter S2
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 2 x 500 VA
2 1 2 1
LED
12 mm
Button
2
Bedieneinheit C4
Funkvernetzt
LED
Button
Page 1/2
12 mm
4
47 mm 12 mm
Router R0
90 - 270 V~ , 50/60 Hz
(12 - 400 V=)
2
As per 02/2025
