Ubisys D1 Manual

Universal Dimmer D1
Radio linked with power consumption measurement
Specifications
The universal dimmer D1 is a radio controlled dimmer with integrated power
consumption measurement. In the current flush mount version, it is compati-
ble to standard switch boxes and fully integrates into the rest of your smart
home. It is not only suitable for new buildings, but also for existing buildings,
because retrofitting has, due to use of radio technology, no special require-
ments to the electrical installation. The system can gradually be extended by
adding new components. The universal dimmer D1 offers full functionality
when combined with other components of the ubisys smart home product
line and allows for example:
•
Freely configurable assignments between control elements and
consumers
•
Scenes and group controlling
•
Time and event controlled actions
•
Continuous metering
•
Surveillance
•
Control via smartphone and tablet using the ubisys app, or as usual via
buttons or switches
More information about the features of the ubisys smart home product line
can be found at www.ubisys.de.

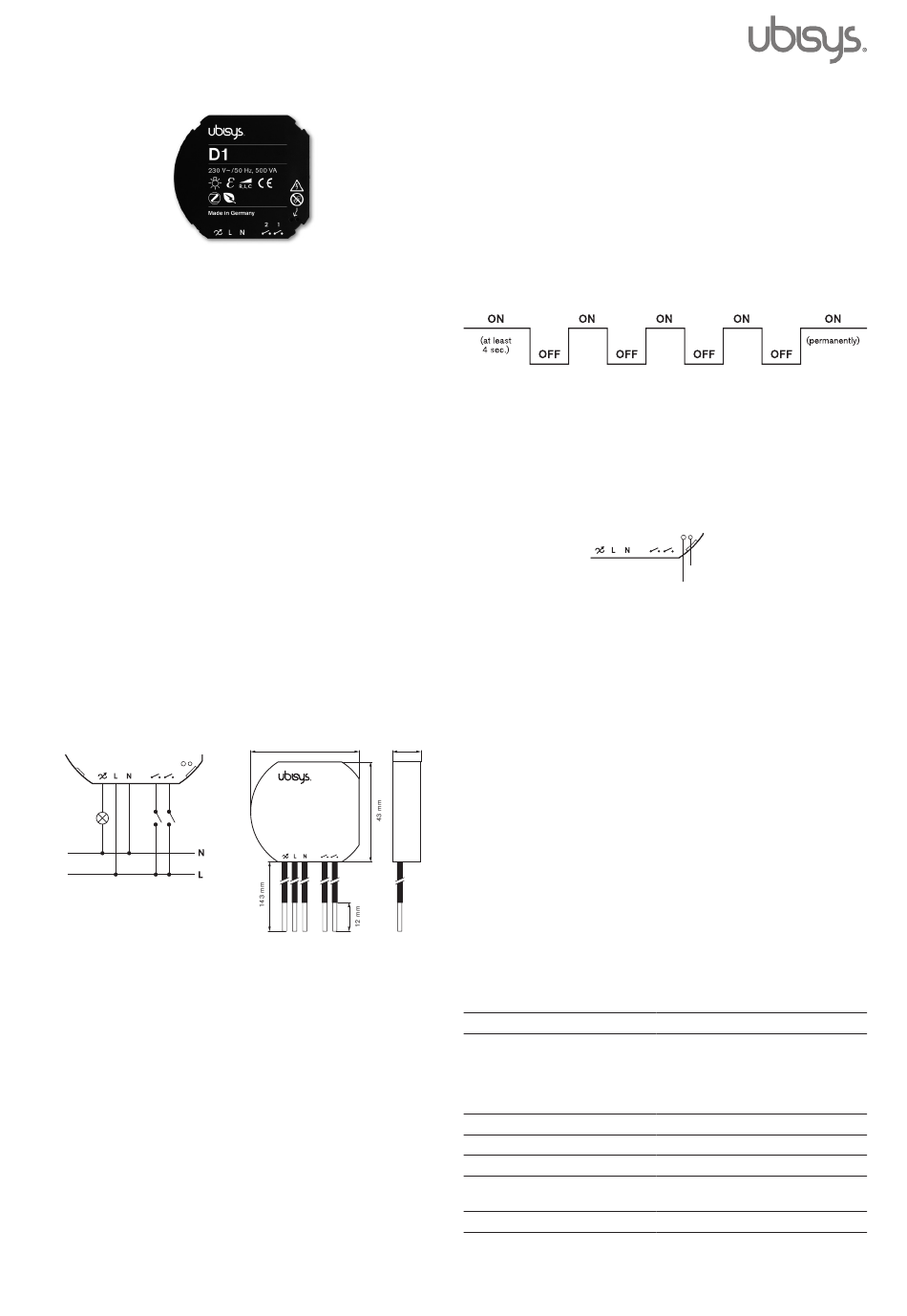

Installation
The universal dimmer D1 is designed for installation in flush mounted sockets
according to DIN 49073. For installation behind a switch or power socket,
deep sockets are recommended.
Universaldimmer D1
Funkvernetzt mit
Leads:
Stromverbrauchsmessung
230 V ~ / 50 Hz, 500 VA
47 mm
2
1
2
2 2
1 1
Router R0
For installation of the universal dimmer D1, the included clamps can be used.
90 - 270 V~ , 50/60 Hz
12 mm
During installation, the general risks of household voltage networks have to
(12 - 400 V=)
be noted!
Zigbee Initial Commissioning (Brand New Device)
1. Connect the unit to a power source (according to the connections).
2. Open a Zigbee network: when using the ubisys gateway, tap Confi-
2
guration -> Basic Configuration -> Open for new devices in the
2 1
ubisys app (if you are using third-party gateways or apps, follow the
corresponding procedure).
3. The Zigbee network is open and the device joins.
4. The device appears in the component list: Configuration -> Basic
Configuration -> Components.
Leistungsschalter S1
Funkvernetzt mit
Dimensions:
Stromverbrauchsmessung
230 V ~ / 50 Hz, 3.680 VA
12 mm 47 mm
1
2 1
Router R0
Funkvernetzt
47 mm 12 mm
AC 230 V ~ / 50 Hz
2
Factory Reset
Power-Cycle Sequencing Factory Reset: It is possible to instigate a factory
reset using a special power-cycle sequence without having access to the
device itself (only to its power supply). The only requirement is a simple on/
off sequence in a 1-second rythm:
1. The device has to be powered up for at least 4 seconds.
2. Power off for a second.
3. Power on for a second.
Repeat steps 2.-3. in the aforementioned 1-second rythm another 3 times,
and with the last sequence keep the device powered up (see illustration).
4. The device will automatically reboot to the original factory settings.
Factory Reset via Button: To reset the device to its factory fresh settings
(e.g. in order to join it to another network afterwards), press the button in the
larger of the two holes on the front for more than 10 seconds until the LED
Jalousiesteuerung J1
starts flashing rapidly.
Funkvernetzt mit
Only use the electrically isolated tool provided with the device to press the
Stromverbrauchsmessung
button in the hole.
230 V ~ / 50 Hz, 500 VA
2 2
1 1
LED
Button
Configuration
Upon delivery the factory settings of universal dimmer D1 has switching input
1 assigned to the corresponding switching output. So it can initially be ope-
rated autonomously without a radio network. Input port 2 is not configured by
default.
Leistungsschalter S2
For integration into the smart home radio network, the universal dimmer D1
Funkvernetzt mit
Stromverbrauchsmessung
has to be configured first. Direct access to the universal dimmer D1 is not
230 V ~ / 50 Hz, 2 x 500 VA
necessary for configuration. That means that network configuration can also
12 mm 47 mm
be done after successful electrical installation. It is best to hold the 16 digit
serial number of the universal dimmer D1 in the construction plan during
2 1 2 1
installation. This allows you to allocate the device at a later point.
When connected to power, the universal dimmer D1 automatically logs into
the Zigbee network. After that it can be configured via the electrician's instal-
lation software (ubisys Network Manager) or the ubisys smartphone app.
More information about adding and configuring ubisys smart home compon-
ents can be found in the Smart Home app manual.
4 3
Preconfiguring the dimming mode
It is possible to preconfigure the dimming mode to leading or trailing edge
by using a slightly different power-cycle sequence. More information can
be found in the technical reference manual of the D1(-R) (chapter 6.1.1.) at
Bedieneinheit C4
www.ubisys.de.
Funkvernetzt
47 mm 12 mm
AC 230 V ~ / 50 Hz
Technical Information
Rated voltage
Router R0 4 3 2 1
Dimming
90 - 270 V ~ , 50/60 Hz
(12 - 400 V=)
2
Max. switching power
Bulb load
High voltage halogen
Low voltage halogen, wound transfor-
mer with at least 85% rated load
NV halogen switch transformer
Universaldimmer D1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 500 VA
2 1
LED
Button
Router R0
12 mm
90 - 270 V ~, 50/60 Hz
(12 - 400 V=)
LED
2
Button
2 1
230 V ~, 50 Hz
Phase angle (L) and phase trailing edge (R,
C) 0 – 100%
Automatic selection of method through load
detection (R/L/C) or explicit demand (e.g.
for dimmable Retrofit-LEDs)
500 VA
500 W
500 VA
500 VA
500 VA
Leistungsschalter S1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 3.680 VA
LED
Button
Router R0
Funkvernetzt
AC 230 V ~ / 50 Hz
LED
Button
Page 1/2 As per 04/2020
