Fryette Valvulator GPDI/IR Owner's Manual

One watt vacuum tube direct recording amplifier

Advertisement

Quick Links

Valvulator
GPDI/IR
®
ONE WATT VACUUM TUBE
DIRECT RECORDING AMPLIFIER
OWNERS MANUAL
www.fryette.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Valvulator GPDI/IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fryette Valvulator GPDI/IR

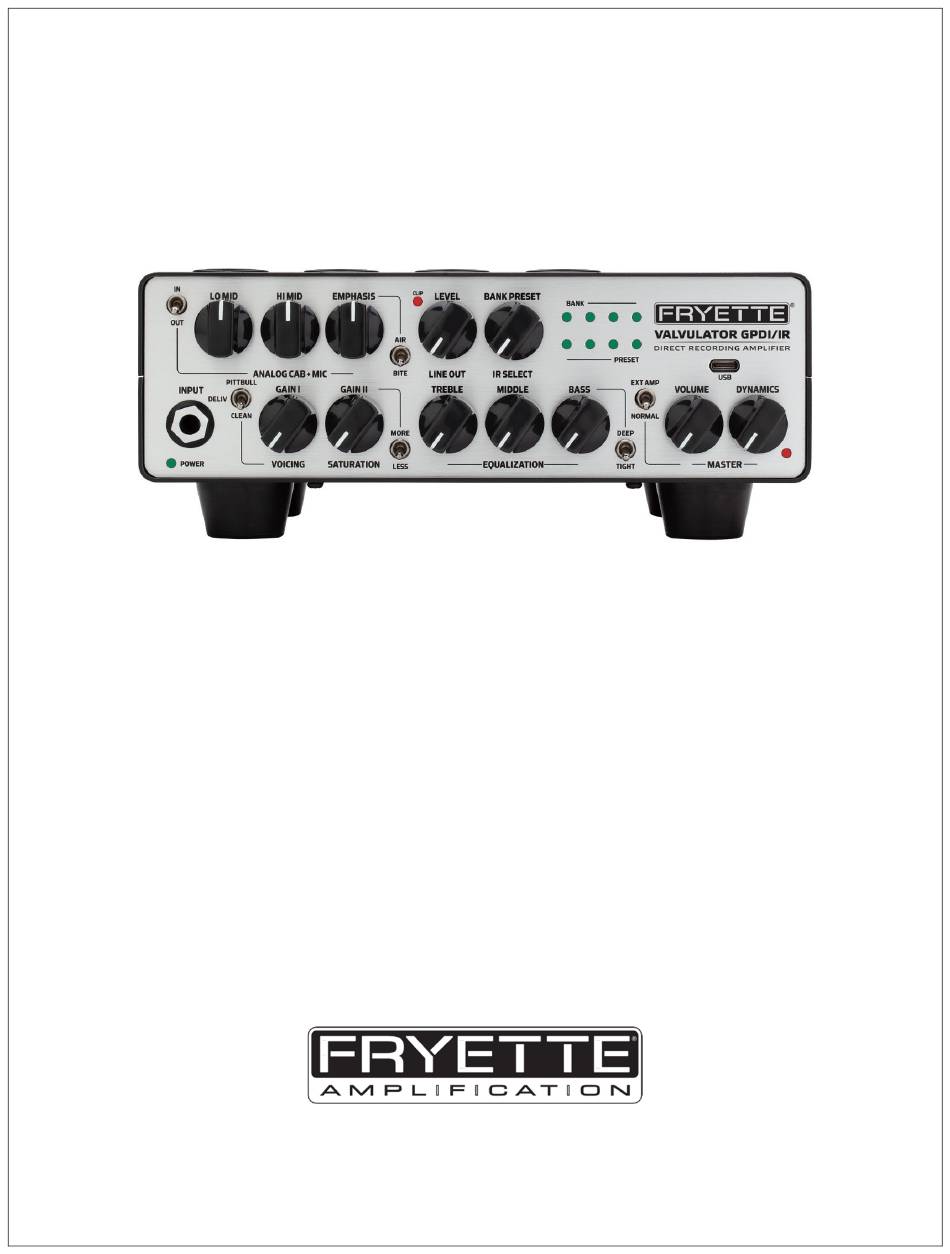

  • Page 1 Valvulator GPDI/IR ® ONE WATT VACUUM TUBE DIRECT RECORDING AMPLIFIER OWNERS MANUAL www.fryette.com...
  • Page 2 Getting familiar with the Valvulator GPDI/IR is easy, so don’t be terribly surprised when you find yourself up and running in no time. First-hand experience and real-world application will yield the ultimate...
  • Page 3: Important Safety Instructions

    CAUTION: No user serviceable parts inside, refer servicing to qualified personnel only.  FRYETTE® amplifiers and loudspeaker systems are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use.
  • Page 4 We now have our own help and support forum where you can get valuable information and interact with fellow Fryette users who will be able to share tips, tricks and maintenance info. So, we encourage you to join us at https://forum.fryette.com.
  • Page 5: Features And Specifications

    All Tube 1-Watt amplifier with integrated reactive load: Powered by four dual triode tubes, the Valvulator GPDI/IR delivers 1 watt into a speaker cab of any impedance. The integrated reactive load is designed specifically for the GPDI One-Watt output stage and the output transformer driving it. This purpose-built load is automatically engaged when no speaker cable is connected to the Speaker Out jack.
  • Page 6 IT ALL STARTS HERE The Input Sensitivity of an amplifier, commonly referred to as GAIN, determines how much overdrive and sustain your guitar will produce. Tonal balance, which we refer to as VOICING determines how the amp will respond to your playing style and sound with a particular guitar. The VOICING SWITCH, GAIN I, GAIN II AND MORE/LESS SWITCH give you total control over VOICING and GAIN.
  • Page 7: Front Panel Functions

    FRONT PANEL FUNCTIONS 10 11 13 14 POWER ON INDICATOR – Blinking indicates tube warm up. Solid light indicates Operate mode. 2. INPUT – Plug in your instrument (Guitar, Bass, Keyboard, etc) here. This sends signal to the first gain stage and rear panel unity gain DIRECT OUT.
  • Page 8: Rear Panel Functions

    EMPHASIS – Adjusts the high frequency behavior of the CAB + MIC simulator along with the AIR/BITE SWITCH. Control range is +/- 12dB, center detent is flat 19. AIR / BITE – AIR creates a more open sound similar to an off-axis mic placement. BITE creates a more pronounced top end similar to an on-axis mic placement.
  • Page 9 REAMP IN – Connect interface output here to reamp a prerecorded safety track. Front panel input jack must be disconnected for this input to operate. TO AMP INPUT – Connect to external amp instrument input to enable External Amp mode. Front panel EXT AMP mode must be engaged for this output to operate.
  • Page 10 USE ONLY THE FACTORY SUPPLIED CORDSET OR A UL APPROVED EQUIVALENT TYPE TO REDUCE THE RISK OF ELECTRIC SHOCK, PLEASE REFER SERVICING TO QUALIFIED SERVICE PERSONNNEL. NO USER SERVICABLE PARTS INSIDE. TUBE FUNCTION AND LOCATION Preamp, phase inverter and power tubes are mounted vertically inside the unit. No provision for internal or external biasing is provided.
  • Page 11: Troubleshooting Guide

    Check speaker cable. devices in the signal path or in the loop.  Try replacing V4 Output Tube (12DW7). SPECIFICATIONS Model: VALVULATOR GPDI/IR Height: 3.6 in (9.1 cm) Model Number: GPDI/IR. Width: 8.75 in (21.8 cm) Output: 1W Depth: 6.2 in (15.7 cm) Output Impedance: 2/4/8/16Ω...
  • Page 12 Declaration of Conformity EMC and Low Voltage Directive (CE) Product Name: VALVULATOR GPDI/IR Model Number: GPDI/IR This is to certify that the product listed above complies with the following European Union Council Directives and Standards relating to electromagnetic compatibility (EMC Directive 89/336/EEC) and the low voltage Directive (73/23/EEC).
  • Page 13: Limited Warranty

    LIMITED WARRANTY Subject to the obligations and exclusions found below, this product is warranted by Steven Fryette Design, Inc., (herein SFD) against manufacturing defects in materials and workmanship for the period of Five (5) Years from the date of purchase, with the exception of the tubes, fuses and speakers where applicable, which carry a 90-day warranty.
