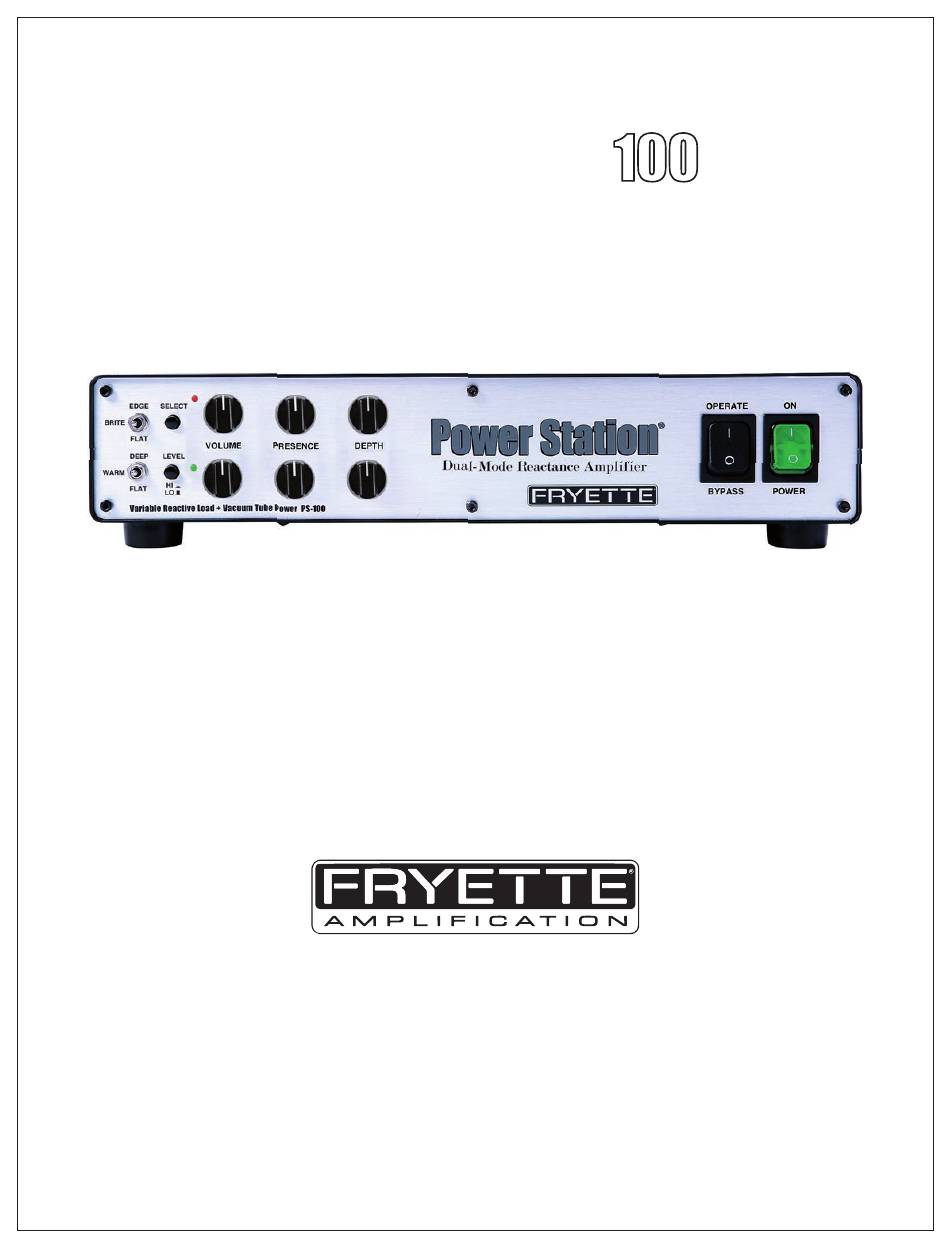

- Page 1 Power Station ® OWNERS MANUAL DUAL-MODE VARIABLE REACTIVE LOAD + TUBE POWER AMPLIFIER MODEL PS-100 www.fryette.com...
-
Page 2: Welcome To The Family
Welcome to the family! Congratulations and thank you for choosing the FRYETTE Power Station ® You are constantly searching for new sounds and new ways to improve your existing sound. We understand the constantly evolving nature of artistic creativity and the search for the perfect sound to complement your ever-widening musical vision. -
Page 3: Important Safety Instructions
AND POTENTIAL DAMAGE TO THE AMPLIFIER. X THE POWER STATION IS NOT INTENDED FOR USE WITH CLASS D OR PWM AMPLIFIERS. X FRYETTE AMPLIFICATION IS NOT RESPONSIBLE FOR ANY DAMAGE TO YOUR AMPLIFIER THAT MAY OCCUR IN CONNECTION WITH ANY USE OF THE POWER STATION. -
Page 4: Front Panel Functions

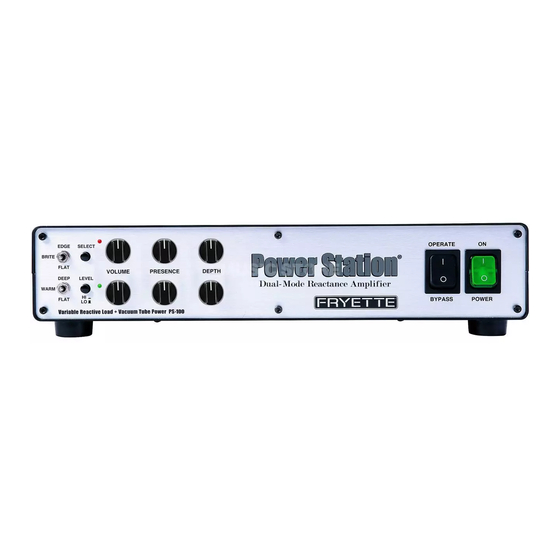

FRONT PANEL FUNCTIONS Power Station OPERATE EDGE SELECT ® BRITE FLAT VOLUME PRESENCE DEPTH Dual-Mode Reactance Amplifier DEEP LEVEL WARM FLAT BYPASS POWER Variable Reactive Load + Vacuum Tube Power PS-100 REACTIVE LOAD VOICING SWITCHES The Reactive Load in the Power Station is what absorbs the output power of the amplifier connected to the Amp In jack, and therefore the volume of that amplifier. - Page 5 LIFT LINE POWER STATION MODEL PS-100 QUALIFIED SERVICE PERSONNEL SERIAL: GROUND STEVEN FRYETTE DESIGN, INC. LEVEL LEVEL NO USER SERVICABLE PARTS INSIDE 1. L out, effects processor, pedal preamp or iPhone. Virtually any device that you want to amplify to listening level through a speaker cabinet can be connected here.
-
Page 6: Using Silent Mode
IMPORTANT: The SPEAKER OUT jack has an open load protection feature. If no cable is connected to this jack the Power Station will remain locked in BYPASS/STANDBY mode regardless of the front panel Standby switch setting. This is done to prevent potential damage to your valuable vintage amp should the speaker cable become disconnected while in Bypass mode. Use only a standard mono (tip/sleeve) 1/4“ phono plug. 11. CABINET IMPEDANCE – When the speaker jack is connected, simply set the impedance selector switch to match your cabinet. IMPORTANT: The 2/4Ω amp and speaker setting is designed to be safe and compatible with all vintage 2Ω and 4Ω amplifiers. Because a reactive load is not an actual speaker, the impedance behavior of the load will not vary as wildly as an actual speaker and will therefore maintain a safe and stable load for your treasured vintage amps at this low impedance range. -
Page 7: Application Examples
ECHANGE DE MEME TYPE REFER SERVICING TO LIFT LINE POWER STATION MODEL PS-100 QUALIFIED SERVICE PERSONNEL SERIAL: GROUND STEVEN FRYETTE DESIGN, INC. LEVEL LEVEL NO USER SERVICABLE PARTS INSIDE Standard ¼“ to ¼“ male speaker cable XLR Line Out Amp Speaker Out... - Page 8 ECHANGE DE MEME TYPE REFER SERVICING TO LIFT LINE POWER STATION MODEL PS-100 QUALIFIED SERVICE PERSONNEL SERIAL: GROUND STEVEN FRYETTE DESIGN, INC. LEVEL LEVEL NO USER SERVICABLE PARTS INSIDE Standard ¼“ to ¼“ male speaker cable Standard Amp Speaker Out...
- Page 9 REFER SERVICING TO LIFT LINE POWER STATION MODEL PS-100 QUALIFIED SERVICE PERSONNEL SERIAL: GROUND STEVEN FRYETTE DESIGN, INC. LEVEL LEVEL NO USER SERVICABLE PARTS INSIDE Standard ¼“ to ¼“ CAUTION! The 200W maximum power ra- male speaker cable XLR Line Out ting of the Power Station’s load depends...
-
Page 10: Troubleshooting Guide
SQUEEL / FEEDBACK 1. Move your guitar/pickups away from your amplifier. See Proximity Feedback info sheet at www.fryette.com SPECIFICATIONS MODEL: POWER STATION 100 DIMENSIONS: MODEL NUMBER: PS-100. HEIGHT: 3.6 in (9.1 cm) POWER REQUIREMENT: 300W WIDTH: 14 in (35.5 cm) POWER AMP OUTPUT: 100W RMS @ 5% THD, DEPTH: 9 in (22.8 cm) -
Page 11: Certificate Of Compliance
Declaration of Conformity EMC and Low Voltage Directive (CE) Product Name: POWER STATION 100 Model Number: PS-100 This is to certify that the product listed above complies with the following European Union Council Directives and Standards relating to electromagnetic compatibility (EMC Directive 89/336/EEC) and the low voltage Directive (73/23/EEC). -
Page 12: Limited Warranty
LIMITED WARRANTY Subject to the obligations and exclusions found below, this product is warranted by Steven Fryette Design, Inc., (herein SFD) against manufacturing defects in materials and workmanship for the period of Five (5) Years from the date of purchase, with the exception of the tubes, fuses and speakers where applicable, which carry a 90 day warranty.
