LX II
STEREO POWER AMPLIFIER
MODEL LX II
OWNERS MANUAL
www.fryette.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fryette LX II

Summary of Contents for Fryette LX II

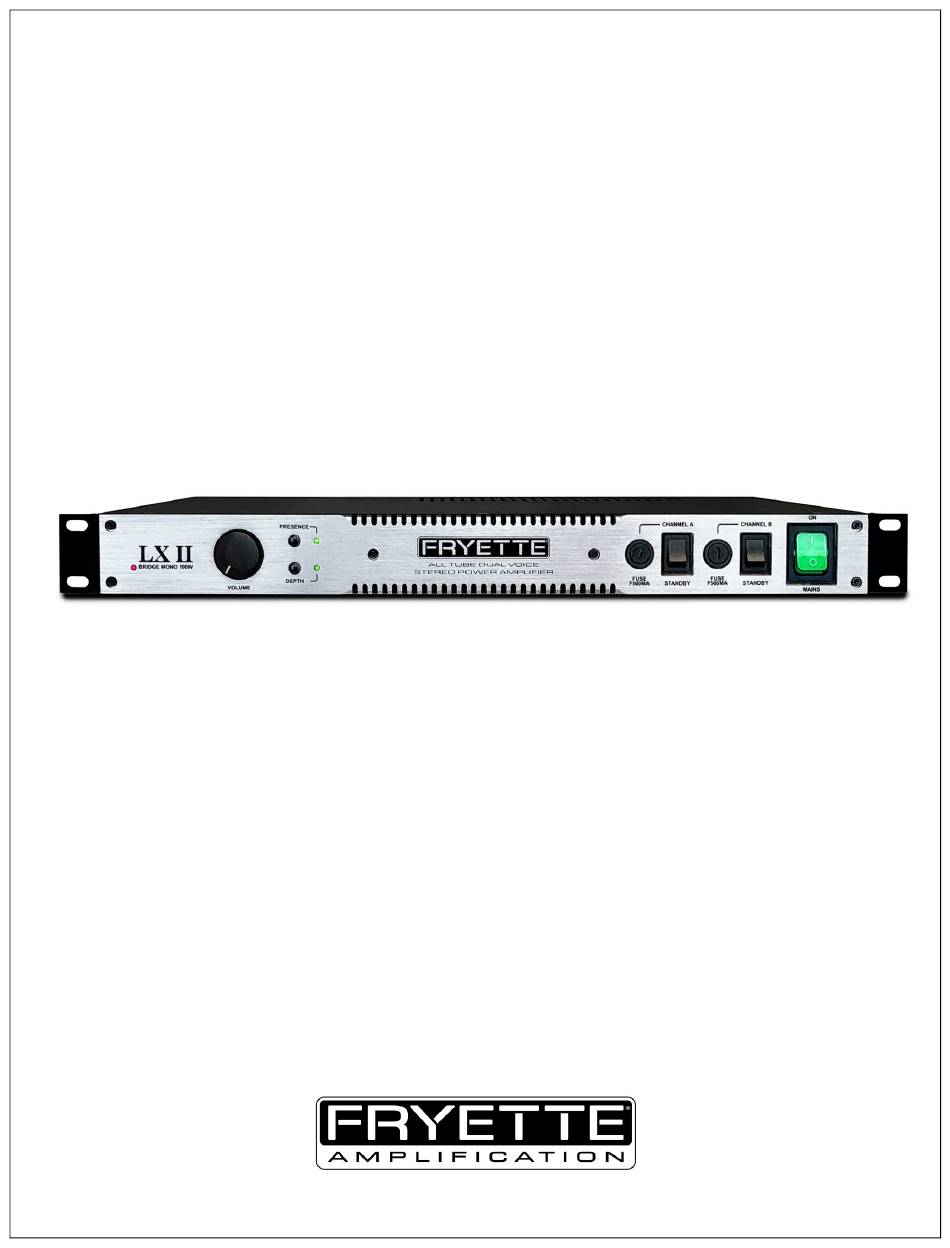

  • Page 1 LX II STEREO POWER AMPLIFIER MODEL LX II OWNERS MANUAL www.fryette.com...
  • Page 2 With Fryette Power Amplifiers, it’s all about the feel. Once you hear a modeling amplifier with a real tube power amp pushing the speakers you’ll instantly understand why a digital signal path can’t duplicate the complex relationship between a power tube and the speakers.

  • Page 3: Important Safety Instructions

     CAUTION: No user serviceable parts inside, refer servicing to qualified personnel only. FRYETTE® amplifiers and loudspeaker systems are capable of producing very high sound pressure levels which may cause temporary or  permanent hearing damage. Use care when setting and adjusting volume levels during use.

  • Page 4: Front Panel

    FRONT PANEL LEFT TO RIGHT 1. VOLUME – A single volume control provides equal output levels for both channels simultaneously. 2. PRESENCE/FRFR - Push button switch. Engages the Presence control setting. 3. DEPTH/FRFR - Push button switch. Engages the Depth control setting. 4.

  • Page 5: Rear Panel

    REAR PANEL RIGHT TO LEFT 1. INPUT A/MONO BRIDGE - Upper input jack for BRIDGE/MONO signal input. (Example: Mono signal coming from a pre- amp is sent to A and B Channels simultaneously) or to Channel A input from a stereo source. 2.
  • Page 6 12AX7AC Ruby Selected V3-V6 Power Tubes 6L6GCM Ruby Selected Fryette Tested & Matched Sovtek 5881-6L6WGC Fryette Tested & Matched Any good quality 6L6/5881 tube type will operate properly in this amplifier. Due to the unique, compact design, the power tubes bias voltage is factory fixed for optimum operation. NOTE! The operating voltages and temperature are optimized for this specific bias setting.

  • Page 7: Troubleshooting Guide

    If any fuse blows again, refer to qualified service personnel. 1. Bad power tube or other internal power supply component (refer to qualified service personnel). SPECIFICATIONS MODEL: LX II MODEL NUMBER: LXII POWER REQUIREMENT: 350W POWER AMP OUTPUT PER CHANNEL: 50W RMS @ 5% THD, 1kHz sine into 8Ω...
  • Page 8 Certification was issued. Declaration of Conformity EMC and Low Voltage Directive (CE) Product Name: LX II Power Amplifier Model Number: LXII This is to certify that the product listed above complies with the following European Union Council Directives and Standards relating to electromagnetic compatibility (EMC Directive 89/336/EEC) and the low voltage Directive (73/23/EEC).
  • Page 9 LIMITED WARRANTY Subject to the obligations and exclusions found below, this product is warranted by Steven Fryette Design, Inc., (herein SFD) against manufacturing defects in materials and workmanship for the period of Five (5) Years from the date of purchase, with the exception of the tubes, fuses and speakers where applicable, which carry a 90 day warranty.
