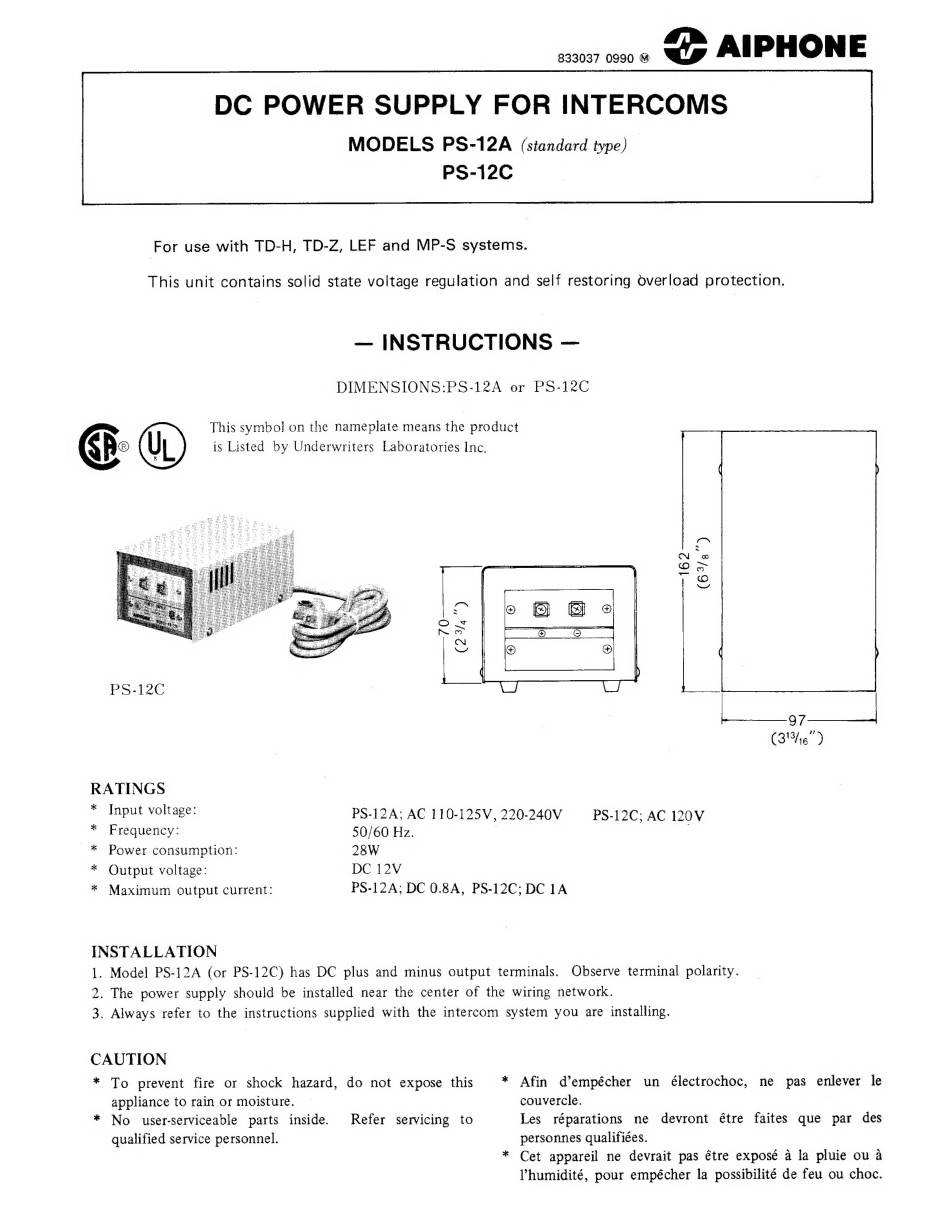

Aiphone PS-12A Instructions

MODELS PS-12A (standard type)
PS-12C
For use with TD-H, TD-Z, LEF and MP-S systems.
This unit contains solid state voltage regulation and self restoring Overload protection.
— INSTRUCTIONS —
DIMENSIONS:PS-12A or PS-12C
This symbol on the nameplate means the product
Se is Listed by Underwriters Eaboratories Inc.
PS-12C
e
(3/6)
RATINGS
* Input voltage: PS-12A; AC 110-125V,220-240V PS-12C; AC 120V
* Frequency: 50/60 Hz. |
* Power consumption: 28W
* Output voltage: DC 12V
* Maximum output current: PS-12A; DC 0.8A, PS-12C; DC 1A
INSTALLATION
1. Model PS-12A (or PS-12C) has DC plus and minus output terminals. Observe terminal polarity.
2. The power supply should be installed near the center of the wiring network.
3. Always refer to the instructions supplied with the intercom system you are installing.
CAUTION
* To prevent fire or shock hazard, do not expose this * Afin d'empécher un électrochoc, ne pas enlever le
appliance to rain or moisture. — couvercle.
* No user-serviceable parts inside. Refer servicing to Les réparations ne devront étre faites que par des
qualified service personnel. personnes qualifiées.
* Cet appareil ne devrait pas étre exposé a la pluie ou a
l'humidité, pour empêcher la possibilité de feu ou choc.
