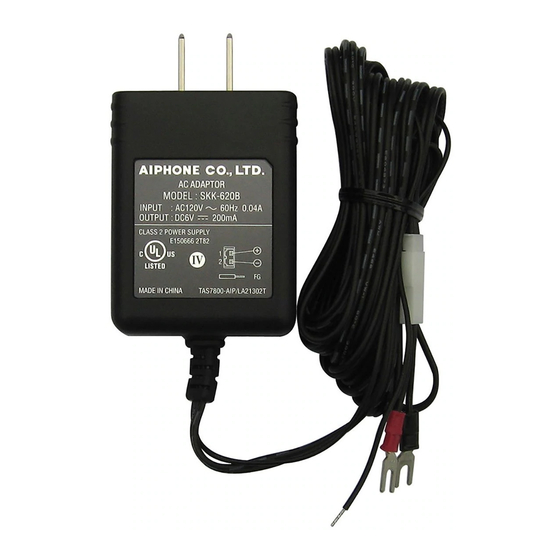

Aiphone SKK-620B Installation Manual

This product is designed exclusively for use with Aiphone Intercom Systems.
PRECAUTIONS
General prohibitions
WARNING
(Negligence could result in death or serious injury.)
Do not connect the unit with any non-specified power source. Fire or electric shock could result.
Do not connect any wire on the unit to AC power lines.
Keep output cord away from being marred or crushed. Fire or electric shock could result.
Do not plug or unplug with wet hands. Electric shock could result.
Do not short the wires. Fire or unit trouble could result.
Do not dismantle or alter the unit. Fire or electric shock could result.
Keep AC plug away from moisture or dust. Fire could result.
CAUTION
(Negligence could result in injury or damage to property.)
Do not install or make any wire terminations while power supply is plugged in. It can cause electrical shock or damage to the unit.
Before plugging in the unit, make sure the wires are not crossed or shorted. It can cause fire or electric shock.
Do not install the unit in any of the following locations. Fire, electric shock, or unit trouble could result.
· Places under direct sunlight or places near heating equipment that varies in temperature.
· Places subject to dust, oil, chemicals, etc.
· Places subject to moisture and humidity extremes, such as bathrooms, cellars, greenhouses, etc.
· Places where the temperature is quite low, such as inside a refrigerated area or in front of an air conditioner.
· Places subject to steam or smoke (near heating or cooking surfaces).
· Places subject to direct rain or outdoors.
· Where noise generating devices such as dimmer switches or inverter electrical appliances are close by.
· Do not install the unit in locations subject to frequent vibration or impact.
IMPORTANT:
In case your System and/or Power Supply malfunctions or is in apparent trouble, unplug the Power Supply from AC outlet.
Red
Black
Connector
1

PACKAGE CONTENTS

• SKK-620B
• INSTALLATION MANUAL
• Connector
Models;

DC POWER SUPPLY

INSTALLATION MANUAL
Prohibitions to dismantle the unit
White dashed line
Ground wire approx. 1' (30cm)
approx. 12' (360cm)
SKK-620B
General precautions
Output cord
- 1 -
SKK-620B MANUAL A P0709 AQ
Plug
