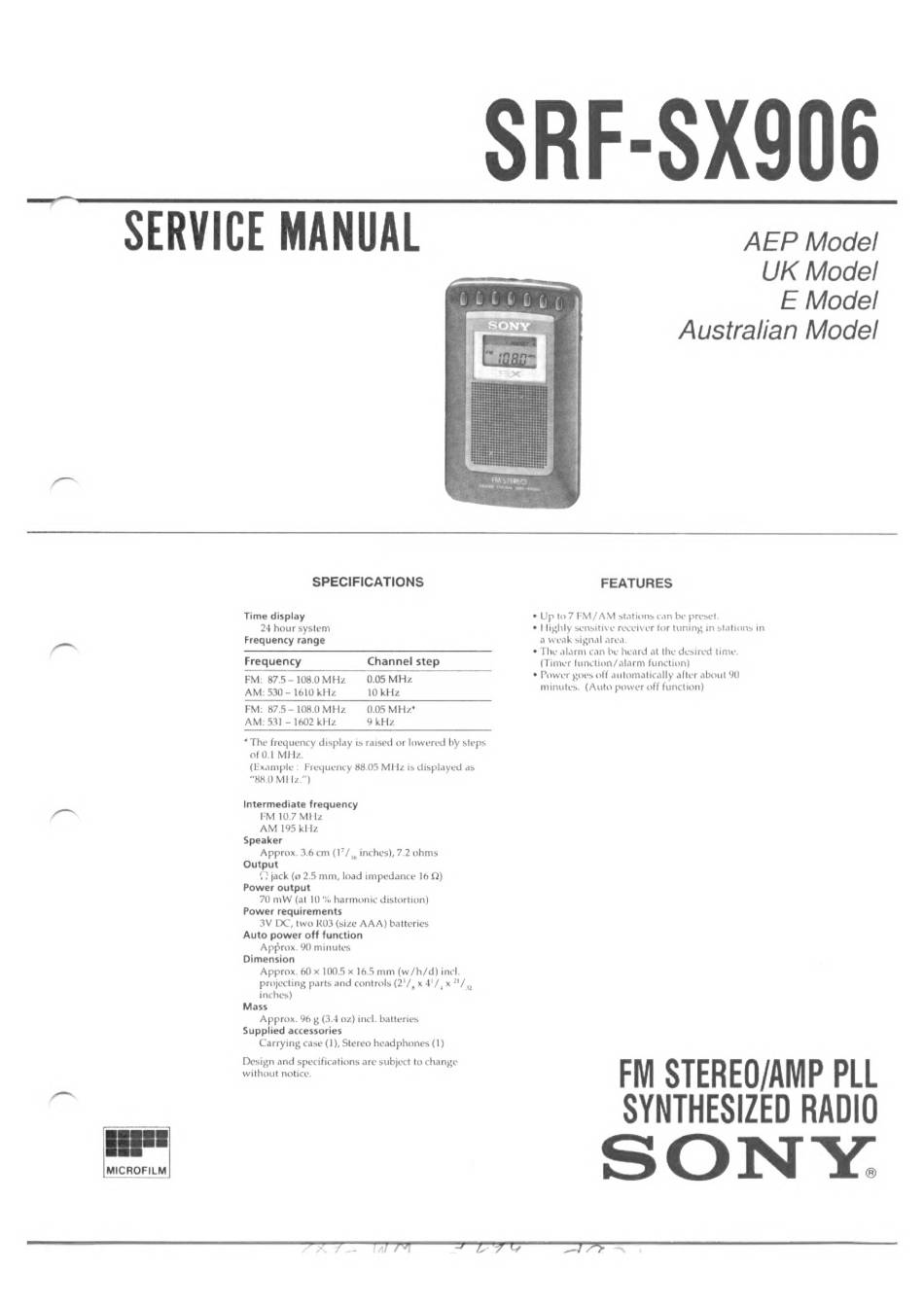

Sony SRF-SX906 Service Manual

SRF-SX906
SERVICE MANUAL AEP Model
UK Model
E Model!
Australian Model
—~ FM'STERECY
FOANG esta nies 8x 808
SPECIFICATIONS FEATURES
Time display ¢ Up to 7 FM/AM stations can be preset.
24 hour system * Highly sensitive receiver for tuning in stations in
sake Frequency range a Weak signal area.
7 eee ® The alarm can be heard at the desired time.
Frequency Channel step (Timer function/alarm function)
FM: 87.5 — 108.0 MHz 0.05 MHz ao * Power goes off automatically after about 90
AM: 530 - 1610 kHz 10 kHz minutes. (Auto power off function)
FM: 87.5 —- 108.0 MHz 0.05 MHz*
AM: 531 - 1602 kHz 9 kHz
* The frequency display is raised or lowered by steps
of 0.1 MHz.
(Example : Frequency 88.05 MHz is displayed as
"88.0 MEIz.")
Intermediate frequency
Y" FM 10.7 MHz
AM 195 kHz
Speaker
Approx. 3.6 cm (1'/_, inches), 7.2 ohms
Output
(} jack (o 2.5 mm, load impedance 16 2)
Power output
70 mW (at 10 "oe harmonic distortion)
Power requirements
3V DC, two R03 (size AAA) batteries
Auto power off function
Approx. 90 minutes
Dimension
Approx. 60 x 100.5 x 16.5 mm (w/h/d) inel.
projecting parts and controls (2'/, x 4'/, x 7"/,,
inches)
Mass
Approx. 96 g (3.4 02) incl. batteries
Supplied accessories
Carrying case (1), Stereo headphones (1)
_—¥ SONY.
MICROFILM
