Summary of Contents for EVERCROSS A1

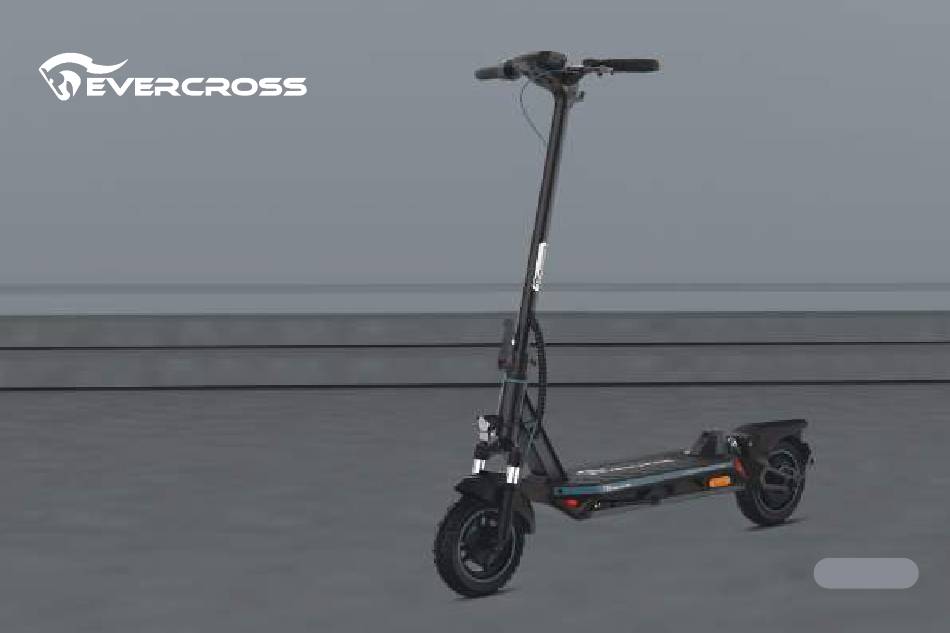

- Page 1 ELECTRIC SCOOTER USER MANUAL MODEL NO: A1 EN V1.2.1...
- Page 2 Step 3: Click the "Ask a Question" button. Choose your topic from list displayed. Step 4: Select Contact seller. *If you purchased EVERCROSS products by other platforms or channels, please also find the corresponding seller contact support. Thanks for your support and patience!
-
Page 3: Table Of Contents
CONTENTS Home Page························································································02 Package Contents···············································································03 Product Overview············································································04-06 Assembly And Set-up···········································································07 Charge Your Scooter············································································08 Folding And Carrying············································································09 Adjusting Your Scooter··········································································10 Troubleshooting···············································································11-13 Smart Phone APP················································································14 How To Ride···················································································15-16 Safety Reminder·············································································17-19 Daily Care And Maintenance······························································20-21 Specifications·················································································22-23 FCC Warning Statement·······································································24 Warranty····························································································25 Contact······························································································26... -
Page 4: Home Page
HOME PAGE CONGRATULATIONS ON YOUR NEW PURCHASE! The A1 is not only a short-distance transportation product that is easy to fold and carry, also a stylish sport entertainment equipment. Enjoy your ride and connect with riders worldwide! * All pictures in this manual are for reference only, please refer to the actual product. -
Page 5: Package Contents
A1. *Please retain the box and packaging materials in case you need to ship your A1 in the future. *Remember to power off your A1 and unplug the charge cable before assembling or mounting... -
Page 6: Product Overview
PRODUCT OVERVIEW 1. Product Diagram Dashboard Bell Brake handle Accelerator Power Button Hook Turn Left Turn Right Folding Mechanism Charge Port Buckle Suspension Footboard Headlight Fender Suspension Brake Light Motor Drum Brake Turn Light Stand Turn Light... -
Page 7: Button Usage
2. Button Usage • Power ON/OFF: Long press the button for 3 seconds, all icons are lighting, showing speed & batter • Headlight ON/OFF: Click the button for 2 times (Headlight ON: • Click the button for 1 time to change the speed gear from 1 to 4 levels, LED display P1 / P2 / P3 / P4. Max speed is increasing when LED display from P1 to P3. -
Page 8: Cruise Control
• Click the button for 3 times to switch display of speedometer km/h / mph. 3. Features • Superior Aviation Aluminum Alloy. • Real-time Temperature Monitoring, Short Circuit / Low Voltage / Overcurrent / Overcharging Protection. • Digital Speedometer Display, Easy to Read Speed. •... -
Page 9: Assembly And Set
ASSEMBLY AND SET-UP 1. Unfold the handlebar stem and fasten it. 2. Firmly connect the wires inside the handle and the stem. Slide the handle onto the stem. 3. Tighten the screws onto three sides of 4. After the assembly, press the power button to the stem with the hexagon wrench. -
Page 10: Charge Your Scooter
Please connect the DC charging port first, then connect to the socket power supply for charging, finally unplug the outlet when charging is complete. Your A1 is fully charged when the LED on the charger changes from red (charging) to green. -
Page 11: Folding And Carrying
FOLDING AND CARRYING Fold Open Make sure that the scooter's turned off. To fold, unlock the folding mechanism, and bend the handlebar stem to hook the buckle. To open, remove the hook from the buckle, erect the handlebar and lock the folding structure. -
Page 12: Adjusting Your Scooter
ADJUSTING YOUR SCOOTER If the handlebar and its stem sway during riding, use the hexagon wrench to tighten the screws on the folding mechanism. -
Page 13: Troubleshooting
TROUBLESHOOTING Error Code Failure Description Solutions Wrong in communication 1. Check whether the display control board is well connected; 2. Replace the display. 3. Replace the control board. Encounter obstacles that 1. Release the accelerator and stop braking. E-scooter can’t get over it 2. - Page 14 Low voltage alarm 1. Stop riding and get scooter charged. 2. Restart. 3. Check if firmware has been wrongly upgraded. 4. Replace the control board. High voltage alarm 1. Check whether scooter has been fully charged, riding the scooter at low speed, avoiding braking suddenly when scooter is fully charged.
- Page 15 Control board high 1. Stop riding or riding scooter at low speed, avoiding temperature climbing. 2. Check the installation of control board radiator. 3. Replace the control board Control board super high 1. Stop riding or riding scooter at low speed, avoiding temperature climbing.
-
Page 16: Smart Phone App
SMART PHONE APP Your A1 is an App-enabled electric scooter that works with most mobile devices. You must download the app in order to change certain features of your electric scooter. You could download the APP in the following two ways: Method 1: Search for the APP from either the App Store or Google Play Store to download. -
Page 17: How To Ride
HOW TO RIDE • Step 1: Check E-scooter Status • Step 2: Wear protective equipment. Check the environment whether it's safe to ride without hurting yourself or others. Check the battery level and remain mileage in APP. • Step 3: Try to slide with one leg. •... - Page 18 • Step 5: During riding, try to release the • Step 6: Try to use the headlight. throttle and pull the brake lever. WARNING When sudden braking, you may risk serious injury due to loss of traction and falls. Please maintain a proper speed and look out for potential hazards.
-
Page 19: Safety Reminder
SAFETY REMINDER • Wear protective equipment. • Avoid riding in the rain when possible. • Do not load over 120kg. • Ride slowly in special cases. - Page 20 • Do not place one foot on the deck or on • Do not tread the back of the fender. the ground when riding. • Do not leave your hands during riding. • Do not ride upstairs or downstairs, or over obstacles.
- Page 21 • Do not hold a child during riding. • Do not ride on highway or motor vehicle road. • Do not ride with sharp turn.
-
Page 22: Daily Care And Maintenance
DAILY CARE AND MAINTENANCE Cleaning If you see stains on the scooter’s body, wipe them off with a damp cloth. If the stains won’t scrub off, put on some toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth. If you see scratches on plastic parts, use sandpaper or other abrasive materials to polish them. - Page 23 If the scooter is expected to be left idle for more than 30 days, please fully charge the battery and place it in a dry and cool place. Keep in mind to recharge it every 60 days to protect the battery from potential damage which is beyond limited warranty.
-
Page 24: Specifications
SPECIFICATIONS Product Name Electric Scooter Model Package Dimension 132*27*66.5cm Product Dimension(Unfold) 50.78*25.59*50 inch (129*65*127cm) Product Dimension(Folded) 50.78*25.59*25.19 inch (129*65*64cm) Net Weight 26.85KG (59.2lbs) Gross Weight 32.47KG (71.6lbs) Maximum Load 120KG (265lbs) Recommended Load 45KG-100KG (100-220lbs) Applicable Age Motor Power Peak power: 800W; Rated power: 500W Battery Capacity 48V 14AH Charging Time... - Page 25 General Mode: 15.5MPH(25KM/H)； Maximum Speed Sport Mode: 28MPH(45KM/H, under 75kg) Brake Type Front Drum Brake + EABS Charger Input: 100-240V; Output: 54.6V/2A Shock Absorber Front and Rear Suspension Display Running Condition -10℃/+45℃; 0-75% Humidity Storage Condition -20℃/+50℃; 0-75% Humidity [1] Vehicle height: from the ground to the top of the scooter. [2] General range: measured when there is no wind and at 25°C, the scooter’s fully charged to ride at a constant speed of 15 km/h on a flat surface with a load of 75 kg.
-
Page 26: Fcc Warning Statement
FCC WARNING STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 27: Warranty
2)The warranty will be performed in such a way that we shall decide whether to repair the defective parts or to replace them with working parts free of charge. EVERCROSS reserves the right to exchange the product for a replacement product of equal value if the product sent in cannot be repaired within a reasonable time or at a reasonable cost. -
Page 28: Contact
CONTACT Please contact us directly if you experience any riding, maintenance, safety, errors/faults issues with your EVERCROSS product. E-mail Service: support@evercross.eu official_evercross official_evercross Evercross Official EVERCROSS https://evercross.eu/... - Page 32 For warranty information, Please visit us at: https://www.evercross.eu/...
