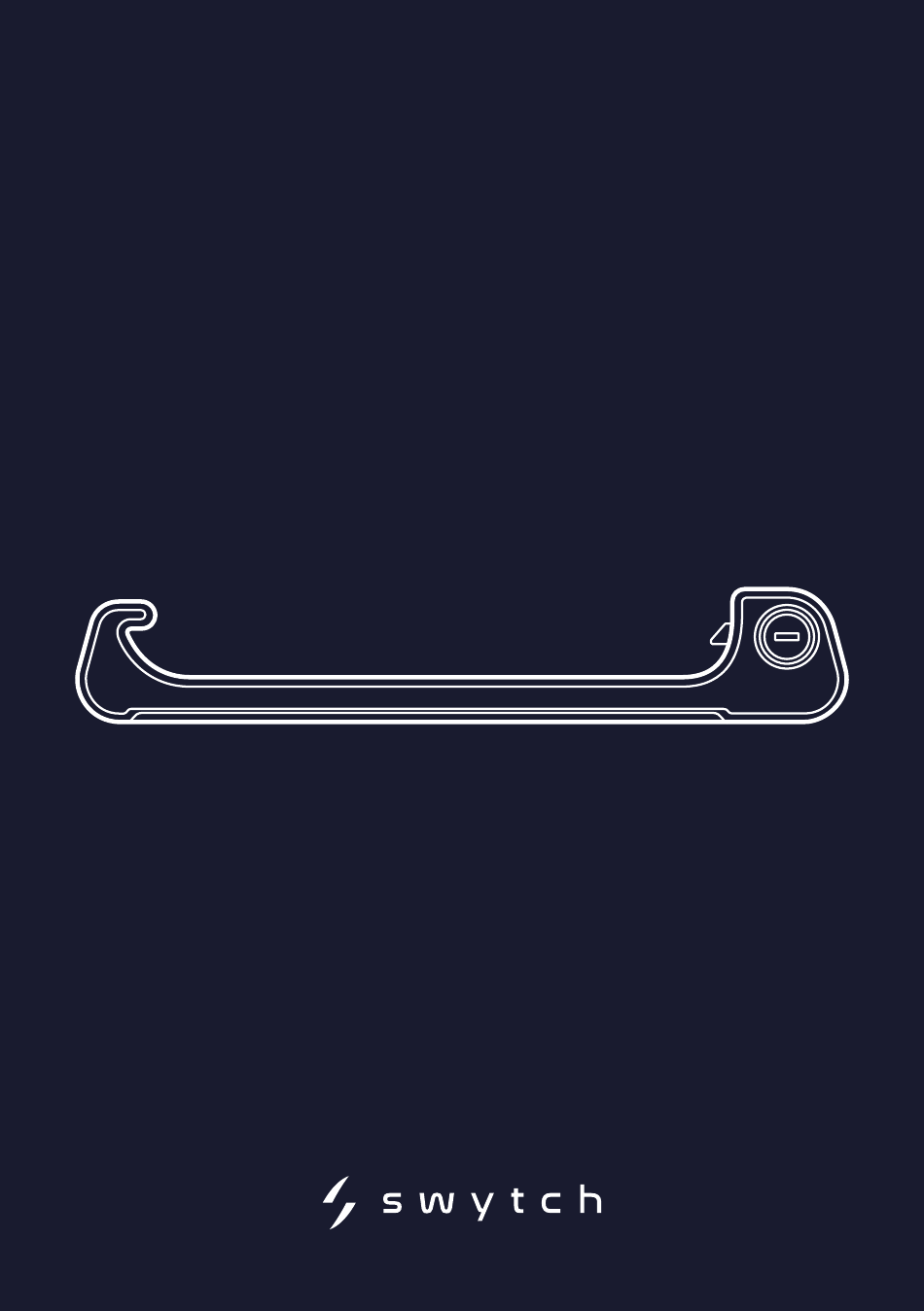

- Page 1 Quick Lock Mount...
- Page 2 Version 001 Swytch Help Centre...
- Page 3 About The Swytch GO Quick Lock Mount enables you to lock your Swytch GO Kit on your bikes frame. Standard Harness Length Mounting Options: Extended Harness Length Mounting Options:...
- Page 4 - Flat Heat Screw Driver - Scissors - 3mm Allen Key Note Please be aware that the Quick Lock Mount is not compatible with bikes made from carbon. It is also not suitable for frames with limited space inside as shown below.
- Page 5 Placement Guidance Do not fit the Quick Lock Mount so that the Power Pack is If you intend on mounting your mounted upside down. Quick Lock Mount on a diagonal or vertial tube, always ensure that the ‘lock end’ is raised higher than the ‘hook end’...
- Page 6 Screw Installation Align two of the Quick Lock Mount holes with the weld nuts that are on your bike’s frame. Ensure that the Quick Lock Mount is always mounted in the shown orientations with the lock at the top. Lock at top...
- Page 7 Assemble the two M5 washers and Ensure 3 Nm of torque is used. two M5 screws into the two holes Visit swytchbike.com/manual and tighten using a 3mm Allen Key /3nm/ for support. to 3 Nm of torque. M5 Screws M5 Washers...
-
Page 8: Hose Clamp Installation
Hose Clamp Installation Wrap the shrink tubing round the circumference of your bike frame where you wish to position your Quick Lock Mount. Cut two pieces of tubing using scissors to this length. Feed the tubing on to the hose clamp. This will help reduce scratching on your bike... - Page 9 Place the Quick Lock Mount on Do not fit the Quick Lock Mount your frame and feed the two hose so that the Power Pack is clamps through the two gaps in the mounted upside down. main body. Then insert the tail end into the opening in the clamp.
- Page 10 Ensure your brakes function properly if you tightened the hose clamps over any cabling. Do not trim the clamp’s tail as this will leave sharp corners. The hose clamp installation is not suitable for carbon fiber frames.
- Page 11 Prepare Your Power Pack Remove the underside strap from your GO Power Pack, so the mounting gaps are accessible. Remove and store away Mounting holes Affix the top strap by securing it back through the prong on the Power Pack’s main body.
- Page 12 Power Pack Insertion Lower the GO Power Pack into the Once slotted in, push down on the mount, first aligning the hook Power Pack until you hear/feel a feature with the recess in Power click. This occurs when the lock Pack’s corner.
- Page 13 Swytch Technology Ltd, Unit 2A 455 Wick Lane London E3 2TB...
- Page 14 Scan here for the Swytch Help Centre.
