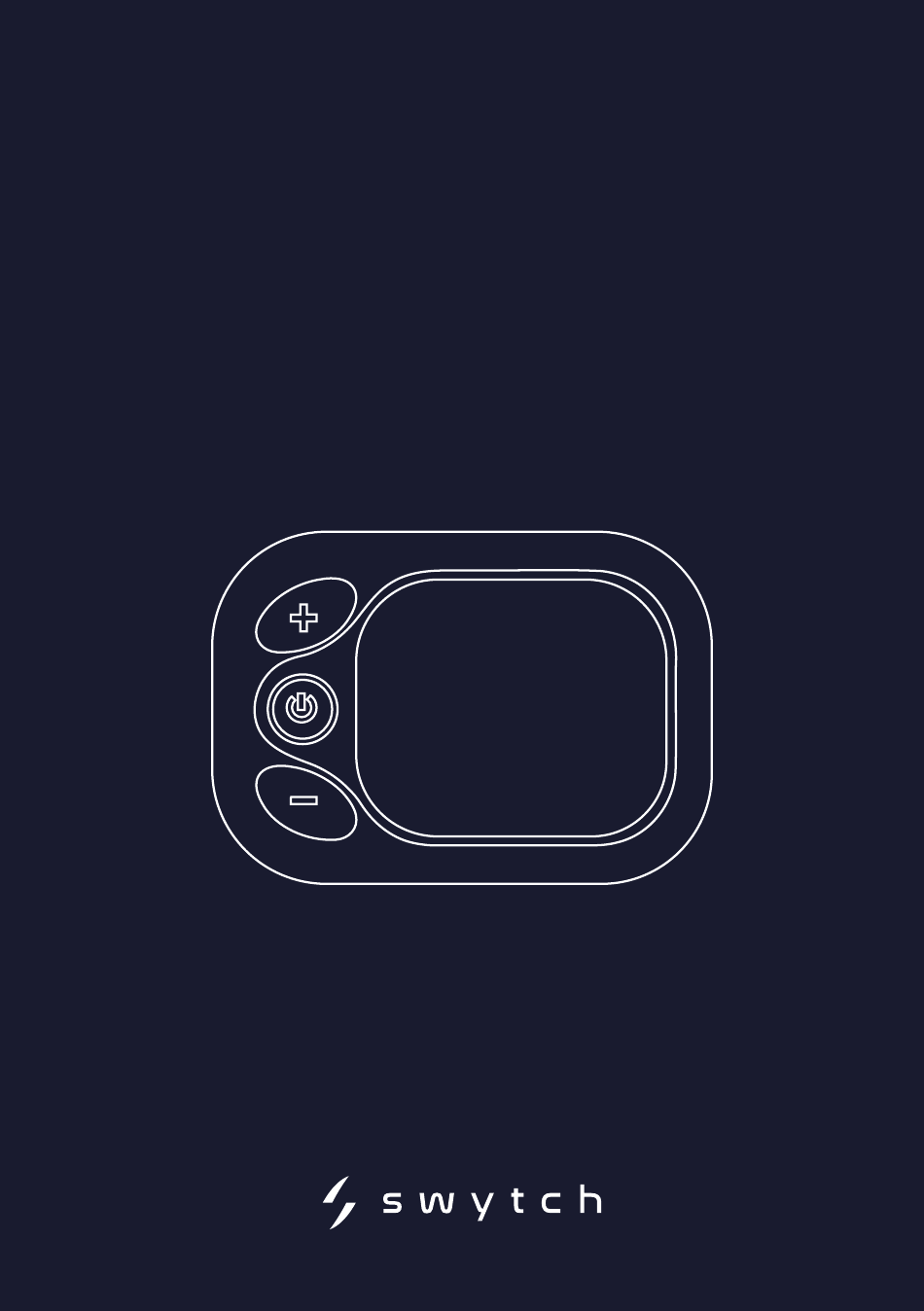

Page 1 Display...
Page 2 Version 001 Swytch Help Centre...
Page 3 About The displays allow you to control the Kit’s power. You also use it to access the settings. ‘+’ - changing value/ selection. On/Off - making a Power level selection or powering on or off. Battery level ‘-’ - changing value/ selection.
Page 4: Installation
Installation To fit the base display simply open Tighten the screw on the back of up the clasp and fit around your the display using a 3mm Allen key. bikes handlebars. Check your brakes and gear shifters work as normal. Connect the green power cable into the green cable coming out from the mount/harness.
Page 5 Settings Press and hold the up and down arrows together to access the settings. Once activated, the battery indicator will start flashing. In the settings mode, use the up and down arrows to change the values. Press the On/Off button once to confirm the value and move onto the next setting option.
Page 6 These are the different values available for each setting. Factory reset Click the middle button when ‘yes’ is highlighted to perform the reset. Top speed Please note the default setting is 15mph, which is the legal 33kph (USA LIMIT) limit for eBikes in the UK/EU. 28kph 25kph (EU &...
Page 7 Swytch Technology Ltd, Unit 2A 455 Wick Lane London E3 2TB...
Page 8 Scan here for the Swytch Help Centre.
