SMAY SCD Series Technical And Operational Documentation

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

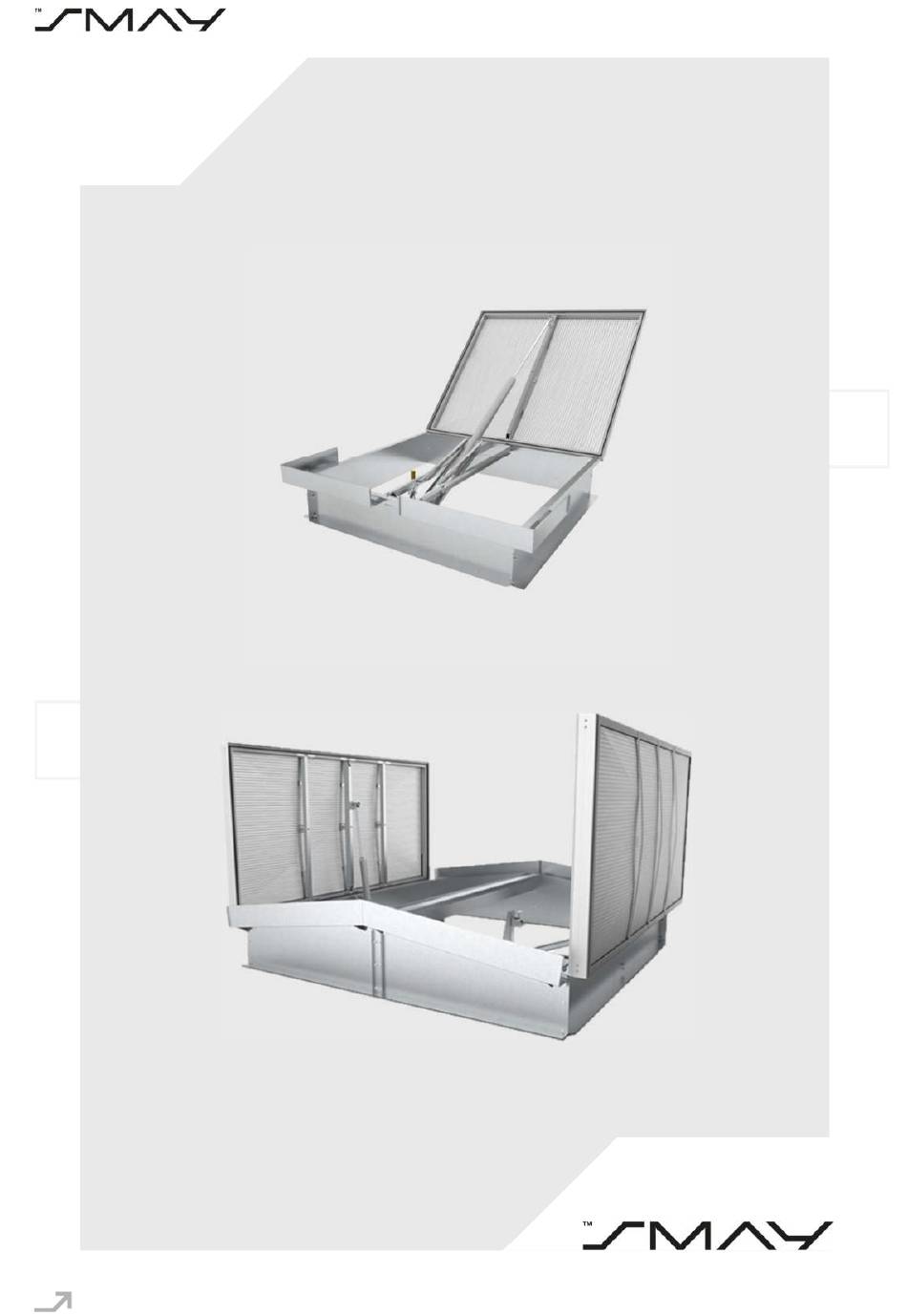

SCD
smoke and heat
exhaust vents
technical and operational
a
documentation
https://
www.smay.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCD Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMAY SCD Series

Summary of Contents for SMAY SCD Series

  • Page 1 www.smay.eu...
  • Page 2 Version 6.00 SMAY reserves the right to make changes to the document. Version 6.00 Page 2 of 80 Last edited: 05.10.2023 r.

  • Page 3: Table Of Contents

    1. INTRODUCTION .................... 5 2. FORMAL AND LEGAL ASPECTS OF INTRODUCING SCD VENTS ON THE MARKET 5 3. PURPOSE AND CLASSIFICATION OF THE PRODUCT ........5 TECHNICAL DESCRIPTION OF THE PRODUCT ..........8 4.1. DESCRIPTION/TYPES .................. 8 4.2. ONE-FLAP VENTS – DIMENSIONS ..............10 4.3.
  • Page 4 6.5. SO-PD11 OPTICAL SIGNALLING DEVICE ............ 65 6.6. RT 2 ALARM BUTTON ................66 6.7. VENTILATION BUTTON ................66 7. DELIEVERY / TRANSPORT ................67 8. INSTALLATION CONDITIONS ..............67 8.1. GENERAL GUIDELINES ................67 8.2. EXAMPLE INSTALLATION OF SCD VENTS ON STANDARD ROOFS ....71 8.3.

  • Page 5: Introduction

    The main purpose of SCD vents is to vent smoke and hot and toxic gases that occur in the ceiling space when a fire occurs. The SCD flaps manufactured by Smay Sp. z o.o. have opened flaps filled with light-transmitting material, which makes them also serve as roof skylights. Another function that, with appropriate instrumentation, they can perform is that of periodic ventilation.
  • Page 6 Table 1 Declared effective surface area of one-flap vents, A SCD-1-W SCD-1-P SCD-1-S no guide vanes no guide vanes 1 guide vane – K1 2 guide vanes - K2 no guide vanes roof base height roof base height roof base height roof base height roof base height H [mm]...
  • Page 7 1500 2200 3,30 2,08 2,15 2,18 2,08 2,15 2,18 2,38 2,54 2,48 2,57 2,61 2,41 2,61 2,54 2,64 2,67 2,15 2,18 2,18 1500 2300 3,45 2,17 2,24 2,28 2,17 2,24 2,28 2,48 2,66 2,59 2,69 2,73 2,48 2,73 2,62 2,76 2,79 2,24 2,28 2,28...

  • Page 8: Technical Description Of The Product

    Table 2 Aerodynamic free area of double-flap vents, A SCD-2-P SCD-2-S Nominal No guide vanes No guide vanes size roof base height H [mm] roof base height H [mm] Wind deflectors Wind deflectors L [mm] W [mm] [m²] yes* yes* yes* yes* yes*...
  • Page 9 Table 3 Sound Hail Gauge Weight Red. U-Value Impact Grade-Color SHGC LSGR [mm] [kg/m Value [W/m Test [DST] [%TST] [%LT] [dB] [m/sec] LT2UV105R175 Clear 1.75 2.39 >21 0.62 1.05 0.72 Opal White 1.75 2.39 >21 0.59 1.02 0.68 SC IR Green 1.75 2.39 >21...

  • Page 10: One-Flap Vents - Dimensions

    4. 2. O NE -F L AP VE NT S – D IM E N S IO NS 1. Base assembly 2. Flap assembly 3. Drive mechanism assembly Fig. 1. One-flap vent on straight base SCD-1-P... 1. Base assembly 2. Flap assembly 3.
  • Page 11 Characteristic dimensions of SCD-1... vents are presented in table 4 Table 4 Dimensions in opened Dimensions position Geometric Lid weight Pos. area W open. H open. w [mm] l [mm] [mm] [mm] 1000 1000 1880 670+H 1,00 1000 1200 1880 670+H 1,20 1000...
  • Page 12 1400 2500 2595 930+H 1450 1450 2690 965+H 1500 1500 2,25 2765 995+H 1500 1700 2,55 2765 995+H 1500 1800 2,70 2765 995+H 1500 2000 3,00 2765 995+H 1500 2200 3,30 2765 995+H 1500 2300 3,45 2765 995+H 1500 2500 3,75 2765 995+H...

  • Page 13: Two-Flap Vents - Dimensions

    4. 3. T W O - FL AP V E N T S – D IM E N S IO NS 1. Base assembly 2. Flap assembly 3. Drive mechanism assembly Fig. 4. Two-flap vent on straight base SCD-2-P... 1. Base assembly 2.
  • Page 14 Characteristic dimensions of SCD-2... vents are presented in table 5 Table 5 Dimensions in opened Dimensions position Geometric area Lid weight Pos. H open. W [mm] L [mm] W open. [mm] [mm] 1250 2500 1710 630+H 3,13 1500 1500 1960 830+H 2,25 1500...

  • Page 15: Available Executions

    4. 4. A V A IL A B LE E XE C U T IO N S Table 6 Available execution versions of Table 7 Available execution versions of single-flap vents with pneumatic actuator. single-flap vents with electric actuator. ELECTRIC actuator PNEUMATIC actuator SCD-1-W SCD-1-P...
  • Page 16 1600 1700 1600 1700 ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ - ⚫ - ⚫ ⚫ - ⚫ 1600 1800 1600 1800 ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ - ⚫ - ⚫ ⚫ - ⚫ 1600 2000 1600 2000 ⚫...
  • Page 17 Table 8 Available execution versions of Table 9 Available execution versions of double-flap vents with pneumatic actuator. double-flap vents with electric actuator. ELECTRIC ACTUATOR PNEUMATIC actuator Nominal Nominal SCD-2-P SCD-2-S SCD-2-P SCD-2-S size size Snow load classification SL Snow load classification SL 1000 1000 SL 250...

  • Page 18: Weight Of Vents

    4. 5. W E I G H T O F VE NT S Table 10 Weight of single-flap vents Table 11 Weight of single-flap vents with electric actuator, m[kg] with pneumatic actuator, m[kg] ELECTRIC actuator PNEUMATIC actuator Nominal Dimensions Nominal Dimensions SCD-1-P SCD-1-S...
  • Page 19 1500 2000 2765 995+H 138 154 176 138 154 176 126 142 162 1500 2000 2765 995+H 131 147 168 119 134 1500 2200 2765 995+H 144 161 184 144 161 184 133 149 170 1500 2200 2765 995+H 137 154 176 125 141 1500 2300...
  • Page 20 Table 12 Weight of double-flap vents with Table 13 Weight of double-flap vents electric actuator, m[kg] with pneumatic actuator, m[kg] ELECTRIC actuator PNEUMATIC actuator Nominal Dimensions Nominal Dimensions SCD-2-P SCD-2-S SCD-2-P SCD-2-S size after opening size after opening roof base height roof base height roof base height roof base height...

  • Page 21: Selection Of Drives

    4. 6. SE L E CT IO N O F D R I VE S In SCD smoke vents, the primary function of the emergency opening for smoke extraction is performed by a 24V electric or pneumatic actuator. The opening function for ventilation in pneumatically operated vents is operated by a 230V or 24V electric actuator (for vents with flap dimensions up to max.
  • Page 22 1400 1800 2x 6 1400 2000 2x 6 1400 2500 1450 1450 2x 6 2x 6 1500 1500 2x 6 2x 6 1500 1700 2x 6 1500 1800 2x 6 1500 2000 2x 6 1500 2200 1500 2300 1500 2500 1500 2700 1500...
  • Page 23 Table 15 Current consumption of double-flap vents with electric actuators, I [A] Nominal SCD-2-P SCD-2-S size Snow load classification SL [N] L [mm] W [mm] SL250 SL550 SL250 SL550 1250 2500 2x 2,6 2x 2,6 2x 2,6 2x 2,6 1500 1500 2x 1,3 2x 1,6...

  • Page 24: Smoke Vents With Escape Function Scd-1-W

    4. 7. SM O KE VE NT S W IT H E SC A PE F U N CT I O N S C D- 1-W Fig. 7. Vent with escape function Fig. 8. Vent with escape function – variant 1 –...
  • Page 25 Table 16 Characteristic dimensions of vents Dimensions in Nominal size opened position Geometric Pos. area weight H open. open. w [mm] L [mm] [mm] [mm] 1000 1000 1880 670+H 1,00 1000 1200 1880 670+H 1,20 1000 1300 1880 670+H 1000 1400 1880 670+H...

  • Page 26: Optional Accesroies

    4. 8. O PT IO N AL A CC E S R O IE S 4.8.1. WIND DEFLECTORS Wind deflectors are designed to maximize the active area of smoke vents. They are used when the anticipated wind effect would reduce the active area of the smoke flap. They are profiled elements made of galvanized steel sheet with dimensions optimized by aerodynamic testing.

  • Page 27: Ka Security Grates

    4.8.3. KA SECURITY GRATES The purpose of the security grating is to protect the building from unauthorised entry, through the smoke vent. The grates are manufactured in the full range of one- and two-flap vent sizes. The security grates are made using standard and special galvanised steel profiles and 1/2" tubes. The maximum pipe spacing is 180 mm.

  • Page 28: Drives And Control

    DRIVES AND CONTROL In SCD smoke vents, the primary function of the emergency opening for smoke extraction is performed by a 24V electric or pneumatic actuator. Drive is transmitted from the actuator to the vent lid by a custom-designed mechanism, and the position of the lid is fixed by an MHV spring lock, which, in the case of ventilation actuators, locks on a "T"...

  • Page 29: Pneumatic Drives

    - close the and secure it against opening. HELP In the event of a control system malfunction that prevents the SCD vent’s flap from closing, contact the Smay Sp. z o.o. service department. 5. 1. PN E UM AT I C DR I VE S 5.1.1.
  • Page 30 Fig. 15. Type "A" or "B" vent (with TAVZ thermal release), with pneumatic actuator, thermal release. No ventilation function. Fig.16. Type "B" vent with a pneumatic actuator, thermal release and alarm box. Manual or automatic opening after exceeding the set temperature, or with a signal from the SAP (with electrical module in the AK box). No ventilation function..

  • Page 31: Pneumatic Actuators

    Fig. 17. Type "B" vent with a pneumatic actuator, thermal release and alarm box. Manual or automatic opening after exceeding the set temperature, or with a signal from the SAP (with electrical module in the AK box). Ventilation using an electric actuator. 5.1.2.
  • Page 32 Single-acting or double-acting piston cylinder, with a casing diameter of 32-63 mm,  Body made of anodised aluminium,  Piston rod diameter 12, 16, 20, 25 mm, depending on actuator size,  M8 threaded eyebolt, gasket which is also a piston dirt wiper, ...

  • Page 33: Thermal Tripping Device

    To close the "A" flap after emergency opening, do the following: 1. Remove the cartridge from the TAVE thermal release or AK alarm box. There will be an outflow of CO2 gas from the system. ATTENTION! The rapid unscrewing of the cartridge is accompanied by rapid cooling of the cylinder. 2.Unlock the actuator by moving the locking pins (see Fig.20.).
  • Page 34 3. Seal threaded connections with Teflon tape or Loctite 243 liquid sealant, which should be applied only to the male thread of the fitting. 4. Use only cylinders supplied by Smay Sp. z o.o., as this determines the validity of the Certificate Version 6.00 Page 34 of 80 Last edited: 05.10.2023 r.
  • Page 35 3. Seal threaded connections with Teflon tape or Loctite 243 liquid sealant, which should be applied only to the male thread of the fitting. 4. Use only cylinders supplied by Smay Sp. z o.o., as this determines the validity of the Certificate Version 6.00 Page 35 of 80 Last edited: 05.10.2023 r.

  • Page 36: Thermal Tripping Devices

    Arming and operation of the thermal release: loosen the firing pin tension screw (1 in Fig. 22) as far as it will go. 2. insert the ampoule (2 in Fig. 22) in such a way that the sharp end of the ampoule faces the nut in the ampoule holder.

  • Page 37: Co Cylinders (Cartridges)

    5.1.5. CYLINDERS (CARTRIDGES) Cylinders with compressed CO2 are the source of energy for the basic function of the smoke vents with a pneumatic drive. They are equipped with safety valves. The connection thread is ½" UNF (extra-fine). Fig.25.CO cartridges When a cylinder with CO2 has been punctured, the gas rapidly expands and stays cool at the same time. It may result in liquid CO2 freezing inside the cylinder.

  • Page 38: Ak Alarm Boxes

    5.1.6. AK ALARM BOXES AK boxes are one of the main elements of the smoke exhaust vent control system. They enable the release of gas energy to open the flap in the following scenarios: • Manual activation – by pressing the black button, •...
  • Page 39 • Connect the outputs of the box properly • The cartridge must be mounted with the thread facing down in the box. • It is recommended to use CO2 cylinders purchased from Smay Sp. z o.o. The certificate is valid only with these cartridges.
  • Page 40 Connections: CA ... „opening” of the actuators CZ ... „closing” of the actuators PA ... pneumatic activation (with HPA / HEPA options only) Description of operation: When released, gas is discharged from the cartridge holding CO Arming of the AK box: Fig.
  • Page 41 Trigger actuation (for vent closure): Perform steps 1 - 6 described in the procedure above, Check the position of the priority sliders. Both sliders must be in the start position (see image C). Fig. 32. Fitting an AK box with a cartridge holding CO2. Screw in a new CO2 cartridge and close the box.

  • Page 42: Plz Ventilation Boxes

    5.1.7. PLZ VENTILATION BOXES PLZ ventilation boxes are important elements of smoke vent control systems with a ventilation function. They make it possible to carry out the ventilation function, and – at the same time – to keep the priority of the smoke exhaust function. The ventilation function is activated by means of a manual lever valve.

  • Page 43: Electric Ventilation Actuators

    Fig. 35. PLZ dimensions. 5.1.8. ELECTRIC VENTILATION ACTUATORS E-300-24, E-500-24, E-300-230, E-500-230 electric actuators made by Grasl Pneumatic-Mechanik and K+G Tectronic are the drive in ventilation function. E-xxx-24 actuator Fig. 36. E300-24 electric actuator. Technical data: Supply voltage Current consumption* 650 mA Feed force by feeding 500 N, by pulling 250 N...
  • Page 44 Proposed connection to a central smoke extraction system Direct connection to 24 V Fig. 37. Connection diagrams for E-xxx-24 actuators. Version 6.00 Page 44 of 80 Last edited: 05.10.2023 r.
  • Page 45 The relevant health and safety regulations, directives and acknowledged technical rules must be observed,  These actuators are suitable for connection in control units provided by Smay sp. z o.o.  Care must be taken to ensure compatibility when using actuators with foreign control units.

  • Page 46: Pneumatic System

    Single actuator Assembly of actuators Fig. 39. Connection diagrams for E-xxx-230 actuators. 5.1.9. PNEUMATIC SYSTEM The gas pressure in the system after emergency release may exceed 30 bar. For that reason it is very important to connect individual elements of the pneumatic system very carefully. For this level of pressure it is recommended to make the installation of certified elements: Ø6/4 copper tubes, 10000-series screw connectors.

  • Page 47: Electric Drives

    5. 2. E LE CT R I C D RI V E S 5.2.1. CONFIGURATION Electrically operated vents come fitted with 24V actuators. The same actuator serves the function of emergency operation and ventilation. The components of the control system include: control panel, 24V - DC, manual alarm button. Emergency start-up can be achieved: Automatically - by an electrical signal sent through smoke or temperature detectors.

  • Page 48: Electric Actuators

    Smoke extraction control unit SAP control unit Fig. 41. Type "B" vent, with an electric actuator and control unit. 5.2.2. ELECTRIC ACTUATORS Depending on the size of the vent and the required SL.. parameter, the following actuators are dedicated: SG16..., SG20..., SG26..., SG40..., SG60..., SG80...,SG100..., SG120.
  • Page 49 Each actuator has an outgoing cable, in light grey silicone insulation, 2.5 m long: standard: 2x2,5 mm2 / outer diameter ~ Ø9mm  for "E" option: 2x2.5 mm2 / 3x1.5 mm2 / outer diameter ~Ø11mm  The following are available as an option: ...
  • Page 50 MHV latch engages securely on the T-connector, and at the same time the actuator is switched off by the limit switch rather than the overload switch. SG actuators are suitable for connection in control panels provided by Smay sp. z o.o. When connecting actuators to ...

  • Page 51: Control Panels

    The permissible nominal voltage for actuator control is 24V - with tolerance of +30/-20%. In this case, the peak  voltage must not exceed 32V and the residual ripple 48%. The actuators must be fully retracted (internal built-in switches) before integration into the smoke vent - if ...
  • Page 52 Types of control panels: Control panelSR-300 RYŚ by SMAY Sp. Z o. o. Fig. 47. SR-300 RYŚ control panel Purpose SR-300 RYS smoke exhaust system control panel is designed to control, power supply and monitor devices in smoke exhaust systems. It also provides ventilation functions using the weather station.
  • Page 53 Technical data of SR-300 RYS control panel Supply voltage 230 VAC +10% -15% Nominal power Depending on type: 150 W- 1375 W Acceptable current output Depending on type: 5,5A - 50 A IP30 (standard) or IP40 (depending on type) or IP54 optional Ingress Protection (IP) Operating temperature -5°C to +40°C...
  • Page 54 SR-300 RYS Series There are 12 different SR-300 RYS types, differing in the available maximum output current, the number of input and output signals supported by the control panel and the overall size of the control panel. SR-300 type Number of firezones Number of ventilation zones Number of outputs for 24VDC actuators Total output current [A]...
  • Page 55 Examples of the devices controlled by SR-3000 RYS control panel Fig. 48. Devices controlled by SR-300 RYS. Version 6.00 Page 55 of 80 Last edited: 05.10.2023 r.
  • Page 56 RWZ 1b smoke extraction system control unit Fig. 49. RWZ 1b smoke extraction system control unit Technical parameters: • One smoke extraction group, one ventilation group • Integrated system display • Actuator supply current 4 A • Power consumption 0,7A /230 V~ •...
  • Page 57 RWZ 4d smoke extraction system control unit Fig. 50. RWZ 4d smoke extraction system control unit Technical parameters: • One smoke extraction group, one ventilation group • Integrated system display • Third signal line • Actuator supply current 8 A •...
  • Page 58 RWZ 5e smoke extraction system control unit Fig. 51. RWZ 5e smoke extraction system control unit. One or two smoke extraction groups, one to four ventilation groups Type RWZ 5-8e RWZ 5-16e RWZ 5-24e RWZ 5-32e Total output current [A] 16 (2x8) 24 (3x8) 32 (4x8)
  • Page 59 Installation / start-up: ATTENTION! Only specialised personnel may perform works on the control unit. Beforestarting any work, be sure to dissipate electrostatic charges. No work may be undertaken on the control unit until the power supply has been disconnected! All works must be performed in accordance with the "Installation and Operating Manual" in its complete version, which is supplied with the control unit.
  • Page 60 Maintenance In absence of other local regulations, all functions and indicators of the control panel and its components should be checked at least once a year during maintenance. This also applies to the examination of terminal points, connection cables, indicators and fuses, as well as the possible cleaning of various components. Be sure to check the attachment of mounting brackets, etc.

  • Page 61: System Equipment

    6. 1. W R S 2 B W E A T H E R S T A T I O N The required signal is transmitted by four separate potential-free switch contacts (output contacts). The contacts remain active as long as the sensor is operating, whereby the minimum operating time of the contacts is 6 min.
  • Page 62 Installation / Start-up Only trained persons may perform works on the control unit. Before undertaking work, ensure the dissipation of electrostatic charges. The wind sensor must measure undisturbed air (wind) flow. For this reason, the detectors must be mounted, for example, on a mast at a height of min.

  • Page 63: Weather Station Accessories

    6. 2. W E A T H E R S T A T I O N A C C E S S O R I E S Table 18 Wheather station accesories RS 2d Heated rain sensor (the heater is only activated when the sensor responds, and switched off after drying) sensor surface - approx.

  • Page 64: Osd63 Smoke And Heat Detector

    6. 3. O S D 6 3 S M O K E A N D H E A T D E T E C T O R Fig. 54. OSD63 smoke detector. Technical data: CNBOP-PIB 1438-CPR-0452 certificate  Sensor class A1R ...

  • Page 65: Sa-K6 Sound Alarm Device

    6. 4. S A- K 6 S O U N D A L A R M D E V I C E Fig. 55. SA-K6 sound alarm device Fig. 56. SD-1 sound signal switch. It is designed for acoustic signaling in fire alarm systems, for indoor use. It offers a choice of 4 acoustic signals. With SD-1 switch, you can switch off the acoustic signal and keep the optical signal only.

  • Page 66: Rt 2 Alarm Button

    6. 6. R T 2 A L A R M B U T T O N Fig. 58. RT2 alarm button. RT 2 smoke extraction button is used to manually trigger the alarm in smoke extraction systems. The pushbutton in the RT 2-K version has one indicator LED - a red one to indicate ALARM. The pushbutton in the RT 2-K-BS version has three indicator lights: red-ALARM, yellow-DAMAGE, and green-OK.

  • Page 67: Delievery / Transport

    Documentation and Assembly Instruction. CERTIFICATE The vents may only be installed by companies trained by Smay Sp. z o.o. on the technical properties of the product, the conditions for carrying out the works, and the control of completed works. The employees must hold a personal certificate issued by Smay Sp. z o.o. authorising them to install the SCD vents.
  • Page 68 The works related to assembly and subsequent operation, maintenance and servicing of the vents should be completed in accordance with health and safety regulations. Work at height is a particular risk in this case. Anyone who performs it should be protected by specialist equipment. This Technical and Operational Documentation presents the installation issues only in an illustrative manner.
  • Page 69 • Each time after making holes for fasteners, all surfaces of the flap should be thoroughly cleaned of metal filings, chips and dust. • When installing the vent flaps, it is necessary to check that they can be opened in a collision-free manner. •...
  • Page 70 • The installation of security grilles and fall protection gratings must be completed according to the guidelines set out in the Assembly Instruction. Smoke vent KA grate Roof structure Connector as per table Fig. 62. Installation of KA security grates. •...

  • Page 71: Example Installation Of Scd Vents On Standard Roofs

    8. 2. E X A M P L E I N S T A L L A T I O N O F S C D V E N T S O N S T A N D A R D R O O F S 1.

  • Page 72: Labelling Of An Installed (Commissioned) Vent

    1. Smoke vent roof base made of galvanised steel sheet. 1. Smoke vent roof base made of galvanised steel sheet. 2. Smoke vent drain pipe. 2. Smoke vent drain pipe. 3. Smoke vent flap profile. 3. Smoke vent flap profile. 4.

  • Page 73: Comissioning

    "SCD Smoke Vents Inspection and Start-up Protocol". The protocol should be signed by a person holding a valid personal certificate, issued by Smay Sp. z o.o., authorising the installation of the SCD vents, and a representative of the user. A copy of this document should be submitted to the manufacturer electronically (www.smay.pl  tab SERWIS I GWARANCJA ...

  • Page 74: Terms And Conditions Of Guarantee

    ATTENTION! SCD Smoke Vents Inspection and Start-up Protocol: - The protocol should be signed by a person having a valid, named certificate issued by Smay Sp. z o. o. authorizing the installation of SCD vents. - A copy of this document should be submitted to the manufacturer electronically (www.smay.pl ...

  • Page 75: Forms

    The guarantee remains valid if the inspection and start-up protocol has been properly completed and signed. A copy of this document should be submitted to the manufacturer electronically (www.smay.pl   tab SERWIS I GWARANCJA  DODAJ PROTOKÓŁ URUCHOMIENIA) within 30 days from the date of commissioning (the date indicated in the SCD Smoke Vents Inspection and Commissioning Protocol).
  • Page 76 Figure 1 Acceptable difference between diagonal 1 and diagonal 2 is up to 5 [mm] Figure 2 Acceptable difference between deviation 1 and deviation 2 is up to 2 [mm] Acceptable difference between deviation 3 and deviation 4 is up to 2 [mm] Version 6.00 Page 76 of 80 Last edited: 05.10.2023 r.

  • Page 77: Scd Smoke Vent Annual Inspection Protocol

    13 .2 . S CD Sm ok e V en t A n n u al I n sp e cti o n P ro to co l. SCD SMOKE VENT ANNUAL INSPECTION PROTOCOL. ……………………………………………………….. Smoke and exhaust vents manufacturer Contact details of inspection performing company (stamp) FACILITY / INSTALLATION’S LOCATION INSPECTION EXECUTION...
  • Page 78 Inspection and asessment in the form of a motion test of all available control functions Inspection of the installation of ventilation actuators(*); Inspection of the alarm box according to the manufacturer's instructions (*); Inspection of smoke ventilation system control panel according to manufacturer's instructions(*);...

  • Page 79: Scd Smoke Vent Annual Inspection Protocol Attachment No. 1 - List Of Devices

    Dokumentacja techniczno-ruchowa SCD S m ok e V en t An n u al In sp e cti on P r ot o c ol At t ac hm e nt n o. 1 – L is t o f D ev ic e s Notes legend: 1.
  • Page 80 Technical and operational documentation Version 6.00 Page 80 of 80 Last edited: 05.10.2023 r.
