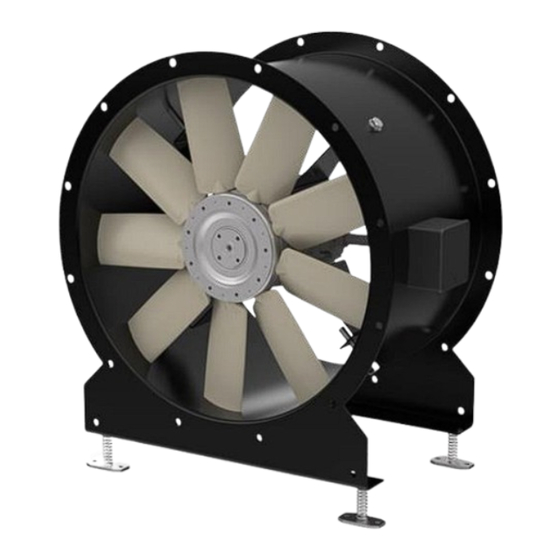

- Page 1 SFL/M Technical Axial fan Documentation...
-
Page 2: Table Of Contents
Installation and Maintenance SFL/M Version 1.00 SMAY reserves the right to make changes to the document. CONTENTS INTRODUCTION ..................... 2 LEGAL REGULATIONS ..................2 GENERAL RULES FOR SAFE USE ..............3 PURPOSE OF THE DEVICE ................4 TECHNICAL DESCRIPTION OF THE DEVICE ............ -
Page 3: Introduction
It is assumed that work related to transport, assembly, installation connection and periodic inspections related to SFL/M fans, as well as maintenance and repairs are performed by qualified personnel or are supervised by authorized persons. -
Page 4: General Rules For Safe Use
SFL/M GENERAL RULES FOR SAFE USE When creating SFL/M fans, SMAY used the latest technology, which guarantees the highest level of safety. A high level of operational safety can be achieved provided that all required safety measures are observed. The operator is obliged to plan these measures and enforce them. -
Page 5: Purpose Of The Device
TECHNICAL DESCRIPTION OF THE DEVICE SFL/M fans are manufactured in the diameter range of 315 ÷ 1250 mm with powers of 0.55 kW ÷ 55 kW. They are always equipped with PTC sensors and can be specified with IE4 motors at the customer's request. The fan has been... - Page 6 Additional technical data for individual types can be found in the selection cards. Rysunek 1. SFL/M fan dimensions Tabela 1. Standard dimensions of the SFL/M fan ⌀ D ⌀ A ⌀ B ⌀ E ⌀...
-
Page 7: Receipt And Inspection Of Goods
Installation and Maintenance SFL/M COLLECTION AND INSPECTION OF GOODS The receipt and inspection of the delivered fans should be carried out in accordance with the following guidelines: When receiving the goods, please check all delivery documents against the products received before removing any packaging. - Page 8 Cable glands and conduits should be positioned to prevent moisture from collecting on the gland gasket - the gland entry must not face vertically upwards. In case of any doubts regarding the fan equipment, please contact the Smay technical department before installation.
- Page 9 Installation and Maintenance SFL/M GUIDELINES FOR INSTALLATION OF FAN ACCESSORIES Flexible connections/compensators Flexible connectors enable mechanical isolation of the fan shafts from adjacent ducts. Flexible connections should not be used to compensate for poor channel fit. Maximum allowable channel mismatch: <Ø1000 mm = 5 mm axially...
- Page 10 Installation and Maintenance SFL/M Ribbed rubber base liners should be used whenever vibration isolators are mounted on concrete or other rough surfaces. Please note that vibration isolators are not designed to compensate for angular misalignment, excessive horizontal forces, or tensile forces, and cannot be used in applications with tensile or shear loading.
-
Page 11: Start-Up Instructions
Installation and Maintenance SFL/M An optimal distance between the fan inlet and the nearest obstacle should be ensured, equal to at least one fan diameter; even then, the fan capacity may be lower than the rated capacity. In the case of demanding installation places where there is not much space, such as expansion chambers, it is necessary to strictly observe the minimum distances of fan inlets from obstacles and other devices. -
Page 12: Rules Of Periodic Servicing And Maintenance
SMAY Service or an Authorized SMAY Service. Damage to SFL/M fans resulting from failure to comply with the guidelines contained in the documentation will not be subject to warranty repairs. -
Page 13: Appendix 1 - Maintenance Schedule
For more demanding environments where vibration and shock are common, maintenance must be performed more frequently. If in doubt, please contact Smay. The activities should be performed at least as often as in the table below and are the basis for the proper operation of the device. - Page 14 Installation and Maintenance SFL/M ANNEX II – Troubleshooting Observations Potential causes Comments Mechanical damage to the rotor. Uneven accumulation of dirt on the impeller. Vibrations during operation Unbalanced rotor Hostile environment causing corrosion or deterioration of the impeller. Ice build-up in low temperature applications.
- Page 15 Installation and Maintenance SFL/M ANNEX III – Lifting and transport Rotating single long case axial fans from resting vertical to horizontal orientation: NOTE: - Responsibility for ensuring that suitable and adequate lifting equipment is available for each lifting operation and for ensuring that these operations are carried out safely rests with the plant foreman or persons responsible for lifting operations.
- Page 16 Installation and Maintenance SFL/M The unit should be lifted slowly and smoothly using a lifting device or other mechanical lifting device (as assessed by the plant). Center of gravity Wedge Be careful when rotating the fan as sudden weight shifts are possible.
- Page 17 Installation and Maintenance SFL/M The belts can also be attached around the fan casing as shown below, ensuring the load is lifted evenly, using the appropriate load capacity calculation for the belts or slings and using a traverse beam. Belts...
- Page 18 Installation and Maintenance SFL/M ANNEX IV - Bolt tightening torques Tightening torque ( Nm ) Screw size Mild steel, galvanized stainless steel 10.9 12.9 A2/A4-70 A4-80 10.4 13.9 25.5 33.9 FASTENERS WITH HEICO WEDGE WASHERS Screw size 10.9 12.9 A4-70 A4-80 Please note that Heico wedge washers are supplied in pairs.
- Page 19 Installation and Maintenance SFL/M ANNEX V – Register of the fan's commissioning Reference number: Serial numbers: Installation date: Pre-installation check: Do not perform insulation checks on inherently safe circuits and thermistors. Checkpoints Comments Damage during transport Damage to housing and ancillary equipment...
- Page 20 Installation and Maintenance SFL/M ANNEX VI – Periodic master operational inspection card Model ………………………………………… Serial No. …………………………………………………… ……. .……. Year of production………………………………… Date of commencement of operation……………………… ……. ……. MOTOR The checking aspect RESULT signature Mounting the engine to the housing...
- Page 21 After installing and starting the fan, no later than 6 weeks from the date of purchase [VAT invoice date], electrical measurements should be performed immediately, the report completed and sent to the following address: SMAY Sp. z o. o 32-003 Podłęże Podłęże 678...
