database or with mainstream, 2P blades for web or terminal services. Alternatively, customers can
populate the enclosure with some mixture of the two form factors.

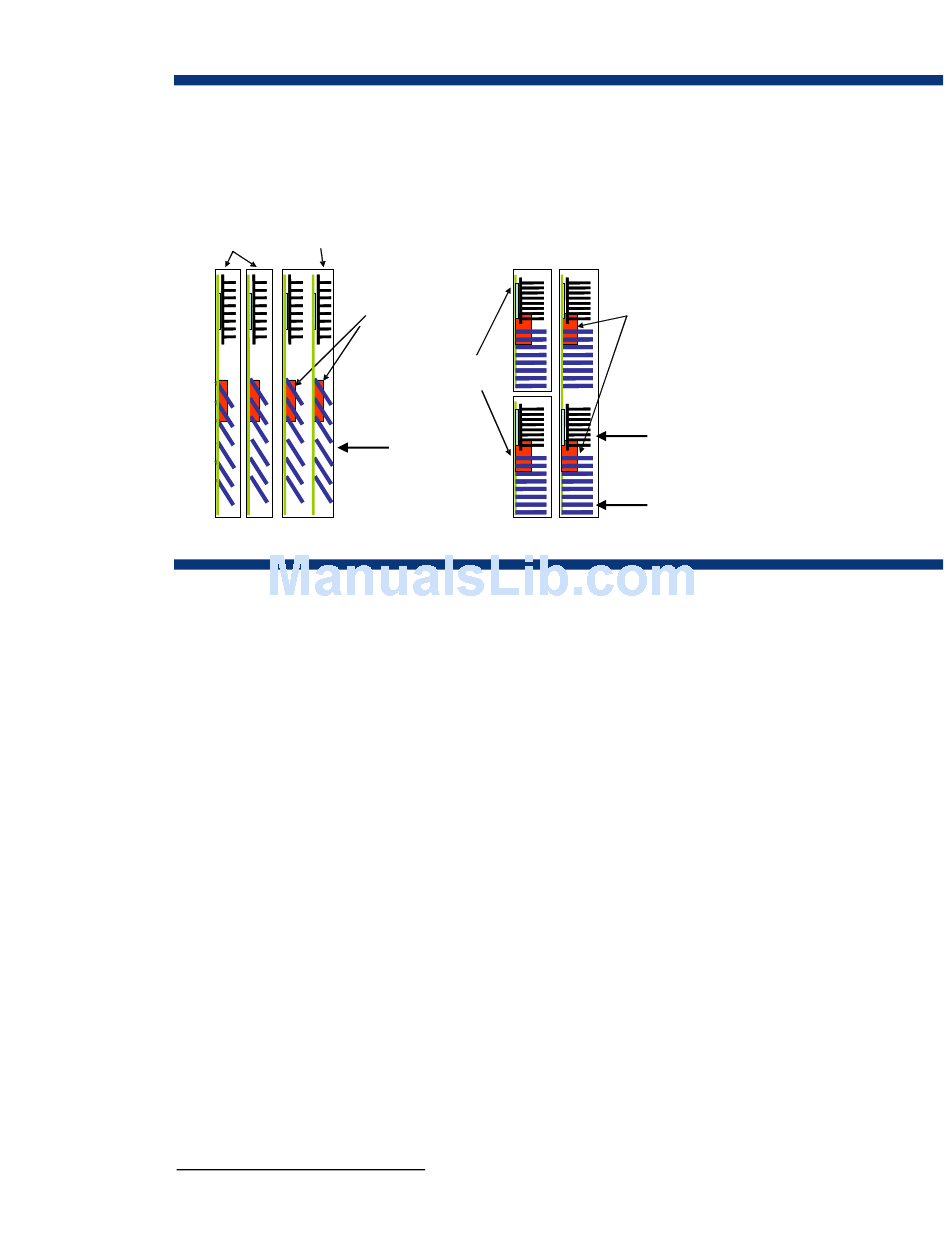

Figure 4. Form factors evaluated by HP for the BladeSystem c-Class
Slim Form Factor
Single-Wide Double-Wide
Blades Blade
Backplane
connectors on
different PCBs
Slanted memory
DIMMs
Note that Figure 4 shows the vertical configuration that is used in the c7000 enclosure. For the rack
model of the c3000 enclosure, the enclosure is rotated 90 degrees so that the blades slide into the
enclosure horizontally rather than vertically.
The HP configuration using wider device bays offers several advantages:
• Supports commodity performance components for reduced cost, while housing a sufficient number
of blades to amortize the cost of the enclosure infrastructure (such as power supplies and fans that
are shared across all blades within the enclosure).
• Provides simpler connectivity and better reliability to the NonStop signal midplane when expanding
to a full-height blade because the two signal connectors are on the same printed circuit board (PCB)
plane, as shown in Figure 4.
• Enables the use of standard-height dual inline memory modules (DIMMs) in the server blades for
cost effectiveness.
• Provides improved performance because the vertical DIMM connectors enable better signal
integrity, more room for heat sinks, and better airflow across the DIMMs.
Using vertical DIMM connectors, rather than angled DIMM connectors, requires a smaller footprint on
the PCB and provides more DIMM slots per processor. Having more DIMM slots allows customers to
choose the DIMM capacity that meets their cost/performance requirements. Because higher-capacity
DIMMs typically cost more per gigabyte (GB) than lower-capacity DIMMs, customers may find it more
cost-effective to have more slots that can be filled with lower capacity DIMMs. For example, if a
customer requires 16 GB of memory capacity, it is often more cost-effective to populate eight slots
with lower cost, 2 GB DIMMs, rather than populating four slots with 4 GB DIMMs. With the
availability of low-power memory options on some server blades, the BladeSystem c-Class offers a
The BladeSystem enclosures use a removable, tool-less divider to hold the half-height blades. When the shelf is
1
in place, it spans two device bays, so there are some restrictions on how enclosures can be configured.
Wide Form Factor
Full-Height
Blade
Half-Height
Blades
1
Midplane connectors
on the same printed
circuit board (PCB)
Room for tall
heat sink
Vertical memory
DIMMs
