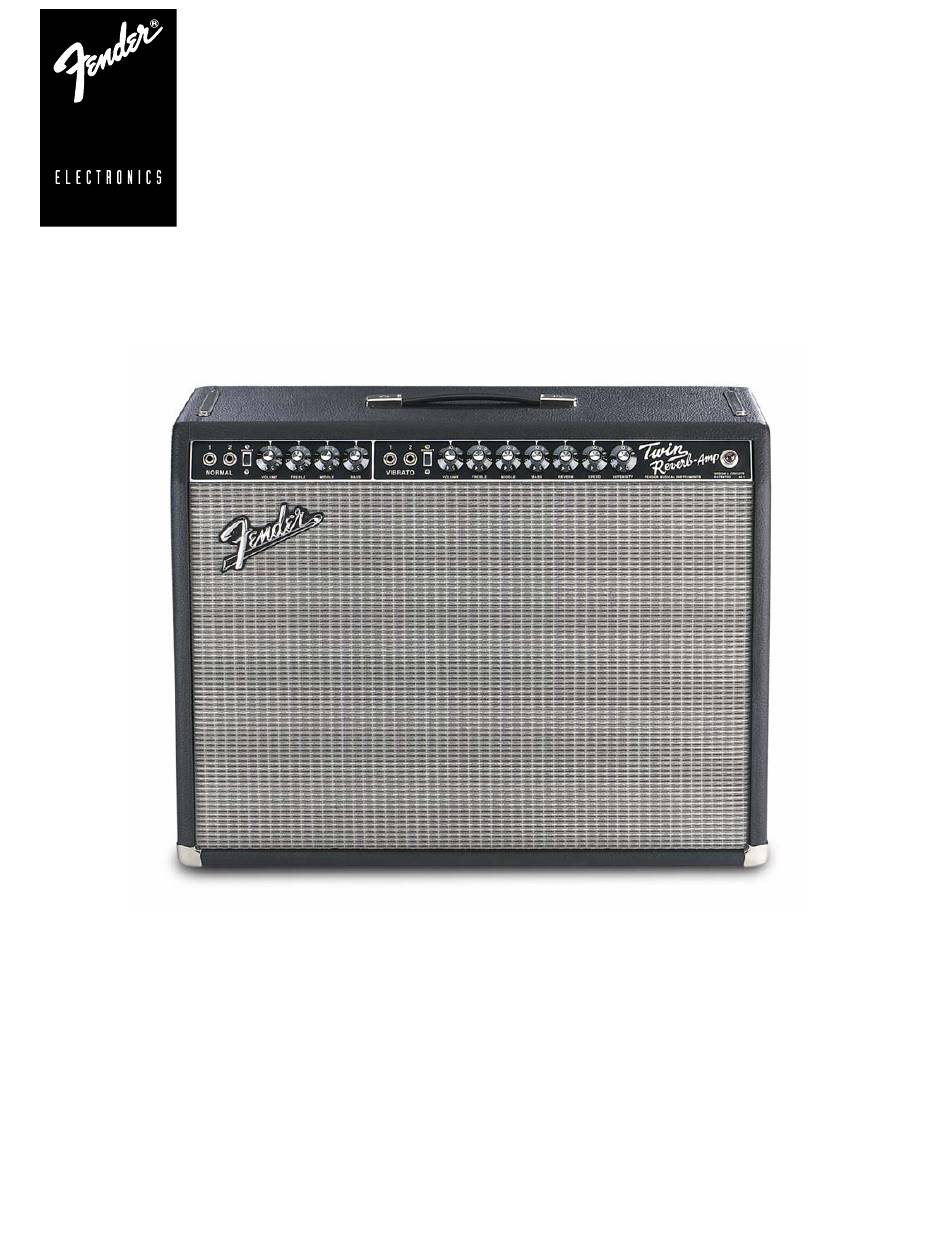

Fender Musical Instruments Corp. 8860 East Chaparral Road Suite 100 Scottsdale, AZ 85250
65 TWIN REVERB
SERVICE MANUAL
REISSUE
p/n 021-7300-000 (120V)
p/n 021-7350-000 (220V)
p/n 021-7340-000 (240V)
p/n 021-7370-000 (100V)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fender 021-7300-000
Summary of Contents for Fender 021-7300-000
- Page 1 021-7300-000 (120V) p/n 021-7350-000 (220V) p/n 021-7340-000 (240V) p/n 021-7370-000 (100V) SERVICE MANUAL CONTENTS: Notices Specifications Parts lists: PCB assembly Chassis assembly Cabinet assembly Misc Schematics/diagrams Fender Musical Instruments Corp. 8860 East Chaparral Road Suite 100 Scottsdale, AZ 85250...
-
Page 2: Important Notice
Fender Musical Instruments Co. All specifications subject to change without notice. Only Fender specified part numbers are to be used for warranty repair service. It is recommended they also be used for post-warranty maintenance and repair. - Page 3 65 TWIN REVERB REISSUE PARTS LIST PRINTED CIRCUIT BOARD ASSEMBLY PART # DESCRIPTION REFERENCE DESIGNATION 037628 PRINTED CIRCUIT BOARD PC1 (BLANK) 037629 PCB ASSEMBLY (120V) PCB1 (STUFFED) 037630 PCB ASSEMBLY (220/240V) PCB1 (STUFFED) 037631 PCB ASSEMBLY (100V) PCB1(STUFFED) 037805 CABLE RIBBON 6CKT 2-1/4" 018764 CAP 125VAC .01uF +0 C29 (120V DOMESTIC)
-
Page 4: Chassis Assembly
65 TWIN REVERB REISSUE PRINTED CIRCUIT BOARD ASSEMBLY (cont) PART # DESCRIPTION REFERENCE DESIGNATION 037836 OPTOISOLATOR ASSY, NEON 027350 RESCF 1W 22K 5% 037619 RESCF 1W 82K 5% 027353 RESCF 1W 100K 5% 027347 RESCF 1W 2.2K 5% 037665 RESCF 1/2W 27K 5% 025116 RESCF 1/2W 100K 5% R4 R11 R15 R22 R28 R33 R62 R61... -
Page 5: Reference Designation
65 TWIN REVERB REISSUE CHASSIS ASSEMBLY (CONT) PART # DESCRIPTION REFERENCE DESIGNATION 013115 FUSE 2A 250V SB F1 (220V/240V) 013737 FUSE 4A 250V SB F1 (100V/120V) 036702 FUSEHOLDER 3AG FINGER GRIP XF1 (100V/120V) 036703 FUSEHOLDER 5MM FINGER GRIP XF1 (220V/240V) 021550 JACK PHONE CLOSED CIRCUIT J5 (SPEAKER OUT) - Page 6 LEG AMP TILT 16" 021998 NUT LOCK 10-32 W/NYLON INSERT (TILT BACK LEGS) 022004 NUT KEPS 8-32 ZINC (SPEAKER MOUNTING) 023192 NAMEPLATE "FENDER" 65 TWIN 025722 REVERB CABLE ASSY, SHIELDED 028453 REVERB, CARDBOARD PAD 031849 REVERB, BAG 064063 REVERB UNIT 4 SPRING 4AB3C1B...
- Page 7 65 TWIN REVERB REISSUE MISCELLANEOUS (cont) PART # DESCRIPTION REFERENCE DESIGNATION 029828 SCREW PB #8X3/4 PHP ZI (REVERB MOUNTING) (CHASSIS MOUNTING) (CABLE CLAMP MOUNT) 031344 SCREW SMA #10X3/4 OHP NI (LEG STOP) 024752 STRAP CHASSIS 4-1/2" NI (CHASSIS MOUNTING) 037617 SPEAKER 12"...
