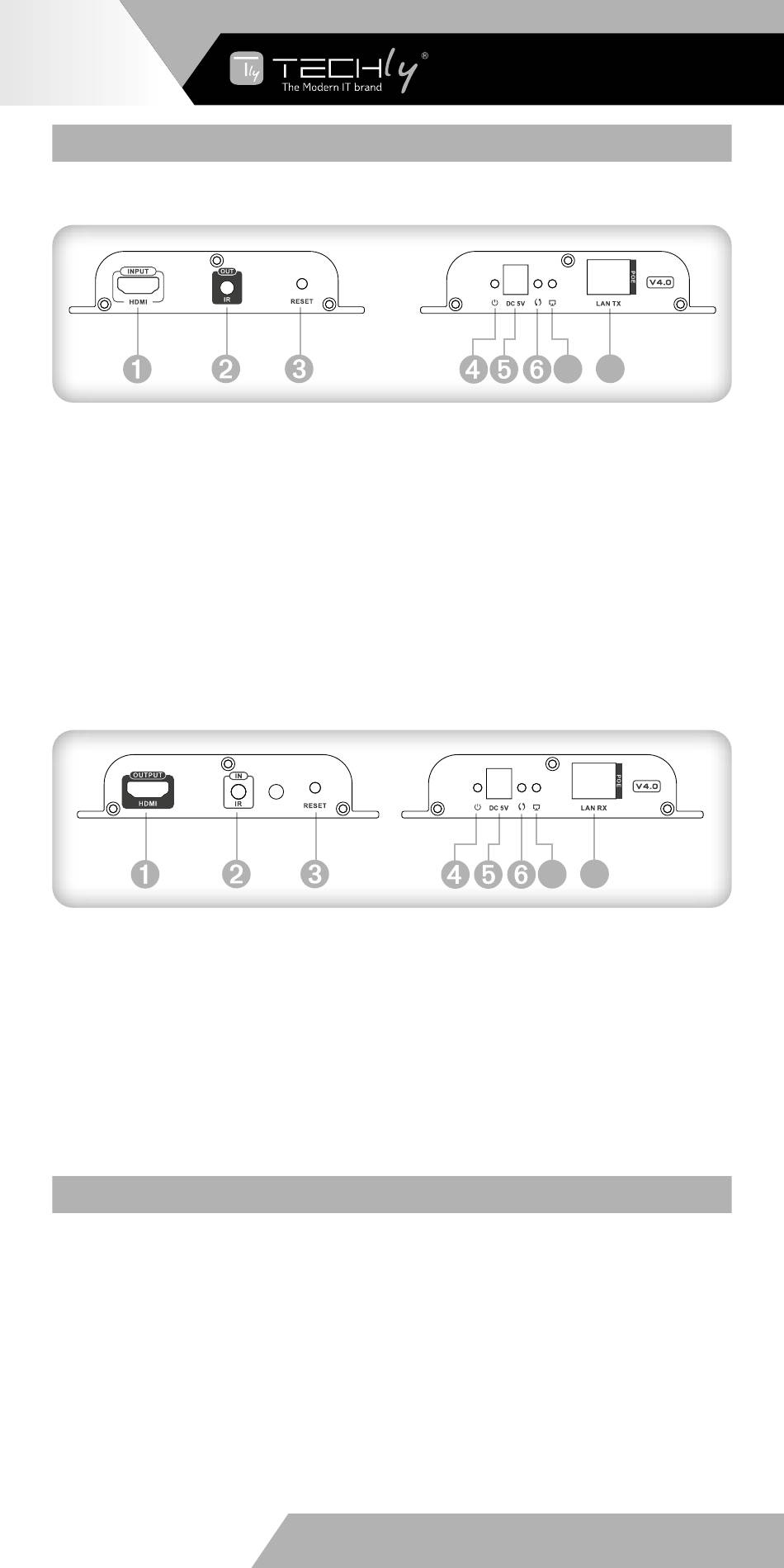

PANEL DESCRIPTION
1. HDMI EXTENDER TX (Sender)
➊ HDMI signal input
IR Signal output to connect with blaster extension cable
➋
Reset
➌
Power light
➍
➎ Power input (DC5V)
Data transmission light
➏
Network link light
➐
RJ45 signal output (POE Input)
➑
2. HDMI EXTENDER RX (Receiver)
HDMI signal output
➊
IR Signal input to connect with IR receiver extension cable
➋
Reset
➌
Power light
➍
Power input (DC5V)
➎
Data transmission light
➏
Network link light
➐
RJ45 signal input (POE Input)
➑
INSTALLATION PROCEDURES
How to make a Cat.5/6 network cable
Follow the standard EIA-568B:
1-Orange/white
2-Orange
3-Green/white
4-Blue
WWW.TECHLY.COM
EXTENDER WITH POE
5-Blue/white
6-Green
7-Brown/white
8-Brown
