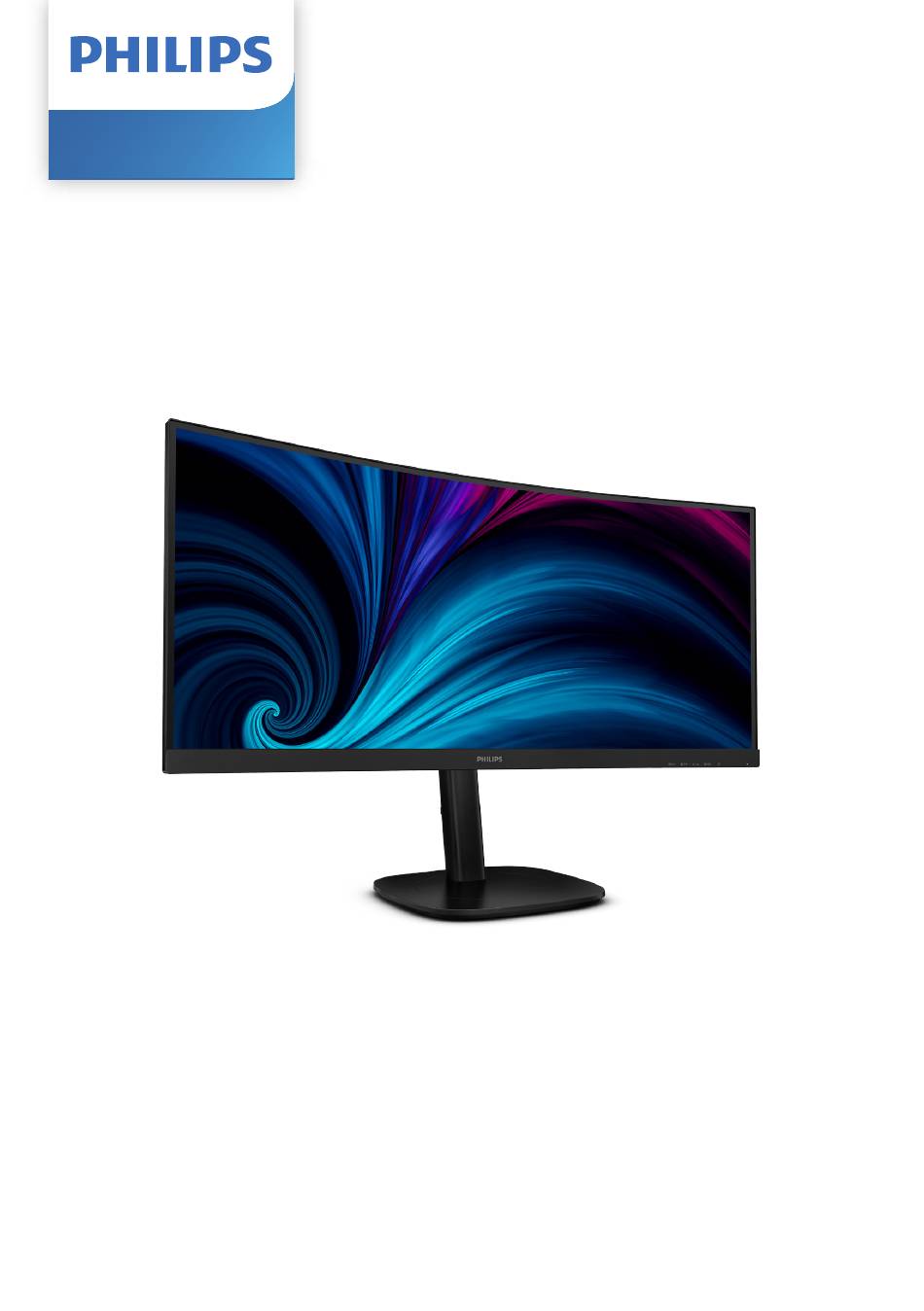

- Page 1 Curved Business Monitor 3000 Series 34B2U3600C User manual Register your product and get support at www.philips.com/welcome...
- Page 2 6.1 Resolution & Preset Modes ..23 7� Power Management ������������������ 25 8� Customer care and warranty ��� 26 8.1 Philips’ Flat Panel Displays Pixel Defect Policy ......... 26 8.2 Customer Care & Warranty ..29 9� Troubleshooting & FAQs ����������� 30 9.1 Troubleshooting ......
- Page 3 This electronic user’s guide is intended electronics. for anyone who uses the Philips monitor. Take time to read this user manual • Do not block the ventilation holes in before you use your monitor. It contains the cabinet.
- Page 4 • Do not knock or drop the • Oil-based cleaning solutions may monitor during operation and/or damage the plastic parts and void the transportation. warranty. • The USB Type-C port could only be • Unplug the monitor if you are not connected to specify equipment with going to use it for an extensive period.
- Page 5 1.2 Notational Descriptions also known as “after-imaging” or “ghost imaging”, on your screen. The following subsections describe the • “Burn-in”, “after-imaging”, or notational conventions used in this “ghost imaging” is a well-known document. phenomenon in LCD panel Notes, Cautions, and Warnings technology.
- Page 6 From the planning, design, and production stages, Philips emphasizes the importance of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or its entails participation in national take- packaging illustrates that, under...
- Page 7 Package contents Curved Business Monitor 3000 Series 34B2U3600C Quick Start Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. (1) Gently attach the base to the Power stand. (2) Use your fingers to tighten the...
- Page 8 RJ45 driver installation HDMI USB C (90W) USB Type-A You can find the “LAN Drivers” from Philips website support page. Please follow the steps for the installation: USB hub 1. Install the LAN driver that matches your system. 2. Double click driver to install, and follow Window’s instructions to...
- Page 9 Note Please contact Philips service hotline for Mac address clone tool as necessary. USB hub To comply with International energy standards, the USB hub/ports of this Note monitor are disabled during Standby If you Turn OFF your monitor via the and Off modes.
- Page 10 What is On-Screen Display (OSD)? Description of the control buttons On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
- Page 11 5s, 10s, 20s, 30s, 60s software and is easily downloadable USB Setting USB-C Setting High Data Speed, High Resolution through the Philips website. What does USB Standby Mode On, O Auto, USB C, USB Up SmartControl do? It is an additional...
- Page 12 2.3 MultiClient Integrated KVM Physical Function Tilt What is it? With the Multiclient Integrated 30° Keyboard Video Mouse (KVM) switch -5° feature, it is possible to control two separate PCs with a one monitor/ keyboard/mouse setup. How to enable MultiClient Integrated With the built-in Multiclient Integrated KVM feature, it’s easy to switch Swivel...
- Page 13 2. Enter the On-Screen Display (OSD) for viewing video and audio menu. Go to the KVM tab and content. select “Auto”, “USB C”, or “USB Up” PC2: You can use a USB-C/A or USB-C/C to switch the monitor view from cable in direction upstream and one device to another.
- Page 14 [PBP]. Why do I need it? 5. Now you can move backward to set With the ultra-high-resolution Philips the [PIP / PBP Input], [PIP Size], [PIP MultiView display, you can comfortably Position], or [Swap]. experience a world of connectivity in 6.
- Page 15 Top-Left Top-Right Open up a sub-window side-by-side of another (main) signal source. (main) (main) When the sub source is not detected: (main) Bottom-Left Bottom-Right Note The black strip located on the top and the bottom of the screen is for (main) (main) measuring the correct aspect ratio when...
- Page 16 2.5 Remove the Base Assembly 3. Use your finger to pick the groove of the VESA closure to remove it. for VESA Mounting Before you start disassembling the display base, please follow the instructions below to avoid any possible damage or injury. Place the monitor face down on a smooth surface.
- Page 17 Warning This product is a curve design, when attaching/detaching the base, place the protective material under the monitor and, to avoid damage, do not press down on the monitor. 0° 90° -5° * Display design may differ from those illustrated in this manual. Warning •...
- Page 18 in real-time. Whether you're working with text applications, displaying images, or watching a video, Philips SmartImage delivers great monitor performance. Why do I need it? It is ideal to have a monitor that delivers ...
- Page 19 3.2 SmartContrast • Movie: Ramped up luminance, deepened color saturation, dynamic What is it? contrast, and razor sharpness displays every detail in darker areas It is a unique technology that of your videos without experiencing dynamically analyzes displayed content color washout. and automatically optimizes a monitor's contrast ratio for maximum visual clarity • Game: Turn on over drive circuit for...
- Page 20 • Reposition your screen to the appropriate measurment syndrome (CVS) according to your own height. 4. Choose a Philips monitor for viewing Philips monitor is designed to prevent that is easy on the eyes. eye strain caused by prolonged • Anti-glare screen: This feature computer use.
- Page 21 5. Adaptive Sync AMD Radeon R7 260X • AMD Radeon R7 260 • Processor A-Series Desktop and • Mobility APUs Adaptive Sync AMD A10-7890K • AMD A10-7870K • PC gaming has long had an imperfect AMD A10-7850K • experience because GPUs and monitors update at different rates.
- Page 22 6. Technical Specifications Picture/Display Display Panel Type Backlight W-LED Panel Size 34" W (86.36 cm) Aspect Ratio 16:9 Pixel Pitch 0.23175(W) x 0.23175(H) Contrast ratio(typical) 3500:1 Native Resolution 3440 x 1440 @ 60 Hz 3440 x 1440 @ 100 Hz (HDMI) Maximum Resolution 3440 x 1440 @ 120 Hz (DP/USB C) Viewing Angle...
- Page 23 Convenience USER convenience Built-in speaker 5 W x 2 MultiView PIP/PBP mode, 2×devices English, German, Spanish, Greek, French, Italian, Hungarian, Dutch, Portuguese, Brasil Portuguese, Polish, OSD Languages Russian, Swedish, Finnish, Turkish, Czech, Ukranian, Simplified Chinese, Traditional Chinese, Japanese, Korean Other Convenience VESA mount(100×100mm), Kensington Lock Plug &...
- Page 24 2. In order to update the monitor’s firmware to the latest version, Please download the SmartControl software from Philips website. It is necessary to be connected to a network when updating the firmware on SmartControl over-the-air (OTA).
- Page 25 6.1 Resolution & Preset Modes Note 1. Please notice that your display works best at native resolution of 3440 H. freq Resolution V. freq (Hz) x 1440 @ 60Hz. For best display (kHz) quality, please follow this resolution 31.47 720x400 70.09 recommendation.
- Page 26 Display Input Format 422/420 444/RGB 422/420 444/RGB 422/420 444/RGB (HDMI2.0) (HDMI2.0) (DP1.4) (DP1.4) USBC@ USBC@ USBC@ USBC@ USB3.2 USB2.0 USB3.2 USB2.0 3440 x 1440 @120Hz, 10bits 3440 x 1440 @120Hz, 8bits 3440 x 1440 @100Hz, 10bits 3440 x 1440 @100Hz, 8bits 3440 x 1440 @60Hz, 10bits 3440 x 1440 @60Hz, 8bits Minimum:1920 x 1080 @ 60Hz...
- Page 27 7. Power Management If you have a VESA DPM compliance display card or software installed on your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse, or other input device is detected, the monitor will 'wake up' automatically.
- Page 28 Other Pixel Defect Policy combinations of lit and dark sub-pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
- Page 29 Note A red or bright blue dot must be period, a TFT Monitor panel in a Philips more than 50 percent brighter than flat panel monitor must have pixel neighboring dots, while a bright...
- Page 30 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...
- Page 31 Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.
- Page 32 Disconnect the monitor from the be corrected by a user. If the problem mains power source immediately for persists after you have tried these safety solutions, contact a Philips customer • Contact Philips customer service service representative. representative immediately. Common Problems...
- Page 33 Service contact information listed in • Shut down your computer, the Important information manual disconnect your old monitor, and and contact a Philips customer service reconnect your Philips LCD monitor. representative. • Turn on your display and then turn * Functionality is different according to on your PC.
- Page 34 What are the .inf and .icm files? ethyl alcohol, ethanol, acetone, How do I install the drivers (.inf hexane, etc. and .icm)? Can I change the color setting of Ans.: These are the driver files for my display? your monitor. Your computer Ans.: Yes, you can change your color may ask you for monitor drivers setting through OSD control as...
- Page 35 Ans.: Yes. All Philips LCD monitors are Q12: Why is my Display not showing fully compatible with standard sharp text, and is displaying PCs, Macs, and workstations. jagged characters? You may need a cable adapter Ans.: Your LCD monitor works best at...
- Page 36 9.3 Multiview FAQs Can I enlarge the PIP sub- window? Ans.: Yes, there are 3 sizes to select: [Small], [Middle], [Large]. You can press to enter the OSD menu. Select your preferred [PIP Size] option from the [PIP / PBP] main menu.
- Page 37 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
