TrueGuard-2
is for use on 12v systems only.
1. Drill a hole in the PIM enclosure according to the installation
instructions on page 2 of Kohler document TT-1584 2/12a to
accommodate the OmniMetrix
to the Kohler PIM wiring table on the following page for wiring
instructions.
2. The programmable Kohler PIM Module provides 6 on-board
relays that provide connection points for the following alarms:
•
PIM Output 1: Generator Running
•
PIM Output 2: Common Fault
•
PIM Output 3: Not in Auto
•
PIM Output 4: Not on Utility Power
3. The Kohler manual lists the alarms that can be programmed to
each output. Please note that OmniMetrix will need to be
informed if the PIM relays are programmed to provide different
alarms in order to ensure the OmniView
alarms configured at the generator. If Generator Running status
can be determined, Generator Hours can also be tracked.
4. Connect the 15-Pin connector, attached to the integrated cable
of the OmniMetrix monitor, into the mating, front panel
connector on the controller.
5. Using the magnetic feet, affix the OmniMetrix monitor to the
generator enclosure or other appropriate, internal location.
Horizontal surfaces are best, but the unit may be mounted
vertically or even upside down if necessary. Note: If mounted
vertically, install the monitor with the cables down to prevent
water from entering the enclosure.
6. Attach the antenna cable to the monitor's front panel connector.
7. If a Kohler RXT Transfer Switch is included and wired through
Kohler RBUS in the system, 'ATS to Fail to Transfer Alarm' and
/or 'Emergency Power System Supplying Load' could be
programmed as PIM outputs.
8. To program the RCD2 Controller, the Kohler Sitetech Software
is required.
9. Call OmniMetrix at 770-209-0012 to confirm installation.
Access to machine data is through the OmniView web interface
at www.omnimetrix.net. Contact OmniMetrix for login
instructions and web training.
®
15-pin Data/Power cable. Refer
®
system matches the
4295 Hamilton Mill Rd., #100 ▪ Buford, GA 30518
www.omnimetrix.net
www.omnimetrix.net
P a g e

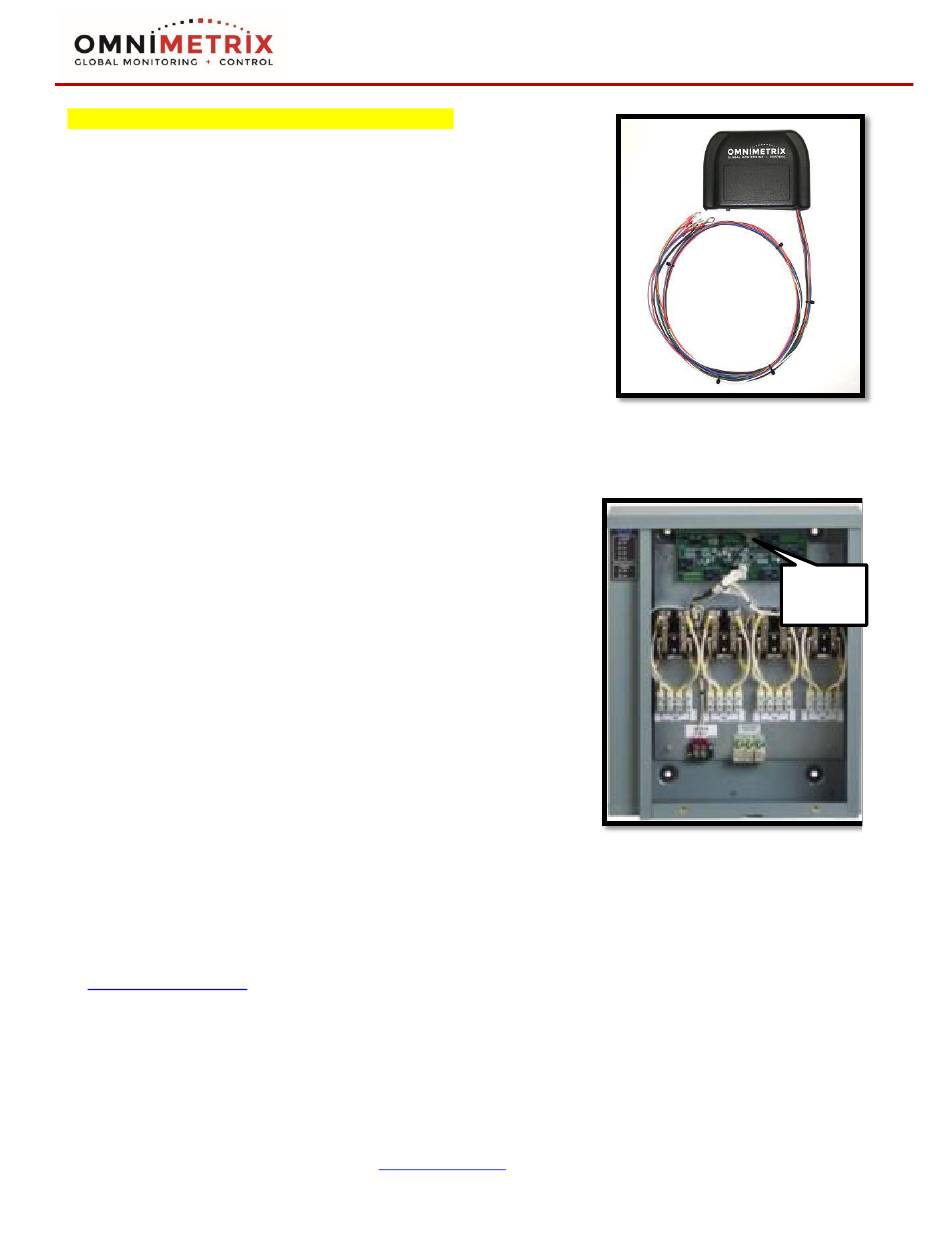

TrueGuard-2
TrueGuard-2™ Monitor
Kohler PIM Module installed
▪ Ph: 770-209-0012
| 1
™
Kohler RDC2 & PIM
Installation Guide
PIM
Module
e
IM-1092-01
09-JUN-2020
