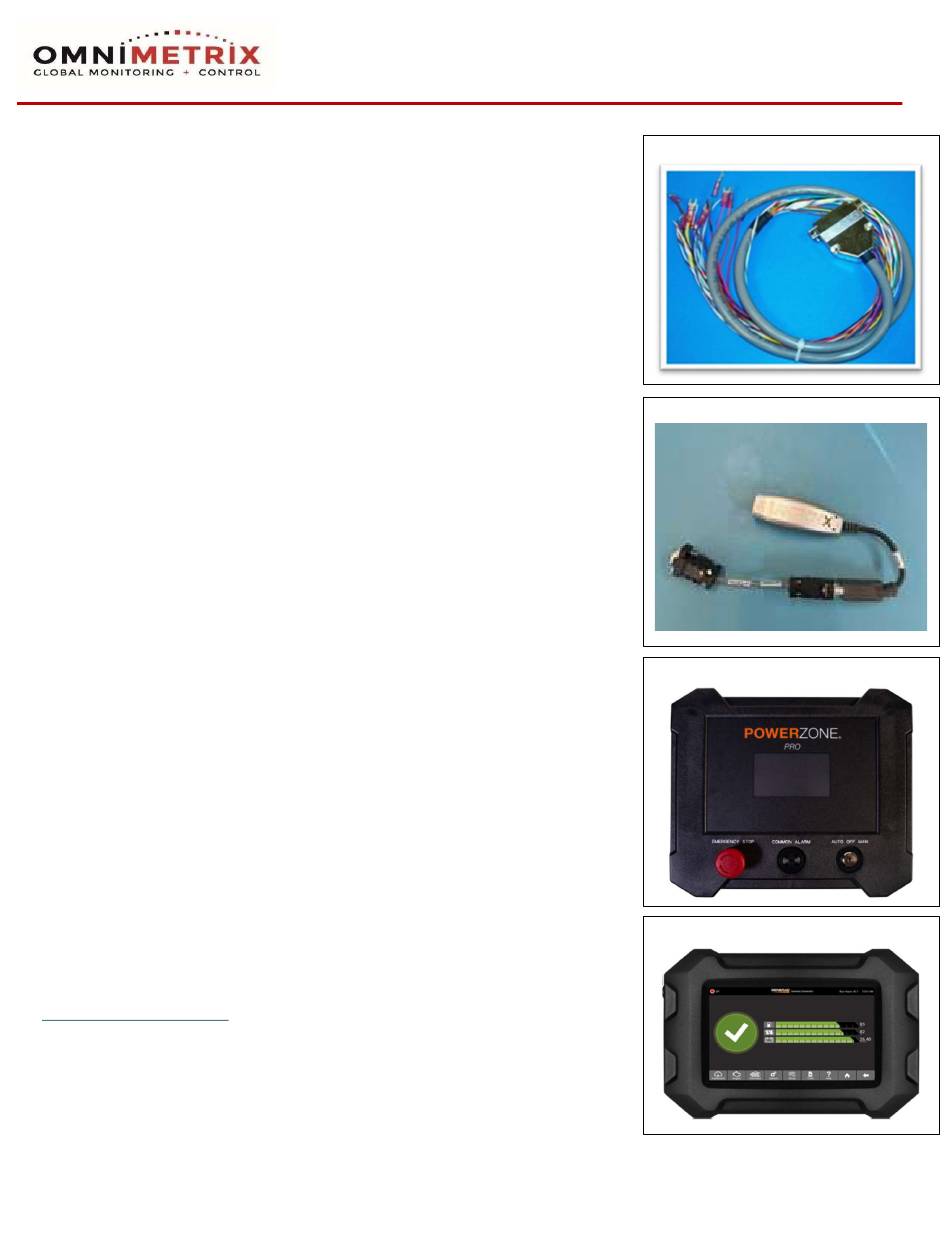

OmniMetrix TrueGuard-PRO PowerZone Pro Manual

Unpack the monitor, antenna, and data*/power cable.
1.
Check for any shipping damage and connect the 25-pin cable
to the monitor's front. This cable handles power, alarm inputs,
relay outputs, and analog inputs.
2. Place the antenna vertically on the generator roof, ensuring
it's at least 20 cm away from people and not transmitting
simultaneously with other antennas. Create a drip loop to
prevent water from entering the cable connection.
3. Attach the monitor to a suitable horizontal surface on the
engine controller or similar location using its magnetic feet. It
can be mounted vertically or upside down if needed, but
ensure cables are positioned to prevent water ingress.
4. Feed the data*/power cable through the generator control's
bottom entry.
5. Please see below for installation instructions based on
controller.
6. Connect and tighten the antenna cable to the monitor's
front.
7. Turn on the monitor and check if the LEDs light up and
blink. If only the Power LED is lit after 5 minutes, check power
connections and antenna setup.
8. Allow 15 minutes for network login, then contact
OmniMetrix at 770-209-0012 to verify installation. Access
machine data through the OmniView® web interface at
www.omnimetrix.net.
TrueGuard-PRO ™ PowerZone Pro/Pro Sync
OmniMetrix 4295 Hamilton Mill Rd., #100
Buford, GA 30518 770-209-0012
Page | 1
Data/Power Cable
Lantronix

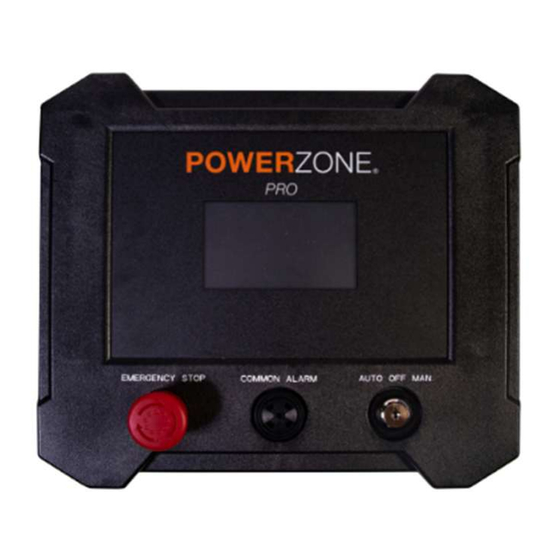

PowerZone Pro
PowerZone Pro Sync
IM-815-09
4-Nov-2024
