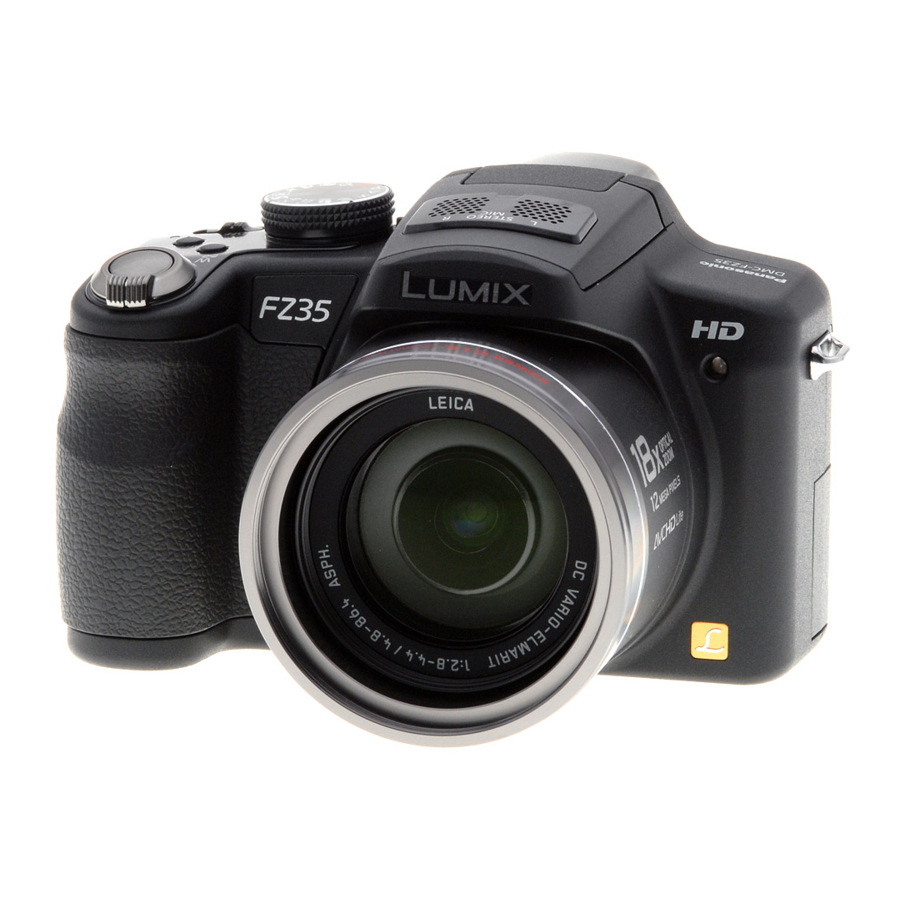

Panasonic LUMIX DMC-FZ35 Manual

Introduction

You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we're sure it will bring you and your family years of enjoyment. Please take time to fill in the information on the below. The serial number is on the tag located on the underside of your Camera. Be sure to retain this manual as your convenient Camera information source. Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions.
Carefully observe copyright laws.

• Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted.

Before Use

Check that all the accessories are included before using the camera.
Product numbers correct as of July 2009. These may be subject to change.

1. Battery Pack
   (Indicated as battery pack or battery in the text)
   Charge the battery before use.
2. Battery Charger
   (Indicated as battery charger or charger in the text)
3. USB Connection Cable
4. AV Cable
5. CD-ROM
   • Software:
     Use it to install the software to your PC.
6. CD-ROM
   • Operating Instructions
7. Shoulder Strap
8. Lens Cap/Lens Cap String
9. Lens Hood
10. Hood Adaptor

• SD Memory Card and SDHC Memory Card are indicated ascard in the text.
• The card is optional.
  You can record or play back pictures on the built-in memory when you are not using a card.
• For information about optional accessories, refer to the "Digital Camera Accessory System".
• If any accessories are lost, customers should contact Panasonic's parts department at 1 800 833-9626 for further information about obtaining replacement parts.

Names of the Components

1. Lens
2. Flash
3. Self-timer indicator AF assist lamp
4. Flash open button
5. Diopter adjustment dial
6. Viewfinder
7. Speaker
8. Motion picture button
9. [AF/AE LOCK] button
10. Joystick

The joystick is operated in two different ways: it can be moved in the up, down, left and right directions to perform an operation, or it can be pressed to select. In these operating instructions, it is pictured as shown in the figure below or described with .

Example: When the joystick is moved toward (left) Place your finger on the right side of the joystick, and move the joystick toward the left.
Push the joystick straight in.

11. [REC]/[PLAYBACK] selector switch
12. LCD monitor
13. [EVF/LCD] button
14. [DISPLAY] button
15. Delete button/Single or Burst Mode button
16. [MENU/SET] button
17. Cursor buttons
    / Self-timer button
    / Function button
    Assign [REC] Mode menu to button. It is convenient to register [REC] Mode menu that is used often.
    [REVIEW]/[SENSITIVITY]/[WHITE BALANCE]/[METERING MODE]/[AF MODE]/ [I.EXPOSURE]
    / Flash setting button
    / Exposure compensation/Auto Bracket/Color Bracket/Flash output adjustment

In these operating instructions, the cursor buttons are described as shown in the figure below or described with .
e.g.: When you press the (down) button

or
Press

18. Stereo microphone
19. Zoom lever
20. Shutter button
21. [FOCUS] button
22. Mode dial
23. Camera ON/OFF switch
24. Power lamp
25. [AF/AF/MF] button

26. Shoulder strap eyelet
    • Be sure to attach the shoulder strap when using the camera to ensure that you will not drop it.
27. [HDMI] socket
28. [DC IN] socket
    • Always use a genuine Panasonic AC adaptor (DMW-AC7PP; optional).
    • This camera cannot charge the battery even when the AC adaptor (DMW-AC7PP; optional) is connected to it.
29. Terminal door
30. [DIGITAL/AV OUT] socket
31. Tripod receptacle
    • When you use a tripod, make sure the tripod is stable when the camera is attached to it.
32. Card/Battery door
33. Lens barrel

Preparation

Charging the Battery

About batteries that you can use with this unit
The battery that can be used with this unit is CGR-S006A.
It has been found that counterfeit battery packs which look very similar to the genuine product are made available to purchase in some markets. Some of these battery packs are not adequately protected with internal protection to meet the requirements of appropriate safety standards. There is a possibility that these battery packs may lead to fire or explosion. Please be advised that we are not liable for any accident or failure occurring as a result of use of a counterfeit battery pack. To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used.

• Use the dedicated charger and battery. The quality, performance and safety of third party batteries other than those that are genuine are not guaranteed.
• The battery is not charged when the camera is shipped. Charge the battery before use.
• Charge the battery with the charger indoors.
• Charge the battery in a temperature between 10 ºC to 35 ºC (50 ºF to 95 ºF). (The battery temperature should also be the same.)

1. Attach the battery paying attention to the direction of the battery.

2. Connect the charger to the electrical outlet.

   • Charging starts when the [CHARGE] indicator A lights green.
   • Charging is complete when the [CHARGE] indicator A turns off.
3. Detach the battery after charging is completed.


Charging

• The indicated charging time is for when the battery has been discharged completely. The charging time may vary depending on how the battery has been used. The charging time for the battery in hot/cold environments or a battery that has not been used for long time may be longer than normal.

Note

• After charging is completed, be sure to disconnect the power supply device from the electrical outlet.
• The battery becomes warm after using it and during and after charging. The camera also becomes warm during use. This is not a malfunction.
• The battery will become discharged if left for a long period of time after being charged.
• The battery can be recharged even when it still has some charge left, but it is not recommended that the battery charge be frequently topped up while the battery is fully charged. (The battery has characteristics that will reduce its operating duration and cause the battery to swell up.)
• When the operating time of the camera becomes extremely short even after properly charging the battery, the life of the battery may have expired. Buy a new battery.
• Do not leave any metal items (such as clips) near the contact areas of the power plug. Otherwise, a fire and/or electric shocks may be caused by short-circuiting or the resulting heat generated.

Recording conditions by CIPA standard

• CIPA is an abbreviation of [Camera & Imaging Products Association].
• Temperature: 23 ºC (73.4 ºF)/Humidity: 50% when LCD monitor is on.^¢
• Using a Panasonic SD Memory Card (32 MB).
• Using the supplied battery.
• Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [AUTO].)
• Recording once every 30 seconds with full flash every second recording.
• Rotating the zoom lever from Tele to Wide or vice versa in every recording.
• Turning the camera off every 10 recordings and leaving it until the temperature of the battery decreases.
  ¢ The number of recordable pictures decreases in Auto Power LCD Mode and Power LCD Mode.

The number of recordable pictures varies depending on the recording interval time. If the recording interval time becomes longer, the number of recordable pictures decreases.
[e.g. When recording once every 2 minutes, the number of recordable pictures decreases to about 117.]

Recording motion pictures (When using the LCD monitor/Viewfinder)

	[AVCHD Lite] (Recording with picture quality set to [SH]([]))	[MOTION JPEG] (Recording with picture quality set to [HD]([]))
Continuous recordable time (motion pictures)	Approx. 150 min	Approx. 150 min¢
Actual recordable time (motion pictures)	Approx. 80 min	Approx. 80 min¢

• These are standard times taken at a temperature of 23 C (73.4 F) and a humidity of 50%.
• The time available for recording varies depending on the environment, the interval between recordings, and the manner of use.
• Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc.
  ¢ Motion picture recorded continuously in [MOTION JPEG] is up to 2 GB. Only the maximum recordable time for 2 GB is displayed on the screen.

Playback (When using the LCD monitor/Viewfinder)

The number of recordable pictures and playback time will vary depending on the operating conditions and storing condition of the battery.

Inserting and Removing the Card (optional)/the Battery

• Check that this unit is turned off.
• Close the flash.
• We recommend using a Panasonic card.

1. Slide the card/battery door to open it.

   • Always use genuine Panasonic batteries (CGR-S006A).
   • If you use other batteries, we cannot guarantee the quality of this product.
2. Battery: Insert until it is locked by the lever being careful about the direction you insert it. Pull the lever in the direction of the arrow to remove the battery.
   Card: Push it fully until it clicks being careful about the direction you insert it. To remove the card, push the card until it clicks, then pull the card out upright.
   :Do not touch the connection terminals of the card.

   • The card may be damaged if it is not fully inserted.
3.

   1. Close the card/battery door.
   2. Slide the card/battery door to the end and then close it firmly.

• If the card/battery door cannot be completely closed, remove the card, check its direction and then insert it again.

Setting Date/Time (Clock Set)

• The clock is not set when the camera is shipped.

1. Turn the camera on.
   • The [PLEASE SET THE CLOCK] message appears. (This message does not appear in [PLAYBACK] Mode.)

     1. [MENU/SET] button
     2. Cursor buttons
2. Press [MENU/SET].

3. Press to select the items (year, month, day, hour, minute, display sequence or time display format), and press to set.
   : Cancel without setting the clock.

4. Press [MENU/SET] to set.
   • After completing the clock settings, turn the camera off. Then turn the camera back on, switch to Recording Mode, and check that the display reflects the settings that were performed.
   • When [MENU/SET] has been pressed to complete the settings without the clock having been set, set the clock correctly by following the "Changing the clock setting" procedure below.

• It can be changed in steps3 and 4 to set the clock.
• Once a charged battery has been installed for 24 hours, the clock setting is maintained for 3 months using the built-in clock battery even without the battery.

Setting the Menu

This camera offers menu selections that allow you to customize its operation to maximize your picture taking experience.
In particular, the [SETUP] menu contains some important settings relating to the camera's clock and power. Check the settings of this menu before proceeding to use the camera.

1. Turn the camera on.

   1. [MENU/SET] button
   2. [REC]/[PLAYBACK] selector switch
   3. Mode dial
2. Slide the [REC]/[PLAYBACK] selector switch to [].
   • When selecting the [PLAYBACK] Mode menu settings, set the [REC]/[PLAYBACK] selector switch to [], and proceed to step 4.
3. Set the mode dial to [].
4. Press [MENU/SET] to display the menu.

   • You can switch menu screens from any menu item by rotating the zoom lever.
     Switching to the [SETUP] menu

1. Press .

2. Press to select the [SETUP] menu icon [ ].

3. Press .


• Select a menu item next and set it.

5. Press to select [AF MODE].

   • Select the item at the very bottom, and press to move to the second screen.
6. Press .

   • Depending on the item, its setting may not appear or it may be displayed in a different way.
7. Press to select [].

8. Press [MENU/SET] to set.

9. Press [MENU/SET] to close the menu.

1. Turn the camera on.
   [REC]/[PLAYBACK] selector switch

   • The power lamp lights when you turn this unit on .
2. Slide the [REC]/[PLAYBACK] selector switch to [!].
3. Switching the mode by rotating the mode dial.
   Align a desired mode with part .

   • Rotate the mode dial slowly and surely to adjust to each mode. (The mode dial rotates 360º)

Basic
Intelligent auto mode
The subjects are recorded using settings automatically selected by the camera.
Program AE mode
The subjects are recorded using your own settings.

Advanced
Aperture-priority AE mode
The shutter speed is automatically determined by the aperture value you set.
Shutter-priority AE mode
The aperture value is automatically determined by the shutter speed you set.
Manual exposure mode
The exposure is adjusted by the aperture value and the shutter speed which are manually adjusted.
Creative motion picture mode
Record motion picture with manual settings.
Custom mode
Use this mode to take pictures with previously registered settings.
Scene mode
This allows you to take pictures that match the scene being recorded.
My Color mode
Easily adjust color, brightness and saturation when taking a picture.

Advanced Scene Mode
Portrait mode
Use this mode to take pictures of people.
Scenery mode
Use this mode to take pictures of scenery.
Sports mode
Use this mode to take pictures of sporting events, etc.
Close-up mode
Use this mode to take pictures of a close-by subject.
Night portrait mode
Use this mode to take pictures of night scenes and people against night time scenery.

[REC] Mode:

Taking pictures using the automatic function

(: Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording conditions so we recommend this mode for beginners or those who want to leave the settings to the camera and take pictures easily.

• The following functions are activated automatically.
  • Scene detection/[STABILIZER]/[INTELLIGENT ISO]/Face detection/[QUICK AF]/[I.EXPOSURE] (Intelligent Exposure)/Digital Red-eye Correction/Backlight Compensation

1. Slide the [REC]/[PLAYBACK] selector switch to [].
2. Set the mode dial to [].
3. Press the shutter button halfway to focus.


• The focus indication (green) lights when the subject is focused.
• The AF area is displayed around the subject's face by the Face Detection function. In other cases, it is displayed at the point on the subject which is in focus.
• The focus range is 1 cm (0.04 feet) (Wide)/1 m (3.28 feet) (Tele) to.
• The maximum close-up distance (the shortest distance at which the subject can be taken) differs depending on the zoom magnification.

4. Press the shutter button fully (push it in further), and take the picture.


• The access indication lights red when pictures are being recorded on the built-in memory (or the card).
• Do not turn this unit off, remove its battery or card, or disconnect the AC adaptor (DMW-AC7PP; optional) when the access indication is lit [when pictures are being written, read or deleted, or the built-in memory or the card is being formatted]. Furthermore, do not subject the camera to vibration, impact or static electricity. The card or the data on the card may be damaged, and this unit may no longer operate normally.
  If operation fails due to vibration, impact or static electricity, perform the operation again.

• Only when [] is selected
• [] is set if none of the scenes are applicable, and the standard settings are set.
• When [] or [] is selected, the camera automatically detects a person's face, and it will adjust the focus and exposure. (Face detection)
• If a tripod is used, for instance, and the camera has judged that camera shake is minimal when the Scene Mode has been identified as [], the shutter speed will be set to a maximum of 8 seconds. Take care not to move the camera while taking pictures.
• When [FACE RECOG.] is set to [ON], and the face similar to the registered face is detected, [R] is displayed in the top right of [ ], [ ] and [ ].
  * When [FACE RECOG.] is set to [ON], [ ] will be displayed for birthdays of registered faces already set only when the face of a person 3 years old or younger is detected.

AF Tracking Function
It is possible to set the focus to the specified subject. Focus will keep following the subject automatically even if it moves.

1. Press [FOCUS].
   • [] is displayed in the upper left of the screen.
   • AF Tracking frame is displayed in the center of the screen.
   • Press [FOCUS] again to cancel.
2. Bring the subject to the AF tracking frame, and press [AF/AE LOCK] to lock the subject
   • AF tracking frame will turn yellow.
   • An optimum scene for the specified subject will be chosen.
   • Press [FOCUS] to cancel.

[REC] Mode:

Taking pictures with your favorite settings

(: Program AE Mode)

The camera automatically sets the shutter speed and the aperture value according to the brightness of the subject.
You can take pictures with greater freedom by changing various settings in [REC] menu.

1. Slide the [REC]/[PLAYBACK] selector switch to [].

   1. Mode dial
   2. [REC]/[PLAYBACK] selector switch
2. Set the mode dial to [ ].
3. Aim the AF area at the point you want to focus on.
4. Press the shutter button halfway to focus.

   • The focus range is 30 cm (0.99 feet) (Wide)/2 m (6.57 feet) (Tele) to .
5. Press the halfway pressed shutter button fully to take a picture.

   • The access indication lights red when pictures are being recorded on the built-in memory (or the card).

[REC] mode:

Recording Motion Picture

This can record high definition motion pictures compatible with the AVCHD format or motion pictures recorded in Motion JPEG.
Audio will be recorded in stereo.

• Close the flash. (It is recommended that you close the flash when recording motion pictures. However, leaving the flash open will not result in a significant difference in sound quality.)

1. Slide the [REC]/[PLAYBACK] selector switch to [].
2. Select the mode.

   1. Mode dial
   2. Motion picture button

Modes that can be used when recording a motion picture

Item	Settings/Note
Intelligent Auto mode	The camera will set the most appropriate settings to match the subject and the recording conditions, so you can leave the settings to the camera and take motion pictures easily.
mode	Record motion pictures by automatically setting aperture and shutter speed.
Creative motion picture mode	Record motion pictures by manually setting aperture and shutter speed.
Custom mode	Record motion pictures with selected custom mode settings.
Scene mode	Record motion pictures that match the scene being recorded.
[PORTRAIT]	Record motion pictures with settings suitable for portraits.
[SCENERY]	Record motion pictures with settings suitable for scenery.
[SPORTS]	It will be a normal motion picture recording during the motion picture recording.
[CLOSE-UP]	Record motion pictures with settings suitable for close-ups.
[NIGHT PORTRAIT]	Record clear motion pictures with low light setting [] inside dim rooms or at dusk.
My Color mode	Record motion pictures in My Color mode setting.

3. Start recording by pressing the motion picture button.

   1. Available recording time
   2. Elapsed recording time
      • The audio is also recorded simultaneously from the built-in microphone on this unit. (Motion pictures cannot be recorded without audio.)
      • The recording state indicator (red) will flash while recording motion pictures.
      • Focus can be achieved during recording by pressing [FOCUS].
4. Stop the recording by pressing the motion picture button again.
   • Sound will go off when pressing the motion picture button indicating start/stop of motion picture recording.
     Sound volume can be set in [BEEP LEVEL].
   • If the built-in memory or the card becomes full in the middle of recording, the camera stops recording automatically.

Note

• The screen will change as following when the motion picture button is pressed in steps 3 and 4.

*1 The screen that is displayed during motion picture mode setting is different depending on the setting of the [REC MODE].
*2 [] will not be displayed in the Creative Motion Picture Mode.

[PLAYBACK] Mode:

Playing back Pictures ([NORMAL PLAY])

1. Slide the [REC]/[PLAYBACK] selector switch to [].

   • Normal playback is set automatically in the following cases.
     • When the mode was switched from the [REC] to [PLAYBACK].
     • When the camera was turned on while the [REC]/[PLAYBACK] selector switch was at [].
2. Press to select the picture.

   1. File number
   2. Picture number
      : Play back the previous picture
      : Play back the next picture

Fast forwarding/Fast rewinding
Press and hold during playback.
: Fast rewind
: Fast forward

• The file number and the picture number only change one by one. Release when the number of the desired picture appears to play back the picture.
• If you keep pressing , the number of pictures forwarded/rewound increases.

[PLAYBACK] Mode:

Deleting Pictures

Once deleted, pictures cannot be recovered.

• Pictures on the built-in memory or the card, which is being played back will be deleted.

To delete a single picture

1. Select the picture to be deleted, and then press [].

   1. [DISPLAY] button
   2. [] button
2. Press to select [YES] and then press [MENU/SET].


1. Press [].
2. Press to select [DELETE MULTI] or [DELETE ALL] and then press [MENU/SET].
   • [DELETE ALL] > step 5.
3. Press to select the picture, and then press [DISPLAY] to set. (Repeat this step.)

   • [] appears on the selected pictures. If [DISPLAY] is pressed again, the setting is canceled.
4. Press [MENU/SET].
5. Press to select [YES] and then press [MENU/SET] to set.

Reading the Operating Instructions (PDF format)

• You have practised the basic operations introduced in these operating instructions and want to progress to advanced operations.
• You want to check the Troubleshooting.

In these kinds of situations refer to Operating Instructions (PDF format) recorded on the CD-ROM containing the Operating Instructions (supplied).

• For Windows


1. Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied).
2. Select the desired language and then click [Operating Instructions] to install.
   (Example: When an English language OS)
3. Double click the "Operating Instructions" shortcut icon on the desktop.

• When the Operating Instructions (PDF format) will not open
  You will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to browse or print the Operating Instructions (PDF format).
  Download and install a version of Adobe Reader that you can use with your OS from the following Web Site. http://www.adobe.com/products/acrobat/readstep2_allversions.html
  If using Windows 2000 SP4/Windows XP SP2 or SP3/Windows Vista and SP1 Insert the CD-ROM containing the Operating Instructions (supplied), click [Adobe(R) Reader(R)] and then follow the messages on the screen to install.
• To uninstall the Operating Instructions (PDF format)
  Delete the PDF file from the "Program Files\Panasonic\Lumix\" folder.
  • When the contents in the Program Files folder cannot be displayed, click the [Show the contents of this folder] to display them.
• For Macintos

  1. Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied).
  2. Open the "Manual" folder in the CD-ROM and then copy the PDF file with the desired language inside the folder.
  3. Double click the PDF file to open it.

Specifications

Digital Camera:	Information for your safety
Power Source:	DC 8.4 V
Power Consumption:	1.3 W (When recording with LCD Monitor) 1.3 W (When recording with Viewfinder) 0.6 W (When playing back with LCD Monitor) 0.6 W (When playing back with Viewfinder)
Camera effective pixels:	12,100,000 pixels
Image sensor:	1/2.33q CCD, total pixel number 12,700,000 pixels, Primary color filter
Lens:	Optical 18kzoom, fl4.8 mm to 86.4 mm (35 mm film camera equivalent: 27 mm to 486 mm) Wide: F2.8 to F8.0 (when recording motion pictures: F2.8 to F8.0) Tele: F4.4 to F8.0 (when recording motion pictures: F4.4 to F13)
Digital zoom:	Max. 4k
Extended optical zoom: (Except for the maximum picture size for each aspect ratio)	Max. 35.2k
Focus:	Auto focus/AF Macro/Macro zoom/Manual focus Face detection/AF Tracking/11-area-focusing/1-area-focusing (High speed)/1-area-focusing/Spot-focusing
Focus range:	AF: 30 cm (0.99 feet) (Wide)/2 m (6.57 feet) (Tele) to AF Macro/MF/Intelligent auto: 1 cm (0.04 feet) (Wide)/ 1 m (3.28 feet) (Tele) to However, 2 m (6.57 feet) to for 4k to 10k zoom 1 m (3.28 feet) to for 11k to 18k zoom Scene Mode: There may be differences in the above settings.
Shutter system:	Electronic shutter + Mechanical shutter
Burst recording Burst speed:	Approx. 2.3 pictures/second
Number of recordable pictures:	Max. 5 pictures (Standard), max. 3 pictures (Fine)
Hi-speed burst Burst speed:	Approx. 10 pictures/second (Speed priority) Approx. 6 pictures/second (Image priority) (3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the picture size.)
Number of recordable pictures:	15 to 100 (differs depending on the type of Card and the recording conditions)
ISO sensitivity (Standard Output Sensitivity) Still picture:	AUTO/80/100/200/400/800/1600 [HIGH SENS.] Mode: 1600 to 6400
Motion pictures:	AUTO/400/800/1600/3200/6400
Shutter speed Still picture:	Wide: 60 seconds to 1/2000th of a second Tele: 60 seconds to 1/1300th of a second [STARRY SKY] Mode: 15 seconds, 30 seconds, 60 seconds
Motion pictures:	1/30 to 1/20000th of a second Creative Motion Picture Mode (Manual exposure/Manual focus): 1/8 to 1/20000th of a second
White balance:	Auto white balance/Daylight/Cloudy/Shade/Flash/Incandescent lights/White set1/White set2/White balance K set
Exposure (AE):	Program AE (P)/Aperture-priority AE (A)/Shutter-priority AE (S)/ Manual exposure (M) Exposure compensation (1/3 EV Step, -2 EV to +2 EV)
Metering mode: LCD monitor: Viewfinder:	Multiple/Center weighted/Spot 2.7q TFT LCD (Approx. 230,000 dots) (field of view ratio about 100%) Color LCD Viewfinder (Approx. 201,000 dots) (field of view ratio about 100%) (with diopter adjustment - 4 to + 4 diopter)
Flash:	Built-in pop up flash Flash range: [ISO AUTO] Approx. 30 cm (0.99 feet) to 8.5 m (27.9 feet) (Wide) AUTO, AUTO/Red-eye reduction, Forced flash ON (Forced ON/ Red-eye reduction), Slow sync./Red-eye reduction, Forced flash OFF
Microphone:	Stereo
Speaker:	Monaural
Recording media:	Built-in Memory (Approx. 40 MB)/SD Memory Card/SDHC Memory Card
Picture size Still picture:	When the aspect ratio setting is [] 4000k3000 pixels, 3264k2448 pixels, 2560k1920 pixels, 2048k1536 pixels, 1600k1200 pixels, 640k480 pixels When the aspect ratio setting is [] 4000k2672 pixels, 3264k2176 pixels, 2560k1712 pixels, 2048k1360 pixels When the aspect ratio setting is [] 4000k2248 pixels, 3264k1840 pixels, 2560k1440 pixels, 1920k1080 pixels
Motion pictures:	[AVCHD Lite] (With audio) When set to [SH]: 1280k720 pixels (60p recording * /17 Mbps, only when card is used) / When set to [H]: 1280k720 pixels (60p recording * /13 Mbps, only when card is used) / When set to [L]: 1280k720 pixels (60p recording * /9 Mbps, only when card is used) * CCD output is at 30 fps [MOTION JPEG] (With audio) When set to [HD]: 1280k720 pixels (30 frames / sec., only when card is used) / When set to [WVGA]: 848k480 pixels (30 frames / sec., only when card is used) / When set to [VGA]: 640k480 pixels (30 frames / sec., only when card is used) / When set to [QVGA]: 320k240 pixels (30 frames / sec.)
Quality:	Fine/Standard/RAW/RAW+JPEG
Recording file format Still Picture:	JPEG (based on "Design rule for Camera File system", based on "Exif 2.21" standard)/RAW, DPOF corresponding
Motion pictures with audio:	AVCHD Lite/QuickTime Motion JPEG
Interface Digital:	"USB 2.0" (High Speed)
Analog video/audio:	NTSC Audio line output (stereo)
Terminal [DIGITAL/AV OUT]: [DC IN]: [HDMI]:	Dedicated jack (14 pin) Type 3 jack MiniHDMI TypeC
Dimensions:	Approx. 117.6 mm (W)k75.8 mm (H)k88.9 mm (D) [4 5/8q (W)k3 q(H)k3 1/2q (D)] (excluding the projecting parts)
Mass (weight):	Approx. 367 g/12.94 oz (excluding card and battery) Approx. 414 g/14.60 oz (with card and battery)
Operating temperature:	0 ºC to 40 ºC (32 ºF to 104 ºF)
Operating humidity: Language select:	10% to 80% [ENGLISH]/[ESPAÑOL]
Battery Charger (Panasonic DE-A43B):	Information for your safety
Input:	110 V to 240 - V 50/60 Hz, 0.15 A
Output:	CHARGE 8.4 V 0.43 A
Equipment mobility:	Movable
Battery Pack (lithium-ion) (Panasonic CGR-S006A):	Information for your safety
Voltage/capacity (Minimum):	7.2 V/695 mAh

Digital Camera Accessory System

*1 The battery cannot be charged with the AC adaptor. Use the supplied charger.
*2 The lens adaptor (DMW-LA3; optional) is necessary to attach a tele conversion lens or close-up lens.

• NOTE: Accessories and/or model numbers may vary between countries. Consult your local dealer.

Digital Camera Accessory Order Form

Please photocopy this form when placing an order.

1. Digital Camera Model #
2. Items Ordered

3. Method of payment (check one)
   Check of Money Order enclosed (NO C.O.D.SHIPMENTS)
   VISA Credit Card #
   MasterCard Expiration Date
   Discover Customer Signature
   Make Check or Money Order to: PANASONIC ACCESSORIES
   (Please do not send cash)
4. Shipping information (UPS delivery requires complete street address)
   Ship To:
   Mr.
   Mrs. Ms.

TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER
OR
CALL PANASONIC'S ACCESSORY ORDER LINE AT 1-800-332-5368
[6 AM-6 PM M-F, PACIFIC TIME]
OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032

Request for Service Notice

Please make a copy of this page and note the problem you are having. Include it with your proof of purchase, and ship your camera to the address below.
Reason for requesting service: (USA and Puerto Rico Only)
Mail this completed form and your Proof of Purchase along with your unit to:
Panasonic Services Company
Customer Servicenter
Suite B
4900 George McVay Drive
McAllen, TX 78503

Information for Your Safety

About the battery pack

Battery pack (Lithium ion battery pack)

• Do not heat or expose to flame.
• Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long period of time with doors and windows closed.

About the battery charger

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

Battery charger
This battery charger operates on AC between 110 V and 240 V.
But

• In the U.S.A. and Canada, the battery charger must be connected to a 120 V AC power supply only.
• When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to suit the AC outlet configuration.

Cautions for Use

• Do not use any other AV cables except the supplied one.
• Do not use any other cables except a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30; optional). Part numbers: RP-CDHM15 (1.5 m) (5 feet), RP-CDHM30 (3.0 m) (10 feet)
• Do not use any other USB connection cables except the supplied one.
  Keep the camera as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.).
• If you use the camera on top of or near a TV, the pictures and sound on the camera may be disrupted by electromagnetic wave radiation.
• Do not use the camera near cell phones because doing so may result in noise adversely affecting the pictures and sound.
• Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields created by speakers or large motors.
• Electromagnetic wave radiation generated by microprocessors may adversely affect the camera, disturbing the pictures and sound.
• If the camera is adversely affected by electromagnetic equipment and stops functioning properly, turn the camera off and remove the battery or disconnect AC adaptor (DMW-AC7PP; optional). Then reinsert the battery or reconnect AC adaptor and turn the camera on. Do not use the camera near radio transmitters or high-voltage lines.
• If you record near radio transmitters or high-voltage lines, the recorded pictures and sound may be adversely affected.

Care of the camera

• Do not strongly shake or bump the camera by dropping or hitting it. Do not subject to strong pressure.
  The camera may malfunction, recording pictures may become impossible, or the lens, the LCD monitor or the external case may be damaged.
• Do not touch the lens or the sockets with dirty hands. Also, be careful not to allow liquids, sand and other foreign matter to get into the space around the lens, buttons etc.
• Retract the lens before carrying the camera or playing back pictures.
• Be particularly careful in the following places as they may cause this unit to malfunction.
  • Places with a lot of sand or dust.
  • Places where water can come into contact with this unit such as when using it on a rainy day or on a beach.
• This camera is not waterproof. If water or seawater splashes on the camera, use a dry cloth to wipe the camera body carefully.
  If the unit does not operate normally, please contact the dealer where you purchased the camera or the repair service center.

About Condensation (When the lens or the Viewfinder is fogged up)

• Condensation occurs when the ambient temperature or humidity changes. Be careful of condensation since it causes lens stains, fungus and camera malfunction.
• If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will disappear naturally when the temperature of the camera becomes close to the ambient temperature.

About cards that can be used in this unit
You can use an SD Memory Card and SDHC Memory Card.

• When the termcard is used in these operating instructions this refers to the following types of Memory Cards.
  • SD Memory Card (8 MB to 2 GB)
  • SDHC Memory Card (4 GB to 32 GB)
    More specific information about memory cards that can be used with this unit.
• You can only use an SDHC Memory Card if using cards with 4 GB or more capacity.
• A 4 GB (or more) Memory Card without an SDHC logo is not based on the SD Standard and will not work in this product.
  Please confirm the latest information on the following website. http://panasonic.jp/support/global/cs/dsc/ (This Site is English only.)

• Keep the Memory Card out of reach of children to prevent swallowing.
