Pelsis exocutor EX16 Quick Start Manual

Professional Electric Insect Control
Please read these instructions carefully and store in a safe place for future
reference.
Read Operators
Manual
EXOCUTOR
™
As part of the Insect-O-Cutor brand of insect control products, Exocutor
®
e ective and exible commercial ykiller which utilises highly e ective UV tubes.
Available in a white or stainless steel nish, four sizes of unit are available which can be
wall mounted, ceiling suspended or desk mounted.
CONTENTS OF PACKAGE
- 1 x Exocutor ykiller
™
- 1 x Mains cable
- 2 x Screws, wall plugs and suspension keyrings
- 2 x High powered UV tubes (Fitted)
WARNING - THIS APPLIANCE MUST BE EARTHED (CLASS 1)
INSECT CONTROL PRODUCTS
Exocutor
™ utilises ultra violet tubes to attract ying insects and then electrocutes them
on a killing grid, before collecting them in a removable catch tray.
WARNING
Exocutor is not to be used by persons with reduced physical, sensory or mental
™
capabilities, or lack of experience and training, unless they have been given instruction.
Children should be supervised to ensure they do not play with the appliance.
If the mains cable is damaged it must be replaced by a specialist mains cable available
from Pelsis Ltd or your supplier.
Not suitable for applications where potentially explosive environments may exist.
POSITIONING AND GUIDANCE FOR USE
THIS UNIT IS FOR INDOOR USE ONLY. NOT SUITABLE FOR USE IN BARNS, STABLES &
SIMILAR LOCATIONS.
Exocutor should ideally be xed around two meters above the ground, preferably in
™
the darkest place within the area to be protected. Do not position the unit close to
windows, skylights or other sources of light, or where it may be obscured by furniture,
doors or other obstacles. Ideally, Exocutor
area to be protected.
Exocutor
™ should ideally be in operation for 24 hours a day, ensuring your premises are
kept free of ying insects. Insects are most attracted to Exocutor
there is no competition from daylight or other light sources.
GUARANTEE
Exocutor has a two year guarantee and if maintained as recommended in these
™
instructions should continue to work for many years.
may invalidate the guarantee.
Excludes tubes and starters. Does not cover breakdown due to misuse, incorrect
*
operation or use in an incorrect application.
INSTALLATION
INSTALLATION SHOULD BE CARRIED OUT BY SERVICE PERSONNEL ONLY.
Exocutor
™ should be mounted as shown in the mounting options section of this
document. Keep out of reach of children. Use the removable mains lead and plug to
connect Exocutor to a power supply of appropriate rating, as speci ed on the
™
speci cation label found on the catch tray.
For Indoor Dangerous
Use Only Voltage
should be visible from every part of the
™
units at night when
™
Use of non-approved consumables
*
CLEANING
CLEANING SHOULD BE CARRIED OUT BY SERVICE PERSONNEL ONLY, AFTER ENSURING
THAT THE UNIT IS DISCONNECTED FROM THE MAINS SUPPLY.
It is recommended that cleaning is carried out regularly every month. During cleaning
the unit should be thoroughly wiped down with a damp cloth, removing any build up of
dirt. Ensure the unit is completely dry before reconnecting it to the power supply.

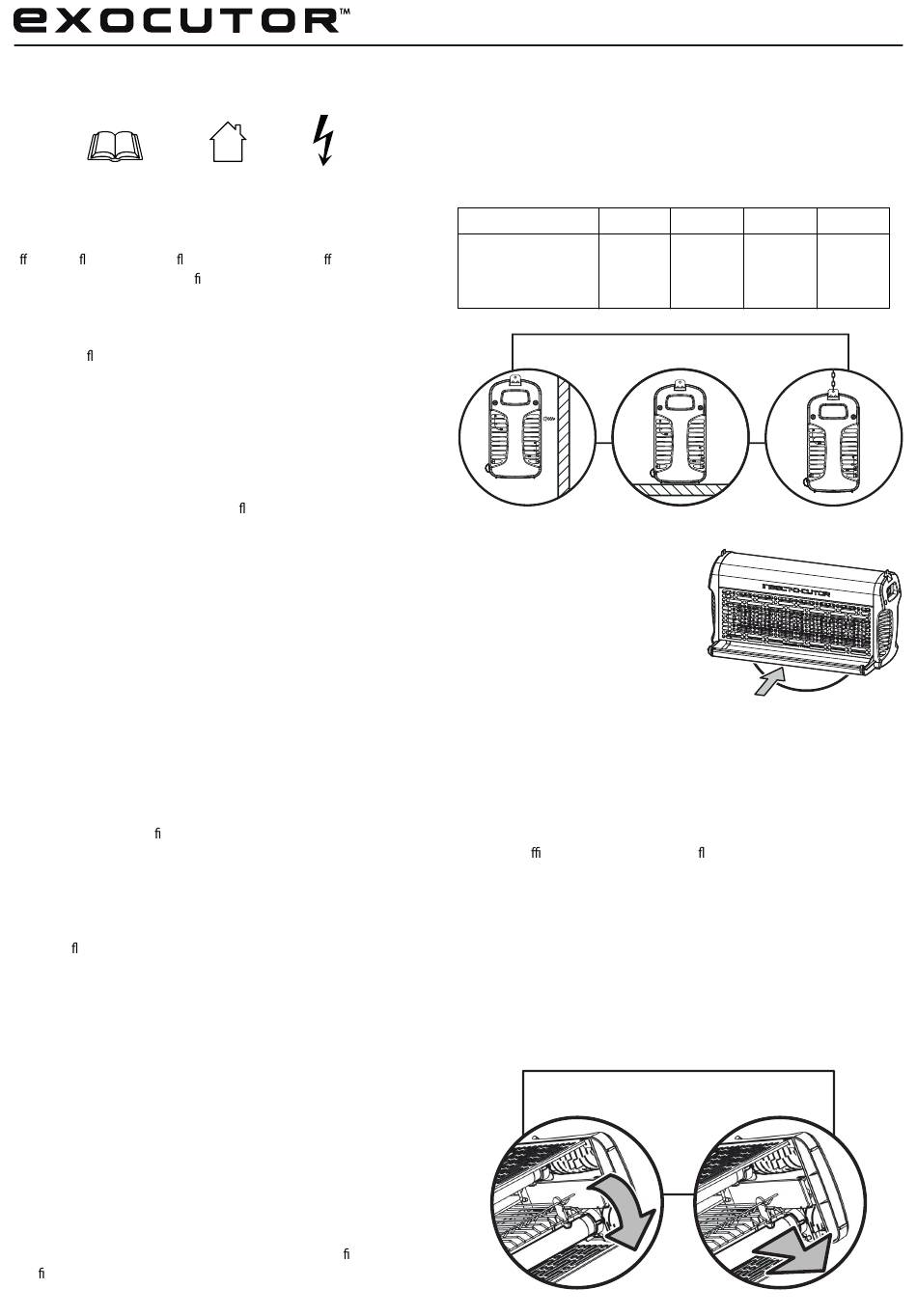

MOUNTING FIXING CENTRES
METHOD
is an
™
Wall
Desk
Suspended 338mm
WALL
CATCH TRAY REMOVAL
The catch tray is connected to the power supply of
the unit via a hidden switch. By removing the
catch tray, the connection is broken and power is
cut to the unit. This ensures safe access to the
unit for servicing and cleaning.
NB - WHEN REPLACING THE CATCH TRAY BACK INTO
EXOCUTOR , ENSURE IT IS PUSHED FULLY INTO POSITION AND THAT POWER IS
™
RESTORED TO THE UNIT.
TUBE REPLACEMENT
TUBE REPLACEMENT SHOULD BE CARRIED OUT BY SERVICE PERSONNEL ONLY, AFTER
ENSURING THAT THE UNIT IS DISCONNECTED FROM THE MAINS SUPPLY.
To ensure the e ciency of Exocutor
replaced annually. After twelve months the phosphor coating that emits the correct
wavelength of UV light has burnt away and the UV output is diminished substantially.
To replace the UV tubes...
1. Remove the catch tray, breaking the power supply to the unit.
2. Rotate the tube through 90°, freeing it from the tube holders.
3. Pull the tube away from the chassis.
4. Dispose of the used UV tubes in conjunction with local WEEE regulations.
EX16, 30, 40 & 80
EX16 EX30 EX40
174mm 310mm 455mm
- - -
488mm 640mm 640mm
MOUNTING OPTIONS
DESK
in catching ying insects, the UV tubes should be
™
TUBE REPLACEMENT
EX80
455mm
-
SUSPENDED
