Summary of Contents for Hoover HWP4 47AMBC7/1-S

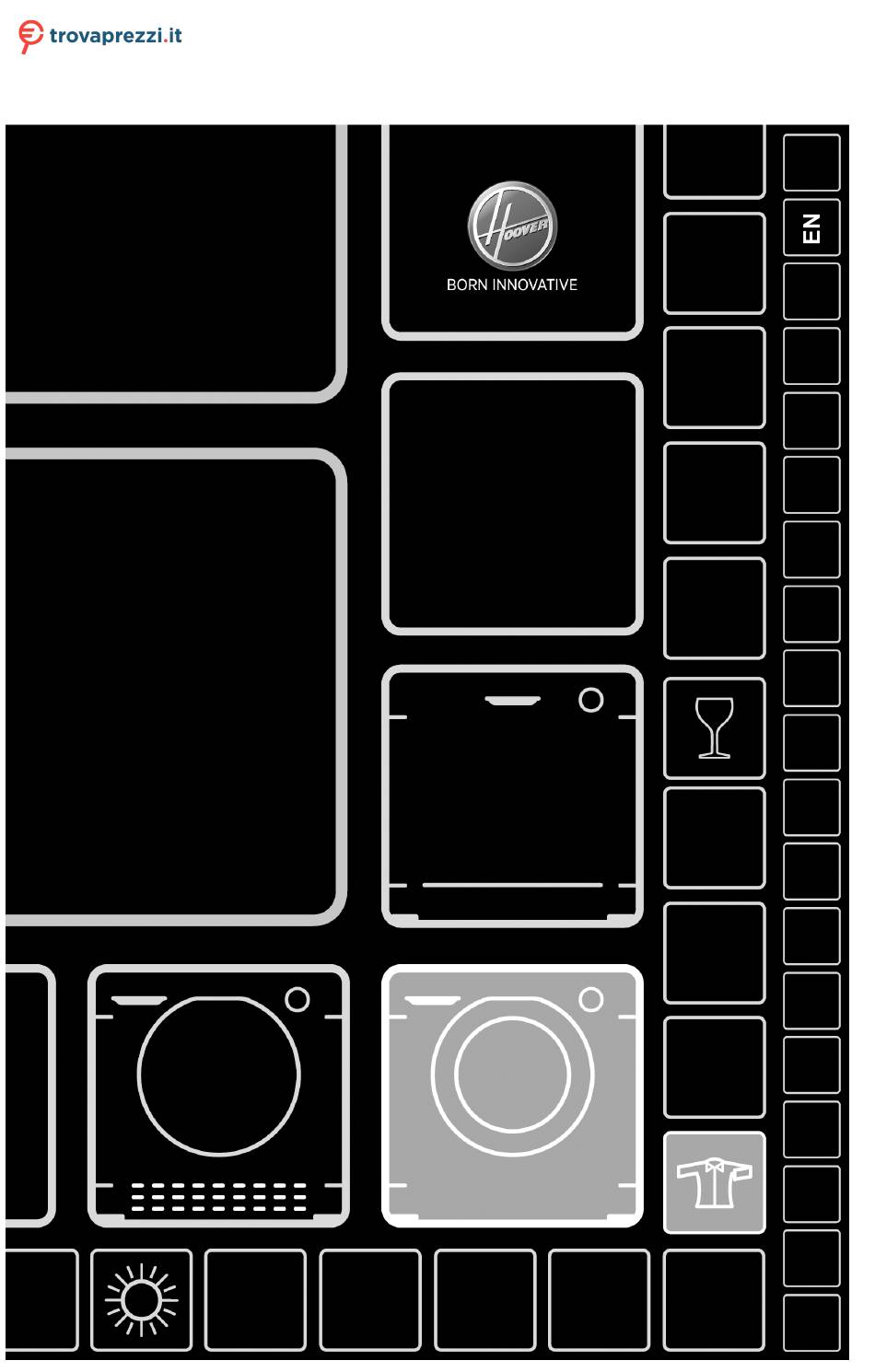

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Hoover Lavatrice HWP4 47AMBC7/1-S o cerca il tuo prodotto tra le migliori offerte di Lavatrici e Asciugatrici...
-
Page 2: Table Of Contents
Thank you for choosing this product. Environmental conditions We are proud to offer the ideal product for you and the best complete range of home This appliance is marked according to appliances for your daily routine. the European directive 2012/19/EU on Waste Electrical and Electronic Carefully read this manual for correct and Equipment (WEEE). -
Page 3: General Safety Rules
1. GENERAL SAFETY in a safe way and understand the hazards involved. RULES Children shall not play with the This appliance is intended to l appliance. Cleaning and user be used in household and maintenance shall not be made similar applications such as: by children without supervision. - Page 4 Do not expose the washing l Electrical connections machine to rain, direct sunlight safety instructions or other weather elements. Protect from possible freezing. The technical details (supply l voltage and power input) are When moving, do not lift the indicated on the product rating l...
-
Page 5: Installation
2. INSTALLATION Remove the 2 or 4 transportation l screws (A) on the back and remove the 2 or 4 flat washers, rubber bungs and plastic spacer tubes (B) as illustrated in figure 1. If the washing machine is built-in, l... -
Page 6: Hydraulic Connections
Hydraulic connections l Connect the water hose to the water supply tap (fig. 3) only using the hose supplied with the appliance (do reuse old hose-sets). l SOME MODELS may include one or more of the following features: l HOT&COLD (fig. 4): water mains connection settings with hot and cold water for higher energy savings. - Page 7 Setting l The washing machine should be installed in its final position such that the water fill hose is not kinked or trapped. The corrugated drain hose should be inserted into suitable drain pipe of between 50 cm and 85 cm height above the floor using the curved drain hose support.
-
Page 8: Detergent Drawer
3. DETERGENT DRAWER detergent draw split into compartments as illustrated in figure 9: l compartment "1": for prewash detergent; l compartment “ ”: for special additives, softeners, starch fragrances, etc.; WARNING: only use liquid products; the washing machine is set to automatically dose additives at each cycle during the last rinse. -
Page 9: Practical Hints
4. PRACTICAL HINTS Maximise the load size l Achieve the best use of energy, water, Load tips detergent time using recommended maximum load size. When sorting laundry, make sure: Save up to 50% energy by washing a full load instead of 2 half loads. - have eliminated metallic objects such as hair clips, pins, coins, from laundry;... - Page 10 The use of ecological detergents without When washing heavily soiled whites, phosphates cause following we recommend using cotton programs of effects: 60°C or above and a normal washing powder (heavy duty) that contains - cloudier rinse drain water: This effect is bleaching agents that at medium/high tied to the suspended zeolites which do temperatures provide excellent results.
-
Page 11: Cleaning And Maintenance
l 5. CLEANING AND Fill the drawer with hot water. MAINTENANCE Looking after your appliance correctly can extend its lifespan. Cleaning the appliance’s exterior l Disconnect the machine from the power supply. l Clean the appliance’s external cabinet, using a damp cloth and AVOIDING ABRASIVES, ALCOHOL AND/OR... -
Page 12: Cleaning The Pump Filter
Cleaning the pump filter S u g g e s tio n s fo r m o v e s o r prolonged disuse l The appliance has a special filter that traps larger residues that could block the l If the appliance is kept in a non-heated draining system, such as buttons or coins room for long periods of time, all water... -
Page 13: Porthole Emergency Opening
6. PORTHOLE EMERGENCY OPENING Should the porthole be locked due to power Shortage (if the plug is removed before the end of the cycle, re-plug it and turn off the machine to open the door) or as a result of a fault, it can be opened according to the following emergency unlocking procedure: 1. -
Page 14: Remote Control (Wi-Fi)
7. REMOTE CONTROL (WI-FI) This appliance is equipped with Wi-Fi TO DISABLE REMOTE CONTROL technology that allows you to control it l To exit REMOTE CONTROL mode while remotely via App. a cycle is underway, turn the programme selector to any position other than MACHINE ENROLLMENT (ON APP) REMOTE CONTROL (Wi-Fi). -
Page 15: Quick User Guide
8. QUICK USER GUIDE 9. CONTROLS AND PROGRAMS This appliance automatically adjusts the level of the water to the type and quantity of washing. This system gives a reduction in energy consumption and a saving in D E F G A washing times. -
Page 16: First Starting
START/PAUSE button WARNING: don’t touch the buttons while inserting Close the door BEFORE selecting the plug because machines button START/PAUSE. calibrates the systems during the first seconds: touching the buttons, the l machine couldn’t work property. In To start the selected cycle with the preset this case, remove the plug and repeat parameters, press START/PAUSE. -
Page 17: Temperature Selection
SPIN SPEED button The programme selector must be returned to the OFF position at the end l By pressing this button, it is possible to of each cycle or when starting a reduce the maximum speed, and if you subsequent wash cycle prior to the next wish, the spin cycle can be cancelled. -
Page 18: Options Button
l - Press the button once to activate the It is advisable to also use this function for delay start and then press it again (or the children clothes and for the washing hold it) to set the desired delay. The of heavily soiled items, which requires a delay increases each time the button is lot of detergent to be used, or for the... -
Page 19: Child Lock
l The option can only be selected for the SPECIAL PROGRAMMES button DRAIN & SPIN programme. This button allows you to choose between three different options (available for some These options must selected programmes only): before pressing the START/PAUSE button. - ACTIVE WASH If an option is selected that is not compatible... -
Page 20: Digital Display
3) Kg Mode PLUS INDICATOR LIGHT Digital Display (function active only on Cotton and Synthetics programmes) The display’s indicator system allows you to be constantly informed about the status of l During the first minutes of the cycle, the the machine. "Kg Mode PLUS"... - Page 21 5) STEAM INDICATOR LIGHT 8) OPTIONS INDICATOR LIGHTS (only available on certain models) The indicator lights show the options that The indicator light shows the selection of can be selected by the relevant button. the relevant option. 9) STAIN LEVEL INDICATORS LIGHTS 6) WASH TEMPERATURE INDICATOR LIGHTS l...
- Page 22 Table of programmes (MAX.) PROGRAMME (see control panel) (MAX.) WHITES 90° 11 12 13 14 ECO 40-60 60° 11 12 13 14 40 60 WOOL/HAND WASH 30° 2,5 2,5 2,5 20°C 20° 11 12 13 14 20°C SYNTHETIC AND 60° COLOURED DRAIN &...
- Page 23 Please read these notes: INFORMATION FOR THE TEST Maximum load capacity of dry clothes, LABORATORIES according to the model used (see control panel). STANDARD PROGRAMMES ACCORDING TO (Only for models with liquid (EU) No 1015/2010 e No 1061/2010 detergent compartment) When only a limited number of ECO 40-60 PROGRAMME...
-
Page 24: Description Of Programmes
washed in a washing machine, or the Description of programmes articles to be washed by hand. To clean different types of fabrics and 20°C various levels of dirt, the washing machine This innovative programme, allows you to has specific programs to meet every need wash different fabrics and colours together, of washing (see table of programmes). - Page 25 ALLERGY CARE ALL IN ONE 59 MIN. This programme offers thorough cleaning of This programme allows you to wash all cotton items, sanitising and eliminating different fabrics together such as cottons, bacteria. synthetics and mixed fabrics in only 59 It is an efficient high temperature washing minutes, using the full load of the washing cycle.
-
Page 26: Troubleshooting And Warranty
10. TROUBLESHOOTING AND WARRANTY If you believe the washing machine is not working correctly, consult the quick guide provided below which includes some practical tips on how to fix the most common problems. ERROR CODE FORMAT l Models with a display: the error is shown by a number preceded by the letter “E” (example: E2 = Error 2). -
Page 27: Other Anomalies
OTHER ANOMALIES Problem Possible causes and practical solutions Make sure the product is plugged into a working supply socket. The washing machine Make sure power is on. does not work / start Make sure the wall socket is working, testing it with another appliance such as a lamp. - Page 28 It is always recommended to use original By placing the mark on this spare parts, that are available at our product, we are confirming compliance Authorised Customer Service Centres. to all relevant European safety, health and environmental requirements which are applicable in legislation for this Warranty product.
- Page 29 fk hldsk...
- Page 30 fk hldsk...
- Page 31 fk hldsk...
- Page 32 - HW -...
