Washing machine
Instructions for use
HWB 240
HWB 280

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HWB 240 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hoover HWB 240

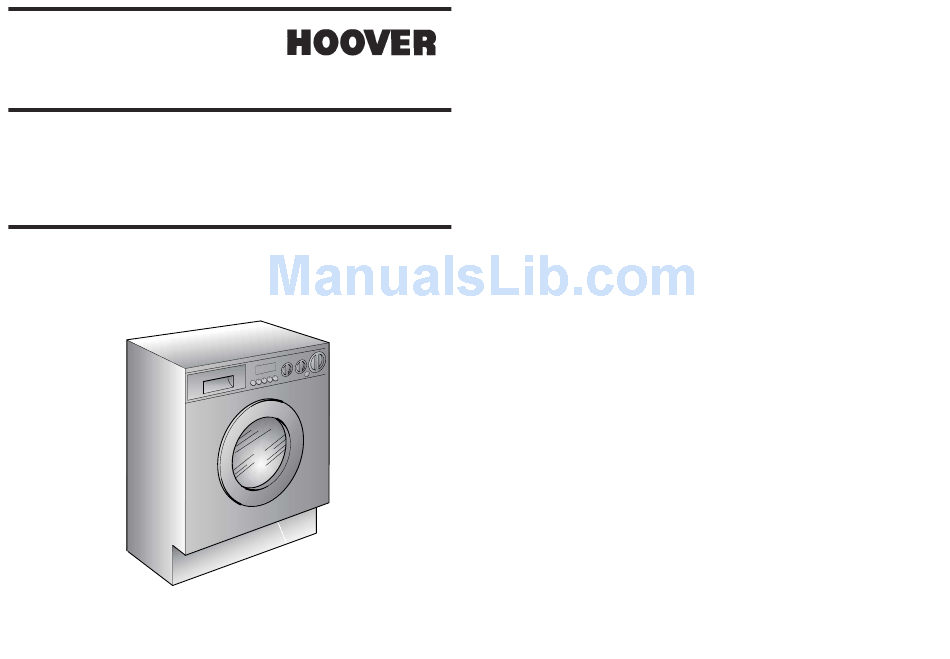

  • Page 1 ® Washing machine Instructions for use HWB 240 HWB 280...
  • Page 2: Table Of Contents

    Introduction Contents Page Please read these instructions for use carefully and all other information enclosed with the Introduction washing machine. General delivery notes Keep all documentation in a safe place for future reference or for any future owners. Safety notes Quick start Description of controls Note: this machine is solely for domestic use.
  • Page 3: General Delivery Notes

    Press additional function buttons (if required) B) Turn off the tap C) Hoover equips all its appliances with earthing. Ensure that the mains supply is earthed, - Press the “Start/Pause” button (page 7) and if it is not, seek assistance from a qualified person.
  • Page 4: Description Of Controls

    Description of controls Door open button Fig. 1 Important: a special safety device prevents the door from opening at the end of the wash/spin cycle. at the end of the spin phase wait up to 2 minutes before opening the door. DOOR SECURITY indicator light The “Door Security”...
  • Page 5: Programme Table

    The option buttons should be selected before pressing CREASE GUARD button the "Start/Pause" button. Press the button to select or deselect this function. The Crease Guard function minimizes creases as much as possible with a uniquely designed anti-crease system that is tailored to specific fabrics. START DELAY BUTTON MIXED FABRICS - the water is gradually cooled throughout the final two rinses with no Appliance start time can be set with this button, delaying the star by 3, 6 or 9 hours.
  • Page 6 PROGRAMME selector with "OFF" position WASH TEMPERATURE CONTROL KNOB Rotates in both directions. ROTATES IN BOTH DIRECTIONS The machine is turned on by selecting a programme via the With this device it is possible to reduce, but no increase programme selector. This status washing cycle temperature.
  • Page 7: Table Of Programmes

    TABLE OF PROGRAMMES PROGRAMMES SELECTOR TEMP. PROGRAM FOR WEIGHT CHARGE DETERGENT °C Resistant fabrics Cotton, linen 90°C Up to: 90° Please read these notes Cotton, mixed 60°C Up to: 60° resistant When washing heavily soiled laundry it is recommended the load is reduced to 3 kg maximum.
  • Page 8: Programme Selector

    SPECIAL “FAST SPIN” PROGRAMME Programme “FAST SPIN” carries out a maximum spin. Programme selector For the various types of fabrics and various degrees of dirt the washing machine has different DRAIN ONLY programme bands according to: wash cycle, temperature and length of cycle (see table of This programme drains out the water.
  • Page 9: Detergent Drawer

    DAILY WASH 40°C – FAST 44’ 44’ A complete washing cycle (wash, rinse and spin), able to wash in Detergent drawer approximately 44 minutes: - a maximum load of 3,5 kg; - lightly soiled fabrics (cotton and mixed fabrics) The detergent drawer is split into 3 compartments: We recommend, with this programme, a 30% detergent loading dose (compared to the normal one), in order to avoid detergent waste.
  • Page 10: Detergents, Washing Aids And Amounts To Use

    Dosages Detergents, washing aids and amounts to use Only use detergents which are suitable for use in a washing machine. You will obtain the best results from your wash with the minimum use of chemical products Choice of detergent and the best care for your laundry if you take into consideration the degree of soiling as well General purpose detergents as the type of detergent to choose.
  • Page 11: Main Wash

    Main wash Useful advice for users Sorting the laundry - It is recommended you wash only items which are machine washable with water and Tips on using your domestic appliance in the most environmentally-friendly and economical detergent and not dry-clean items. - If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them.
  • Page 12: Cleaning And Routine Maintenance

    The correct way to wash Cleaning and routine maintenance Preparing the laundry A) Select the laundry. Do not use alcohol-based scourers and / or thinners on the outside of your washing machine, Loading the laundry just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance: B) Open the porthole.
  • Page 13: Investigating Malfunctions

    Note: Investigating malfunctions The use of environmentally-friendly, phosphate-free detergents can have the following effects: - waste water from rinsing may be cloudier because of the presence of zeolites held in What might be the cause of… suspension, without the rinse performance being adversely affected; Defects you can remedy yourself - presence of white powder (zeolites) on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.
  • Page 14: Technical Data

    SETTING UP + INSTALLATION Remove the polystyrene base and place the machine near its permanent position (diagram 1). Carefully cut through the hose retaining clip at the rear of the appliance (diagram 2). Unscrew the central bolt (A); unscrew the 4 lateral screws (B) and remove the cross piece (C).Unscrew the two rods D and remove them.
  • Page 15: Electrical Connections

    Note: we recommend you keep the transit bracket, Note: it is advisable to turn off the tap after each wash braces and screws to immobilise the machine for future to isolate the washing machine from the water supply. transit. The Manufacturers will not be responsible for any For the washing machine to function properly the terminal end of the discharge hose (mouth) possible damage to the machine caused by not must be at a minimum of 50 cm and a maximum of 85 cm from the ground.
  • Page 16 The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
  • Page 17 ® This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
