Summary of Contents for attika 600 MAX

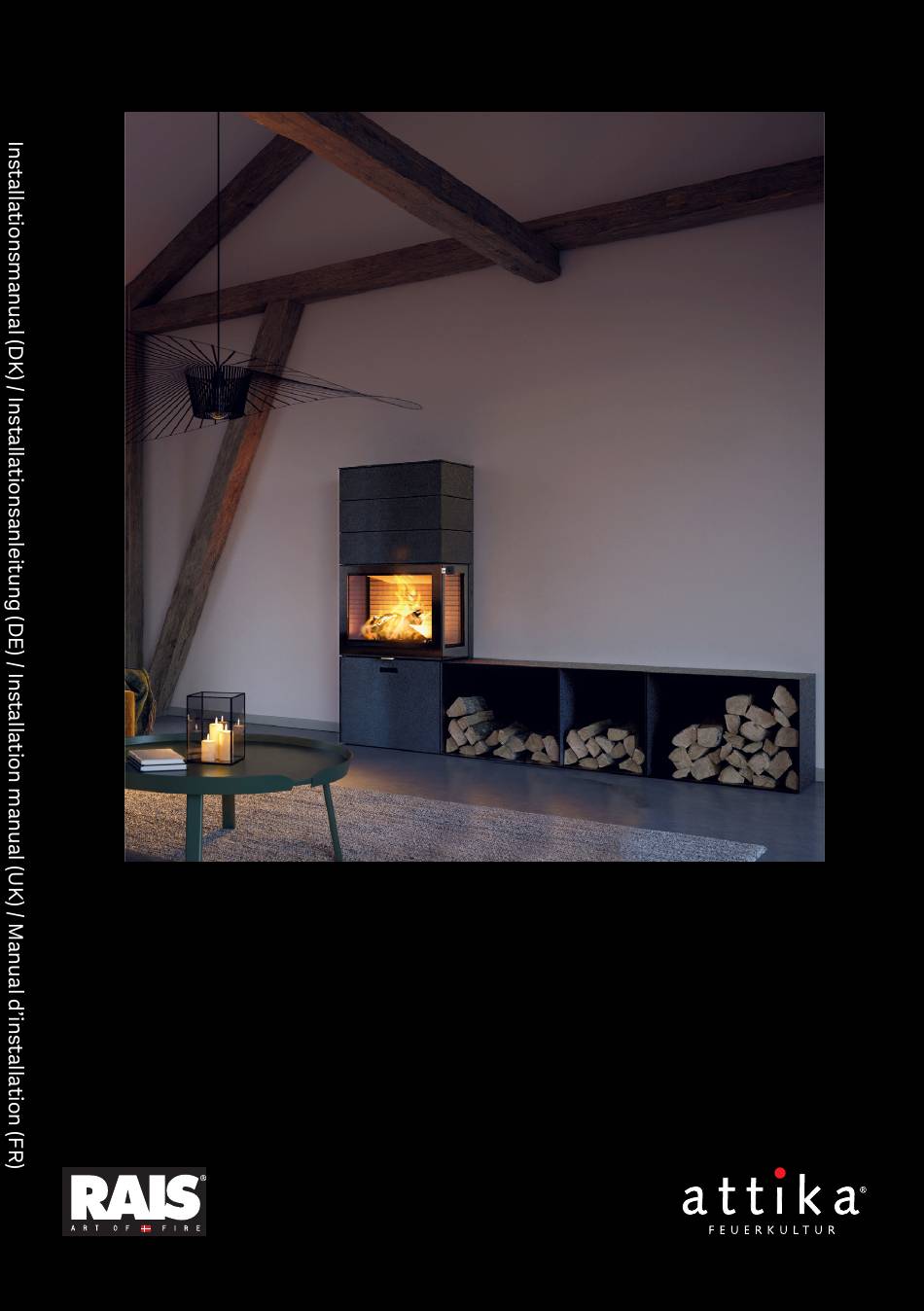

- Page 1 600 MAX 600 MAX/E INSTALLATIONSMANUAL (DK) INSTALLATIONSANLEITUNG (DE) INSTALLATION MANUAL (UK) MANUEL D’INSTALLATION (FR) INSTALLASJONSHÅNDBOK (NO) INSTALLATIONSMANUAL (SE) ASENNUSKÄSIKIRJA (FIN) INSTALLATIE HANDLEIDING (NL)
- Page 2 The production number can be found inside the drawer compartment Designer: Project manager: Approved: D M Y 07-09-2020 INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK Corrections: Phone +45 98 47 90 33 - Fax +45 98 47 92 91 E-mail: info@rais.dk - Homepage: www.rais.dk 600MAX Heat storage Drawing name: Project:...
-
Page 3: Table Of Contents
Test certificate Assessment of Performance (AOP) This manual applies to the following models: 600 MAX-2 Right 600 MAX-3 Left 600 MAX-4 Three-sided 600 MAX E-2 Right 600 MAX E-3 Left 600 MAX/E-4 Three-sided Revision: Date: 12-12-2022 We are not responsible for typographical errors. -
Page 4: Installation Manual
Thank you for choosing your new RAIS and local regulations must be com- or ATTIKA product! This installation plied with, including for the size of the manual will ensure that your fireplace non-flammable plate, which must cov-... -
Page 5: Technical Data
TECHNICAL DATA The technical data given below includes specifications, dimensional drawings and the information plate. SPECIFICATIONS Danish Technological Institute ref.: 300-ELAB-2431-EN / 300-ELAB-2515-EN 600 MAX 600 MAX/E Nominal output (kW) Min./Max. Output (kW): 4–8* 4–10* Heating area (m 50–120 50–150... -
Page 6: Dimensional Sketches
DIMENSIONAL SKETCHES 402 ** 122 *... - Page 7 DIMENSIONAL SKETCHES 402 ** 122 *...
- Page 8 DIMENSIONAL SKETCHES 122 * 402 **...
-
Page 9: Revision
DIMENSIONAL SKETCHES 122 * 402 **... - Page 10 DIMENSIONAL SKETCHES 1123 1306 1203...
- Page 11 DIMENSIONAL SKETCHES 1123 1306 1203...
-
Page 12: Information Plate
INFORMATION PLATE INFORMATION PLATE All RAIS/ATTIKA fireplace inserts have an information plate specifying the stove’s dis- tance from flammable materials, efficiency etc. The information plate is laid loose in the fireplace insert upon delivery. We recommend that you fit the information plate on the rear of the wood-burning stove. - Page 13 Notified Body: 1235 Produced at: RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark 600 MAX/E Front, 600 MAX/E Classic Front 600 MAX/E Right, 600 MAX/E Classic Right 600 MAX/E Left, 600 MAX/E Classic Left 600 MAX/E Three-sided, 600 MAX/E Classic Three-sided AFSTAND TIL BRÆNDBART, BAGVÆG...
-
Page 14: Installation
INSTALLATION INSTALLATION The following section explains how to install the fireplace insert and includes informa- tion about the packaging, installation distances etc. DELIVERY PACKAGING Upon delivery, the stove is secured to a transport pallet using four transport safety fittings, one in each corner (A). The safety fittings are secured with screws, which must be unscrewed. -
Page 15: Installation Distances
INSTALLATION DISTANCES INSTALLATION DISTANCES. IMPORTANT: Please bear in mind that the installation distances on the following pages only apply to the wood-burning stove. The final choice of Chimney solution may have a larger safety distance to the flammable material. The Chimney solution must always be in- stalled in accordance with current building regulations and in a manner that ensures CE-marking compliance. - Page 16 INSTALLATION DISTANCES INSTALLATION DISTANCE TO FLAMMABLE MATERIAL: 600MAX & 600MAX/E FRONT MODEL The installation distances applicable to the wood-burning stove are shown below. Bear in mind that the final choice of chimney may have a different safety distance. All dimensions are in mm. 600MAX Højre model - opstilling 600MAX Frontmodel Right-angle installation...
- Page 17 INSTALLATION DISTANCES The 600 MAX Front model is tested for corner installation, with the following safety distances. All dimensions are in mm. 45° installation...
- Page 18 INSTALLATION DISTANCES INSTALLATION DISTANCE TO FLAMMABLE MATERIAL: 600MAX & 600MAX/E CORNER MODEL RIGHT The installation distances applicable to the wood-burning stove are shown below. Bear in mind that the final choice of chimney may have a different safety distance. All dimensions are in mm. 600MAX Højre model - opstilling 600MAX Højre model - opstilling Right-angle installation...
- Page 19 INSTALLATION DISTANCES INSTALLATION DISTANCE TO FLAMMABLE MATERIAL: 600MAX & 600MAX/E Three-sided The installation distances applicable to the wood-burning stove are shown below. Bear in mind that the final choice of chimney may have a different safety distance. All dimensions are in mm. 600MAX Tree-Sided 600MAX Tree-Sided Right-angle installation...
-
Page 20: Height Adjustment
HEIGHT ADJUSTMENT HEIGHT ADJUSTMENT The stove is equipped with four adjustment screws (1) un- der the stove. Use the adjustment screws to ensure the wood-burning stove stands level. -
Page 21: Fitting/Changing The Handle
FITTING THE HANDLE FITTING/CHANGING THE HANDLE The wood-burning stove comes with a temporary handle (1). To remove it, undo the screws (2). The new handle (3) can now be fitted to the stove using the screws (2). Mounting of handle on 600MAX 11-0801-650204 Handle (10-000-1101) -
Page 22: Removing The Combustion Chamber Lining
REMOVING THE COMBUSTION CHAMBER LINING REMOVING THE COMBUSTION CHAMBER LINING The combustion chamber lining protects the body of the fireplace insert from the heat of the fire. The large differences in temperature can lead to cracks in the combustion chamber lining. This will not affect the functionality of the fireplace insert. - Page 23 Air-System Fresh air supplied through the floor. 1) Spigot 2) Hose clamp 3) Flexible hose 4) M5 screw 5) 3 mm Unbrako key 6) Valve 7) Double-sided adhesive gasket Place the foam ring (8) over the hole in the floor and place the stove on the ring so that the hole in the base plate is within the diameter of the foam ring.
- Page 24 Air-System Fresh air supplied through the wall 1) Spigot 2) Hose clamp 3) Flexible hose 4) M5 screws 5) 3 mm Unbrako key 6) Valve 7) Double-sided adhesive gasket 8) Cover Cover Remove the cover on the rear of the stove and secure the flexible hose (3) on the spigot (1) using the hose clamp (2).
-
Page 25: Lubricating Hinges
LUBRICATING THE HINGES LUBRICATING THE HINGES & LOCK The fireplace must be lubricated regularly using the four moving parts on the lock and hinges (see image). Use heat-resistant oil. -
Page 26: Fitting The Smoke Outlet Spigot
Smoke outlet spigot MOUNTING OF SMOKE OUTLET SPIGOT THE SMOKE OUTLET SPIGOT CAN BE TURNED TWO WAYS. YOU CAN CHOOSE EI- THER WAY. Version A uses the three free holes: 1) Ø8 Slits 2) M6 Nuts 3) M6 Washers 4) M6X20mm cylinder screws Version B uses the three threaded holes: 5) M6 threaded holes 6) M6X20mm cylinder screws... - Page 27 Smoke outlet to rear outlet INSTALLATION OF SMOKE OUTLET FOR REAR OUTLET. The smoke outlet must be mounted positioned as on the picture! It is mounted with the included 3 washers & screws 1) M6 washers 2) M6X20mm hex socket cap screws The top box for the rear outlet connection is mounted as shown on the following page...
-
Page 28: Top Box Start Section
TOP BOX START SECTION Assembly of Top box start section. Remove the screws (Pos1), mount the nuts (Pos2) on the spacers (Pos3) and mount them in the holes in the top plate. Place the start section on the oven and Tighten the bolts (Pos4) lightly. adjust the gap between door and start section to 5mm, by turning the spacers (Pos3). -
Page 29: Extra Topbox
EXTRA TOPBOX FITTING THE EXTRA TOPBOX To install the top box, place it on the stove and insert the four M5x20mm spacers – one in every corner. After positioning the top box, adjust the intermediary space to 5 mm, then tighten the top box with the four M5x10 cylinder screws. M5X20mm Spacers 2) M5X10mm cylinder screws... -
Page 30: Fitting The Top Plate
Top plate FITTING THE TOP PLATE. To install the top plate, place it in position and insert the four M5x8 spacers sup- plied – one in every corner. Once the top plate is lowered in place over the spacers, all four bushings below the top plate must fit over the spacers. -
Page 31: Test Certificate
Uddrag af rapport nr. 300-ELAB-2431-EN og 300-ELAB-2431-NS Emne: Pejseindsatse; Rais 600 eller Rais 600 Classic som Right, Left, 3 Side modeller samt fritstående ovn 600 MAX som Right, Left, 3 Side modeller Rekvirent: Rais A/S Industrivej 20, DK – 9900 Frederikshavn Procedure: Prøvning efter DS/EN13240/A2:2004... - Page 32 Phone +45 72 20 10 00 Notificeret prøvningsorgan med ID-nr. 1235 Info@teknologisk.dk Prøvningsattest IV Uddrag af rapport nr. 300-ELAB-2515-EN Emne: Rais 600 MAX/E incl rudevarianter m 1, 2, 3 glas Rekvirent: Rais A/S Industrivej 19, 9900 Frederikshavn Procedure: Prøvning efter DS/EN13240/A2:2004 Prøvning efter NS3058-1 &...
-
Page 33: Assessment Of Performance (Aop)
2011 (the Construction products Regulation or CPR), this Assessment of Performance Report applies to the construction product Solid fuel room heater, 600 MAX intended for residential room heating placed on the market under the name or trademark of Rais A/S... - Page 34 POSITIV OUTLINE NEGATIV RAIS A/S ATTIKA FEUER AG Industrivej 20 Brunnmatt 16 DK-9900 Frederikshavn CH-6330 Cham Denmark Switzerland www.rais.com www.attika.ch...
