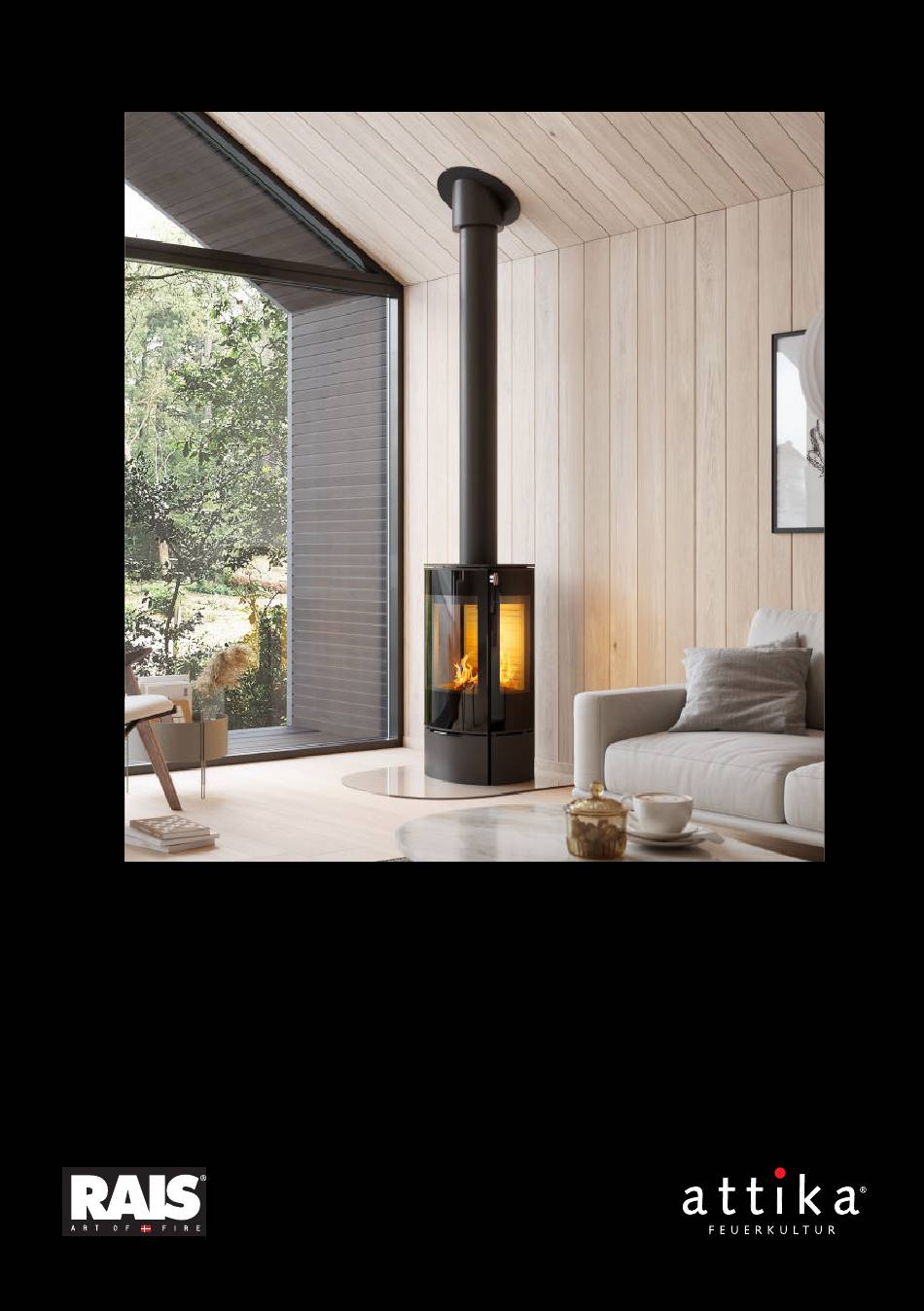

- Page 1 Caro 90 Caro 110 SST INSTALLATIONSVEJLEDNING INSTALLATIONSANLEITUNG INSTALLATION GUIDE NOTICE D’INSTALLATION INSTALLASJONSVEILEDNING INSTALLATIONSANVISNING ASENNUSOHJEET INSTALLATIEHANDLEIDING...
- Page 2 The production number can be found on the back of the stove.
-
Page 3: Table Of Contents
INSTALLATION MANUAL CONTENTS Installation manual In general Chimney Technical data Specifications Dimensional sketches Information plate Installation Delivery packaging Disposal of packaging Installation distances Height adjustment Fitting/changing the handle Removing the combustion chamber lining Lubricating hinges Fitting the smoke outlet spigot Fitting the top plate Test certificate This manual applies to the following models:... -
Page 4: Installation Manual
Thank you for choosing your new RAIS or ble plate, which must cover the floor in ATTIKA product! This installation manu- front of the wood-burning stove to pro- al will ensure that your fireplace insert is tect the floor from any embers that fall... -
Page 5: Technical Data
TECHNICAL DATA The technical data given below includes specifications, dimensional drawings and the information plate. SPECIFICATIONS Danish Technological Institute ref.: 300-ELAB-2543-EN, 300-ELAB-2543-NS CARO 90 CARO 110 SST Nominal output (kW) Min./Max. Output (kW): 3–7* 3–7* Heating area (m Fireplace insert width/depth/height 486 X 407 X 920 486 X 407 X 920 (mm) -
Page 6: Dimensional Sketches
DIMENSIONAL SKETCHES... - Page 7 DIMENSIONAL SKETCHES...
-
Page 9: Information Plate
F: Veuillez lire et observer les instructions du mode d'emploi. Foyer à durèe de combustion limitèe, homologué pour cheminée à connexions multiples. Utiliser seulement les combustibles recommandés. Hergestellt für /Produced for: ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn... -
Page 10: Installation
INSTALLATION INSTALLATION The following section explains how to install the fireplace insert and includes information about the packaging, installation distances etc. DELIVERY PACKAGING Upon delivery, the stove is secured to a transport pallet using four transport safety fit- tings, one in each corner (A). The safety fittings are secured with screws, which must be unscrewed. -
Page 11: Installation Distances
INSTALLATION DISTANCES INSTALLATION DISTANCES. IMPORTANT: Please bear in mind that the installation distances on the following pages only apply to the wood-burning stove. The final choice of Chimney solution may have a larger safety distance to the flammable material. The Chimney solution must always be installed in accordance with current building regulations and in a manner that en- sures CE-marking compliance. - Page 12 The installation distances applicable to the wood-burning stove are shown below. Bear in mind that the final choice of chimney may have a different safety distance. All dimensions are in mm. Right-angle installation Flammable ceiling Rechtwinkliges Aufstellen Rais Caro 90 aro 90 without side glass without side glass uninsulated chimney ted chimney...
- Page 13 INSTALLATION DISTANCES Rais Caro 90 with side glass 14-0111-6401 INSTALLATION DISTANCE TO FLAMMABLE MATERIAL: CARO 90 WITH SIDE GLASSES Corner installation Rechtwinkliges Aufstellen o 90 with side glass...
-
Page 14: Height Adjustment
HEIGHT ADJUSTMENT HEIGHT ADJUSTMENT The stove is equipped with four adjustment screws (1) under the stove. Use the adjustment screws to ensure the wood-burning 14-6504 Caro stove stands level. Stillesko... -
Page 15: Fitting/Changing The Handle
FITTING THE HANDLE FITTING/CHANGING THE HANDLE The wood-burning stove comes with a tem- porary handle (1). To remove it, undo the screws (2). The new handle (3) can now be fitted to the stove using the screws (2). -
Page 16: Removing The Combustion Chamber Lining
REMOVING THE COMBUSTION CHAMBER LINING REMOVING THE COMBUSTION CHAMBER LINING The combustion chamber lining protects the body of the fireplace insert from the heat of the fire. The large differences in temperature can lead to cracks in the combustion chamber lining. This will not affect the func- tionality of the fireplace insert. -
Page 17: Lubricating Hinges
14-6507 Caro Smøring af hængsler LUBRICATING THE HINGES og lukketøj LUBRICATING THE HINGES & LOCK The fireplace must be lubricated regularly using the four moving parts on the lock and hinges (see image). Use heat-resistant oil. -
Page 18: Fitting The Smoke Outlet Spigot
Smoke outlet spigot MOUNTING OF SMOKE OUTLET SPIGOT THE SMOKE OUTLET SPIGOT CAN BE TURNED TWO WAYS. YOU CAN CHOOSE EITHER WAY. Version A uses the three free holes: 1) Ø8 Slits 2) M6 Nuts 3) M6 Washers 4) M6X20mm cylinder screws Version B uses the three threaded holes: 5) M6 threaded holes 6) M6X20mm cylinder screws... - Page 19 14-6409 Caro Røgstuds ved bagafgang Smoke outlet to rear outlet INSTALLATION OF SMOKE OUTLET FOR REAR OUTLET. The stove is ready for top exit on delivery, but can be changed to rear exit in the fol- lowing way. 1. On the back of the stove there is a knock-out form that must be knocked free of the back.
-
Page 20: Fitting The Top Plate
14-6510 Caro f topplade Montage af topplade INSTALLATION OF TOP PLATE. THE TOP PLATE IS PLACED BY GUIDING THE BUSHINGS (1) DOWN OVER THE SPACERS (2). ADJUST THE GAP TO 6MM BY ADJUSTING THE SPACERS. -
Page 21: Test Certificate
Akkrediteret prøvningsorgan, DANAK-akkreditering nr. 300 Phone +45 72 20 10 00 Notificeret prøvningsorgan med ID-nr. 1235 Info@teknologisk.dk Prøvningsattest IV Uddrag af rapport nr. 300-ELAB-2543-EN og 300-ELAB-2543-NS Rais Caro 90, Rais Caro 110 SST Emne: Rais AS Rekvirent: Industrivej 20, DK-9900 Frederikshavn Prøvning efter DS/EN13240/A2:2004 Procedure: Prøvning efter NS3058-1 &... - Page 22 RAIS A/S ATTIKA FEUER AG Industrivej 20 Brunnmatt 16 DK-9900 Frederikshavn CH-6330 Cham Denmark Switzerland www.rais.dk www.attika.ch...
