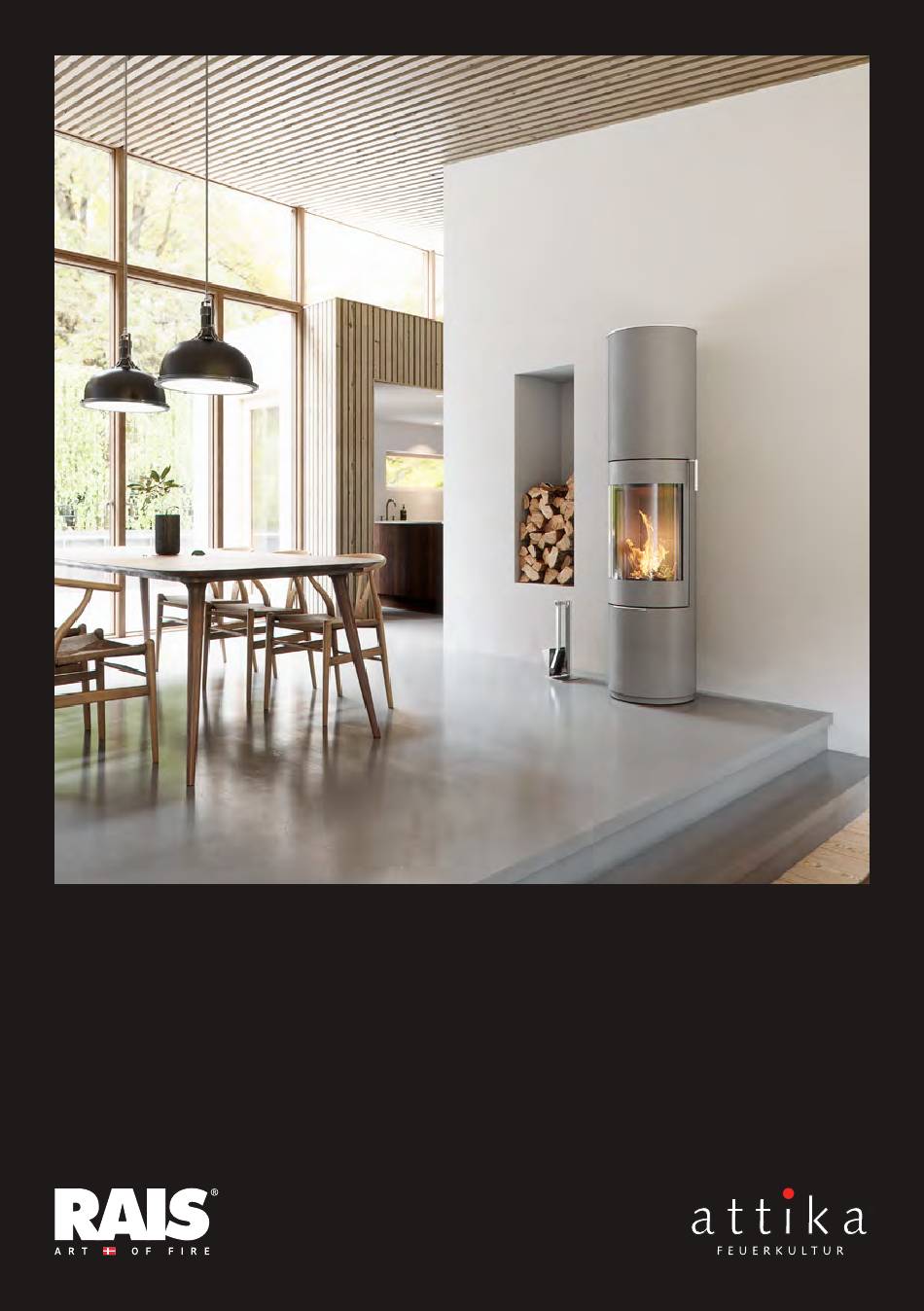

- Page 1 PILAR INSTALLATIONSMANUAL (DK) INSTALLATIONSANLEITUNG (DE) INSTALLATION MANUAL (UK) MANUEL D’INSTALLATION (FR) INSTALLASJONSHÅNDBOK (NO) INSTALLATIONSMANUAL (SE) ASENNUSKÄSIKIRJA (FIN) INSTALLATIE HANDLEIDING (NL)
- Page 2 ECO DESIGN: ENERGY RATING: ENERGY INDEX:...
-
Page 3: Table Of Contents
INSTALLATION MANUAL CONTENTS Installation manual In general Chimney Technical data Specifications Clean Air act Dimensional sketches Information plate Installation Delivery packaging Setting up the wood-burning stove with a swivel foot Removal of safety transport fittings from wood-burning stove with swivel foot Disposal of packaging Installation distances Fitting the floor plate... -
Page 4: Installation Manual
INSTALLATION MANUAL items (e.g. furniture) may not be positioned closer to the front Congratulations on the acquisition of your new RAIS or ATTIKA of the glass than the closest permitted distance stated in the product! This installation manual will ensure that your wood- installation section. -
Page 5: Technical Data
TECHNICAL DATA The following technical data includes specifications, dimensional drawings and the information plate. SPECIFICATIONS Danish Technological Institute ref.: 300-ELAB-2401-EN 300-ELAB-2401-NS Nominal output (kW): Min./Max. Output (kW): 2–9 * Heating area (m Wood-burning stove diameter x height (mm) Ø462 X 1925 Combustion chamber W x D x H (mm) 352 X 287 X 286 Max. -
Page 6: Clean Air Act
THE CLEAN AIR ACT THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS UNDER THE CLEAN AIR ACT LOCAL AUTHORITIES MAY DECLARE THE WHOLE OR PART OF THE DISTRICT OF THE AUTHORITY TO BE A SMOKE CONTROL AREA. IT IS AN OFFENCE TO EMIT SMOKE FROM A CHIMNEY OF A BUILDING, FROM A FURNACE OR FROM ANY FIXED BOILER IF LOCATED IN A DESIGNATED SMOKE CONTROL AREA. - Page 7 THE RAIS PILLAR 19 HAS BEEN RECOMMENDED AS SUITABLE FOR USE IN SMOKE CONTROL AREAS WHEN BURNING WOOD LOGS. FUEL OVERLOADING THE MAXIMUM AMOUNT OF FUEL SPECIFIED IN THIS MANUAL SHOULD NOT BE EXCEEDED, OVERLOADING CAN CAUSE EXCESS SMOKE. REFUELLING ON TO A LOW FIRE BED IF THERE IS INSUFFICIENT BURNING MATERIAL IN THE FIREBED TO LIGHT A NEW FUEL CHARGE, EXCESSIVE SMOKE EMISSION CAN OCCUR.
-
Page 8: Dimensional Sketches
DIMENSIONAL SKETCHES 278,6 1925 1900 1229,5 All dimensions are in mm. 6 - GB... - Page 9 DIMENSIONAL SKETCHES 278,6 1666,5 16-0101-6550 - Pilar GB - 7...
-
Page 10: Information Plate
INFORMATION PLATE INFORMATION PLATE All RAIS/ATTIKA wood-burning stoves have an information plate which states the stove’s distance from flammable materials, efficiency, etc. The information plate is laid loose with the stove on delivery. We recommend that you fit the information plate on the rear of the wood-burning stove (see drawing on right). -
Page 11: Installation
INSTALLATION INSTALLATION The following section explains how to install the wood-burning stove and includes information about the packaging, installation distances, etc. DELIVERY PACKAGING The wood-burning stove is supplied secured to a transport pallet using four transport safety fittings – one in each corner (A). The safety fittings are secured using screws and these must be removed. -
Page 12: A Swivel Foot
WOOD-BURNING STOVE WITH SWIVEL FOOT INSTALLATION WOOD-BURNING STOVE WITH SWIVEL FOOT INSTALLATION The wood-burning stove can be supplied with a swivel foot. To make installation easier, the wood-burning stove is delivered turned 45° to the left. This ensures easier access to the transport screws, which must be removed when setting The plastic block marked “FRONT”... -
Page 13: Removal Of Safety Transport Fittings From Wood-Burning Stove With Swivel Foot
REMOVAL OF SAFETY TRANSPORT FITTINGS FROM A WOOD-BURNING STOVE WITH A SWIVEL FOOT REMOVAL OF SAFETY TRANSPORT FITTINGS FROM A WOOD-BURNING STOVE WITH A SWIVEL FOOT The swivel foot is fitted below the wood-burning stove and locked during transport using two wing screws. See below for how to remove these. -
Page 14: Installation Distances
INSTALLATION DISTANCES INSTALLATION DISTANCES The relevant installation distances for Pilar are shown below. All dimensions are in mm. The installation distance to a flammable ceiling Designer: D M Y INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK Corrections: Phone +45 98 47 90 33 - Fax +45 98 47 92 91 The installation distance, flammable - uninsulated flue E-mail: info@rais.dk - Homepage: www.rais.dk Opstillings Tegning - Pilar... - Page 15 INSTALLATION DISTANCES - WOOD-BURNING STOVE WITH SWIVEL FOOT INSTALLATION DISTANCES - WOOD-BURNING STOVE WITH SWIVEL FOOT If your wood-burning stove has a swivel foot, the installation distances to flammable walls must be increased. The distances that apply are shown below. Installation GB - 13...
-
Page 16: Fitting The Floor Plate
FITTING THE FLOOR PLATE, HEIGHT ADJUSTMENT FITTING THE FLOOR PLATE RAIS/ATTIKA supply elegant floor plates made from hardened glass that are designed for the shape of the wood-burning stove. Floor plates can be purchased separately. The floor plate is pushed in against the stove, which allows for occasional cleaning under the plate. -
Page 17: Fitting/Changing The Handle
FITTING THE HANDLE FITTING/CHANGING THE HANDLE The wood-burning stove is delivered with a fitted temporary handle (1). To remove it, unscrew the screws (2) all the way out. The new handle (3) can now be fitted to the stove using the screws (4). Designer: Project manag D M Y... -
Page 18: Fitting The Top Plate
FITTING THE TOP PLATE FITTING THE TOP PLATE The top plate has three catches. These must engage with the slits in the top of the wood-burning stove. Designer: Project manager: Approved: D M Y INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK Corrections: Phone +45 98 47 90 33 - Fax +45 98 47 92 91 E-mail: info@rais.dk - Homepage: www.rais.dk Drawing name:... -
Page 19: Removing The Combustion Chamber Lining
REMOVING THE COMBUSTION CHAMBER LINING REMOVING THE COMBUSTION CHAMBER LINING Procedure to remove the combustion chamber lining: 1. Push the flue plate (1) up until it becomes free of the fitting. It can now be pulled forward and down past the fitting. 2. -
Page 20: Removing The Baffle
REMOVING THE BAFFLE REMOVING THE BAFFLE First remove the flue plate (see the section about removing the combustion chamber lining). Remove the baffle (1) by lifting it up until it is free of the fitting (2). It can then be pulled out of the wood-burning stove. 18 - GB... -
Page 21: External Air Connection - Airsystem
EXTERNAL AIR CONNECTION - AIRSYSTEM EXTERNAL AIR CONNECTION - AIRSYSTEM All RAIS/ATTIKA wood-burning stoves can have an external air connection. We call this external air supply AirSystem. The air intake to the system can be hidden by installing it either in the floor or in the wall behind the wood-burning stove. - Page 22 EXTERNAL AIR CONNECTION - AIRSYSTEM AIR CONNECTION THROUGH WALL 1. Remove the cover behind the stove. 2. Fit the air valve (3) on the wall using the gasket (2) between the wall and air valve. 3. Fit the cover (5) over the air valve. 4.
- Page 23 EXTERNAL AIR CONNECTION - AIRSYSTEM AIR CONNECTION THROUGH FLOOR WITH SWIVEL FOOT 1. Position the gasket (6) on the floor under the swivel foot (5). If required, it can be stuck securely to the underlying surface. 2. Fit the air valve (3) in the bottom of the wood-burning stove using the gasket (2) between the stove and air valve.
-
Page 24: Lubricating Hinges
LUBRICATING HINGES LUBRICATING HINGES The wood-burning stove must be lubricated regularly using the four moving parts on the lock and hinges (see image). Use heat-resistant oil. INDUSTRIVEJ 20, 9900 INDUSTRIVEJ 2 Phone +45 98 47 9 Phone +45 E-mail: info@rais.d E-mail: info Drawing name: Drawing name:... -
Page 25: Electronicair
ELECTRONICAIR ElectronicAIR is an electronic system that is programmed to regulate the combustion air in the wood-burning stove. Two thermocouples constantly communicate with the receiver and remote control. Based on this communication, the damper opens or closes automatically to ensure the optimal combustion during the start-up and continuous burning. The LED indicates when the wood-burning stove automatically changes the damper’s position. - Page 26 INSERTING BATTERIES IN THE REMOTE CONTROL First, insert new batteries in the remote control. The remote control must be in the manual setting for the remote control and the receiver to synchronise. If the remote control is in the automatic setting, set it to manual by briefly pushing the ‘up’ and ‘down’ buttons at the same time. Manual setting Automatic setting Down...
- Page 27 SETTING THE REMOTE CONTROL The remote control can be set to display the time, temperature, etc. To enter the manual setting menu, press the ‘up’ button and ‘down’ button at the same time for about five seconds, until the display changes. •...
- Page 28 Menu 3: Set the time. First select the hours. Menu 4: Next, select the minutes. Menu 5: Activate or de-activate the child lock. Menu 6: Settings for type of fuel: 00 wood or 01 coal. It is very important that this setting is set to 00 (wood). 00 Setting for wood 01 Setting for coal When you have finished with the six settings, you must wait 15 seconds for the settings to be saved...
- Page 29 USE OF WOOD-BURNING STOVE WITH ELECTRONICAIR After the remote control is synchronised and set, the wood-burning stove can be used. The wood-burning stove can be used with automatic or manual operation. AUTOMATIC OPERATION If you want the damper on the wood-burning stove to be regulated automatically, you can use the remote control to set the stove to automatic operation.
- Page 30 TROUBLESHOOTING The table below lists the most frequent causes of why the LED light is lit red or yellow. LED light Cause Solution The LED light flashes yellow twice Warning: Low battery power in the Replace the batteries in the receiver. a minute.
-
Page 31: Accessories
Pilar 19 - Tilbehørstegninger til manual ACCESSORIES Pilar 19 - Tilbehørstegninger til manual ACCESSORIES (XX) Variable colour code Pilar 19 - Tilbehørstegninger til manual 16-0000-1501 - Swivel foot 16-0000-0601XX - Upper top plate B/O (rear outlet) Pilar 19 - Tilbehørstegninger til manual 16-0000-0602XX - Upper top plate T/O (top outlet) 16-0000-0603 - Stainless steel top plate... - Page 32 ACCESSORIES 2714920 - Glass floor plate (800 x 542 mm) 2714923 - Glass floor plate (970 x 710 mm) 8131390 - Swivel adaptor 99-MODULWS - 6 kg Thermal storage stone 16-0000-1101 1. Handle - Stainless Steel 16-0000-1102 2. Handle - Corian White 16-0000-1103 3.
-
Page 33: Spare Parts List
SPARE PARTS LIST - MANUAL AND CLEVER AIR Below is an overview of spare parts. If spare parts other than those recommended by RAIS/ATTIKA are used, the warranty is rendered void. All replaceable parts can be purchased as spare parts from your RAIS/ATTIKA dealer. - Page 34 SPARE PARTS DRAWING 32 - GB...
- Page 35 SPARE PARTS LIST - ELECTRONICAIR Below is an overview of spare parts. If spare parts other than those recommended by RAIS/ATTIKA are used, the warranty is rendered void. All replaceable parts can be purchased as spare parts from your RAIS/ATTIKA dealer.
- Page 36 SPARE PARTS DRAWING 34 - GB...
-
Page 37: Test Certificate
DECLARATION OF PERFORMANCE DECLARATION OF PERFORMANCE GB - 35... -
Page 38: Performance Declaration
36 - GB... - Page 39 RAIS A/S ATTIKA FEUER AG Industrivej 20 Brunnmatt 16 DK-9900 Frederikshavn CH-6330 Cham Denmark Switzerland www.rais.com www.attika.ch...
