Slimline Bench Mounted Laboratory Dual
Mixer with Swivel / Fixed Gooseneck Spout -
Ceramic Disc - Water Only
Installation and Maintenance Instructions
LCN130
technical data
Working Pressure Range
Maximum Static Pressure
Maximum Working Temperature
Inlet Connection
Outlet Connection
Water Options
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
All measurements are in millimetres.
I00550_17 Apr 2024
1300 369 273 | info@enware.com.au | enware.com.au
Min 20 kPa
Max 700 kPa
1000 kPa
90°C
1/2" BSP
Tube Nozzle/
3/8" BSP Female (without nozzle)
Cold, Hot
Advertisement
Table of Contents
Related Manuals for Watts ENWARE LCN130
Summary of Contents for Watts ENWARE LCN130

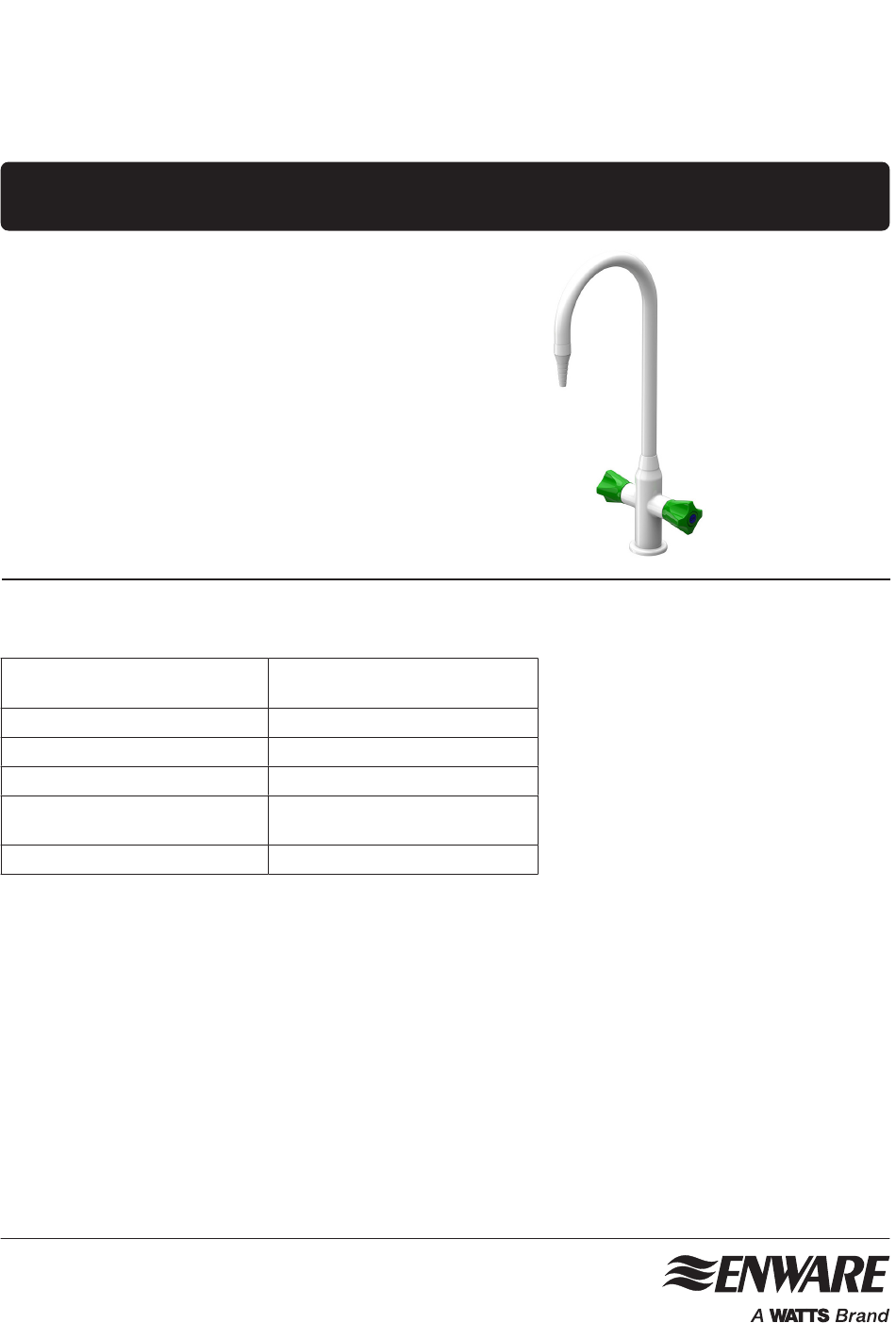

- Page 1 Slimline Bench Mounted Laboratory Dual Mixer with Swivel / Fixed Gooseneck Spout - Ceramic Disc - Water Only Installation and Maintenance Instructions LCN130 technical data Working Pressure Range Min 20 kPa Max 700 kPa Maximum Static Pressure 1000 kPa Maximum Working Temperature 90°C Inlet Connection 1/2”...
-
Page 2: Installation Procedure
installation • All supply lines must be flushed thoroughly to remove debris prior to the installation of this product, as per AS/NZS 3500.1. Strainers (40 mesh) are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements. - Page 3 10mm Tighten evenly IMAGE 03 IMAGE 04 SETTING FOR SWIVEL OR FIXED SPOUT 1. Remove the grub screw from the side of tap frame, using a 2.5mm Allen key. SEE IMAGE 05 2. FIXED SPOUT: To have a fixed spout without swivel, use the fixed spout insert between the spout and body.
- Page 4 FITTING INDICATOR BUTTON ONTO HANDLE E nsure the surface of handle is clean and dry, free of dust, moisture and grease. Peel off the indicator button from its backing paper, taking care not to touch the adhesive side. Place the indicator button onto flat section of the button mount, and push the button firmly onto handle.
-
Page 5: Maintenance
maintenance CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Use of unsuitable cleaning agents may damage the surface. -
Page 6: Troubleshooting
troubleshooting PROBLEM CAUSE RECTIFICATION Water leaking from outlet SBA has debris caught in the Remove SBA and inspect. mechanism. Remove debris and clean. Water dripping and does Install an inline strainer. not shut off Tap seat is damaged Refurbish tap seat using a reseating tool. -
Page 7: Spare Parts
spare parts Description Part Code Aerator LCN 3/8" BSP Laminar LCN172-5 5.7 Lpm TJ Cache 17 A/F Outlet adaptor 3/8"M x 1/2"M LCN175 Tube nozzle with check valve (for LCN171 water) SBA 3/4 Turn LCN 1/2” BSP LCN183 ceramic disc RTC Handle LCN - Green LCN191-GREEN Button mount - Green... -
Page 8: Product Warranty Statement
- WATTS AUSTRALIA EFFECTIVE FROM 20 November 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
