Laboratory School Pattern Tapware with
Lever Handle - Bench Mounted
Installation and Maintenance Instructions
LF109S-65
LF110-65
LF118SL
technical data
Ceramic Disc
Working Pressure Range
Maximum Static Pressure 800 kPa
Maximum Working
Temperature
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
All measurements are in millimetres.
I00542_20 Jan 2024
1300 369 273 | info@enware.com.au | enware.com.au
Min 50 kPa
Max 500 kPa
85°C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Watts ENWARE LF109S-65
Summary of Contents for Watts ENWARE LF109S-65

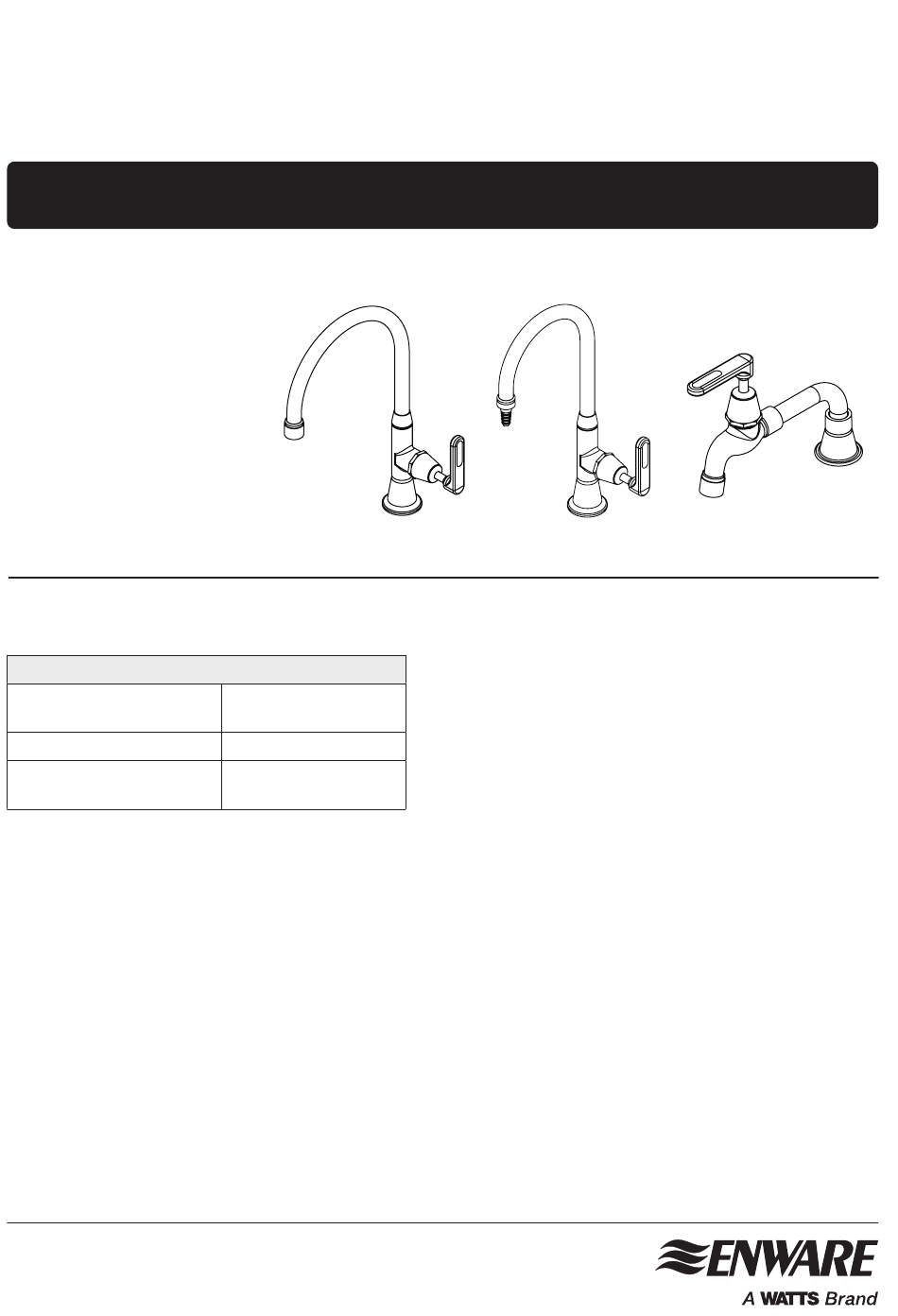

- Page 1 Laboratory School Pattern Tapware with Lever Handle - Bench Mounted Installation and Maintenance Instructions LF109S-65 LF110-65 LF118SL technical data Ceramic Disc Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 800 kPa 85°C Maximum Working Temperature Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
-
Page 2: Installation Procedure
installation • All supply lines must be flushed thoroughly to remove debris prior to the installation of this product, as per AS/NZS 3500.1. Strainers (40 mesh) are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements. - Page 3 SETTING FOR FIXED OR SWIVEL SPOUT (For Gooseneck Spouts) 1. Remove the grub screw from the side of tap frame, using a 2.5mm Allen key. SEE IMAGE 03 2. FIXED SPOUT: To have a fixed spout without swivel, use the fixed spout insert between the spout and body.
- Page 4 AERATOR / TUBE NOZZLE Choose aerator or tube nozzle supplied, and screw onto spout. Ensure the rubber washer is in place between spout and aerator or tube nozzle. SEE IMAGE 06 For Anti-Vandal aerator, use the supplied aerator key to fit aerator onto spout. SEE IMAGE 07 AERATOR TUBE NOZZLE...
-
Page 5: Maintenance
maintenance CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Use of unsuitable cleaning agents may damage the surface. -
Page 6: Troubleshooting
troubleshooting PROBLEM CAUSE RECTIFICATION Water leaking from outlet SBA or jumper valve Remove SBA and inspect. has debris caught in the Remove debris and clean. Water dripping and does mechanism. Install an inline strainer. not shut off Tap seat is damaged Refurbish tap seat using a reseating tool. -
