Type 16A Laboratory Wall Stop Tap 150mm
Gooseneck Spout
Installation and Maintenance Instructions
LF110W
technical data
Jumper Valve
Working Pressure Range
Maximum Static Pressure 1200 kPa
Maximum Working
Temperature
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
All measurements are in millimetres.
I00541_16 Feb 2024
1300 369 273 | info@enware.com.au | enware.com.au
Min 50 kPa
Max 500 kPa
95°C (Jumper Valve)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Watts ENWARE LF110W
Summary of Contents for Watts ENWARE LF110W

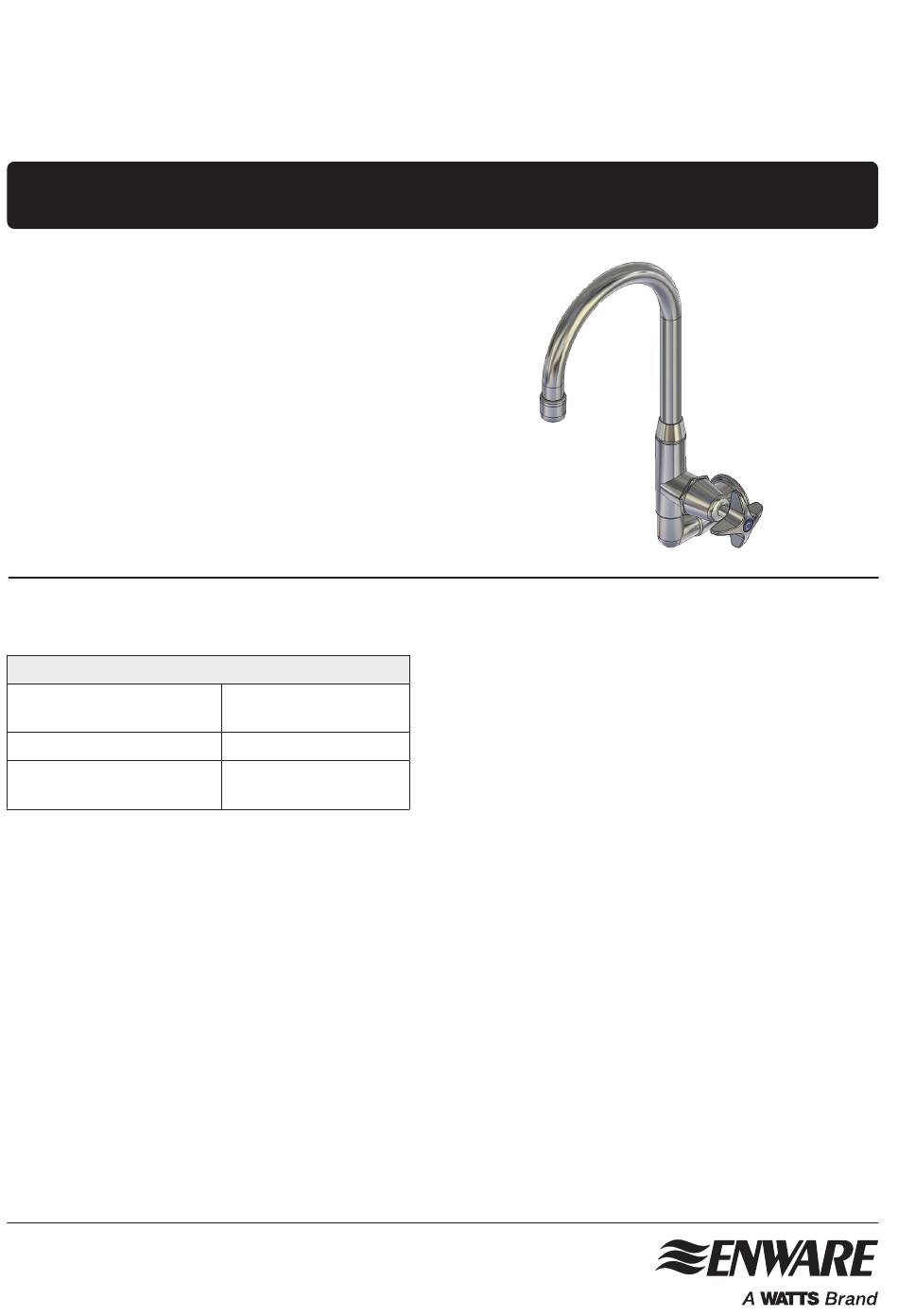

- Page 1 Type 16A Laboratory Wall Stop Tap 150mm Gooseneck Spout Installation and Maintenance Instructions LF110W technical data Jumper Valve Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 1200 kPa 95°C (Jumper Valve) Maximum Working Temperature Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
- Page 2 installation • All supply lines must be flushed thoroughly to remove debris prior to the installation of this product, as per AS/NZS 3500.1. Strainers (40 mesh) are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements.
- Page 3 SETTING FOR FIXED OR SWIVEL SPOUT 1. Remove the grub screw from the side of tap frame, using a 2.5mm Allen key. SEE IMAGE 03 2. FIXED SPOUT: To have a fixed spout without swivel, use the fixed spout insert between the spout and body. Ensure the fixed spout insert is fitted to the hexagonal slots of both the spout and the body.
- Page 4 FITTING INDICATOR BUTTON ONTO HANDLE E nsure the surface of handle is clean and dry, free of dust, moisture and grease. Peel off the indicator button from its backing paper, taking care not to touch the adhesive side. Place the indicator button onto flat section of the handle, and push the button firmly onto handle.
- Page 5 maintenance CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Use of unsuitable cleaning agents may damage the surface.
- Page 6 troubleshooting PROBLEM CAUSE RECTIFICATION Water leaking from outlet SBA or jumper valve Remove SBA and inspect. has debris caught in the Remove debris and clean. Water dripping and does mechanism. Install an inline strainer. not shut off Tap seat is damaged Refurbish tap seat using a reseating tool.
- Page 7 spare parts Description Part Code SBA Jumper Valve VP380 VP Handle VP378 VANDAL PROOF SPANNER INDICATOR BUTTON KIT Indicator Button Hot/Cold Warm MIS595RYB (Adhesive) Vandal Proof Key (for handle) MIS590 Tube Nozzle SP310 Aerator SP301 Anti-Vandal Aerator with Key SP303 Key for Anti-Vandal Aerator SP304 ©...
- Page 8 - WATTS AUSTRALIA EFFECTIVE FROM 20 November 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
