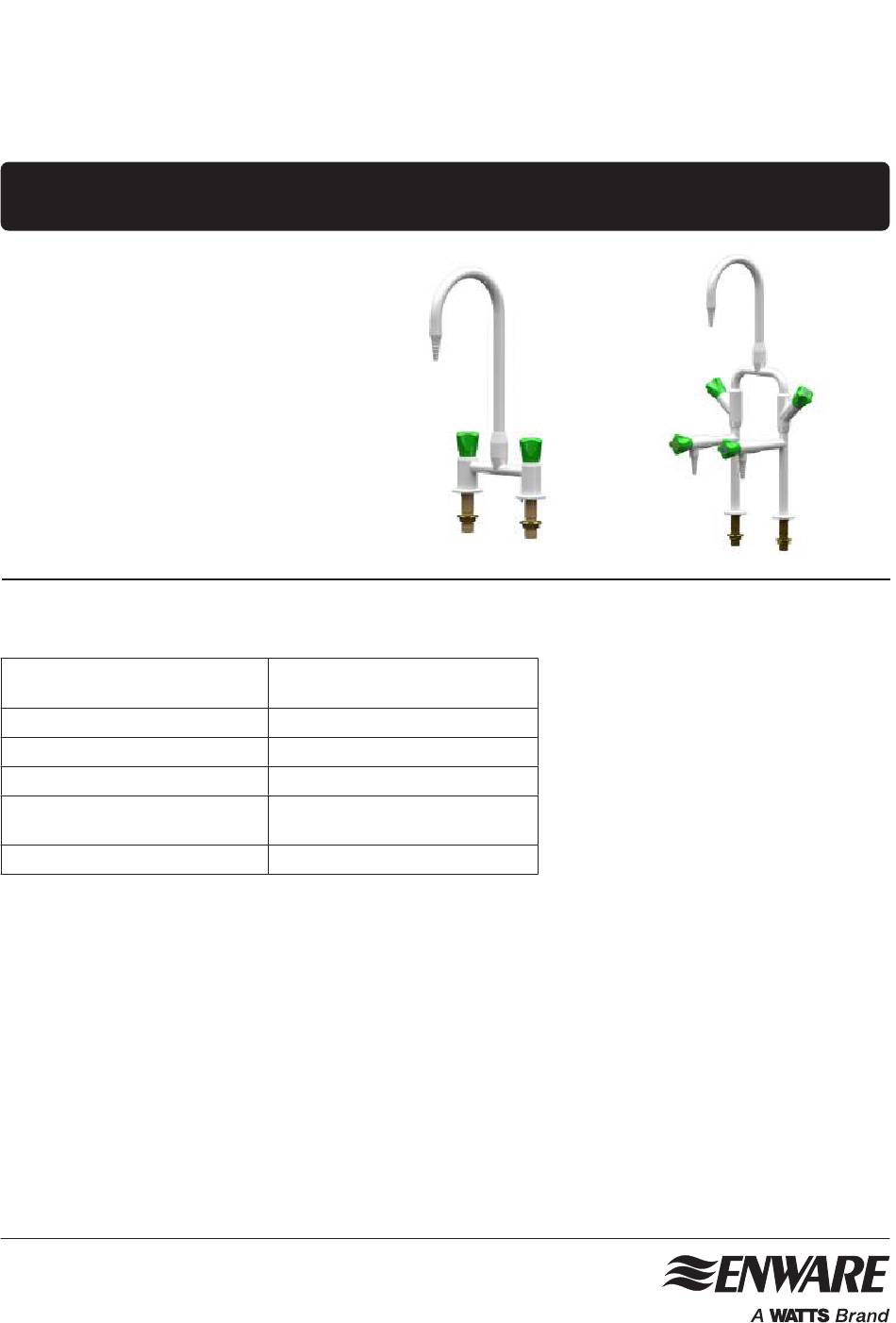

Slimline Bench Mounted Laboratory Mixing
Set with Swivel Gooseneck Spout - Ceramic
Disc - Water Only
Installation and Maintenance Instructions
LCN108
LCN113
technical data
Working Pressure Range
Maximum Static Pressure
Maximum Working Temperature
Inlet Connection
Outlet Connection
Water Options
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
All measurements are in millimetres.
I00552_17 Apr 2024
1300 369 273 | info@enware.com.au | enware.com.au
Min 20 kPa
Max 700 kPa
1000 kPa
90°C
1/2" BSP Male
Tube Nozzle/
3/8" BSP Female (without nozzle)
Cold, Hot
