Heatcom HEAT MY HOME HMH100 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

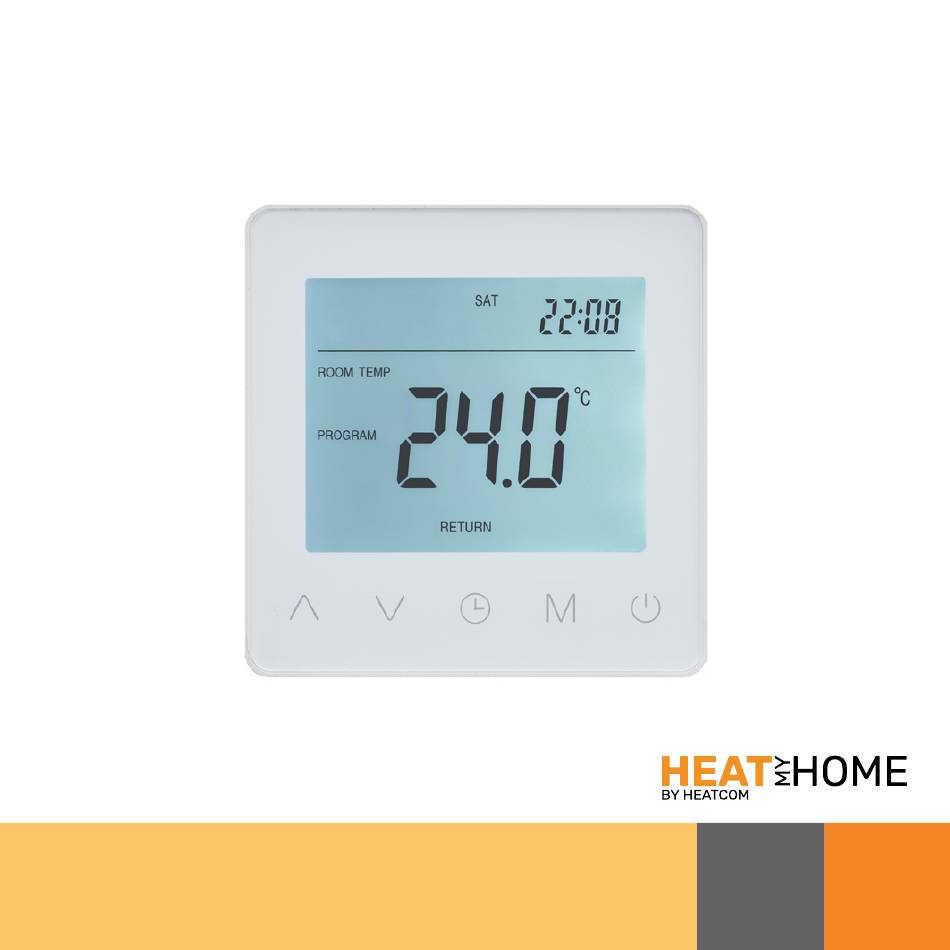

HMH100
USER GUIDE
UK
Scan QR on backside for APP download

Advertisement

loading
Need help?

Need help?

Do you have a question about the HEAT MY HOME HMH100 and is the answer not in the manual?

Questions and answers

Related Manuals for Heatcom HEAT MY HOME HMH100

Summary of Contents for Heatcom HEAT MY HOME HMH100

  • Page 1 HMH100 USER GUIDE Scan QR on backside for APP download...
  • Page 2 Distributed by:...
  • Page 3 INTRODUCTION HMH100 fulfills the demands set out in Ecodesign Lot20. The thermostat is programmable, has adaptive heating and includes an open window function. The control of the floor heating is easily adapted to fit the requirements in different rooms. A floor temperature limiting function is included, ideal for use together with wooden or engineered floor boards.
  • Page 4 BUTTONS BUTTON SHORT PRESS LONG PRESS Temperature or setting “up” Hold 5s to toggle “Screen lock” Temperature or setting “down” Adjust time and day settings When in standby, hold 5s to edit events Changes the working mode or “enter” when configuring Toggle thermostat between standby and ON...
  • Page 6 DISPLAY DISPLAY DESCRIPTION Temperature displayed Room Floor Target Temperature Current operating mode, Comfort Auto Manual Holiday When in “Auto”, shows active “Event” Morning Away Home Night Day of the week Time of day “Screen lock” active Heating active Frost protection active (Ensure safe room temperature) Open window active...
  • Page 7 SET TIME AND DAY OF WEEK To edit weekday and time of day, press Weekday is blinking Adjust with Confirm selection Hours are blinking Adjust with Confirm selection Minutes are blinking Adjust with Confirm selection...

  • Page 8: Edit Events

    EDIT EVENTS MORNING AWAY HOME NIGHT 6:00 20°C 8:30 15°C 17:00 20°C 23:00 15°C To edit events, make sure thermostat is in standby Long-press 5s Weekday and event type is blinking Choose event & day Confirm to edit Time is blinking Adjust with Confirm selection Temperature is blinking...
  • Page 9 SET DAYS AWAY ON HOLIDAY To set number of days away on holiday, make sure thermostat is in standby - Press F1 is displayed - choose F4 with Confirm with Press untill upper right digits reach 11 Large digits in center of display indicate the days for holiday Adjust with Confirm selection...

  • Page 10: Choose Operating Mode

    CHOOSE OPERATING MODE Choose the desired operating mode for the thermostat Press mode changes for each press Modes: - Auto - Comfort (Preset to comfortable temperature) - Eco (Preset to low temperature to save energy) - Holiday (Lowers temperature for a number of days) When changing temperature in Auto mode, the thermostat will operate in...

  • Page 11: Screen Lock

    SCREEN LOCK To toggle the screen lock, press and hold 5s When screen lock is active will be displayed. USER MENU This user menu gives access to all settings of the thermostat. Make sure thermostat is in standby, press F1 is displayed - choose Fx with Confirm with (F1 &...

  • Page 12: Advanced Settings

    ADVANCED SETTINGS Upper right digits indicate the setting currently being edited. Large digits in center of display indicate the setting value. Adjust with Confirm selection Save and exit DESCRIPTION FUNCTION FAULT Sensor application 01 ~ Combined sensor (floor limit active) 02 ~ Room sensor 03 ~ Floor sensor Calibrate room temp.
  • Page 13 DESCRIPTION FUNCTION FAULT Adaptive heating ON ~ intelligent heating Adaptive delay 0 to 40 minutes Open window OFF ~ Disabled ON ~ Enabled Floor sensor type Ω @25°C (3K•5K•6.8K•10K• 12K•15K•20K•22K•33K•47K) Frost protection OFF ~ Disabled ON ~ Enabled Holiday, days away 1 to 99 days Hysteresis, heating 1 °C...
  • Page 14 CONNECTIONS TERMINAL NO. DESCRIPTION Load [N] Power supply [N] Power supply [L] Load [L] No function Sensor Floor sensor kΩ [3•5•6,8•10•12•15•20•22•33•47] Sensor SENSOR Supply Max. 16A / 3600W NTC(KΩ) Type: HMH100 85-240Vac / 50-60Hz IP21 S. No:YYYYMMXXXX...
  • Page 15 PRECAUTIONS • Do not install thermostat in direct sunlight • Do not install on severely cold outer walls • If the thermostat is not in the same room as the heat- ing, the floor sensor only setting can be used •...

  • Page 16: Installation

    INSTALLATION Remove front panel by loosening the screw in the bottom, pull out on the lower half of front panel. Assemble by inserting tabs of front panel into base panel, tilt the lower half in and tighten the screw...

  • Page 17: Specifications

    SPECIFICATIONS Supply voltage 85-240 V / 50-60 Hz Max. load 3600 W (16A) IP class IP21 Temperature range +5° C ... +40° C Sensor settings Floor / Room / Room with floor sensor as temperature limiter Display type 2.8” TN LCD backlit Floor sensor type 10 KΩ...
  • Page 20 Distributed by: 02000153...
