HMH200
USER GUIDE
UK
Scan QR on backside for APP download

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEATMYHOME HMH200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heatcom HEATMYHOME HMH200

Summary of Contents for Heatcom HEATMYHOME HMH200

  • Page 1 HMH200 USER GUIDE Scan QR on backside for APP download...
  • Page 2 Distributed by:...
  • Page 3 INTRODUCTION HMH200 fulfills the demands set out in Ecodesign Lot20. The thermostat is programmable, has adaptive heating and includes an open window function. The control of the floor heating is easily adapted to fit the requirements in different rooms. A floor temperature limiting function is included, ideal for use together with wooden or engineered floor boards.
  • Page 5 BUTTONS BUTTON SHORT PRESS LONG PRESS Changes the working mode or “enter” when configuring Adjust time and day settings When in standby, hold 5s to edit events Toggle thermostat between standby and ON Temperature or setting “up” Hold 5s to toggle “Screen lock”...

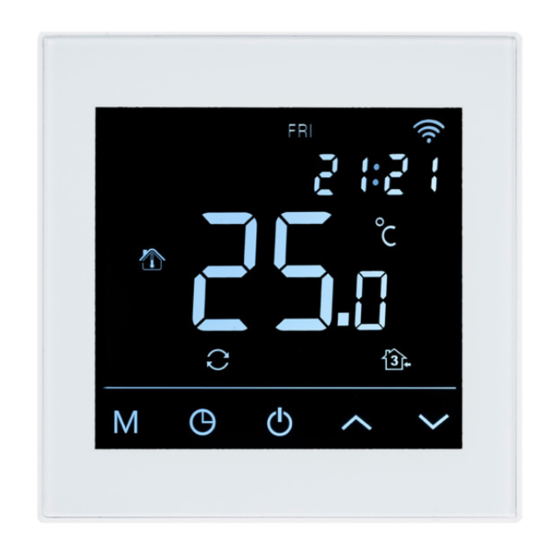

  • Page 7 DISPLAY DISPLAY DESCRIPTION Temperature displayed Room Floor Target Temperature Current operating mode, Comfort Auto Manual Holiday When in “Auto”, shows active “Event” Morning Away Home Night Day of the week Time of day “Screen lock” active Steady when connected to App, blinking when connect- Heating active Frost protection active (Ensure safe room temperature)
  • Page 8 SET TIME AND DAY OF WEEK To edit weekday and time of day, press Weekday is blinking Adjust with Confirm selection Hours are blinking Adjust with Confirm selection Minutes are blinking Adjust with Confirm selection...

  • Page 9: Edit Events

    EDIT EVENTS MORNING AWAY HOME NIGHT 6:00 20°C 8:30 15°C 17:00 20°C 23:00 15°C To edit events, make sure thermostat is in standby Long-press 5s Weekday and event type is blinking Choose event & day Confirm to edit Time is blinking Adjust with Confirm selection Temperature is blinking...
  • Page 10 SET DAYS AWAY ON HOLIDAY To set number of days away on holiday, make sure thermostat is in standby - Press F1 is displayed - choose F4 with Confirm with Press untill upper right digits reach 11 Large digits in center of display indicate the days for holiday Adjust with Confirm selection...

  • Page 11: Choose Operating Mode

    CHOOSE OPERATING MODE Choose the desired operating mode for the thermostat Press mode changes for each press Modes: - Auto - Comfort (Preset to comfortable temperature) - Eco (Preset to low temperature to save energy) - Holiday (Lowers temperature for a number of days) When changing temperature in Auto mode, the thermostat will operate in Manual...

  • Page 12: Screen Lock

    SCREEN LOCK To toggle the screen lock, press and hold 5s When screen lock is active will be displayed. USER MENU This user menu gives access to all settings of the thermostat. Make sure thermostat is in standby, press F1 is displayed - choose Fx with Confirm with (F1 &...

  • Page 13: Advanced Settings

    ADVANCED SETTINGS Upper right digits indicate the setting currently being edited. Large digits in center of display indicate the setting value. Adjust with Confirm selection Save and exit DESCRIPTION FUNCTION FAULT Sensor application 01 ~ Combined sensor (floor limit active) 02 ~ Room sensor 03 ~ Floor sensor Calibrate room temp.
  • Page 14 DESCRIPTION FUNCTION FAULT Adaptive heating ON ~ intelligent heating Adaptive delay 0 to 40 minutes Open window OFF ~ Disabled ON ~ Enabled Floor sensor type Ω @25°C (3K•5K•6.8K•10K• 12K•15K•20K•22K•33K•47K) Frost protection OFF ~ Disabled ON ~ Enabled Holiday, days away 1 to 99 days Hysteresis, heating 1 °C...
  • Page 15 WIFI - CONNECT TO APP Upper right digits display F5 Large digits in center of display indicate the setting value. Adjust with Confirm selection Save and exit 000 is the default value 000 ~ no changes 001 ~ Reset Wifi connection and set the thermostat as visible for the App.
  • Page 16 CONNECTIONS TERMINAL NO. DESCRIPTION Load [N] Power supply [N] Power supply [L] Load [L] No function Sensor Floor sensor kΩ [3•5•6,8•10•12•15•20•22•33•47] Sensor SENSOR Supply Max. 16A / 3600W NTC(KΩ) Type: HMH200 85-240Vac / 50-60Hz IP21 S. No:YYYYMMXXXX...
  • Page 17 PRECAUTIONS • Do not install thermostat in direct sunlight • Do not install on severely cold outer walls • If the thermostat is not in the same room as the heat- ing, the floor sensor only setting can be used •...

  • Page 18: Installation

    INSTALLATION Remove front panel by loosening the screw in the bottom, pull out on the lower half of front panel. Assemble by inserting tabs of front panel into base panel, tilt the lower half in and tighten the screw...

  • Page 19: Specifications

    SPECIFICATIONS Supply voltage 85-240 V / 50-60 Hz Max. load 3600 W (16A) IP class IP21 Temperature range +5° C ... +40° C Sensor settings Floor / Room / Room with floor sensor as temperature limiter Display type 3.2” VA LCD backlit Floor sensor type 10 KΩ...
  • Page 20 Android Distributed by: 02000152...
