THE INSTRUCTIONS OF HEATCOM HC30

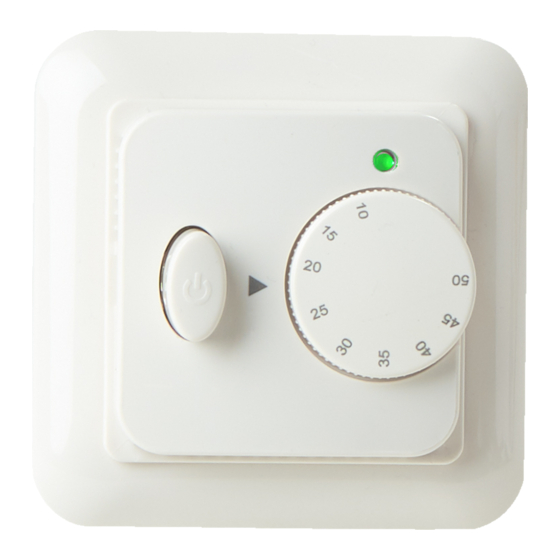

on/off mechanical electric floor heating thermostat
SPECIFICATION
1.
Working voltage：190V~240V / 50-60HZ
Current load: ≤16A
2.
3.
Accuracy of the temperature： ±0.5℃
4.
The temperature control range： 10℃~50℃
5.
Working environment temperature： 0℃ ~+50℃
6.
Storage environment temperature：-10℃~+60℃
SAFETY INFORMATION
Always turn off the thermostat external power supply before installing, removing, cleaning, or
servicing this thermostat.
Reading all of the information in this manual before installing the thermostat.
Only allow professionals to install the thermostat.
All wiring must conform to local and national building and electrical codes and ordinances.
1、Square lid
2. Round lid
APPEARANCE
Square frame
Round frame
1
Dimensions
Dimensions
Advertisement
Table of Contents
Related Manuals for Heatcom HC30
Summary of Contents for Heatcom HC30

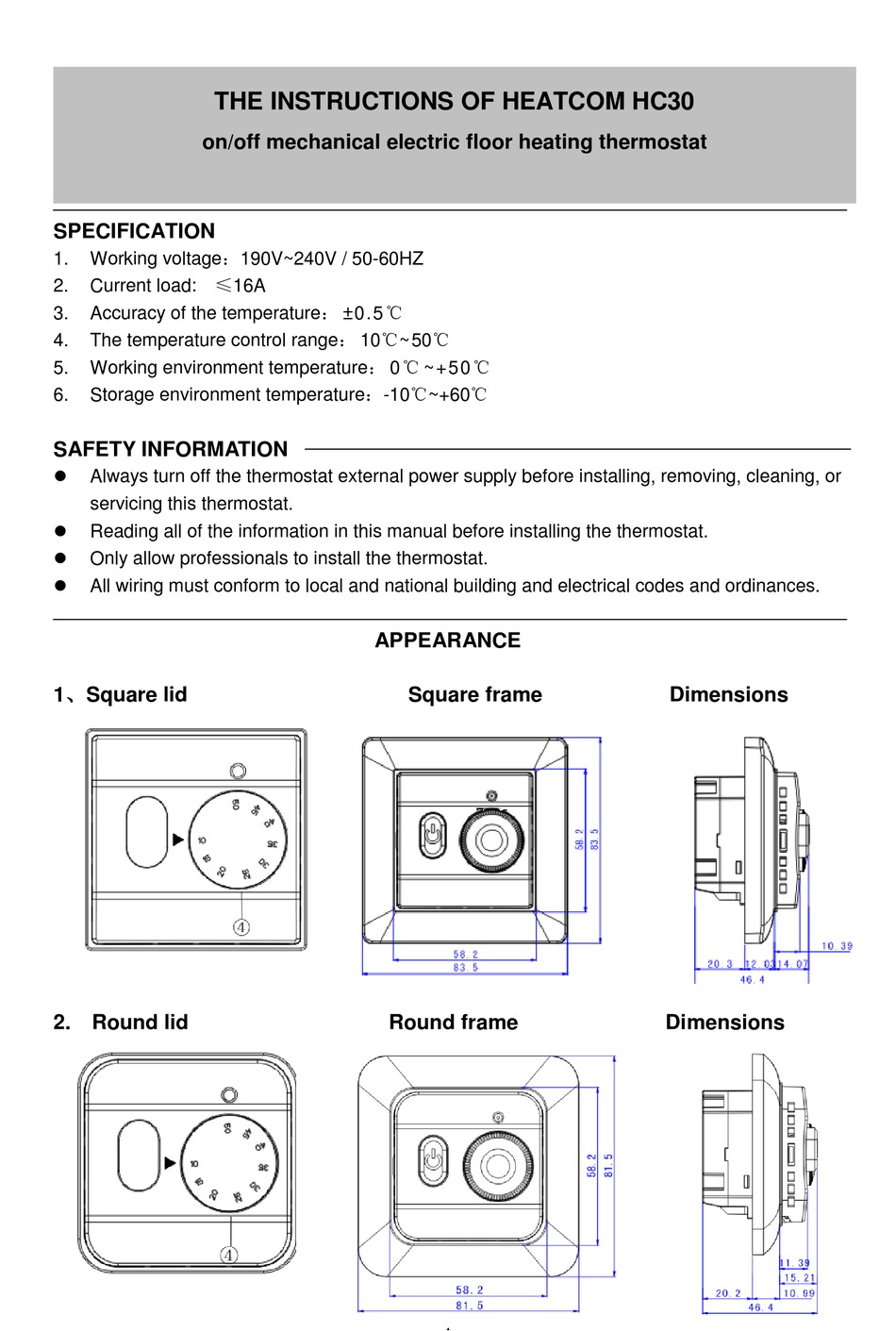

- Page 1 THE INSTRUCTIONS OF HEATCOM HC30 on/off mechanical electric floor heating thermostat SPECIFICATION Working voltage：190V~240V / 50-60HZ Current load: ≤16A Accuracy of the temperature： ±0.5℃ The temperature control range： 10℃~50℃ Working environment temperature： 0℃ ~+50℃ Storage environment temperature：-10℃~+60℃ SAFETY INFORMATION ...
- Page 2 INSTALLATION Square lid type First, please remove the knob , then use tool open the spring clip on both sides. First, please remove the knob , then use tool open the Second, to remote the frame. User setting in thermostat. spring clip on both sides.
- Page 3 Wiring Diagram Direct connection – one heating cable Note: Heating cables have an inrush current at start up, in order to guarantee the life time of the thermostat, the maximum load of the heating application in normal conditions is limited to 13A. A 16A load will reduce the life time of the relay contacts.
- Page 4 Connection via contactor e.g. – 3 heating cables User instruction 1. Light indicator： Red light： When heating output, it shows red light. When the red light flashing, it indicated the floor sensor is not be installed correctly or damaged. Room thermostat with floor limitation or floor mode: When the external floor sensor short circuit or open circuit, the red light flashing, and stop the output.
- Page 5 2. User setting by dialing code in thermostat : When operated the user setting by dialing code, please open thermostat as installation indication. Factory default as follow figures: Instruction: 1. Dual sensor mode (factory default): RM BC Room temperature control with floor temperature limitation. FR NC (Any way is ok as below ) when floor termperature reach limitation,stopping PI HT...
- Page 6 CUSTOMER ASSISTANCE After reading this guide, if you have any question about the operation of your thermostat, please contact your installer or service provider.
