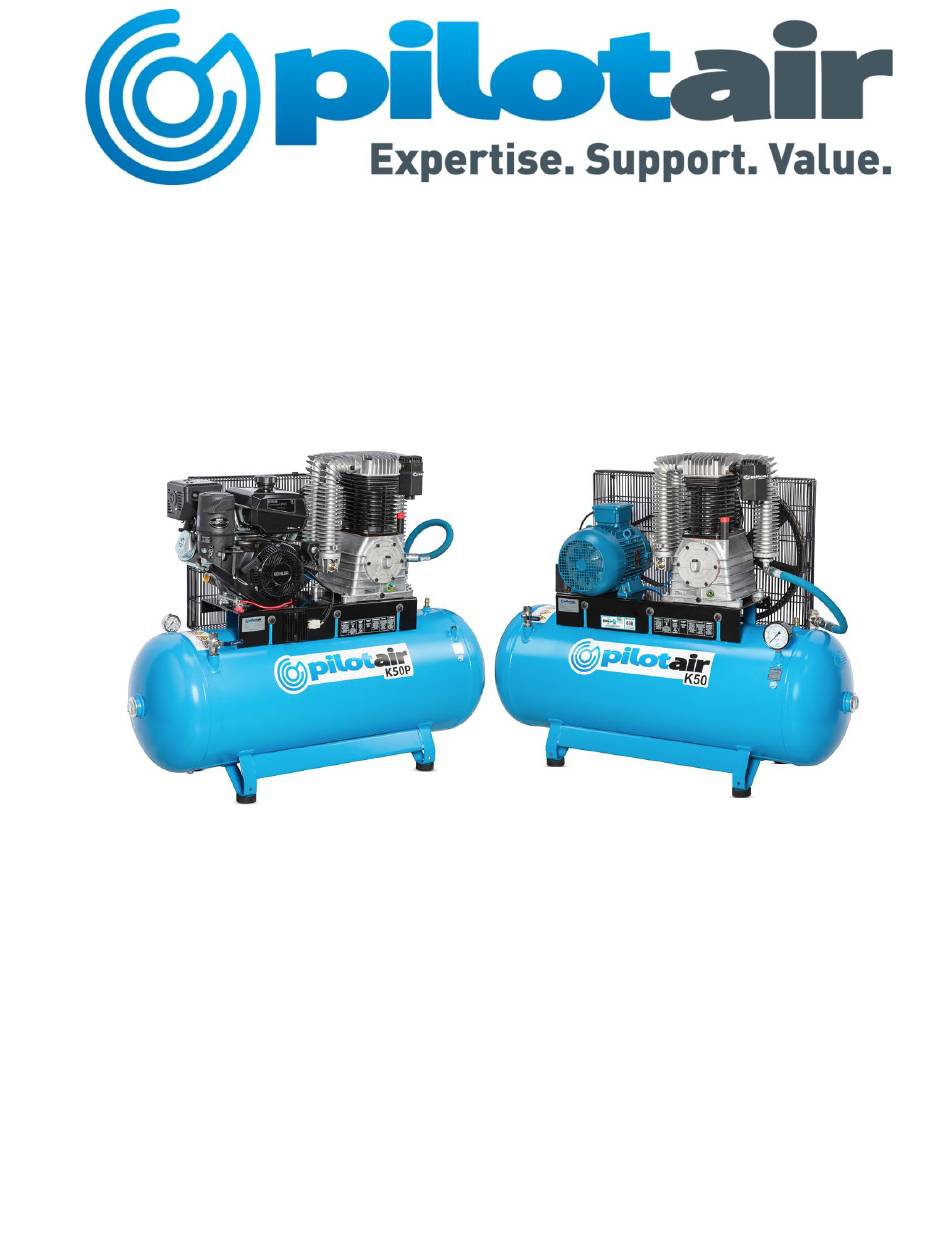

- Page 1 INSTRUCTION AND PARTS LIST MODEL: K50/K50P/ If Mounting to a vehicle, PilotAir Part # Truck-Mount-Kit must be used to avoid warranty rejection. p : 1300 667 579 www.pilotair.com.au...
-
Page 2: Location Of Unit
CHECK OIL LEVEL BEFORE USE IN CASE OF LOSSES INCURRED DURING SHIPPING Never Lift Compressor by the Bolt on Platform. Lifting Straps must be used under the receiver tank. p : 1300 667 579 www.pilotair.com.au... -
Page 3: Operation
In poor power conditions or motor over temperature conditions, this overload protector will cut power to the motor. To reset, wait for the motor to cool then press reset button. If problems persist, check for power ratings, faulty power or poor connections. p : 1300 667 579 www.pilotair.com.au... - Page 4 This valve is located on the motor/pump platform (models K25P,K30P) or in the discharge pipe from the pump to the air receiver (other models). If Mounting to a vehicle, PilotAir Part # Truck-Mount-Kit must be used to avoid warranty rejection. SAFETY...
- Page 5 Pilot Air or an authorised Pilot Air agent Whenever transporting an air compressor, ensure all air is drained from the air receiver. There should be NO residual air pressure in the air receiver. p : 1300 667 579 www.pilotair.com.au...
-
Page 6: Maintenance Instructions
There should be NO residual air pressure in the air receiver. Routine maintenance should be performed on at least a six (6) • monthly basis. Condensation must be drained from air receiver at least weekly. • p : 1300 667 579 www.pilotair.com.au... - Page 7 CRACKS IN THE AIR RECEIVER. IF THE COMPRESSOR MUST BE BOLTED, ENSURE RUBBER VIBRATION PADS ARE IN PLACE AND FASTEN, LEAVING A GAP BETWEEN BOLT HEAD OR NUT AND COMPRESSOR FOOT TO AVOID ANY METAL TO METAL CONTACT. p : 1300 667 579 www.pilotair.com.au...
- Page 8 OIL SIGHT GLASS: The Oil Sight Glass is located on the side of the • compressor pump (opposite the flywheel) and is used for examining the oil level of the unit. p : 1300 667 579 www.pilotair.com.au...
- Page 9 K50 PUMP p : 1300 667 579 www.pilotair.com.au...
- Page 10 HEAD SM61200 SHAFT 9434M01 AIR FILTER ASSEMBLY $30403790 FRONT COVER $30403750 CASING REAR SUPPORT $31003760 FLYWHEEL $30303720 BALL BEARING 6209 K50 K60 K70 #012031000 OIL LIGHT $12505950 OIL PLUG $30303730 SEAL $37403780 SCREW FLYWHEEL $37503770 WASHER FLYWHEEL 9049020 RELIEF VALVE...
-
Page 11: Warranty
All warranties subject to recommended servicing being carried out by PilotAir Service or authorised repair agents using genuine PilotAir Spare parts. The ‘PAC’ and ‘ATVS’ Series of Rotary Screw type compressors will be free from defects due to defective factory workmanship or materials for 3,000 working hours in the first 12 months from the date of purchase. - Page 12 Pilot Air literature. To obtain copies of such literature go to www.pilotair.com.au or telephone Pilot Air on (02) 9648 3099; If the claimant chooses to rely upon any warranty specified herein the claimant’s sole remedy under the warranty for breach of the warranty is (at Pilot Air’s option) that Pilot Air will either...
- Page 13 Pilot Air reserves the right to first inspect any defective Product and decide how, if at all, the defective Product is to be returned to it. Any unapproved courier, transport or freight related costs will be to the claimant’s account. p : 1300 667 579 www.pilotair.com.au...
- Page 14 Contact details if you wish to make a claim under any warranty specified herein: For more information or to make a claim under any warranty specified herein please telephone Pilot http://www.pilotair.com.au Air on 1300 667 579 , email Pilot Air via our website:...
