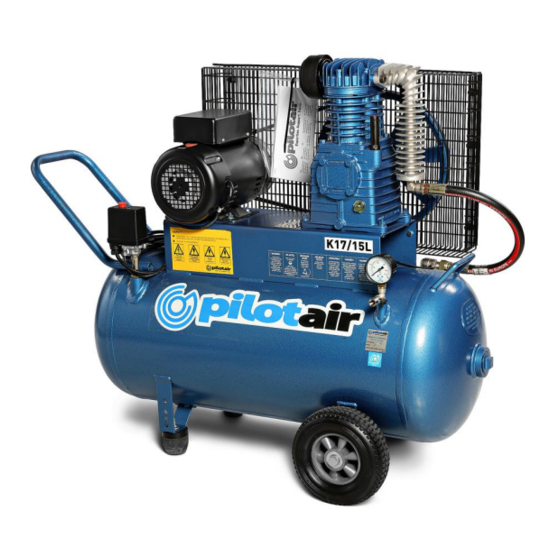

Pilot K17/15L Classic 240V Reciprocating
INSTRUCTION AND PARTS LIST
MODEL: K17
p : 1300 667 579
www.pilotair.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the K17 and is the answer not in the manual?

Questions and answers

Summary of Contents for pilotair K17

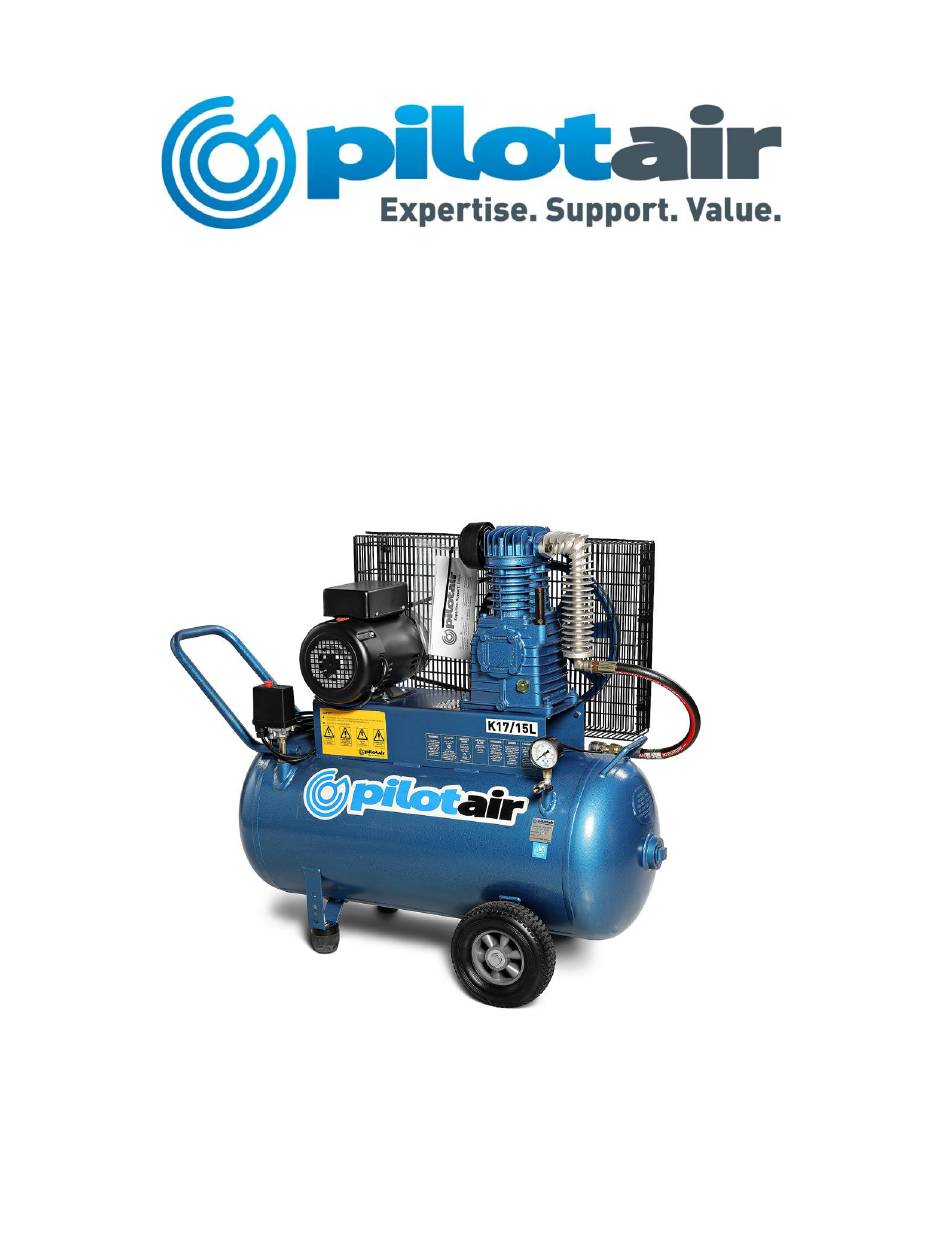

  • Page 1 Pilot K17/15L Classic 240V Reciprocating INSTRUCTION AND PARTS LIST MODEL: K17 p : 1300 667 579 www.pilotair.com.au...
  • Page 2: Location Of Unit

    For optimum efficiency locate unit in a clean, dry and cool environment with good ventilation. Avoid placing obstacles either on or around unit to facilitate maximum air flow and cooling. CHECK OIL LEVEL BEFORE USE IN CASE OF LOSSES INCURRED DURING SHIPPING p : 1300 667 579 www.pilotair.com.au...
  • Page 3 In poor power conditions or motor over temperature conditions, this overload protector will cut power to the motor. To reset, wait for the motor to cool then press reset button. If problems persist, check for power ratings, faulty power or poor connections. p : 1300 667 579 www.pilotair.com.au...
  • Page 4 Regulations regarding plant registration vary from state to state. Check with your relevant government authority about plant registration. Compressed air can be dangerous. Never point compressed air tools or equipment towards another person. p : 1300 667 579 www.pilotair.com.au...
  • Page 5 Pilot Air or an authorised Pilot Air agent Whenever transporting an air compressor, ensure all air is drained from the air receiver. There should be NO residual air pressure in the air receiver. p : 1300 667 579 www.pilotair.com.au...
  • Page 6: Maintenance Instructions

    There should be NO residual air pressure in the air receiver. Routine maintenance should be performed on at least a six (6) • monthly basis. Condensation must be drained from air receiver at least weekly. • p : 1300 667 579 www.pilotair.com.au...
  • Page 7 CRACKS IN THE AIR RECEIVER. IF THE COMPRESSOR MUST BE BOLTED, ENSURE RUBBER VIBRATION PADS ARE IN PLACE AND FASTEN, LEAVING A GAP BETWEEN BOLT HEAD OR NUT AND COMPRESSOR FOOT TO AVOID ANY METAL TO METAL CONTACT. p : 1300 667 579 www.pilotair.com.au...
  • Page 8 OIL SIGHT GLASS: The Oil Sight Glass is located on the side of the • compressor pump (opposite the flywheel) and is used for examining the oil level of the unit. p : 1300 667 579 www.pilotair.com.au...
  • Page 9 K17 PUMP p : 1300 667 579 www.pilotair.com.au...
  • Page 10 OIL PLUG $30300040 SEAL $37400720 SCREW FLYWHEEL $37500730 WASHER FLYWHEEL $36531140 OIL PLUG 9434A10 MPK VALVE PLATE K17 9434B14 MPK PISTON-CONROD K17 9434E21 MPK COLLETTORE 1/2" K17-18-25 9434F11 MPK GASKET K17 9434C13 MPK PISTON RINGS K17 9434H03 MPK MAINTEN.PV K17 p : 1300 667 579 www.pilotair.com.au...
  • Page 11: Warranty

    Pilot Air are not covered by this warranty. Purchasers are referred to the individual manufacturer’s warranty. Purchasers can request a copy of the applicable warranties by contacting Pilot Air using the contact details below. p : 1300 667 579 www.pilotair.com.au...
  • Page 12 Pilot Air literature. To obtain copies of such literature go to www.pilotair.com.au or telephone Pilot Air on (02) 9648 3099; If the claimant chooses to rely upon any warranty specified herein the claimant’s sole remedy under the warranty for breach of the warranty is (at Pilot Air’s option) that Pilot Air will either...
  • Page 13 Pilot Air reserves the right to first inspect any defective Product and decide how, if at all, the defective Product is to be returned to it. Any unapproved courier, transport or freight related costs will be to the claimant’s account. p : 1300 667 579 www.pilotair.com.au...
  • Page 14 Contact details if you wish to make a claim under any warranty specified herein: For more information or to make a claim under any warranty specified herein please telephone Pilot http://www.pilotair.com.au Air on 1300 667 579 , email Pilot Air via our website:...

This manual is also suitable for:

K17/15l
