Summary of Contents for pilotair SCR4

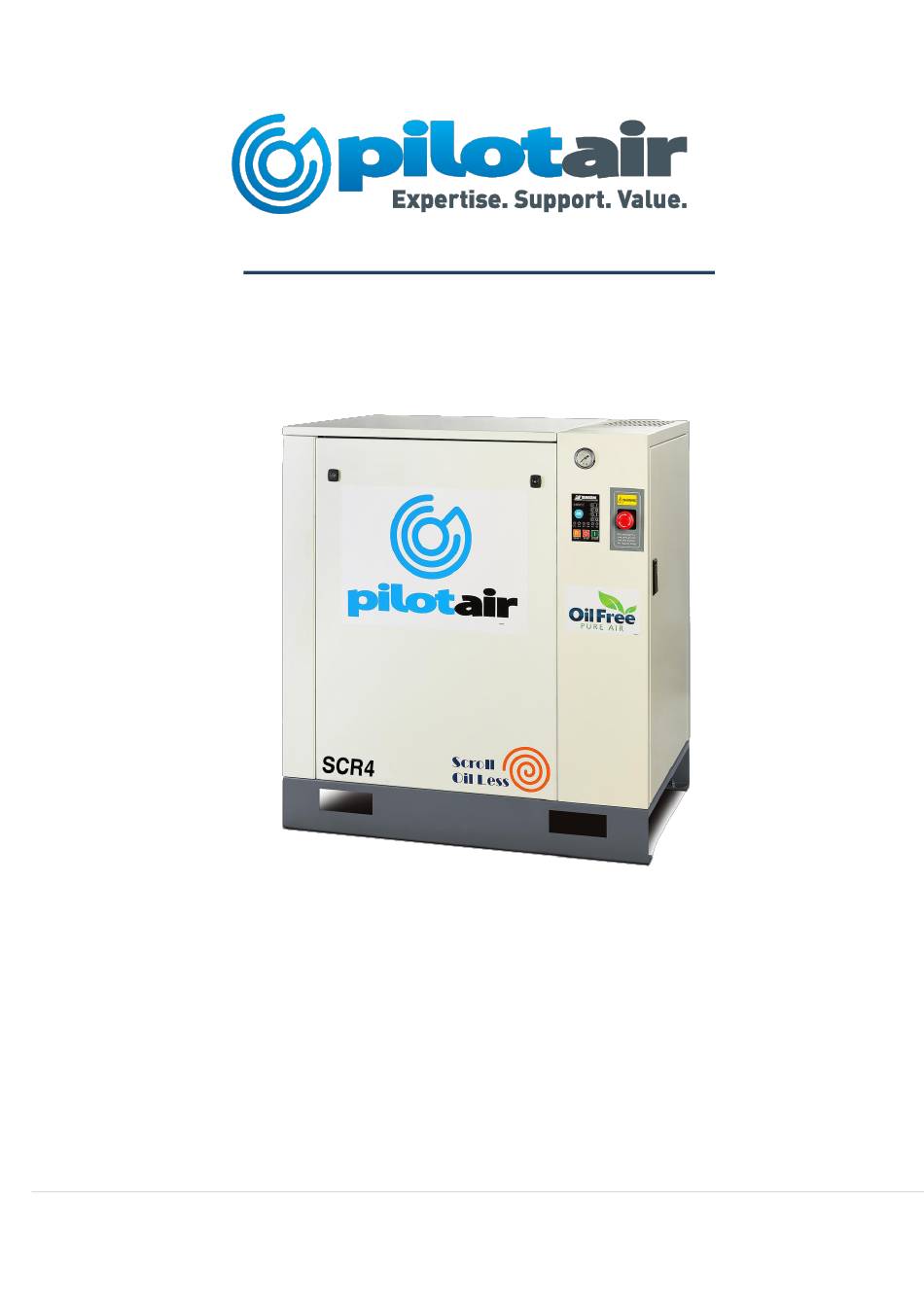

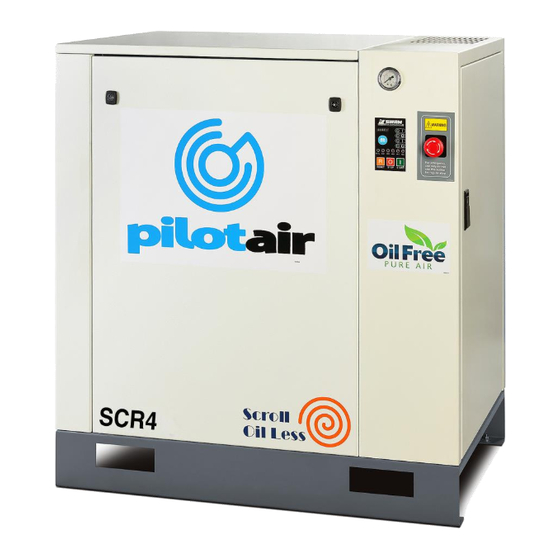

- Page 1 Pilot SCR4 Scroll Air Compressor SCR Series Scroll Compressors Instructions and Parts List P a g e SCR SERIES Instructions and Parts List...
- Page 2 Should you experience any trouble, or for further information, please do not hesitate to contact Best Regards, PILOT AIR COMPRESSORS http://www.pilotair.com Phone: 1300 667 579 Email: service@pilotair.com.au / spares@pilotair.com.au P a g e SCR SERIES Instructions and Parts List...
- Page 3 INDEX Safety Specification Chart Installation Commission & Operation Operation Maintenance Wiring Diagram Warrant Terms and Conditions P a g e SCR SERIES Instructions and Parts List...
- Page 4 Safety Pressure vessels (air receivers) are a type of plant, and as such, MAY be required to be registered with the relevant statutory authority in your state. Regulations regarding plant registration vary from state to state. Check with your relevant government authority about plant registration.
- Page 5 Safety Do not alter, adjust or remove any components on the unit without technical support from Pilot Air or an authorised Pilot Air agent. Whenever transporting an air compressor, ensure all air is drained from the air receiver. There should be NO residual air pressure in the air receiver.
- Page 6 Specification Chart Max. Noise F.A.D Motor Size Dimensions Weight Pressure Level L/Min D(B) A SCR2.2/ 240V (240V) (240V) SCR2.2 SCR4 14.1 SCR5.5 21.2 SCR7.5 30.0 P a g e SCR SERIES Instructions and Parts List...
-
Page 7: Precautions Before Operation
Installation LOCATION • An indoor installation is desirable with the seating ground able to bear the weight of the Air Compressor. • Clean, well ventilated and free from corrosive or explosive vapor areas. • Ensure a sufficient space around the compressor for the convenience of cooling and maintenance. - Page 8 Installation PANEL NAME NAME Power Indicator Reset Stop Indicator Hour Meter Running Remote / Local Pressure Phase Reversal Overload Over Temp. START Emergency STOP Pressure P a g e SCR SERIES Instructions and Parts List...
-
Page 9: Primary Checks
Commissioning and Operation When commissioning a new compressor or re-commissioning a compressor which has been out of service, the following operation recommendations should be followed.(The operator should have experience and be qualified.) 1. COMMISSIONING A. PRIMARY CHECKS 1. Confirm that all the pipe and wire connections have been firmly connected, and the main power should be turned off. - Page 10 Operation A. START 1. Switch the power on. Check the Power Indicator is on. 2. Open the Stop Valve and push the START button. Confirm pressure is rising at correct working pressure. ATTENTION: It should be conducted commissioning procedure before starting the compressor which is not be used for a long period of time.
-
Page 11: Maintenance Precautions
Maintenance MAINTENANCE PRECAUTIONS • All maintenance works are to be executed by authorized person. • Always use spare parts supplied by the original factory for replacement • Please follow the following procedures before doing maintenance: • Switch the Main Power Breaker to ”OFF” position, and remove the fuse inside the control cabinet to disconnect the electric power to the control system •... - Page 12 Maintenance ROUTINE MAINTENANCE 1. CLEAN • Always keep the unit clean 2. RECORD 2.1. Write down daily operating pressure and temperature shown on the indicator together with ambient air temperature on a Maintenance Record Card. The reading should be taken when conditions are stable and the unit running on full load. 2.2.
-
Page 13: Belt Maintenance
Maintenance BELT MAINTENANCE ADJUSTMENT BELT TENSION 1. Loosen the two fixed bolts on the side of common seat. 2. Screwing the adjustment bolt(lower) downward, and the motor seat goes down slowly until the belts reach the proper tension(see page 20). 3. -
Page 14: Enclosure Filter
Maintenance BELT TENSION MEASUREMENT δ Model W Deflection Force (Kg) Deflection (mm) SKR-02C SKR-04C SKR-06C Check deflection force with tensionmeter (see Figure 2) until every belt reaches to deflection value as chart ENCLOSURE FILTER • Fitted on the cover, the pre-filter is used to screen air before intake filter. Daily check is required. - Page 15 Troubleshooting 15 | P a g e SCR SERIES Instructions and Parts List...
- Page 16 Troubleshooting 16 | P a g e SCR SERIES Instructions and Parts List...
- Page 17 Wiring Diagram 17 | P a g e SCR SERIES Instructions and Parts List...
- Page 18 Warranty Pilot Air Compressors Pty Ltd manufactured goods - 1 Year Warranty and 3 Year Warranty (where applicable) (DATE) Pilot Air Compressors Pty Ltd (Pilot Air) warrants to the first purchaser of goods (manufactured by it) (Product) from Pilot Air and the last purchaser prior to installation that, subject to compliance with the Conditions of Warranties below that: 1.
- Page 19 Pilot Air literature current at the time of installation and must be installed in conjunction with the components or products specified in the Pilot Air literature. To obtain copies of such literature go to www.pilotair.com.au or telephone Pilot Air on (02) 9648 3099;...
- Page 20 Warranty All defective parts that are the subject of a claim under any warranty specified herein become the property of Pilot Air. The warranties specified herein do not apply to the following parts or conditions and cannot be relied upon in the situation whereby: any Pilot Air product or part has been subject to misuse, negligence, accidental damage, improper or inadequate use, inadequate maintenance or improper storage or been operated under unusual conditions or continuously under...
- Page 21 For more information or to make a claim under any warranty specified herein please telephone Pilot Air on (02) 9648 3099, email Pilot Air via our website: http://www.pilotair.com.au or write to Pilot Air at: Pilot Air Compressors Pty Ltd 115 Beaconsfield Road...
