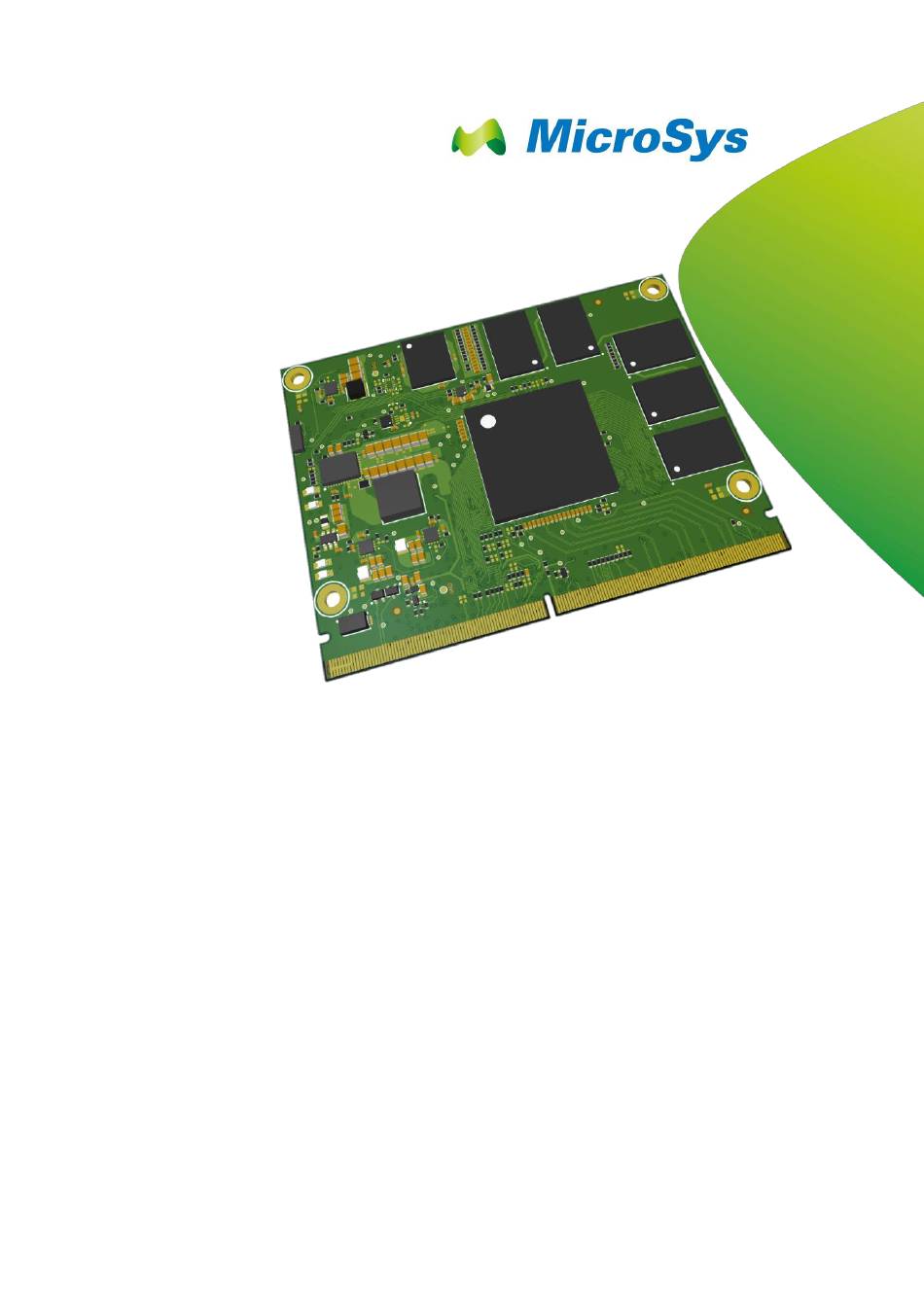

  • Page 1 MPX-LS1088A User Manual (HW Revision 5) V 5.2...

  • Page 2: Table Of Contents

    Table of Figures ........... 69 4.11 Interface Description ........34 Table of Tables ..........70 4.11.1 GPIOs ............34 History ............72 4.11.2 JTAG/COP ..........35 4.11.3 I2C ............... 36 miriac MPX-LS1088A User Manual V 5.2 2/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 3: General Notes

    Copyright © MicroSys Electronics GmbH 2017-2024 All rights reserved. All rights in any information which appears in this document belong to MicroSys Electronics GmbH or our licensors. You may copy the information in this manual for your personal, non-commercial use.

  • Page 4: Offer To Provide Source Code Of Certain Software

    This offer is valid to anyone in receipt of this information. MicroSys Electronics GmbH is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you...

  • Page 5: Symbols, Conventions And Abbreviations

    XXX+ denotes the positive signal of a differential pair denotes an optional not mounted or fitted part Table 1-2 Conventions miriac MPX-LS1088A User Manual V 5.2 5/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 6: Safety And Handling Precautions

    There is no separate SHIELD connection. The module’s mounting holes are not connected to GND Take this into account when handling and mounting the unit. Table 1-3 Safety and Handling Precautions miriac MPX-LS1088A User Manual V 5.2 6/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 7: Short Description

    Short Description 2 Short Description The miriac MPX-LS1088A is a member of the MPX module family based on the MicroSys MPX2 specification and NXP’s QorIQ® Layerscape LS1088A Multicore Communications Processor. MicroSys Electronics GmbH offers a Starterkit which provides the key features of the module.

  • Page 8: System Description

    QSPI flash as boot or storage device ■ NAND flash as storage device ■ I²C EEPROM ■ I²C temperature sensor ■ I²C RTC ■ Voltage regulators for onboard generated voltages miriac MPX-LS1088A User Manual V 5.2 8/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 9: Power Consumption

    In chapter 3.3 the power consumption of the MPX-LS1088A module was specified. With this information a cooling method needs to be designed in coordination with the final use case. If desired, MicroSys Electronics GmbH can support you with your cooling concept. Please ask your sales representative or send an email inquiry to support@microsys.de.

  • Page 10: Ordering Information

    150° C Junction Temperature Table 3-3 Industrial grade variants: maximum temperature Ordering Information Ordering information can be found on the website http://microsys.de/products/system-on-modules/qoriqr-armr-architecture/miriactm- mpx-ls1088a/ or contact your local sales representative. miriac MPX-LS1088A User Manual V 5.2 10/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 11: Technical Description

    3,3V Level TDMB-RSYNC Quicc Engine 3,3V Level TDMB-RQ Quicc Engine 3,3V Level Power Ground TDMA-RXD Quicc Engine 3,3V Level n.c. 10G-MODE# Management 3,3V Level TDMA-TXD Quicc Engine 3,3V Level miriac MPX-LS1088A User Manual V 5.2 11/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 12 UART2-CTS# UART2 3,3V Level UART2-RTS# UART2 3,3V Level Power Ground UART1-RXD UART 3,3V Level UART1-TXD UART 3,3V Level UART1-CTS# UART 3,3V Level UART1-RTS# UART 3,3V Level Power Ground miriac MPX-LS1088A User Manual V 5.2 12/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 13 3,3V Level n.c. Display 3,3V Level n.c. Display 3,3V Level n.c. Display 3,3V Level Power Ground SPI-CLK 3,3V Level SPI-CS0# 3,3V Level SPI-MOSI 3,3V Level SPI-MISO 3,3V Level miriac MPX-LS1088A User Manual V 5.2 13/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 14 SDC-CMD eMMC / SDHC SDC: 3,3V eMMC: 1,8V B100 SDC-CLK eMMC / SDHC SDC: 3,3V B101 Power Ground B102 JTMS JTAG 1,8V Level B103 JTDI JTAG 1,8V Level miriac MPX-LS1088A User Manual V 5.2 14/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 15 5V sense B129 Power Ground B130 USB1-ID Analog USB2.0 1,8V Level B131 USB1-OC USB2.0 3,3V Level B132 USB1-EN USB2.0 3,3V Level B133 USB1-VBUS USB2.0 5V sense B134 Power Ground miriac MPX-LS1088A User Manual V 5.2 15/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 16 5V (-5%) up to B154 Power 12V (+5%) 5V (-5%) up to B155 Power 12V (+5%) 5V (-5%) up to B156 Power 12V (+5%) Table 4-1 Module connector: Bottom pins miriac MPX-LS1088A User Manual V 5.2 16/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 17: Module Connector - Top Pins [St1]

    RX5+ Serdes RX5- Serdes Power Ground TX5+ Serdes TX5- Serdes Power Ground RX4+ Serdes RX4- Serdes Power Ground TX4+ Serdes TX4- Serdes Power Ground RX3+ Serdes RX3- Serdes miriac MPX-LS1088A User Manual V 5.2 17/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 18 Ground n.c. Serdes n.c. Serdes Power Ground MII2-TXCTL RGMII2 VREF-MII n.c. VREF-MII Power Ground MII2-TXD0 RGMII2 VREF-MII MII2-TXD1 RGMII2 VREF-MII Power Ground MII2-TXD2 RGMII2 VREF-MII MII2-TXD3 RGMII2 VREF-MII miriac MPX-LS1088A User Manual V 5.2 18/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 19 RGMII1 VREF-MII Power Ground MII-RXD2 RGMII1 VREF-MII MII-RXD3 RGMII1 VREF-MII Power Ground MII-TCLK RGMII1 VREF-MII MII-RXCTL RGMII1 VREF-MII Power Ground MII-TXD0 RGMII1 VREF-MII MII-TXD1 RGMII1 VREF-MII Power Ground miriac MPX-LS1088A User Manual V 5.2 19/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 20 Ground T130 USB1_D+ USB2.0 Port1 T131 USB1_D- USB2.0 Port1 T132 Power Ground T133 BOOT-SEL2 Management 1,8V Level T134 BOOT-SEL1 Management 1,8V Level Open collector T135 RST-OUT# Management output miriac MPX-LS1088A User Manual V 5.2 20/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 21 5V (-5%) up to T152 Power 12V (+5%) 5V (-5%) up to T153 Power 12V (+5%) 5V (-5%) up to T154 Power 12V (+5%) Table 4-2 Module connector: top pins miriac MPX-LS1088A User Manual V 5.2 21/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 22: Programming Connector [St2]

    Table 4-3 Programming Connector: Pinout and pin assignments VCC_FUSE is connected to the CPU pin “G13” and used for supplying the fuse programming voltage. Estimated power consumption is < 180mW. miriac MPX-LS1088A User Manual V 5.2 22/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 23: Reset Structure

    The default state for RST-IN# is active. Consequently the module is always in a reset state when the RST-IN# signal is not actively driven high by the carrierboard. RST-OUT# follows HRST# (which is controlled by the CPU), minimum pulse width is 25ms. miriac MPX-LS1088A User Manual V 5.2 23/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 24 PU: 4,7k B118 ↔ HRESET# MCU-HRST# B111 1,8V PU: 1k ← PORESET# COP-PRST# B110 1,8V PU: 10k → TRST# COP-TRST# B106 1,8V PU: 10k Table 4-4 Reset signals: overview miriac MPX-LS1088A User Manual V 5.2 24/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 25: Power Structure

    250mA Maximum current to be drawn: VREF-MII 1,8V 250mA T146-T154 / 5V (-5%) up to TVS diode protection B148-B156 12V (+5%) Table 4-5 Module connector: power pin assignments miriac MPX-LS1088A User Manual V 5.2 25/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 26 PLL, GPIO, Ethernet voltage (VREF-MII) 1,8V 1,8V ± 90mV & peripheral devices USB, GPIO voltage (VREF-SDC) 3,3V 3,3V ± 165mV & peripheral devices Table 4-6 Voltage rails of the module miriac MPX-LS1088A User Manual V 5.2 26/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 27: Clock Structure

    PCIeT_LR4 SRD-CLK1+ SR: 33R 125 MHz PD: 49R9 Parallel termination: 100 MHz / → PCIeC_LR4 SRD-CLK1- SR: 33R 125 MHz PD: 49R9 Table 4-8 SerDes clock: pin assignments miriac MPX-LS1088A User Manual V 5.2 27/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 28: Boot Sources

    HW has restrictions, which do not allow to boot from NAND at all. The recommended way of booting is to boot into U-Boot from QSPI flash and load the OS from NAND or to use SD/MMC boot for U-Boot and OS. miriac MPX-LS1088A User Manual V 5.2 28/73...

  • Page 29: Leds

    LED OFF: Reset is inactive LED ON: Power Fail Yellow LED OFF: No errors detected Table 4-11 LED: pin description More information can be found in chapter 4.9. miriac MPX-LS1088A User Manual V 5.2 29/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 30: Rtc (Real-Time Clock)

    The RTC provides an interrupt which is connected to the CPU: LM95245 Ball Signal Signal Signal Range conditioning ← IRQ00 INT# 1,8V PU: 4,7k Table 4-12 RTC: IRQs miriac MPX-LS1088A User Manual V 5.2 30/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 31: Temperature Sensor

    The temperature sensor provides two interrupts which are connected to the CPU: TMP451 Signal Ball Signal Signal Range conditioning ← IRQ01 ALRT#/THRM2 1,8V PU: 4,7k ← IRQ02 THRM# 1,8V PU: 4,7k Table 4-13 Temperature sensor: IRQs miriac MPX-LS1088A User Manual V 5.2 31/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 32: Power-Up/Down Behaviour

    3.65V – 4.5V ↓ 4.75V – 13.5V Running ON / OK > 13.55V BLINKING Overvoltage 4.75V – 13.5V Power fail FAIL 4.75V – 13.5V Reset ON / OK Requires Powercycle miriac MPX-LS1088A User Manual V 5.2 32/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 33: Gpio Expander (2 Gbyte Nand Version Only)

    Table 4-14 GPIO Expander: pin description GPIO Expander Ball Signal Signal Signal conditioning ← IRQ0 IOEX_IRQ# PU: 4k7 Table 4-15 GPIO Expander: IRQ The IOEX_IRQ# is shared with RTC_IRQ#. miriac MPX-LS1088A User Manual V 5.2 33/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 34: Interface Description

    Due to dependencies between the interfaces there can be limitations. For more information and configuration please contact MicroSys. The following table shows the dedicated GPIOs and their internal connections: Module Connector...

  • Page 35: Jtag/Cop

    Hardware Revision 3 introduced a new signal TBSCAN_EN#. It can be temporarily pulled low to enable Boundary Scan. Module Connector Ball Signal Signal Signal Range conditioning ← TBSCAN_EN# TBSCAN-EN# 1,8V PU: 4k7 Table 4-20 Boundary Scan enable miriac MPX-LS1088A User Manual V 5.2 35/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 36: I2C

    QE-CLK3 3,3V PU: 2,2k ↔ IIC4_SDA TDMB-RQ 3,3V PU: 2,2k → IIC4_SCL TDMA-RQ 3,3V PU: 2,2k Table 4-21 I2C: pin assignments I2C2 and SD-Card use are mutually exclusive. miriac MPX-LS1088A User Manual V 5.2 36/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 37 M24128-BFMC6TG 0x50 Clock IDT6V49205BNLGI 0x69 Generator System MK02FN128VLH10 0x10 Controller Table 4-22 I2C1: bus map The GPIO Expander is only populated for the 2 GByte NAND Flash option. miriac MPX-LS1088A User Manual V 5.2 37/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 38: Qspi

    Signal Signal Range → QSPIA_CS0 1,8V → QSPI_A_SCK 1,8V ↔ QSPI_A_DATA0 1,8V ↔ QSPI_A_DATA1 1,8V ↔ QSPI_A_DATA2 1,8V ↔ QSPI_A_DATA3 1,8V +1.8V Table 4-23 QSPI Flash: pin assignments miriac MPX-LS1088A User Manual V 5.2 38/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 39: Spi

    The SPI interface is not the primary interface available on the CPU pins. Further- more, some of the pins can be configured as GPIOs as well. For more information see chapter 4.11.9 miriac MPX-LS1088A User Manual V 5.2 39/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 40: Nand

    0x43 (7 bit address). For details see chapter 4.11.3 GPIO6, GPIO7 and GPIO8 on the module connector are available as I2C controlled GPIOs only for the 2 GByte NAND Flash option (two flash devices populated). miriac MPX-LS1088A User Manual V 5.2 40/73...

  • Page 41: Usb

    USB2-D- ← USB2_RX_P T112 USB2-SSRX+ ← USB2_RX_M T113 USB2-SSRX- → USB2_TX_P T115 USB2-SSTX+ AC-coupling: 100nF → USB2_TX_M T116 USB2-SSTX- AC-coupling: 100nF Table 4-27 USB port 2: pin assignments miriac MPX-LS1088A User Manual V 5.2 41/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 42 USB is the primary function used on the pins. Any other setup may require hardware modifications which are not covered by standard module versions. For more information on configuration and ordering please contact MicroSys. Module CPU pin sharing...

  • Page 43: Uart

    ← UART2_SIN UART2-RXD 3,3V → UART2_SOUT UART2-TXD 3,3V ← UART4_SIN UART4-RXD 3,3V PU: 4,7k → UART4_SOUT UART4-TXD 3,3V PU: 4,7k Table 4-31 UART w/o hardware handshake: pin assignments miriac MPX-LS1088A User Manual V 5.2 43/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 44 Description configurable as UART2_SIN GPIO3_07 GPIO configurable as UART2_SOUT GPIO3_06 GPIO configurable as UART2_CTS# GPIO3_11 GPIO configurable as UART2_RTS# GPIO3_09 GPIO Table 4-33 UART2 interface: pin sharing options miriac MPX-LS1088A User Manual V 5.2 44/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 45: Esdhc

    Hardware Revision 3. The SD card interface signals can be configured as GPIOs by software via RCW. In this configuration VREF-SDC is 3.3V. miriac MPX-LS1088A User Manual V 5.2 45/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 46 I2C2 is the primary function used on the pins. Any other setup may require hardware modifications which are not covered by standard module versions. For more information on configuration and ordering please contact MicroSys. When SD card boot mode is selected I2C-2 is not available.
  • Page 47 GPIO4_02 1,8V SDHC 3,3V SDHC card SDHC_CD# detect 3,3V GPIO / I2C IIC2_SDA GPIO4_03 1,8V SDHC 3,3V SDHC SDHC_WP write protect Table 4-36 SDHC interface: pin sharing options miriac MPX-LS1088A User Manual V 5.2 47/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 48 SDC-D3 (1,8V) VREF-SDC ↔ SDHC_DAT4 SDC-D4 (1,8V) VREF-SDC ↔ SDHC_DAT5 SDC-D5 (1,8V) VREF-SDC ↔ SDHC_DAT6 SDC-D6 (1,8V) VREF-SDC ↔ SDHC_DAT7 SDC-D7 (1,8V) Table 4-37 eMMC interface: pin assignments miriac MPX-LS1088A User Manual V 5.2 48/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 49: Serdes

    More information on the MAC capabilities can be found in chapter 4.11.11. SerDes mapping is configurable via RCW. For more information on possible configurations please contact MicroSys. The following table shows a mapping example in a configuration setup that is used on the SBC-LS1088A starterkit: ■...
  • Page 50 SD1-RX1# SRD-RX6- → AD19 SD2-TX3 SRD-TX7+ AC-coupling: 100nF → AE19 SD2-TX3# SRD-TX7- AC-coupling: 100nF ← AG19 SD2-RX3 SRD-RX7+ ← AH19 SD2-RX3# SRD-RX7- Table 4-40 SerDes interface: pin assignments miriac MPX-LS1088A User Manual V 5.2 50/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 51: Rgmii

    EC1_RX_CLK MII1-RXCK (1,8V) VREF-MII ← EC1_RX_DV MII1-RXCTL (1,8V) VREF-MII ← EC1_RXD0 MII1-RXD0 (1,8V) VREF-MII ← EC1_RXD1 MII1-RXD1 (1,8V) VREF-MII ← EC1_RXD2 MII1-RXD2 (1,8V) VREF-MII ← EC1_RXD3 MII1-RXD3 (1,8V) miriac MPX-LS1088A User Manual V 5.2 51/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 52 VREF-MII → EC2_TXD1 MII2-TXD1 SR: 10R (1,8V) VREF-MII → EC2_TXD2 MII2-TXD2 SR: 10R (1,8V) VREF-MII → EC2_TXD3 MII2-TXD3 SR: 10R (1,8V) VREF-MII → EC2_TX_EN MII2-TXEN SR: 10R (1,8V) miriac MPX-LS1088A User Manual V 5.2 52/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 53 GPIO configurable as EC1_TX_EN GPIO2_26 T103 GPIO configurable as EMI1_MDIO GPIO4_01 GPIO configurable as EMI1_MDC GPIO4_00 GPIO configurable as EC1_GTX_CLK125 GPIO2_28 GPIO Table 4-44 RGMII1: pin sharing options miriac MPX-LS1088A User Manual V 5.2 53/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 54 GPIO4_15 GPIO configurable as EC2_TX_EN GPIO4_19 GPIO configurable as EMI2_MDIO GPIO2_21 GPIO configurable as EMI2_MDC GPIO2_20 GPIO configurable as EC2_GTX_CLK125 GPIO4_21 GPIO Table 4-45 RGMII2: pin sharing options miriac MPX-LS1088A User Manual V 5.2 54/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 55: Quicc Engine

    The Quicc Engine is not the primary interface available on the CPU pins. Furthermore, some of the pins can be configured as GPIOs as well. For pin sharing options see Table 4-17 and Table 4-21. miriac MPX-LS1088A User Manual V 5.2 55/73...

  • Page 56: Mode

    3 to make customer designs easier and more flexible. For backwards compatibility there’s still a resistor jumper on the module. Nevertheless, this requires a special hardware configuration which may come at higher costs. miriac MPX-LS1088A User Manual V 5.2 56/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 57: Mechanical Description

    “B1”, … „B9“, „BK1“, „BK2“, „B10“ … ”B155”, “B156” Pin labels: Top Side 156 pins “T1”, … ”T9”, „TK1“, „TK2“, ”T10”, … “T153”, “T154“ Table 5-1 Connector pin naming scheme Figure 5-2 Connector orientation miriac MPX-LS1088A User Manual V 5.2 57/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 58 Mechanical Description 5 The module connector is usually used for MXM3 graphic cards commonly found in notebooks. Other than that, MicroSys changed the pin layout so all the physically available 314 pins can be used. Basically, there are more connectors on the market that can be used as long as there are no conflicts with the mechanical dimensions of the module.
  • Page 59 Mechanical Description 5 Figure 5-3 Connector pin definition miriac MPX-LS1088A User Manual V 5.2 59/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 60: Board Outline

    Mechanical Description 5 Board Outline For 3D data files please contact MicroSys. The following drawing shows the mechanical outline (82x62mm) of the MPX- LS1088A module plugged in a JAE - MM70-314B1-2-R300 connector. This drawing is not to scale: Figure 5-4 Module outline (82x62mm) The mounting holes can be used with M2.5 screws.

  • Page 61: Height

    Board-to-board height connector type Depending on DIM. E Connector product height connector type Table 5-3 Construction height overview Thickness PCB thickness of the MPX-LS1088A module is 1,2mm ± 10%. miriac MPX-LS1088A User Manual V 5.2 61/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 62: Top Side Component Layout

    Part Reference Manufacturer Type Function LS1088A J2/J3/J4/J5/6 Micron MT40A512M16 DDR4 memory Texas Instruments TMP451 Temperature sensor SkyHigh S34MS04G NAND flash SM06B-XSRS-ETB Programming connector Table 5-4 Top side components miriac MPX-LS1088A User Manual V 5.2 62/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 63: Bottom Side Component Layout

    Part Reference Manufacturer Type Function SkyHigh S34MS04G NAND flash Micron MT25QU QSPI flash MK02 Epson RX-8803LC Real-time clock M24128 EEPROM IDT6V49205B Clock generator Table 5-5 Bottom side components miriac MPX-LS1088A User Manual V 5.2 63/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 64: Software

    CPU configuration ■ Clock configuration ■ DDR4 configuration and timing Operating System MicroSys Electronics GmbH offers Linux and Microware OS-9 RTOS support for the module. Other Operating Systems are available on request only. miriac MPX-LS1088A User Manual V 5.2 64/73...

  • Page 65: Safety Requirements And Protective Regulations

    The MPX-LS1088A is designed to withstand a high level of vibration and shock as there are low weight and no overhanging components on the module. If desired, MicroSys Electronics GmbH can support you with your shock and vibration concept. Please ask your sales representative or send an email inquiry to support@microsys.de.

  • Page 66: Climatic Conditions

    The storage temperature of the module described here is -55°C - +100°C RoHS All components of the MPX-LS1088A are RoHS compliant, also a RoHS compliant soldering process is used for manufacturing. miriac MPX-LS1088A User Manual V 5.2 66/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 67: General Notes

    The manufacturer’s advice should be followed. If desired, MicroSys Electronics GmbH can support you with your lifecycle management regarding to chip errata. Please ask your sales representative or send an email inquiry to support@microsys.de.

  • Page 68: Appendix

    SGMII .............. Serial Gigabit Media Independent Interface SPI ....................Serial Peripheral Interface SR ....................... Series Resistor UART ............Universal Asynchronous Receiver/Transmitter UCC ................Universal Communication Controller USB ..................... Universal Serial Bus miriac MPX-LS1088A User Manual V 5.2 68/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 69: Table Of Figures

    Figure 5-3 Module outline (82x62mm) ................. 60 Figure 5-4 Mounting holes: dimensions ................60 Figure 5-5 Construction height for parts ................61 Figure 5-6 Top Components ....................62 Figure 5-7 Bottom Components ................... 63 miriac MPX-LS1088A User Manual V 5.2 69/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 70: Table Of Tables

    Table 4-34 SDHC interface: pin assignments ..............46 Table 4-35 SDHC control interface: pin assignments ............46 Table 4-36 SDHC interface: pin sharing options ..............47 Table 4-37 eMMC interface: pin assignments ..............48 miriac MPX-LS1088A User Manual V 5.2 70/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 71 Table 5-2 Connector Types: Ordering Information ............... 58 Table 5-3 Construction height overview ................61 Table 5-4 Top side components ................... 62 Table 5-5 Bottom side components ..................63 Table 10-1 Document history ....................73 miriac MPX-LS1088A User Manual V 5.2 71/73 © MicroSys Electronics GmbH 2017-2024...

  • Page 72: History

    - Table 4-22: corrected bit A3 for I2C address 0x4C - JAE connector obsolete: updated Table 5-2 2022-04-26 Added data for power consumption over Tj in Table 3-1 Hardware Revision 3 not released – manual skipped 2022-01-05 miriac MPX-LS1088A User Manual V 5.2 72/73 © MicroSys Electronics GmbH 2017-2024...
  • Page 73 - Added overview in chapter 4.9 2024-09-30 Defeatured NAND boot in chapter 4.5 2024-10-14 - Adding a storage temperature chapter 7.5 - Fax number removed under chapter 1.3 Table 10-1 Document history miriac MPX-LS1088A User Manual V 5.2 73/73 © MicroSys Electronics GmbH 2017-2024...
