  • Page 1 MPX-LS1028A User Manual (HW Revision 2) V1.0...

  • Page 2: Table Of Contents

    Interface Description ........30 Table of Figures ........... 58 4.10.1 JTAG ............30 Table of Tables ..........59 4.10.2 CAN ............. 31 History ............61 4.10.3 SAI .............. 31 miriac MPX-LS1028A User Manual V1.0 2/61 © MicroSys Electronics GmbH 2020...

  • Page 3: General Notes

    Copyright MicroSys Electronics GmbH, January 2019 All rights reserved. All rights in any information which appears in this document belong to MicroSys Electronics GmbH or our licensors. You may copy the information in this manual for your personal, non-commercial use.

  • Page 4: Offer To Provide Source Code Of Certain Software

    This offer is valid to anyone in receipt of this information. MicroSys Electronics GmbH is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you...

  • Page 5: Symbols, Conventions And Abbreviations

    XXX+ / XXX_P denotes the positive signal of a differential pair denotes an optional not mounted or fitted part Table 1-2 Conventions miriac MPX-LS1028A User Manual V1.0 5/61 © MicroSys Electronics GmbH 2020...

  • Page 6: Safety And Handling Precautions

    There is no separate SHIELD connection. The module’s mounting holes are not connected to GND Take this into account when handling and mounting the unit. Table 1-3 Safety and Handling Precautions miriac MPX-LS1028A User Manual V1.0 6/61 © MicroSys Electronics GmbH 2020...

  • Page 7: Short Description

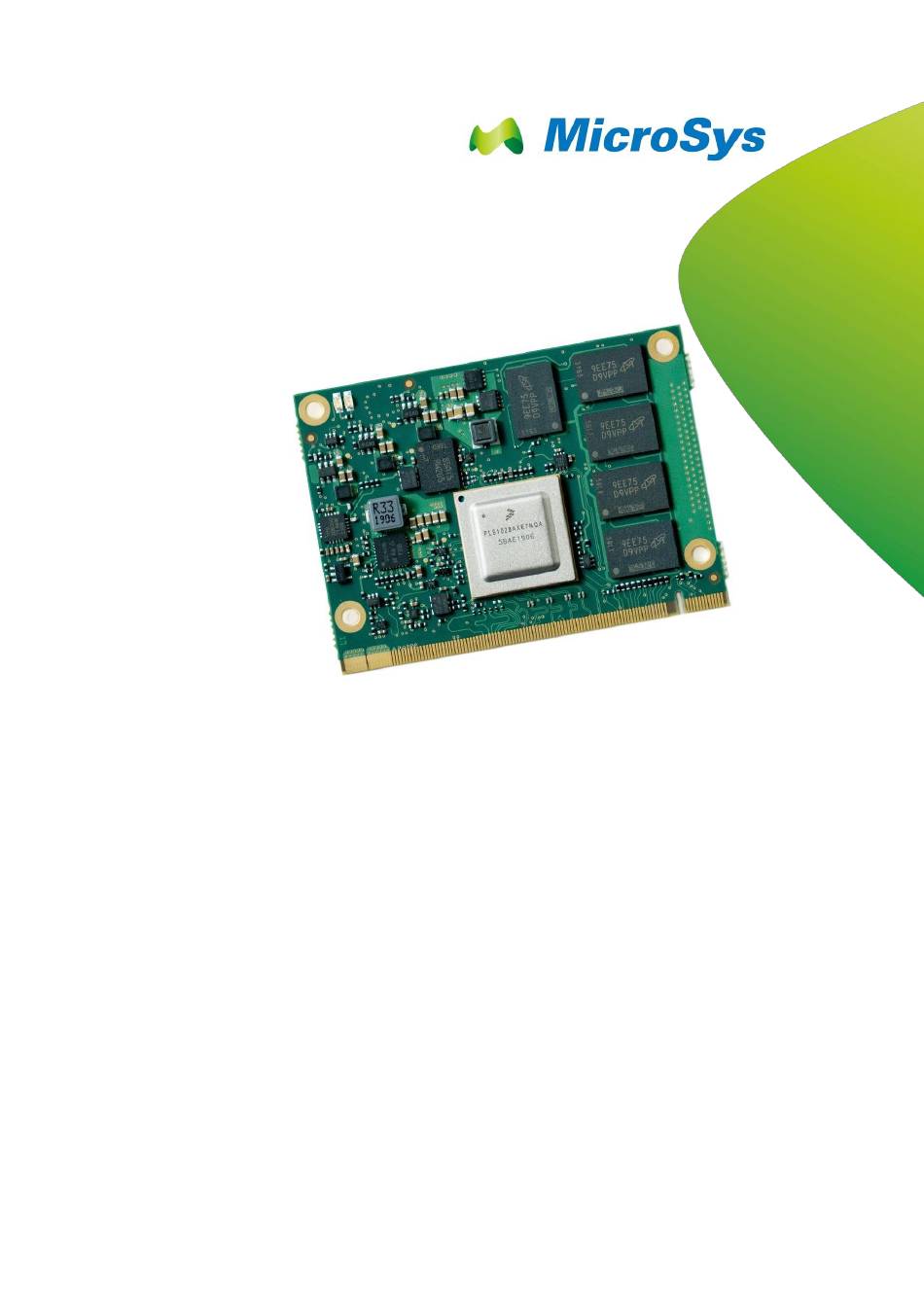

    Short Description 2 Short Description The miriac MPX-LS1028A is a member of the MPX module family based on NXP’s QorIQ® Layerscape LS1028A Multicore Communications Processor. MicroSys Electronics GmbH offers a Starterkit which provides the key features of the module. The customer can: ■...

  • Page 8: System Description

    Serial NOR flash as boot or storage device ■ Serial NAND flash as boot or storage device ■ I²C EEPROM ■ I²C temperature sensor ■ I²C RTC ■ Voltage regulators for the onboard voltages miriac MPX-LS1028A User Manual V1.0 8/61 © MicroSys Electronics GmbH 2020...

  • Page 9: Power Consumption

    In chapter 3.3 the power consumption of the MPX-LS1028A module was specified. With this information a cooling method needs to be designed suitable for the final use case. If desired, MicroSys Electronics GmbH can support you with your cooling concept. Please ask your sales representative or send an email inquiry to support@microsys.de.

  • Page 10: Ordering Information

    System Description 3 Ordering Information Ordering information can be found on the website https://microsys.de/produkte/system-on-modules/qoriq/miriactm-mpx- ls1028a.html?L=1 or contact your local sales representative. miriac MPX-LS1028A User Manual V1.0 10/61 © MicroSys Electronics GmbH 2020...

  • Page 11: Technical Description

    Primary Function N.C. N.C. BOOT_INV HRST# TA_TMP_DETECT# RSTIN#  GPIO2_DAT19 SDHC2_CMD  GPIO2_DAT09 SDHC2_CLK  GPIO2_DAT14 SDHC2_DAT3  GPIO2_DAT13 SDHC2_DAT2  GPIO2_DAT12 SDHC2_DAT1  GPIO2_DAT11 SDHC2_DAT0  GPIO2_DAT10 SDHC2_DS miriac MPX-LS1028A User Manual V1.0 11/61 © MicroSys Electronics GmbH 2020...
  • Page 12 SDHC1_DAT2  GPIO1_DAT18 SDHC1_DAT1  GPIO1_DAT17 SDHC1_DAT0  GPIO1_DAT21 SDHC1_CMD  GPIO1_DAT16 SDHC1_CLK SD_CLK100_N SD_CLK100_P SD_CLKIN_N SD_CLKIN_P SD1_TX3_N SD1_TX3_P SD1_RX3_N SD1_RX3_P SD1_TX2_N SD1_TX2_P SD1_RX2_N SD1_RX2_P SD1_TX1_N SD1_TX1_P SD1_RX1_N SD1_RX1_P miriac MPX-LS1028A User Manual V1.0 12/61 © MicroSys Electronics GmbH 2020...
  • Page 13  GPIO3_DAT12 EC1_TXD3  GPIO3_DAT11 EC1_TXD2  GPIO3_DAT10 EC1_TXD1  GPIO3_DAT09 EC1_TXD0  GPIO3_DAT07 EC1_GTX_CLK USB1_ID USB1_VBUS USB1_SSTX_N USB1_SSTX_P USB1_SSRX_N USB1_SSRX_P USB1_D_N USB1_D_P  GPIO3_DAT16 SPI3_MOSI  GPIO3_DAT13 SPI3_MISO miriac MPX-LS1028A User Manual V1.0 13/61 © MicroSys Electronics GmbH 2020...
  • Page 14 T101 5V0_VIN T102 5V0_VIN T103 5V0_VIN T104 5V0_VIN T105 5V0_VIN T106 5V0_VIN T107 5V0_VIN T108 5V0_VIN T109 T110 T111 T112 T113 T114 T115 Table 4-1 Module connector: top pins miriac MPX-LS1028A User Manual V1.0 14/61 © MicroSys Electronics GmbH 2020...

  • Page 15: Module Connector - Bottom Pins

    GPIO1_DAT22 I2C6_SDA  GPIO1_DAT23 I2C6_SCL  GPIO1_DAT24 I2C5_SDA  GPIO1_DAT25 I2C5_SCL  GPIO1_DAT26 I2C4_SDA  GPIO1_DAT27 I2C4_SCL  GPIO1_DAT28 I2C3_SDA  GPIO1_DAT29 I2C3_SCL  GPIO1_DAT30 I2C2_SDA  GPIO1_DAT31 I2C2_SCL miriac MPX-LS1028A User Manual V1.0 15/61 © MicroSys Electronics GmbH 2020...
  • Page 16 DP_LANE2_P DP_LANE1_N DP_LANE1_P DP_LANE0_N DP_LANE0_P DP_HPD  GPIO3_DAT00 EC1_RX_DV  GPIO3_DAT01 EC1_RX_CLK  GPIO3_DAT05 EC1_RXD3  GPIO3_DAT04 EC1_RXD2  GPIO3_DAT03 EC1_RXD1  GPIO3_DAT02 EC1_RXD0  GPIO3_DAT06 EC1_GTX_CLK125 USB2_ID USB2_VBUS miriac MPX-LS1028A User Manual V1.0 16/61 © MicroSys Electronics GmbH 2020...
  • Page 17 Function USB2_SSTX_N USB2_SSTX_P USB2_SSRX_N USB2_SSRX_P USB2_D_N USB2_D_P N.C. N.C. BSCAN_EN# JTRST# JTMS JTDO JTDI JTCK  GPIO1_DAT06 UART2_RXD  UART2_TXD/CFG_RCW0 GPIO1_DAT07  GPIO1_DAT10 UART1_RXD  UART1_TXD/CFG_RCW1 GPIO1_DAT11 VCC_RTC EVDD_VCC miriac MPX-LS1028A User Manual V1.0 17/61 © MicroSys Electronics GmbH 2020...
  • Page 18 B101 5V0_VIN B102 5V0_VIN B103 5V0_VIN B104 5V0_VIN B105 5V0_VIN B106 5V0_VIN B107 5V0_VIN B108 5V0_VIN B109 B110 B111 B112 B113 B114 B115 Table 4-2 Module connector: bottom pins miriac MPX-LS1028A User Manual V1.0 18/61 © MicroSys Electronics GmbH 2020...

  • Page 19: Power Structure

    Maximum current to be drawn: T96, T97, B96, B97 1.8V 250mA Maximum current to be drawn: T99, T100, B99, B100 3.3V 250mA Table 4-3 Module connector: power pin assignments miriac MPX-LS1028A User Manual V1.0 19/61 © MicroSys Electronics GmbH 2020...
  • Page 20 SerDes transmitter voltage PLL, GPIO, Ethernet voltage 1.8V 1.8V ± 90mV & peripheral devices USB voltage 3.3V 3.3V ± 165mV & peripheral devices Table 4-4 Voltage rails of the module miriac MPX-LS1028A User Manual V1.0 20/61 © MicroSys Electronics GmbH 2020...

  • Page 21: Reset Structure

    Please note that the HRST# reset timing is controlled by the CPU, thus the pulse length and timing may vary. JTRST# is for JTAG and debugging purposes and should be controlled by external debuggers, for example Lauterbach's TRACE32 or NXP’s CodeWarrior TAP. miriac MPX-LS1028A User Manual V1.0 21/61 © MicroSys Electronics GmbH 2020...
  • Page 22 5,0V SR: 100R ← RSTIN# (VIN) PU: 2k2 → HRESET_B HRST# 1,8V PU: 4k7 → GPIO2_DAT29 PCIE_RST# 1,8V ← PORESET_B JTRST# 1,8V PU: 10k Table 4-5 Reset signals: overview miriac MPX-LS1028A User Manual V1.0 22/61 © MicroSys Electronics GmbH 2020...

  • Page 23: Clock Structure

    400 kHz → IIC2_SCL I2C2_SCL 400 kHz → IIC3_SCL I2C3_SCL 400 kHz → IIC4_SCL I2C4_SCL 400 kHz → IIC5_SCL I2C5_SCL 400 kHz → IIC6_SCL I2C6_SCL PD: 100k 400 kHz miriac MPX-LS1028A User Manual V1.0 23/61 © MicroSys Electronics GmbH 2020...
  • Page 24 I/O Range Frequency conditioning SR: 33R → CLK- SD_CLK100_N HCSL 100 MHz PD: 49R9 SR: 33R → CLK+ SD_CLK100_P HCSL 100 MHz PD: 49R9 Table 4-7 SerDes clock: pin assignments miriac MPX-LS1028A User Manual V1.0 24/61 © MicroSys Electronics GmbH 2020...

  • Page 25: Boot Sources

    The MPX-LS1028A module offers the option of booting from different boot devices. The following table shows the boot devices supported by hardware. Some options may be restricted by software. Please contact MicroSys for currently supported boot devices. Not listed combinations are reserved. Boot...

  • Page 26: Leds

    Power-up sequence of the module is finished, power is good Green LED OFF: Power fail LED ON: Module reset is active LED OFF: Reset is inactive Table 4-10 LED: pin description miriac MPX-LS1028A User Manual V1.0 26/61 © MicroSys Electronics GmbH 2020...

  • Page 27: Rtc

    Figure 4-5 RTC: buffering The RTC’s interrupt output is connected to the GPIO Expander: GPIO Expander PCF85063ATT Signal Signal Signal Range conditioning ← RTC_IRQ# INT# 1.8V PU: 1k Table 4-11 RTC: IRQ miriac MPX-LS1028A User Manual V1.0 27/61 © MicroSys Electronics GmbH 2020...

  • Page 28: Temperature Sensor

    The temperature sensor provides two interrupts which are connected to the GPIO Expander: GPIO Expander TMP451 Signal Signal I/O Range Signal conditioning ← THERM_ALERT# ALERT#/THERM2 1.8V PU: 1k ← THERM_FAULT# THERM# 1.8V PU: 1k Table 4-12 Temperature sensor: IRQs miriac MPX-LS1028A User Manual V1.0 28/61 © MicroSys Electronics GmbH 2020...

  • Page 29: Gpio Expander

    Hardware Revision 7 Hardware Revision 8 Table 4-14 GPIO Expander: Hardware Revision GPIO Expander Ball Signal Signal Signal conditioning ← GPIO2_DAT28 EXPD_IRQ# PU: 10k Table 4-15 GPIO Expander: IRQ miriac MPX-LS1028A User Manual V1.0 29/61 © MicroSys Electronics GmbH 2020...

  • Page 30: Interface Description

    → JTDO 1.8V ← JTCK 1.8V PU: 10k ← JTMS 1.8V ← TRST# JTRST# 1.8V PU: 10k ← TBSCAN_EN# BSCAN_EN# 1.8V PU: 4k7 Table 4-16 JTAG interface: pin assignments miriac MPX-LS1028A User Manual V1.0 30/61 © MicroSys Electronics GmbH 2020...

  • Page 31: Can

    SAI 2: see Table 4-30 ■ SAI 3: see Table 4-35 ■ SAI 4: see Table 4-35 ■ SAI 5: see Table 4-35 ■ SAI 6: see Table 4-35 miriac MPX-LS1028A User Manual V1.0 31/61 © MicroSys Electronics GmbH 2020...

  • Page 32: I2C

    Device 7 bit GPIO FXL6408 0x43 Expander TMP451 0x4C (slave address) Temperature Sensor TMP451 (General Call reset 0x00 address) PCF85063 0x51 EEPROM BR24G128 0x54 Table 4-18 I2C1: bus map miriac MPX-LS1028A User Manual V1.0 32/61 © MicroSys Electronics GmbH 2020...
  • Page 33 EVT0_B GPIO1_DAT22 SYNC_IN IIC7_SCL LPUART4_CTS_B SDHC2_DAT5 XSPI1_B_DATA5 GPIO2_DAT16 IIC7_SDA LPUART4_RTS_B SDHC2_DAT4 XSPI1_B_DATA4 GPIO2_DAT15 IIC8_SCL LPUART4_SOUT SDHC2_DAT7 XSPI1_B_DATA7 GPIO2_DAT18 IIC8_SDA LPUART4_SIN SDHC2_DAT6 XSPI1_B_DATA6 GPIO2_DAT17 Table 4-19 I2C pin multiplexing options miriac MPX-LS1028A User Manual V1.0 33/61 © MicroSys Electronics GmbH 2020...

  • Page 34: Xspi

    Signal Range XSPI1_A_CS0# → 1.8V XSPI1_A_CS1# → XSPI1_A_SCK 1.8V ↔ XSPI1_A_DATA0 1.8V ↔ XSPI1_A_DATA1 1.8V ↔ XSPI1_A_DATA2 1.8V ↔ XSPI1_A_DATA3 1.8V +1.8V Table 4-21 XSPI NAND Flash: pin assignments miriac MPX-LS1028A User Manual V1.0 34/61 © MicroSys Electronics GmbH 2020...
  • Page 35 Module Connector Signal Signal BOOT_INV = Range conditioning CS0# = NOR CS1# = NAND ← BOOT_INV 1.8V PD: 100k CS0# = NAND CS1# = NOR Table 4-22 XSPI: BOOT_INV signal miriac MPX-LS1028A User Manual V1.0 35/61 © MicroSys Electronics GmbH 2020...

  • Page 36: Spi

    Primary function Secondary function GPIO SPI3_SIN EC1_1722_DAT2 GPIO3_DAT13 SPI3_SOUT EC1_1588_ALARM_OUT2 GPIO3_DAT16 SPI3_SCK EC1_1722_DAT3 GPIO3_DAT14 SPI3_PCS0 EC1_1588_TRIG_IN2 GPIO3_DAT15 SPI3_PCS1 USB_PWRFAULT GPIO3_DAT17 SPI3_PCS2 USB_DRVVBUS GPIO3_DAT18 Table 4-24 SPI3: pin multiplexing options miriac MPX-LS1028A User Manual V1.0 36/61 © MicroSys Electronics GmbH 2020...

  • Page 37: Usb

    ↔ USB2_D_P USB2_D_P ↔ USB2_D_M USB2_D_N ← USB2_RX_P USB2_SSRX_P ← USB2_RX_M USB2_SSRX_N → USB2_TX_P USB2_SSTX_P AC-coupling: 100nF → USB2_TX_M USB2_SSTX_N AC-coupling: 100nF Table 4-26 USB port 2: pin assignments miriac MPX-LS1028A User Manual V1.0 37/61 © MicroSys Electronics GmbH 2020...
  • Page 38 More information can be obtained from Table 4-19 (USB2) and Table 4-24 (USB1). USBx_PWRFAULT signals are high-active signals. A logic high level signals the port is in an overcurrent situation. miriac MPX-LS1028A User Manual V1.0 38/61 © MicroSys Electronics GmbH 2020...

  • Page 39: Uart

    The boot configuration pins must not be left floating on the carrier board! Primary function Secondary function Configuration GPIO UART1_SIN LPUART6_SIN GPIO1_DAT10 UART1_SOUT LPUART6_SOUT cfg_rcw_src1 GPIO1_DAT11 UART2_SIN LPUART6_CTS_B GPIO1_DAT06 UART2_SOUT LPUART6_RTS_B cfg_rcw_src0 GPIO1_DAT07 Table 4-28 UART: pin multiplexing options miriac MPX-LS1028A User Manual V1.0 39/61 © MicroSys Electronics GmbH 2020...

  • Page 40: Lpuart

    None of the LPUARTs is a primary interface, which is why all of them share their pins with other interfaces: ■ LPUART 1: see Table 4-19 ■ LPUART 4: see Table 4-19 ■ LPUART 5: see Table 4-32 ■ LPUART 6: see Table 4-28 miriac MPX-LS1028A User Manual V1.0 40/61 © MicroSys Electronics GmbH 2020...

  • Page 41: Esdhc

    Card detect and write protect pins are shared with other functions on the I2C2 primary functions pins. Please see Table 4-19 for details. The SDHC1 is supplied with EVDD_VCC voltage which is software controlled by the SDHC_VSEL signal. miriac MPX-LS1028A User Manual V1.0 41/61 © MicroSys Electronics GmbH 2020...
  • Page 42 Technical Description 4 SDHC1 has several multiplexing options according to Table 4-30. Nevertheless, MicroSys recommends providing an option for an SD card slot on the carrier board. Primary Secondary Tertiary Quaternary GPIO function function function function SDHC1_CMD SPI1_SOUT SAI1_TX_BCLK SAI1_RX_BCLK...
  • Page 43 GPIO2_DAT10 LPUART5_ SDHC2_DAT0 SPI2_SIN XSPI1_B_DATA0 GPIO2_DAT11 RTS_B LPUART5_ SDHC2_DAT1 SPI2_PCS2 XSPI1_B_DATA1 GPIO2_DAT12 CTS_B LPUART5_S SDHC2_DAT2 SPI2_PCS1 XSPI1_B_DATA2 GPIO2_DAT13 LPUART5_S SDHC2_DAT3 SPI2_PCS0 XSPI1_B_DATA3 GPIO2_DAT14 Table 4-32 SDHC2 pin multiplexing options miriac MPX-LS1028A User Manual V1.0 43/61 © MicroSys Electronics GmbH 2020...

  • Page 44: Rgmii

    1,8V ← EC1_RXD0 EC1_RXD0 1,8V ← EC1_RXD1 EC1_RXD1 1,8V ← EC1_RXD2 EC1_RXD2 1,8V ← EC1_RXD3 EC1_RXD3 1,8V → EC1_GTX_CLK EC1_GTX_CLK 1,8V SR: 10R → EC1_TXD0 EC1_TXD0 1,8V SR: 10R miriac MPX-LS1028A User Manual V1.0 44/61 © MicroSys Electronics GmbH 2020...
  • Page 45 SAI6_RX_DATA GPIO3_DAT09 ULSE_OUT2 EC1_TXD1 SAI3_TX_DATA SAI3_RX_DATA GPIO3_DAT10 EC1_TXD2 SAI4_TX_DATA SAI4_RX_DATA GPIO3_DAT11 EC1_TXD3 SAI5_TX_DATA SAI5_RX_DATA GPIO3_DAT12 SWITCH_15 EC1_TX_EN SAI5_TX_SYNC SAI5_RX_SYNC GPIO3_DAT08 88_DAT1 EMI1_MDIO EMI1_MDC Table 4-35 RGMII pin multiplexing options miriac MPX-LS1028A User Manual V1.0 45/61 © MicroSys Electronics GmbH 2020...

  • Page 46: Serdes

    LS1028A reference manual provided by manufacturer NXP. SerDes mapping is configurable via RCW. For more information on possible configurations please contact MicroSys. The four SerDes lanes can support different protocols. Some of the protocols are available on specific lanes only. The following table shows the distribution across those lanes.
  • Page 47 Module Connector Ball Signal Signal Signal Range conditioning ← SD1_REF_CLK1_N SD_CLKIN_N HCSL PD: 49R9 ← AF10 SD1_REF_CLK1_P SD_CLKIN_P HCSL PD: 49R9 Table 4-39 SerDes interface: clock for PCIe Endpoint miriac MPX-LS1028A User Manual V1.0 47/61 © MicroSys Electronics GmbH 2020...

  • Page 48: Mechanical Description

    Figure 5-1 Plugged module (pin numbering scheme) The recommended connector for the MPX-LS1028A is: Board-to-board Manufacturer Type Total height height Iriso IMSA-18010S-230A-GN1 7.75mm Table 5-1 Connector Type: ordering information miriac MPX-LS1028A User Manual V1.0 48/61 © MicroSys Electronics GmbH 2020...

  • Page 49: Board Outline

    Mechanical Description 5 Board Outline For 3D data files please contact MicroSys. The following drawing shows the mechanical outline (62.11mm x 45mm) of the MPX-LS1028A module: Figure 5-2 Module outline (62.11mm x 45.00mm) The mounting holes can be used with M2.5 screws. Dimensions are designed as...

  • Page 50: Height

    Depending on connector type DIM. E Connector product height Depending on connector type Table 5-2 Construction height overview Thickness PCB thickness of the MPX-LS1028A module is 1.2mm ± 10%. miriac MPX-LS1028A User Manual V1.0 50/61 © MicroSys Electronics GmbH 2020...

  • Page 51: Component Layout - Top Side

    Type Function connection to carrier Edge Finger board LS1028A J2/J3/J4/J5/6 Micron DDR4 memory Micron QSPI Serial NOR Flash memory Texas Instruments TMP451 temperature sensor Table 5-3 Top side components miriac MPX-LS1028A User Manual V1.0 51/61 © MicroSys Electronics GmbH 2020...

  • Page 52: Component Layout - Bottom Side

    Part Reference Manufacturer Type Function PCF85063 Toshiba QSPI Serial NAND Flash memory Rohm BR24G EEPROM On Semicondutor FXL6408 GPIO Expander Diodes PI6C557 clock generator Table 5-4 Bottom side components miriac MPX-LS1028A User Manual V1.0 52/61 © MicroSys Electronics GmbH 2020...

  • Page 53: Software

    CPU configuration ■ Clock configuration ■ DDR4 configuration and timing Operating System MicroSys Electronics GmbH offers Linux and Microware OS-9 RTOS support for the module. Other Operating Systems are available on request only. miriac MPX-LS1028A User Manual V1.0 53/61 © MicroSys Electronics GmbH 2020...

  • Page 54: Safety Requirements And Protective Regulations

    The MPX-LS1028A is designed to withstand a high level of vibration and shock due to its light weight and no overhanging components on the module. If desired, MicroSys Electronics GmbH can support you with your shock and vibration concept. Please ask your sales representative or send an email inquiry to support@microsys.de.

  • Page 55: Climatic Conditions

    The relative humidity during operation or storage of the module may not exceed 10% to 90%, non-condensing. RoHS All components of the MPX-LS1028A are RoHS compliant, also a RoHS compliant soldering process is used for manufacturing. miriac MPX-LS1028A User Manual V1.0 55/61 © MicroSys Electronics GmbH 2020...

  • Page 56: General Notes

    The manufacturer’s advice should be followed. If desired, MicroSys Electronics GmbH can support you with your lifecycle management regarding chip errata. Please ask your sales representative or send an email inquiry to support@microsys.de.

  • Page 57: Appendix

    SAI ..................Synchronous Audio Interface SATA ..............Serial Advanced Technology Attachment SDHC ..................Secure Digital High Capacity SerDes ..................... Serializer Deserializer SPI ....................Serial Peripheral Interface USB ..................... Universal Serial Bus miriac MPX-LS1028A User Manual V1.0 57/61 © MicroSys Electronics GmbH 2020...

  • Page 58: Table Of Figures

    Figure 5-2 Module outline (62.11mm x 45.00mm) ..............49 Figure 5-3 Mounting holes: dimensions ................49 Figure 5-4 Construction height for parts ................50 Figure 5-5 Top Components ....................51 Figure 5-6 Bottom Components ................... 52 miriac MPX-LS1028A User Manual V1.0 58/61 © MicroSys Electronics GmbH 2020...

  • Page 59: Table Of Tables

    Table 4-35 RGMII pin multiplexing options................45 Table 4-36 SerDes interface: lane distribution ..............46 Table 4-37 SerDes interface: external clock................. 46 Table 4-38 SerDes interface: pin assignments ..............47 miriac MPX-LS1028A User Manual V1.0 59/61 © MicroSys Electronics GmbH 2020...
  • Page 60 Table 5-1 Connector Type: ordering information ..............48 Table 5-2 Construction height overview ................50 Table 5-3 Top side components ................... 51 Table 5-4 Bottom side components ..................52 Table 10-1 Document history ....................61 miriac MPX-LS1028A User Manual V1.0 60/61 © MicroSys Electronics GmbH 2020...

  • Page 61: History

    History 10 History Date Version Change Description 2020-03-26 Initial Release Version Table 10-1 Document history miriac MPX-LS1028A User Manual V1.0 61/61 © MicroSys Electronics GmbH 2020...
