  • Page 1 MPX-LS1043A2 User Manual (HW Revision 5) V 5.0...

  • Page 2: Table Of Contents

    ............33 Table of Figures ........... 72 4.11 Interface Description ........34 Table of Tables ..........73 4.11.1 GPIOs ............34 History ............75 4.11.2 JTAG/COP ..........36 miriac MPX-LS1043A2 User Manual V 5.0 2/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 3: General Notes

    Copyright © MicroSys Electronics GmbH 2017-2023 All rights reserved. All rights in any information which appears in this document belong to MicroSys Electronics GmbH or our licensors. You may copy the information in this manual for your personal, non-commercial use.

  • Page 4: Offer To Provide Source Code Of Certain Software

    This offer is valid to anyone in receipt of this information. MicroSys Electronics GmbH is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you...

  • Page 5: Symbols, Conventions And Abbreviations

    XXX+ denotes the positive signal of a differential pair denotes an optional not mounted or fitted part Table 1-2 Conventions miriac MPX-LS1043A2 User Manual V 5.0 5/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 6: Safety And Handling Precautions

    There is no separate SHIELD connection. The module’s mounting holes are not connected to GND Take this into account when handling and mounting the unit. Table 1-3 Safety and Handling Precautions miriac MPX-LS1043A2 User Manual V 5.0 6/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 7: Short Description

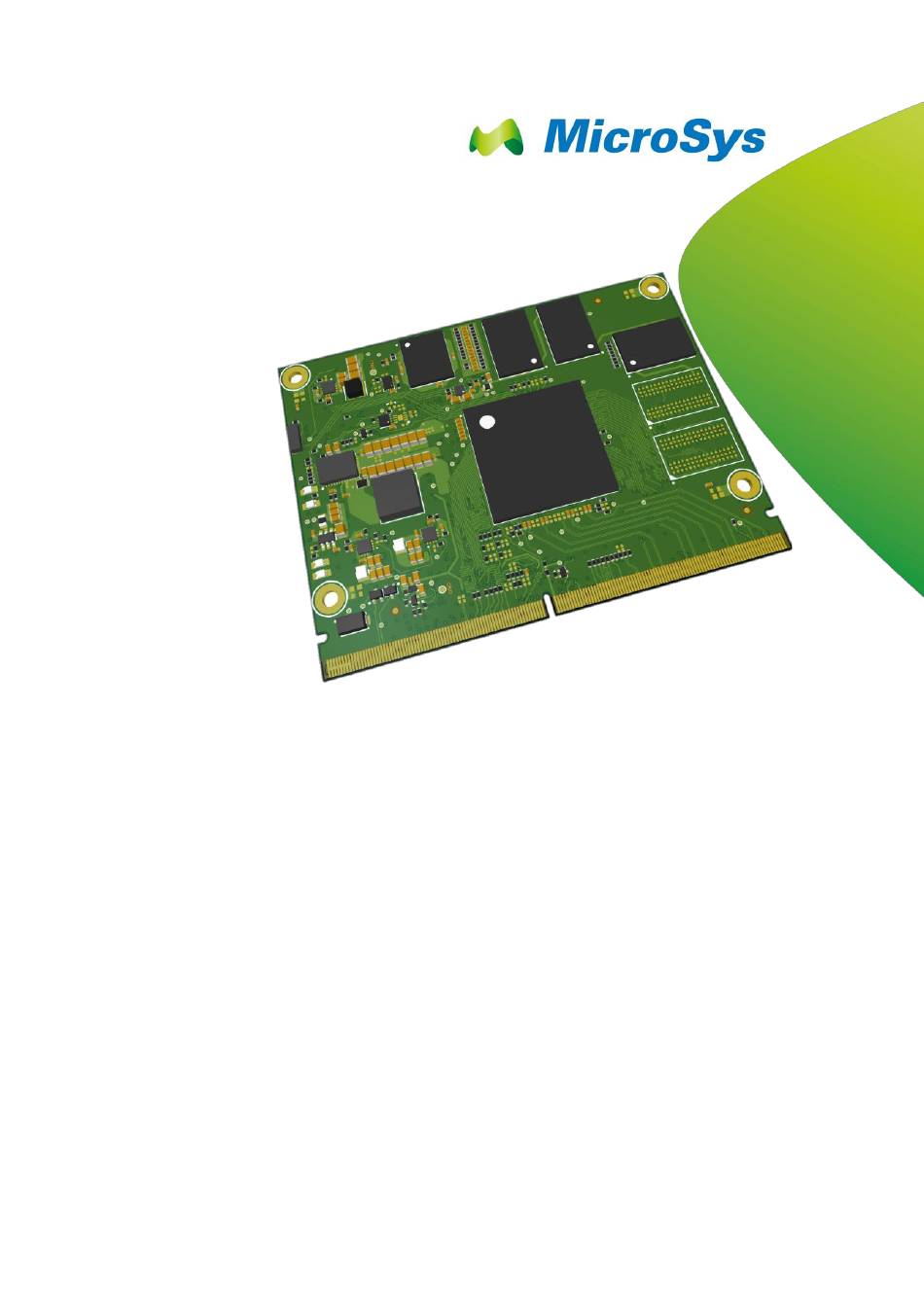

    Short Description 2 Short Description The miriac MPX-LS1043A2 is a member of the MPX module family based on the MicroSys MPX2 specification and NXP’s QorIQ® Layerscape LS1043A Multicore Communications Processor. MicroSys Electronics GmbH offers a Starterkit which provides the key features of the module.

  • Page 8: System Description

    CRX05 carrierboard running U-boot (idle) at room temperature (4 cores @ 1400MHz / 400MHz CCB clock) with 2GByte of DDR4 memory + ECC (1600 MHz) and passive cooling: miriac MPX-LS1043A2 User Manual V 5.0 8/76...
  • Page 9 -W -s 60, all cores) Linux Idle: command prompt [°C] from Power dissipation idle [W] Power dissipation stress [W] internal probe 10,0 Table 3-1 Typical power consumption running module with Linux miriac MPX-LS1043A2 User Manual V 5.0 9/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 10: Cooling

    In chapter 3.3 the power consumption of the MPX-LS1043A2 module was specified. With this information a cooling method needs to be designed in coordination with the final use case. If desired, MicroSys Electronics GmbH can support you with your cooling concept. Please ask your sales representative or send an email inquiry to support@microsys.de.

  • Page 11: Technical Description

    3,3V Level TDMB-TSYNC Quicc Engine 3,3V Level TDMB-RSYNC Quicc Engine 3,3V Level TDMB-RQ Quicc Engine 3,3V Level Power Ground TDMA-RXD Quicc Engine 3,3V Level n.c. 10G-MODE# Management 3,3V Level miriac MPX-LS1043A2 User Manual V 5.0 11/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 12 3,3V Level UART2-CTS# UART2 3,3V Level UART2-RTS# UART2 3,3V Level Power Ground UART1-RXD UART 3,3V Level UART1-TXD UART 3,3V Level UART1-CTS# UART 3,3V Level UART1-RTS# UART 3,3V Level miriac MPX-LS1043A2 User Manual V 5.0 12/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 13 3,3V Level n.c. Display 3,3V Level n.c. Display 3,3V Level n.c. Display 3,3V Level n.c. Display 3,3V Level Power Ground SPI-CLK 3,3V Level SPI-CS0# 3,3V Level SPI-MOSI 3,3V Level miriac MPX-LS1043A2 User Manual V 5.0 13/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 14 / SDHC SDC: 3,3V eMMC: 1,8V SDC-CMD eMMC / SDHC SDC: 3,3V eMMC: 1,8V B100 SDC-CLK eMMC / SDHC SDC: 3,3V B101 Power Ground B102 JTMS JTAG 1,8V Level miriac MPX-LS1043A2 User Manual V 5.0 14/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 15 USB2-VBUS USB2.0 5V sense B129 Power Ground B130 USB1-ID Analog USB2.0 1,8V Level B131 USB1-OC USB2.0 3,3V Level B132 USB1-EN USB2.0 3,3V Level B133 USB1-VBUS USB2.0 5V sense miriac MPX-LS1043A2 User Manual V 5.0 15/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 16 5V (-5%) up to B154 Power 12V (+5%) 5V (-5%) up to B155 Power 12V (+5%) 5V (-5%) up to B156 Power 12V (+5%) Table 4-1 Module connector: Bottom pins miriac MPX-LS1043A2 User Manual V 5.0 16/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 17: Module Connector - Top Pins [St1]

    RX5+ Serdes RX5- Serdes Power Ground TX5+ Serdes TX5- Serdes Power Ground n.c. Serdes n.c. Serdes Power Ground n.c. Serdes n.c. Serdes Power Ground RX3+ Serdes RX3- Serdes miriac MPX-LS1043A2 User Manual V 5.0 17/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 18 Ground n.c. Serdes n.c. Serdes Power Ground MII2-TXCTL RGMII2 VREF-MII n.c. VREF-MII Power Ground MII2-TXD0 RGMII2 VREF-MII MII2-TXD1 RGMII2 VREF-MII Power Ground MII2-TXD2 RGMII2 VREF-MII MII2-TXD3 RGMII2 VREF-MII miriac MPX-LS1043A2 User Manual V 5.0 18/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 19 RGMII1 VREF-MII Power Ground MII-RXD2 RGMII1 VREF-MII MII-RXD3 RGMII1 VREF-MII Power Ground MII-TCLK RGMII1 VREF-MII MII-RXCTL RGMII1 VREF-MII Power Ground MII-TXD0 RGMII1 VREF-MII MII-TXD1 RGMII1 VREF-MII Power Ground miriac MPX-LS1043A2 User Manual V 5.0 19/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 20 Ground T130 USB1_D+ USB2.0 Port1 T131 USB1_D- USB2.0 Port1 T132 Power Ground T133 BOOT-SEL2 Management 1,8V Level T134 BOOT-SEL1 Management 1,8V Level Open collector T135 RST-OUT# Management output miriac MPX-LS1043A2 User Manual V 5.0 20/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 21 5V (-5%) up to T152 Power 12V (+5%) 5V (-5%) up to T153 Power 12V (+5%) 5V (-5%) up to T154 Power 12V (+5%) Table 4-2 Module connector: top pins miriac MPX-LS1043A2 User Manual V 5.0 21/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 22: Programming Connector [St2]

    Table 4-3 Programming Connector: Pinout and pin assignments VCC_FUSE is connected to the CPU pin “G13” and used for supplying the fuse programming voltage. Estimated power consumption is < 180mW. miriac MPX-LS1043A2 User Manual V 5.0 22/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 23: Reset Structure

    The default state for RST-IN# is active. Consequently the module is always in a reset state when the RST-IN# signal is not actively driven high by the carrierboard RST-OUT# follows HRST# (which is controlled by the CPU), minimum pulse width is 25ms. miriac MPX-LS1043A2 User Manual V 5.0 23/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 24 PU: 4,7k B118 ↔ HRESET# MCU-HRST# B111 1,8V PU: 1k ← PORESET# COP-PRST# B110 1,8V PU: 10k → TRST# COP-TRST# B106 1,8V PU: 10k Table 4-4 Reset signals: overview miriac MPX-LS1043A2 User Manual V 5.0 24/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 25: Power Structure

    250mA Maximum current to be drawn: VREF-MII 1,8V 250mA T146-T154 / 5V (-5%) up to TVS diode protection B148-B156 12V (+5%) Table 4-5 Module connector: power pin assignments miriac MPX-LS1043A2 User Manual V 5.0 25/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 26 PLL, GPIO, Ethernet voltage (VREF-MII) 1,8V 1,8V ± 90mV & peripheral devices USB, GPIO voltage (VREF-SDC) 3,3V 3,3V ± 165mV & peripheral devices Table 4-6 Voltage rails of the module miriac MPX-LS1043A2 User Manual V 5.0 26/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 27: Clock Structure

    PCIeT_LR4 SRD-CLK1+ SR: 33R 125 MHz PD: 49R9 Parallel termination: 100 MHz / → PCIeC_LR4 SRD-CLK1- SR: 33R 125 MHz PD: 49R9 Table 4-8 SerDes clock: pin assignments miriac MPX-LS1043A2 User Manual V 5.0 27/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 28: Boot Sources

    MMC Bus width: 8 bit carrier HIGH SD/MMC board SPI-CS0# [PIN-B70] is NOT accessable MMC Bus width: 4 bit carrier SD/MMC SPI-CS0# [PIN-B70] is accessable board Table 4-10 Boot devices: overview miriac MPX-LS1043A2 User Manual V 5.0 28/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 29: Leds

    LED OFF: Reset is inactive LED ON: Power Fail Yellow LED OFF: No errors detected Table 4-11 LED: pin description More information can be found in chapter 4.9. miriac MPX-LS1043A2 User Manual V 5.0 29/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 30: Rtc (Real-Time Clock)

    The RTC provides an interrupt which is connected to the CPU: TMP451 Signal Ball Signal Signal Range conditioning ← IRQ00 INT# 1,8V PU: 4,7k Table 4-12 RTC: IRQs miriac MPX-LS1043A2 User Manual V 5.0 30/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 31: Temperature Sensor

    The temperature sensor provides two interrupts which are connected to the CPU: TMP451 Ball Signal Signal Signal Range conditioning ← IRQ01 ALRT#/THRM2 1,8V PU: 4,7k ← IRQ02 THRM# 1,8V PU: 4,7k Table 4-13 Temperature sensor: IRQs miriac MPX-LS1043A2 User Manual V 5.0 31/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 32: Power-Up/Down Behaviour

    3.65V – 4.5V ↓ 4.75V – 13.5V Running ON / OK Overvoltage > 13.55V BLINKING 4.75V – 13.5V Power fail FAIL 4.75V – 13.5V Reset ON / OK Requires Powercycle miriac MPX-LS1043A2 User Manual V 5.0 32/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 33: Gpio Expander (2 Gbyte Nand Version Only)

    Table 4-14 GPIO Expander: pin description GPIO Expander Ball Signal Signal Signal conditioning ← IRQ0 IOEX_IRQ# PU: 4k7 Table 4-15 GPIO Expander: IRQ The IOEX_IRQ# is shared with RTC_IRQ#. miriac MPX-LS1043A2 User Manual V 5.0 33/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 34: Interface Description

    Due to dependencies between the interfaces there can be limitations. For more information and configuration please contact MicroSys. The following table shows the dedicated GPIOs and their internal connections: Module Connector...
  • Page 35 IRQ08 FTM3_CH4 TDMB_RXD 3,3V SR: 33R GPIO1_ ↔ IRQ09 FTM3_CH5 TDMB_RSYNC 3,3V SR: 33R GPIO1_ ↔ IRQ10 FTM3_CH6 TDMB_TXD 3,3V SR: 33R Table 4-17 GPIO: pin sharing options miriac MPX-LS1043A2 User Manual V 5.0 35/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 36: Jtag/Cop

    Hardware Revision 3 introduced a new signal TBSCAN_EN#. It can be temporarily pulled low to enable Boundary Scan. Module Connector Ball Signal Signal Signal Range conditioning ← TBSCAN_EN# TBSCAN-EN# 1,8V PU: 4k7 Table 4-20 Boundary Scan enable miriac MPX-LS1043A2 User Manual V 5.0 36/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 37: I2C

    0x32 GPIO Ex- pander FXL6408 0x43 (2 Gbyte NAND Flash option only) M24128-BFMC6TG 0x50 EEPROM Clock IDT6V49205BNLGI 0x69 Generator System MK02FN128VLH10 0x10 Controller Table 4-22 I2C1: bus map miriac MPX-LS1043A2 User Manual V 5.0 37/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 38 I2C-2 and SD card write protect & card detect share their physical pins on the CPU. During SD card boot those two pins are automatically configured for card detect & write protect miriac MPX-LS1043A2 User Manual V 5.0 38/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 39: Qspi

    Signal Signal Range → QSPI_A_CS0 1,8V → QSPI_A_SCK 1,8V ↔ QSPI_A_DATA0 1,8V ↔ QSPI_A_DATA1 1,8V ↔ QSPI_A_DATA2 1,8V ↔ QSPI_A_DATA3 1,8V +1.8V Table 4-23 QSPI Flash: pin assignments miriac MPX-LS1043A2 User Manual V 5.0 39/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 40: Spi

    The SPI interface is not the primary interface available on the CPU pins. Further- more, some of the pins can be configured as GPIOs as well. For more information see Table 4-37 SDHC interface: pin sharing options. miriac MPX-LS1043A2 User Manual V 5.0 40/76...

  • Page 41: Nand

    0x43 (7 bit address). For details see chapter 4.11.3. GPIO6, GPIO7 and GPIO8 on the module connector are available as I2C controlled GPIOs only for the 2 GByte NAND Flash option (two flash devices populated). miriac MPX-LS1043A2 User Manual V 5.0 41/76...

  • Page 42: Usb

    USB2-D- ← USB2_RX_P T112 USB2-SSRX+ ← USB2_RX_M T113 USB2-SSRX- → USB2_TX_P T115 USB2-SSTX+ AC-coupling: 100nF → USB2_TX_M T116 USB2-SSTX- AC-coupling: 100nF Table 4-27 USB port 2: pin assignments miriac MPX-LS1043A2 User Manual V 5.0 42/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 43 USB is the primary function used on the pins. Any other setup may require hardware modifications which are not covered by standard module versions. For more information on configuration and ordering please contact MicroSys. miriac MPX-LS1043A2 User Manual V 5.0 43/76 ©...
  • Page 44 See 4.11.2 configurable USB3_DRVVBUS GPIO4_12 B137 as GPIO IIC4_SCL See 4.11.2 configurable USB3_PWRFAULT GPIO4_13 B136 as GPIO IIC4_SDA See 4.11.2 Table 4-30 USB power control signals: pin sharing options miriac MPX-LS1043A2 User Manual V 5.0 44/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 45: Uart

    ← UART2_SIN UART2-RXD 3,3V → UART2_SOUT UART2-TXD 3,3V ← UART4_SIN UART4-RXD 3,3V PU: 4,7k → UART4_SOUT UART4-RXD 3,3V PU: 4,7k Table 4-32 UART w/o hardware handshake: pin assignments miriac MPX-LS1043A2 User Manual V 5.0 45/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 46 Description configurable as UART2_SIN GPIO1_18 GPIO configurable as UART2_SOUT GPIO1_16 GPIO configurable as UART2_CTS# GPIO1_22 GPIO configurable as UART2_RTS# GPIO1_20 GPIO Table 4-34 UART2 interface: pin sharing options miriac MPX-LS1043A2 User Manual V 5.0 46/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 47: Esdhc

    The SD card interface signals can be configured as GPIOs by software via RCW. The four chip selects cannot be configured as GPIOs during QSPI boot due to a chip errata (A-010539). In this configuration VREF-SDC is 3.3V. miriac MPX-LS1043A2 User Manual V 5.0 47/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 48 I2C2 is the primary function used on the pins. Any other setup may require hardware modifications which are not covered by standard module versions. For more information on configuration and ordering please contact MicroSys. When SD card boot mode is selected I2C-2 is not available.
  • Page 49 IIC2_SCL GPIO4_02 1,8V SDHC 3,3V SDHC SDHC_CD# card detect 3,3V GPIO / IIC2_SDA GPIO4_03 1,8V SDHC 3,3V SDHC SDHC_WP write protect Table 4-37 SDHC interface: pin sharing options miriac MPX-LS1043A2 User Manual V 5.0 49/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 50 SDHC_DAT0 SDC-D0 (1,8V) VREF-SDC ↔ SDHC_DAT1 SDC-D1 (1,8V) VREF-SDC ↔ SDHC_DAT2 SDC-D2 (1,8V) VREF-SDC ↔ SDHC_DAT3 SDC-D3 (1,8V) VREF-SDC ↔ SDHC_DAT4 SDC-D4 (1,8V) VREF-SDC ↔ SDHC_DAT5 SDC-D5 (1,8V) miriac MPX-LS1043A2 User Manual V 5.0 50/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 51 Technical Description 4 Module Connector Ball Signal Signal I/O Range Signal conditioning VREF-SDC ↔ SDHC_DAT6 SDC-D6 (1,8V) VREF-SDC ↔ SDHC_DAT7 SDC-D7 (1,8V) Table 4-38 eMMC interface: pin assignments miriac MPX-LS1043A2 User Manual V 5.0 51/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 52: Serdes

    More information on the MAC capabilities can be found in chapter 4.11.11. SerDes mapping is configurable via RCW. For more information on possible configurations please contact MicroSys. The following table shows a mapping example in a configuration setup that is used on the SBC-LS1043A2 starterkit: ■...
  • Page 53 SD1-RX2# SRD-RX5- → AD19 SD1-TX3 SRD-TX7+ AC-coupling: 100nF → AE19 SD1-TX3# SRD-TX7- AC-coupling: 100nF ← AH19 SD1-RX3# SRD-RX7- ← AG19 SD1-RX3 SRD-RX7+ Table 4-41 SerDes interface: pin assignments miriac MPX-LS1043A2 User Manual V 5.0 53/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 54: Rgmii

    MII1-RXD2 (1,8V) VREF-MII ← EC1_RXD3 MII1-RXD3 (1,8V) VREF-MII → EC1_GTX_CLK MII1-TXCK SR: 10R (1,8V) VREF-MII → EC1_TXD0 MII1-TXD0 SR: 10R (1,8V) VREF-MII → EC1_TXD1 MII1-TXD1 SR: 10R (1,8V) miriac MPX-LS1043A2 User Manual V 5.0 54/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 55 VREF-MII → EC2_TXD3 MII2-TXD3 SR: 10R (1,8V) VREF-MII → EC2_TX_CTL MII2-TXCTL SR: 10R (1,8V) ↔ EMI2_MDIO MII2-MDIO 1,2V PU: 2,2k PU: 2,2k → EMI2_MDC MII2-MDC 1,2V SR: 10R miriac MPX-LS1043A2 User Manual V 5.0 55/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 56 GPIO EC2_RX_DV GPIO3_27 configurable as GPIO EC2_RXD0 GPIO3_25 configurable as GPIO EC2_RXD1 GPIO3_24 configurable as GPIO EC2_RXD2 GPIO3_23 configurable as GPIO EC2_RXD3 GPIO3_22 configurable as GPIO miriac MPX-LS1043A2 User Manual V 5.0 56/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 57 GPIO EC2_TXEN GPIO3_19 configurable as GPIO EMI2_MDIO GPIO4_01 configurable as GPIO EMI2_MDC GPIO4_00 configurable as GPIO EC2_GTX_CLK125 GPIO3_21 configurable as GPIO Table 4-46 RGMII2: pin sharing options miriac MPX-LS1043A2 User Manual V 5.0 57/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 58: Quicc Engine

    Furthermore, some of the pins can be configured as GPIOs as well. For pin sharing options see Table 4-17 GPIO: pin sharing options and Table 4-21 I2C: pin assignments miriac MPX-LS1043A2 User Manual V 5.0 58/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 59: Mode

    3 to make customer designs easier and more flexible. For backwards compatibility there’s still a resistor jumper on the module. Nevertheless, this requires a special hardware configuration which may come at higher costs. miriac MPX-LS1043A2 User Manual V 5.0 59/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 60: Mechanical Description

    “B1”, … „B9“, „BK1“, „BK2“, „B10“ … ”B155”, “B156” Pin labels: Top Side 156 pins “T1”, … ”T9”, „TK1“, „TK2“, ”T10”, … “T153”, “T154“ Table 5-1 Connector pin naming scheme Figure 5-2 Connector orientation miriac MPX-LS1043A2 User Manual V 5.0 60/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 61 Mechanical Description 5 The module connector is usually used for MXM3 graphic cards commonly found in notebooks. Other than that, MicroSys changed the pin layout so all the physically available 314 pins can be used. Basically, there are more connectors on the market that can be used as long as there are no conflicts with the mechanical dimensions of the module.
  • Page 62 Mechanical Description 5 Figure 5-3 Connector pin definition miriac MPX-LS1043A2 User Manual V 5.0 62/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 63: Board Outline

    Mechanical Description 5 Board Outline For 3D data files please contact MicroSys. The following drawing shows the mechanical outline (82x62mm) of the MPX- LS1043A2 module plugged in a JAE - MM70-314B1-2-R300 connector. This drawing is not to scale: Figure 5-4 Module outline (82x62mm) The mounting holes can be used with M2.5 screws.

  • Page 64: Height

    Board-to-board height connector type Depending on DIM. E Connector product height connector type Table 5-3 Construction height overview Thickness PCB thickness of the MPX-LS1043A2 module is 1,2mm ± 10%. miriac MPX-LS1043A2 User Manual V 5.0 64/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 65: Top Side Component Layout

    Part Reference Manufacturer Type Function LS1043A J2/J3/J4 Micron MT40A512M16 DDR4 memory Texas Instruments TMP451 Temperature sensor SkyHigh S34MS04G NAND flash SM06B-XSRS-ETB Programming connector Table 5-4 Top side components miriac MPX-LS1043A2 User Manual V 5.0 65/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 66: Bottom Side Component Layout

    Part Reference Manufacturer Type Function SkyHigh S34MS04G NAND flash Micron MT25QU QSPI flash MK02 Epson RX-8803LC Real-time clock M24128 EEPROM IDT6V49205B Clock generator Table 5-5 Bottom side components miriac MPX-LS1043A2 User Manual V 5.0 66/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 67: Software

    CPU configuration ■ Clock configuration ■ DDR4 configuration and timing Operating System MicroSys Electronics GmbH offers Linux and Microware OS-9 RTOS support for the module. Other Operating Systems are available on request only. miriac MPX-LS1043A2 User Manual V 5.0 67/76...

  • Page 68: Safety Requirements And Protective Regulations

    The MPX-LS1043A2 is designed to withstand a high level of vibration and shock as there are low weight and no overhanging components on the module. If desired, MicroSys Electronics GmbH can support you with your shock and vibration concept. Please ask your sales representative or send an email inquiry to support@microsys.de.

  • Page 69: Climatic Conditions

    The relative humidity during operation or storage of the module may not exceed 10% to 90%, non condensing. RoHS All components of the MPX-LS1043A2 are RoHS compliant, also a RoHS compliant soldering process is used for manufacturing. miriac MPX-LS1043A2 User Manual V 5.0 69/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 70: General Notes

    The manufacturer’s advice should be followed. If desired, MicroSys Electronics GmbH can support you with your lifecycle management regarding to chip errata. Please ask your sales representative or send an email inquiry to support@microsys.de.

  • Page 71: Appendix

    SerDes ..................... Serializer Deserializer SGMII .............. Serial Gigabit Media Independent Interface SPI ....................Serial Peripheral Interface UART ............Universal Asynchronous Receiver/Transmitter UCC ................Universal Communication Controller USB ..................... Universal Serial Bus miriac MPX-LS1043A2 User Manual V 5.0 71/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 72: Table Of Figures

    Figure 5-4 Module outline (82x62mm) ................. 63 Figure 5-5 Mounting holes: dimensions ................63 Figure 5-6 Construction height for parts ................64 Figure 5-7 Top Components ....................65 Figure 5-8 Bottom Components ................... 66 miriac MPX-LS1043A2 User Manual V 5.0 72/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 73: Table Of Tables

    Table 4-34 UART2 interface: pin sharing options ..............46 Table 4-35 SDHC interface: pin assignments ..............48 Table 4-36 SDHC control interface: pin assignments ............48 Table 4-37 SDHC interface: pin sharing options ..............49 miriac MPX-LS1043A2 User Manual V 5.0 73/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 74 Table 5-2 Connector Types: Ordering Information ............... 61 Table 5-3 Construction height overview ................64 Table 5-4 Top side components ................... 65 Table 5-5 Bottom side components ..................66 Table 10-1 Document history ....................76 miriac MPX-LS1043A2 User Manual V 5.0 74/76 © MicroSys Electronics GmbH 2017-2023...

  • Page 75: History

    - Table 4-46: EC2_GTX_CLK125 (ball AG4) → connector pin T77 2021-04-14 - Added data for power consumption over Tj in Table 3-1 Hardware Revision 3 not released – manual skipped 2022-01-05 miriac MPX-LS1043A2 User Manual V 5.0 75/76 © MicroSys Electronics GmbH 2017-2023...
  • Page 76 - Added 100k pullup for SPI-MISO in Table 4-24 2023-05-11 Hardware Revision 5 - Updated assembly drawings in chapters 5.5 & 5.6 - Added overview in chapter 4.9 Table 10-1 Document history miriac MPX-LS1043A2 User Manual V 5.0 76/76 © MicroSys Electronics GmbH 2017-2023...
