U S E R M AN U A L
Type MCC2/MCD2
57583 08/06 - (BJ)
Product program
This user manual covers following electronic thermostats
MCC2-1991-UA. Incl. floor sensor 3m
MCC2-1999-UA. With built-in room sensor
MCD2-1999-UA. With 2 sensors; built-in room sensor and incl. floor sensor 3m
Introduction
The thermostat is capable of switching on your heating system at pre determined times on different days of the week. It is possible to set 4 periods
called events each day with different temperatures. From factory a default schedule is programmed suitable for most installations. Unless you change these
settings the thermostat will operate to this default program.
Working with lower temperatures during times that the room is unoccupied will lower your energy costs without reducing the comfort. The thermostat has an
adaptive function that automatically changes the start time of a heating period so that the desired temperature is reached at the time that you set. After 3
days the adaptive function has learned when the heating must be switched on.
Type MCC2-1991-UA has an external temperature sensor that is normally placed in the floor construction. In this configuration the thermostat
controls the temperature of the floor and not the temperature within the room.
Type MCC2-1999-UA has a built-in temperature sensor. In this configuration the thermostat controls the temperature of the room.
Type MCD2-1999-UA has a built-in temperature sensor and an externally temperature sensor. In this configuration the thermostat
controls the temperature within the room and use the externally temperature sensor as limit sensor avoiding to high or to low temperatures in the floor
construction.
The thermostat has a pin button marked R, allowing you to reset the thermostat to factory settings. These are listed at the end of this manual with space for
you to record your own weekly schedule.
The display is backlit when operating the buttons. The heating element is switched off when the light is on in the display
The heating system can be switched off on the built-in interrupter. The Microprocessor taking care of the time will still be supplied with power whereby time
and day will be maintained. When the heating is required and the thermostat is switched on, it will continue the 4-event programme based on present time
and day.
1. Getting started

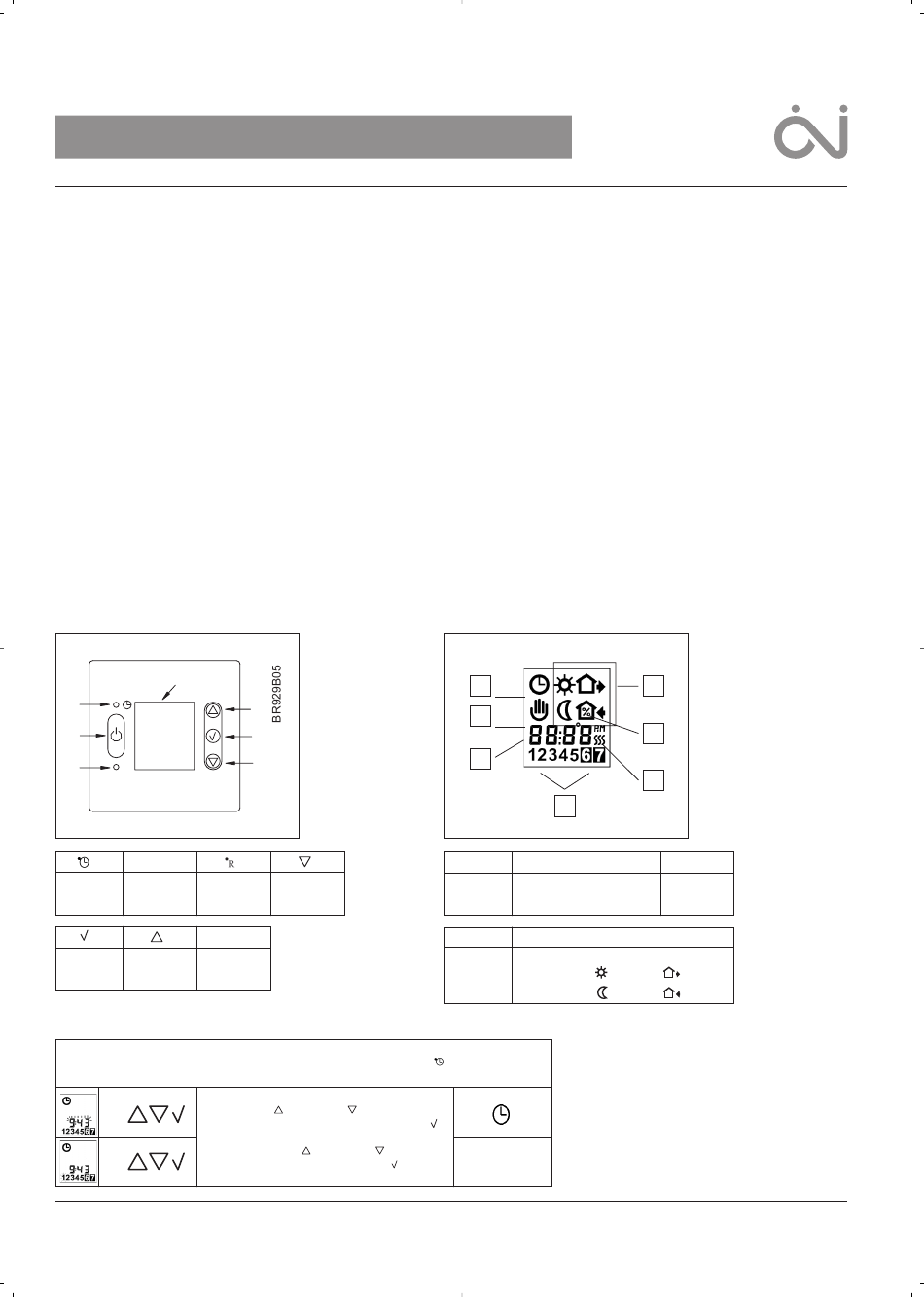

Buttons
G
A
B
C
R
A: B: C:
Pin button On/off Reset to
adjust of factory
clock setting
E: F: G:
OK - Adjustment Display
accept up
Setting the thermostat into operation
First time power is connected the clock and day will be flashing and must be set. If you need to
adjust the time of the thermostat at a later date, insert a pin into the hole
and day. Adjustment must be made for summer and winter time.
☞
Press the UP (
select the correct time and press OK button (
Then press the UP (
☞
select the correct day and press OK (
Type: MCC2/MCD2
F
E
D
D:
Adjustment
down
) or DOWN ( ) buttons to
) or DOWN ( ) button to
) button.
Display symbols
H
I
J
K
H: I: J:
Clock Manual Time and
function mode temperature
L: M: N:
Heating on % 4-event symbol
Monitoring
Wake
of switch-on
Night
time
for setting of time
).
1-7
N
M
L
K:
Day number
Out
Home
