Soundoff Signal PREDATOR II EP2SSMDB Series Quick Start Manual

SINGLE SURFACE MOUNT
WARNING SYSTEM
LP8US-Y
LP8US-B
LP8US-R
LP8US-G
LP8US-C
Please see reverse for
Technical Specifications
Important Information:
• Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances.
These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these
devices to ensure compliance.
• DO NOT connect this device to a strobe power supply. This product is self-contained and does not
require an external power supply.

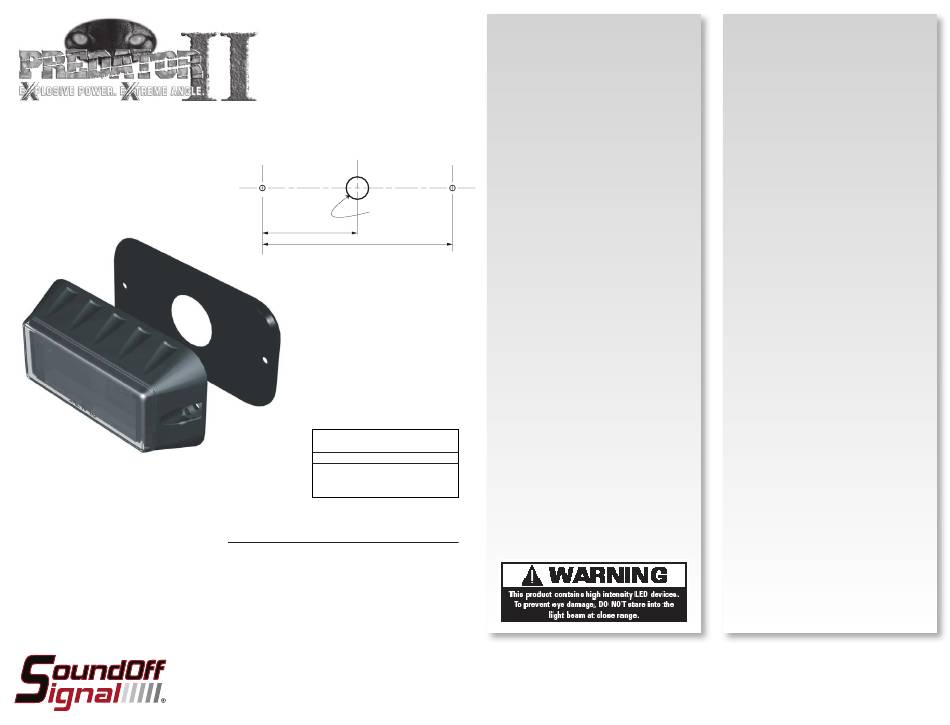

DRILL n1/2" HOLE
ON CENTER
2-1/16"
4-1/8"
WIRE HOOK-UP TABLE
(TOP LED MODULE)
WIRE COLOR CONNECT TO
RED 10-30Vdc
BLACK GROUND (-)
WHITE ID/PATTERN SELECT
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product please visit our website at www.soundoffsignal.com and select the "Warranty & Returns"
link along the left column of our home page. If you have questions regarding this product please contact Technical Services, Monday - Friday, 8 am to 5 pm at 1.800.338.7337, press #4 to
skip the automated message. Questions or comments that do not require immediate attention may be emailed to techsupport@soundoffsignal.com.
1.800.338.7337. / www.soundoffsignal.com / Thank you for trusting us with your safety!
MOUNTING INSTRUCTIONS
Important: DO NOT over tighten mounting screws
or nuts. This could cause permanent damage
to the bracket. Use appropriate hardware for
mounting.
1. Locate flat mounting location for PREDATOR II
Surface Mount LEDs.
2. Using the gasket as a template, mark and drill
pilot holes for mounting screws.
Note: The mounting holes will be slightly greater
than 4-1/8" center to center. The dimensions at
left are for approximate reference only.
3. Drill n1/2" hole at the center of the mounting
hole pattern (see layout - do not scale).
Note: If possible, the back side of this hole should
be deburred where drill breakthrough occurs.
4. Route cable through hole in gasket and make
electrical connections (Red-power, Black-ground.
White is for ID and pattern selection and will be
taped after selection is made). If the final location
of the cable will be inaccessible, ID and pattern
selection must be made before final installation.
5. Install gasket over rear of light and loosely
install unit with #8 self-threading screws and
plastic washers. Washer must be installed under
the head of the screw. Note: Gasket must be
used to prevent oxidation and galvanization of
the mounting surface if differing metals come in
contact.
6. When final position of unit is obtained tighten
screws. DO NOT OVER-TIGHTEN!
IMPORTANT: DO NOT connect this device to a
strobe power supply.
OPERATING INSTRUCTIONS
See setup procedure on reverse page.
The single Predator II comes equipped with an
internal flasher with 16 user selectable patterns
that can be synchronized either alternating or
simultaneous with up to three other lights. It can
also be put into slave mode and driven through an
external flasher.
1. Connect the PREDATOR II BLACK wire to a
good, convenient ground.
2. Connect the PREDATOR II RED wire to one
side of a user supplied on/off switch. Connect the
other side of the switch, through a 5Amp fuse, to
a source of +10-30Vdc.
PATTERN SELECTION
1. Disconnect WHITE wire from any connections
if applicable.
2. Turn PREDATOR II ON.
3. Momentarily touching and removing the
WHITE wire(s) to ground will advance the
PREDATOR II to the next flash pattern. Touching
and removing the White wire for more than a few
seconds will allow you to change the PREDATOR
II to the previous pattern. See flash pattern table.
Continuing to touch and remove the WHITE
wire(s) to ground will allow you to scroll through
the pattern list. After pattern #16 is reached the
list will start over again at pattern #1.
NOTE: The PREDATOR II is equipped with
flash pattern memory. Once you have selected
a pattern the PREDATOR II will always activate
to that pattern every time the unit is turned on.
Tape up and secure WHITE wire so that it will not
accidentally change your selected pattern.
SLAVE MODE
The PREDATOR II is capable of being activated
through the use of a user supplied flasher by
putting it in slave mode.
1. Permanently connect the PREDATOR II WHITE
and BLACK wire to a good, convenient ground.
2. Connect the PREDATOR II RED wire, through
a 5Amp fuse, to the output of a +10-30Vdc
switching flasher.
NOTE: The PREDATOR II is a factory sealed
unit that CANNOT be serviced in the field. Any
attempt to gain access to the PREDATOR II unit
will most likely cause permanent damage and void
its warranty.
JP2SSMDB(x) 9.17
