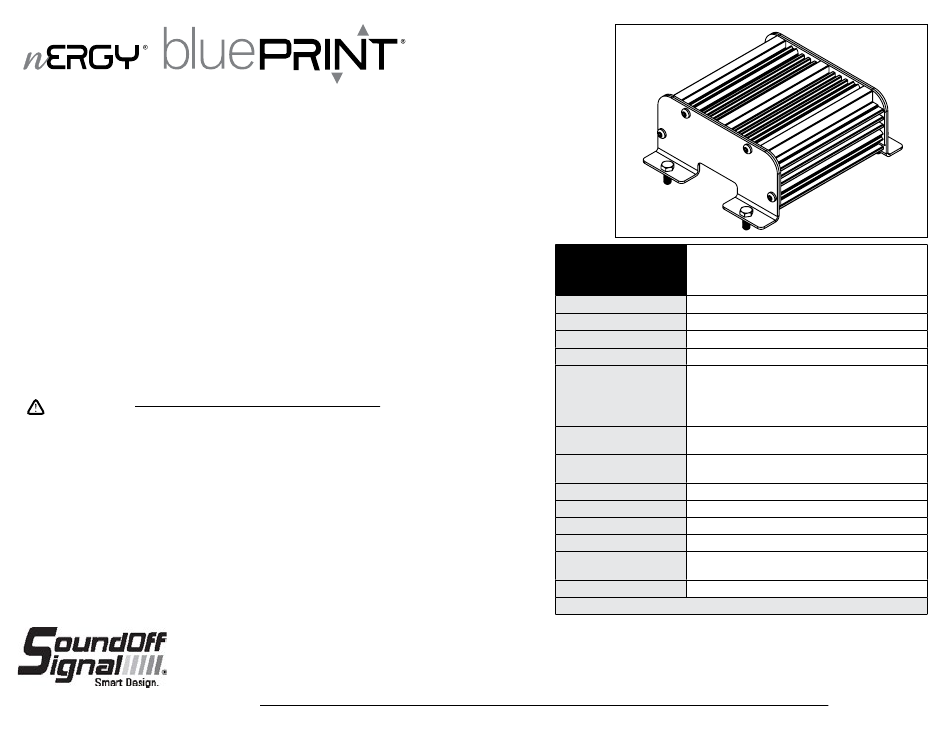

Soundoff Signal nERGY bluePRONT 200R Quick Start Manual

200R SIREN
PART NUMBER: ENGSA03021

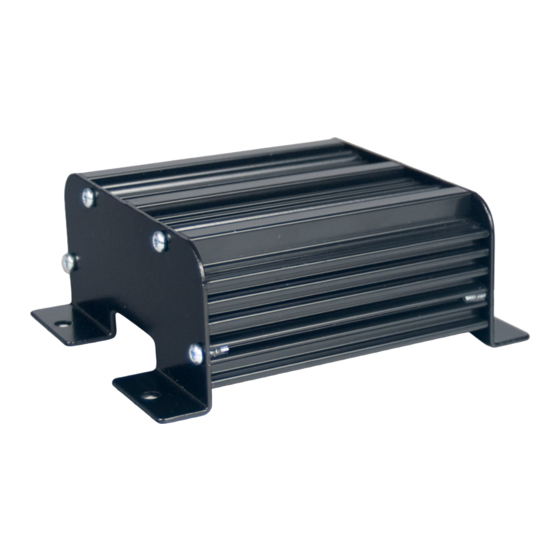

The 200R Siren is a compact siren that has a small size and remote amplifier for tight spaces for undercover vehicles or
motorcycles.
•Class D Technology with high speed digital switching provides higher efficiency, less current draw and better reliability.
•Operates a single 100 watt speaker.
•20 popular tones (up to 5 tones can be activated from Central Controller Commands):
•wail
•yelp
•piercer
•hi-lo and super hi-lo plus 4 additional air horn tones available.
•Contains a horn-cut relay to disable the OEM horn when the Horn-Ring (Hands-Free) system feature is enabled.
•Public Address (PA) and (RR) volume levels set via system control panel.
•Park/Kill feature disables the siren when the vehicle is placed in Park.
•Built-in protection against over/under voltage, over temperature, short circuit and reverse polarity.
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at
power source.
•Install protective grommets when routing wire through firewall or metal.
www.soundoffsignal.com/sales-support. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the
1.800.338.7337 / www.soundoffsignal.com
1.
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
automated message). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .
nERGY Control System 200R
Tech Specs
Input Voltage: 10-16Vdc (Negative Ground)
Maximum Input Current: 8 Amps @ 13.6 Vdc (100W Speaker)
Outputs: 100W
Sleep Current: <1 mA
1x Horn Ring Input
1x Park Kill
Inputs: 1x CP Back Light
1x Radio Rebroadcast
1x PA
30Vdc will cause siren output to cease,
High Voltage Protection:
resume at normal
<9.0 Volts will cause siren output to cease and will resume
Low Voltage Protection:
when system voltage is above 10.0 Volts.
Operating Temp: -40˚C to + 65˚C
Dimensions: 2.3"H x 5.4"W x 4.6"D
Weight, Boxed: 3 lbs.
Weight, Device Only: .93 lbs.
>10.6V - Park Kill, PTT, Aux, Horn Ring
Valid Input Threshold - High
>9.0V - Primary/Secondary Backlight
Valid Input Threshold - Low <0.6V
200R Siren is hermetically sealed, providing protection in wet areas.
NOTICE:
Siren
EVCS_200R_Siren_ENGSA03021 5.16
