67346 02-15 (HKT)
User Manual
WLM3
WLTA3
WLTD3
WLDT3
WLCT3
www.ojelectronics.com
4573 OJ 67346_WLM3_User_02-15_GB.indd 1
10/04/15 12.39

Advertisement

loading
Need help?

Need help?

Do you have a question about the WLTA3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OJ Electronics WLTA3

Summary of Contents for OJ Electronics WLTA3

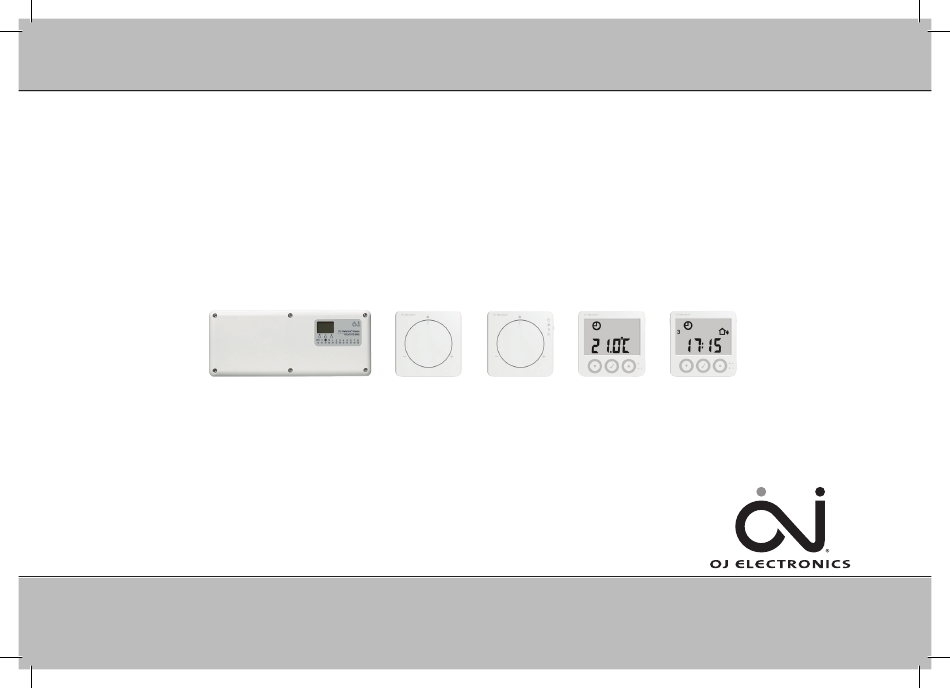

  • Page 1 67346 02-15 (HKT) User Manual WLM3 WLTA3 WLTD3 WLDT3 WLCT3 www.ojelectronics.com 4573 OJ 67346_WLM3_User_02-15_GB.indd 1 10/04/15 12.39...
  • Page 2 Flexible installation with wired and wireless connection Network communication for large applications Easy installation with plug and lead connections Outdoor temperature compensation (optional) Smart access with OJ FMS Gateway for FS Master (optional) © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 2 10/04/15 12.39...

  • Page 3: Table Of Contents

    Zone chart ........40 © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 3...

  • Page 4: Quick Guides

    This may be required if special floor surfaces (real wood) are used. The sensor should be positioned © 2015 OJ Electronics A/S Jumper connected: max. limitation where it can read the true temperature of the floor and should Jumper removed : min.
  • Page 5 NB: To set up different types of event programs, change to Fahrenheit scale, change to AM/PM clock or change other advanced settings - please refer to the section Instructions WLCT3. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 5 10/04/15 12.39...

  • Page 6: Quick Guide, Wldt3 Room Sensor With Display

    Now use the UP and DOWN buttons to select the required temperature and then press the OK button. Other advanced settings can be changed - see “Master with display type WLM3”. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 6...

  • Page 7: Troubleshooting

    Solar gain or an external heat source. Temperature is unstable This could be caused by periodic solar gain or external heating. Try setting the master to simple ON/OFF control (DIP-10 set to ON). © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 7 10/04/15 12.39...

  • Page 8: Master With Display - Type Wlm3

    WLCT3 room controller, including any room sensors that are part of a group allocated to that room controller. NOTE: In cooling mode, the night setpoint is calculated as day temperature +3°C. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 8 10/04/15 12.39...
  • Page 9 Max. Maximum floor limit temperature for room sensors with limit sensor (floor sensor). 27.0°C Min. Minimum floor limit temperature for room sensors with limit sensor (floor sensor). 17.0°C © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 9 10/04/15 12.39...

  • Page 10: Supply Water Temperature Control

    Winter -3.0ºC Outdoor temperature Winter 45.0ºC Design supply water temperature at outdoor temperature –3°C return summer 20.0°C Outdoor temperature summer 25.0ºC Supply water temperature at outdoor temperature 25ºC return © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 10 10/04/15 12.39...
  • Page 11 The purpose of the BOOST function is to ensure that desired room temperatures can be reached faster than normal. The BOOST function is an offset temperature added or subtracted from the normal supply temperature setpoint. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 11 10/04/15 12.39...
  • Page 12 Maximum temperature deviation of active rooms = 4.2°C BOOSTED supply water setpoint = 35°C + 3x4.2°C = 47.6°C The actual supply water setpoint of 47.6°C is also shown on the display. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 12 10/04/15 12.39...

  • Page 13: Service Menu

    “STATUS OK” – No error detected. “NET-COMM ERROR” – Communication to the network slave is lost. Check the connection or remove the network slave from memory with a hard reset. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 13 10/04/15 12.39...
  • Page 14 Press the OK button for 3 seconds to change P, I and 0-10V/10-0V settings. Press and hold the OK button for 3 seconds. 20.0°C P-band setting I-time setting 10 V Setting for 0-10V or 10-0V DC valve signal Back © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 14 10/04/15 12.39...
  • Page 15 Adjust the flashing value and press OK to save the setting and move to the next parameter. Once the last parameter has been saved, the display returns to the main menu. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 15...
  • Page 16 Minimum permissible supply water temperature during cooling. (Range 5-20°C / default 16°C) Safety margin between supply water temperature and dew point during cooling. (Range 1-10°C / default 3°C) © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 16 10/04/15 12.39...
  • Page 17 Icon for channel = heating with following channel = cooling. Press the OK button to return to the read-out menu. Cooling offset (positive temperature offset relative to heating setpoint) Range 0-10°C / default 3°C Exit service menu. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 17 10/04/15 12.40...
  • Page 18 Setpoint and mode menu (this takes you Measured room temp. through all the units on PWM output the 1-wire (or wireless) PWM period bus). Actual PWM time Measured fluctuation in room © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 18 10/04/15 12.40...

  • Page 19: Using Cooling Functions

    Floor Limit temp., low 17.0°C Max. water temperature 55.0°C Weather compensation Outdoor temperature -3.0°C Cold (winter) Water temperature 45.0°C Weather compensation Outdoor temperature 20.0°C Warm (summer) Water temperature 25.0°C © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 19 10/04/15 12.40...
  • Page 20 Wireless 10000 sec. (2 h 45 min) Minimum supply water temperature for cooling 16°C Supply water temperature PI-control P = 20°C control I = 300 sec. K-factor = 0.05 © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 20 10/04/15 12.40...

  • Page 21: Error Indication

    E10, 10 flashes No connection to wireless receiver, type WLRC3. Only one error/fault condition can be shown at a time. If more than one error occurs, they will be prioritised in the order described (E1, 2, 3…). © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 21...
  • Page 22 For information on reconnecting room sensors/controllers, see “Replacing equipment - Replacing a faulty sensor/controller”. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 22 10/04/15 12.40...

  • Page 23: Waterline Room Controller - Type Wlct3

    For installation instructions, see “Installation” under “Waterline Room Sensors - Type WLTx3”. getting started Buttons Fig. 1 Display Adjustment down OK - Accept Adjustment up Reset to factory Pinhole button for settings clock adjustment © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 23 10/04/15 12.40...
  • Page 24 OK (√) button. Then press the UP (△) or DOWN (▽) button to select the correct day and press the OK (√) button to confirm. AREA SETUP - see next page. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 24 10/04/15 12.40...
  • Page 25 A total of 14 channels/rooms can be controlled. NOTE: If the channel selector (hex encoder) is set to 1 .. 14, the selected channel will always be ON (cannot be set to OFF). © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 25 10/04/15 12.40...

  • Page 26: Everyday Use Of The Room Controller

    DOWN (▽) button until the override temperature is set. The set temperature will remain on the display and the unit will continue to operate to this temperature permanently. Cancelling manual mode To cancel permanent override, press the OK (√) button once, and the unit will resume automatic operation. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 26 10/04/15 12.40...

  • Page 27: Programming 4-Event Times And Temperatures

    5°C and then pressing the DOWN (▽) button once Days 6-7 more. notE: When programming the “sleep” time (event 4), ensure : Time and temperature that it is before midnight (00:00). : Time and temperature © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 27 10/04/15 12.40...

  • Page 28: Advanced Settings And Read-Outs

    Operates the channel as a radiator zone. Operates as an ON/OFF regulator, activates the X-OUTPUT and boiler (but not the UFH pump). Channels selected in the ArEA menu will also act as radiator channels. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 28 10/04/15 12.40...
  • Page 29 Operates the channel as a thermostat for a domestic hot water cylinder. Operates as an ON/OFF regulator, activates the X-OUTPUT and boiler (but not the UFH pump). Press the OK (√) button to return to the APP menu. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 29 10/04/15 12.40...
  • Page 30 The limit temperatures defined in the room controller will be valid for all room sensors with floor limit sensor (type WLTD3) included in the area allocated to the WLCT3 controller. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 30 10/04/15 12.40...
  • Page 31 #5. If the WLCT3 room controller is situated in the living room and operates output #1, the WLCT3 must be programmed to control output channels 1, 4, & 5. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 31 10/04/15 12.40...
  • Page 32 Press the UP (△) or DOWN (▽) button to switch between ON and OFF. Press the OK (√) button to confirm. EsC - Escape Press the OK (√) button to end programming and return to the scheduled programme. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 32 10/04/15 12.40...

  • Page 33: Reset To Factory Settings - Room Controllers

    2-step time 60 min Write the room name in the box beside 2-step temperature each Ch number, and add ON if it is 2.0°C difference controlled by a clock thermostat. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 33 10/04/15 12.40...

  • Page 34: Radiator Mode

    A sensor is connected to the controller and measures the temperature in the hot water storage cylinder. • For information on programming, see “Advanced Settings and Read-outs”. For information on batteries, see “Batteries” under “Waterline Room Sensors - Type WLTx3”. Batteries See the Waterline Room Controller Instructions technical specifications © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 34 10/04/15 12.40...

  • Page 35: Waterline Room Sensor With Display - Type Wldt3

    Reset to factory settings Wireless initialize button (no function on hardwired versions) Display Auto mode Indication of actual Manual comfort mode room temperature and Manual setback mode setpoint offset. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 35 10/04/15 12.40...

  • Page 36: Everyday Use

    The temperature is now controlled only by the master's frost protection setpoint (factory setting 5°C), overriding any programmed 4-event schedules in the system. The system is now off, but still with frost protection enabled. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 36 10/04/15 12.40...

  • Page 37: Advanced Settings And Read-Outs

    ESC - Escape Press the OK (√) button to end programming and return to normal operation. Batteries For information on batteries, see “Batteries” under “Waterline Room Sensors - Type WLTx3”. © 2015 OJ Electronics A/S 4573 OJ 67346_WLM3_User_02-15_GB.indd 37 10/04/15 12.40...

  • Page 38: Waterline Room Sensors - Type Wltx3

    Changing the temperature setting on a WLM 3-xFS master also changes the default temperature for all connected room sensors. However, the temperature setting of each WLTA3, WLTM3 or WLTD3 room sensor is locally adjustable via its own adjustment knob. With this knob, the temperature setting from the master can be increased or decreased by 4°C for that specific room.
