6.1 Cable Management Arm

The SYS-222BT-DNR server supports a cable management arm (CMA), which keeps the rear
cables organized and clear of the rail mechanisms when the system is extended out the front of
the rack for maintenance.
The CMA attaches to the rack mounting rails using four connectors. They are labeled as
connectors 1, 2, 3, and 4.
Optional Part
Cable Arm
Rail Set

Installing the Cable Management Arm

1. Slide CMA connector #1 forward onto the two posts on the rear of the right inner rail
(right side when viewed from the front). It snaps into place.
2. Slide CMA connector #2 forward onto the two posts on the rear of the right middle rail. It
snaps into place.
SuperServer SYS-222BT-DNR: Optional Components

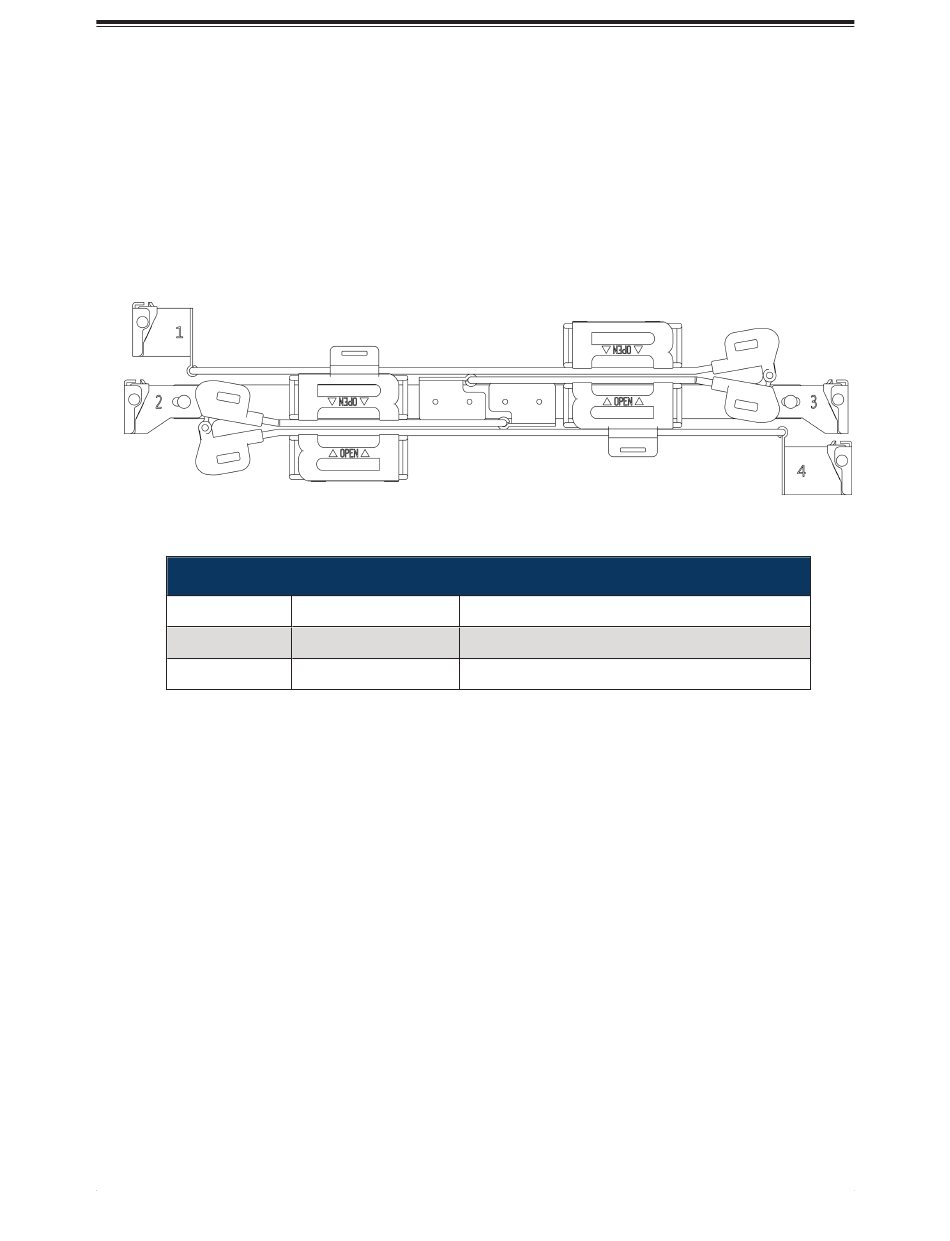

Figure 6-1. Cable Management Arm
Cable Arm Details
Part Number
MCP-290-00168-0N 7.5" deep cable arm
MCP-290-11901-0N 41.2" rails (optimized for 1200 mm deep racks)
95
Description
