User's Manual

SP 110-S V3.1

Tel: 781-321-5409 ● Fax: 800-787-6861 ● Toll Free: 800-343-3618

www.asahi-america.com

● asahi@asahi-america.com

Direct Sales: East 800-232-7244 / Central 800-442-7244 / West: 800-282-7244

Table of Contents

Need help?

Do you have a question about the agru SP 110-S V3.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Asahi/America agru SP 110-S V3.1

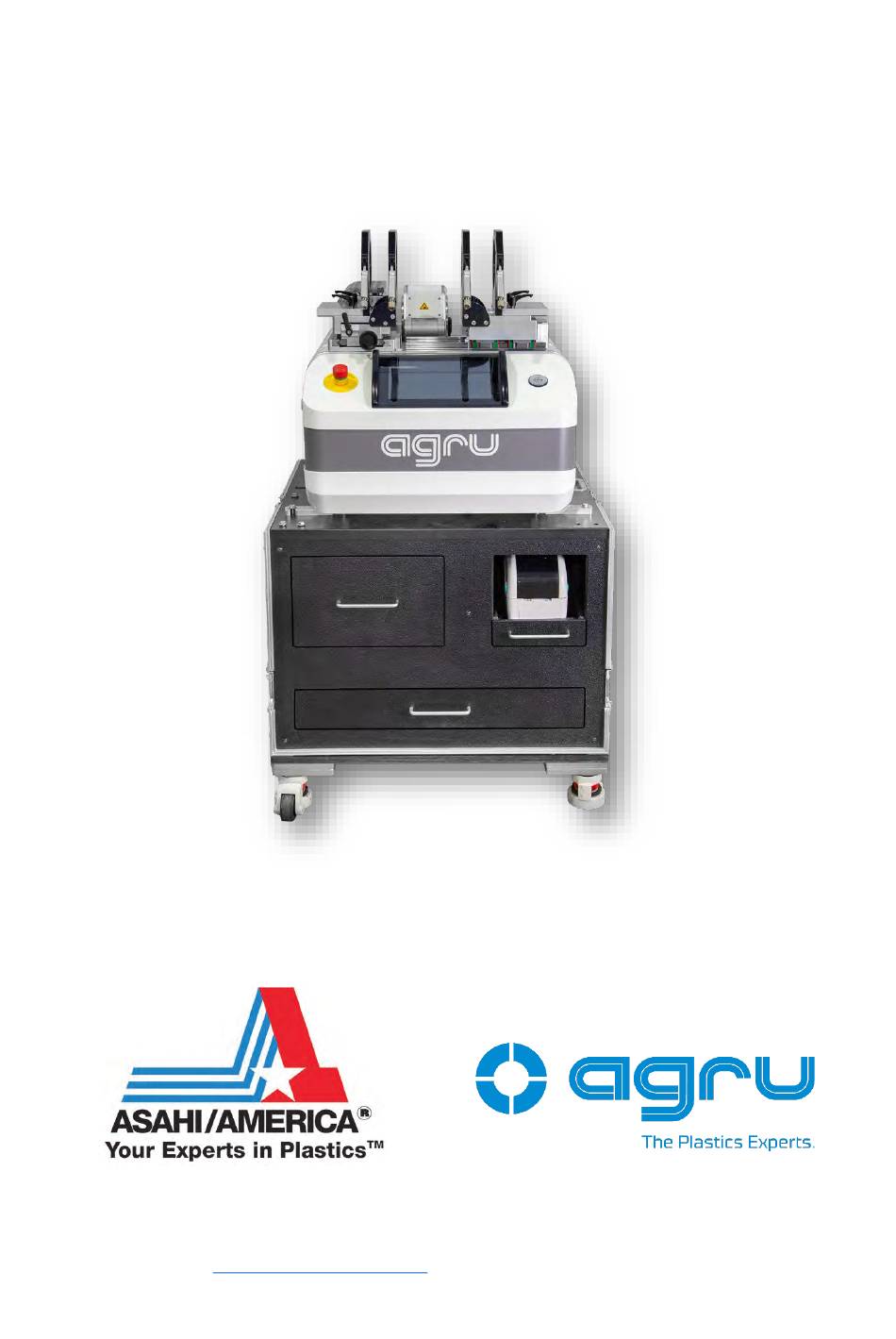

Page 1 User’s Manual SP 110-S V3.1 Tel: 781-321-5409 ● Fax: 800-787-6861 ● Toll Free: 800-343-3618 www.asahi-america.com ● asahi@asahi-america.com Direct Sales: East 800-232-7244 / Central 800-442-7244 / West: 800-282-7244...
Page 2: Table Of Contents
Contents 1 - Introduction 2 - Safety Precautions 2.1 - The User's Manual ........2.2 - Explaining Icons .
Page 3 5 - Printing Pipe Labels, Downloading and Printing Welding Reports 5.1 - Viewing Welding Reports, Printing Label Tags to Identify Welded Components or Reports on a Desktop Printer ......5.2 - Downloading Reports as a File .
Page 4: Introduction
1 - Introduction Dear Customer: Thank you very much for purchasing our product. We hope that it will contribute to your professional success, and we are confident that it will meet your expectations. The product SP 110–S V 3.1 is designed exclusively for the use described in the section on the intended use.
Page 5: Explaining Icons
The Back button returns to the previous page on which you tapped a link in the text to access the current page. It returns to the general table of contents if you never tapped a link in the copy text of a page before. The Table of Contents button returns to the general table of contents, no matter how you accessed the current page.
Page 6 Pipe Facing Tool Start the facing tool only when it is in its working position. When facing pipes, do not wear jewellery; if needed, wear a hair snood or net. It is forbidden to remove shaving from the machine while the facing process is running.
Page 7: Owner And Operator Obligations
2.4 - Owner and Operator Obligations The product may be operated exclusively by persons who are familiar with the applicable rules, the guidelines for the prevention of accidents, and the User’s Manual. The owner/manager shall provide the worker operating the system with the User’s Manual and shall make sure that the operator reads and understands it.
Page 8: Identifying The Product
Because of the heavy weight, transporting the machine or moving it on site requires appropriate hoisting tools. Using the machine, as far as possible, only standing on its stand or support legs is highly recommended 2.8 - Identifying the Product The product is identified by a name plate.
Page 9: Component Overview
Figure 1: 3.2.1 - Component Overview 1. Heating Element and Guard Housing 2. Facing tool 3. Fixed and mobile carriage of machine, each with two component clamps 4. Set screws for compensation of small horizontal or vertical alignment offset 5. Emergency stop switch 6.
Page 11: Ports And Switches
Figure 4: 3.2.3 - Ports and Switches 1. Pushbutton to perform machinemovements in two-hand operation mode 2. Network port 3. USB port 4. On/Off switch and power supply connector 1. Pushbutton to perform machinemovements in two-hand operation mode 2. USB port 3.
Page 12: Overview Of The Steps Of The Welding Process
Power supply Dimensions (W × D × H) Machine in the transp. box (closed) 790 × 950 × 1320 mm Machine in the transp. box (open) 790 × 825 × 1280 mm Machine only 585 × 785 × 630 mm Weight 115 kg, in box approx.
Page 13: Stowing The Machine In The Transport Box
Figure 5: machine is moved or shipped, it has to be set into this box and all locks and auxiliaries have to be engaged. The figures below help with understanding the transport helpers. After these figures, you will find a description of how to stow the machine safely at the end of work.
Page 16: Description Of Operation
standing on the lower part of the box, the cables connecting it to the label printer, i.e., to the connectors above the drawer, can remain. Take the reducers out of the clamps and put them into the drawer provided to this end. Install and lock the transport locks (heating element, console carrying the facing tool and heating element) (see drawings at the beginning of this section for reference).
Page 17 Figure 10: Make sure that all parts to be jointed are dual-clamped and/or appropriately supported. The surfaces of the heating plate have to be free of grease and clean, or they have to be cleaned. Clean the heating element only when it is cold. Refer to a service point for detailed information on the procedures for cleaning the heating element.
Page 18: Explaining On The Home Screen And The System Configuration
you can also read it from it by RFID. If no welder code is entered, the home screen will display with reduced functionality, and only viewing records and documents will be possible. With the exception of the welding parameters (see Sect. 4.7) and the cus- tomised materials, all inputs for which a transponder card is available can be entered by holding the card in front of the RFID reader.
Page 19 Figure 11: Project Manager: the items under &#Guest” plus access to the operating and default settings that allow configuring the way of welding and the data logged from it Service Partner: the above plus access to menus and functionalities required for service and maintenance (not covered in this manual) The entity operating the welding system is liable for handing out higher- level privileges and the corresponding cards only to those persons actually...
Page 20 Figure 12: The Data Logging button opens the screen on which the welding reports recorded by the system during every operation can be viewed in detail and, if required, another label tag for identifying the joint or a full welding report can be printed off (refer Sect. ). The User's Manual opens the manual you are reading.
Page 21: The Status Bar At The Upper Edge Of The Screen
Figure 13: 4.4.2 - The Status Bar at the Upper Edge of the Screen The status bar shows not only on the home screen, but on every settings and process screen. Its elements are always active and will bring up the relevant function or pop-up screen, unless the entire status bar is locked, e.
Page 22: Customizing Operating Settings
arrow buttons (Up, Down, Left, Right), when tapped, allow browsing through a list longer or wider than one screen or through a sequence of screens, in the direction represented by the arrow. toggle switch, when swiped towards the left or the right, sets a setting or a system state to either Off (no colored highlight, no check mark) or On (colored highlight, check mark).
Page 23: General User Settings In The Configuration Menu
Figure 14: As long as to configuration menu is unlocked and open for access, the padlock in the status bar is shown in the unlocked state. To actually access the configuration menu, tap the Configuration Menu button on the home screen. The entries available for editing in the configuration menu depend on the user level of the currently logged-in user and on whether the configuration was unlocked using the menu code.
Page 24 configuration menu without saving any changes to memory. To save the currently displayed settings, possibly after you have modified them, tap the button. Both buttons cancel all changes or save the entire set of settings and do not relate to one or several individual settings. At Automated Welding Mode, a toggle switch allows enabling or disabling the automated welding operation (refer to Sect.
Page 25: User Settings For The User Interface In The Configuration Menu
At Enable automatic heating (below the User Interface, Label Tag, Export, and Report Print-out sub-menus), a toggle switch allows enabling or disabling that sleep mode and automatic heating (refer to Sect. 4.4.1) are available, which in actual use means that the icon that the user can tap to call this function, will be displayed, or not, on the home screen (refer to Sect.
Page 26: Data Logging/Recording Settings In The Configuration Menu
arrow buttons in the navigation bar along the right-hand edge of the screen allow scrolling up and down through the entries. Tapping the button will close the configuration menu without saving any changes to memory. To save the currently displayed settings, possibly after you have modified them, tap the button.
Page 27: Setting Up The Network Connection
Figure 15: be requested for every welding operation. To delete a user-defined information item that is no longer needed, tap the Trashbin icon on its bar in the additional-data listing. At Inventory Number, the number under which the welding system is inventorized with the operating entity can be entered on a keypad that opens after tapping the input field.
Page 28: Fully Automatic And Semi-Automatic Operation
subnet mask, and the communication gateway that the machine uses to communicate over the network, using input fields that, when tapped, open the relevant on-screen keypad. At Wifi, after tapping it, all parameters of the wireless connection can be entered in the next screen that pops up: whether the wifi is switched on or off, using a toggle;...
Page 29 Figure 16: order to open the pop-up window, in that window tap the Trashbin button and confirm by the button. In the sense of the system’s wording for processable piping components, a material is the thermoplastic material of which a pipe or fitting is made, such as PVDF or PP.
Page 30 Figure 17: It is under the user’s and the operating entity’s sole and full responsibility to define the appropriate welding parameters for any custom material properly. The liability and warranty on the system manufacturer’s part extends only to the parameter sets defined ex works. No warranty or liability can be assumed for poor joints and/or damage, including consequential damage, occurring as a result thereof that would be the result of inappropriately defined custom materials.
Page 32: Performing The Welding Operation
Figure 20: In case a custom material is no longer needed, it can be deleted from system memory by tapping the Trashbin icon on its bar in the overview listing of custom materials. The machine must be used only for the materials, diameters, and thicknesses in the screens of (standard or custom) parameter sets.
Page 34 Figure 23: If only one or a few of the component parameters of the preceding welding have to be changed, you can tap the button with the parameter that needs changing in the Material Selection screen (refer to the first screenshot in the series at the previous paragraph). Then select what is required for the next welding in the screen that opens.
Page 35: Facing The Component Butts
On every material/product selection screen, tapping the button will cancel the input routine as a whole and return to the home screen and the button can be used on every screen to open this User's Manual, which in turn can be quit by tapping the button when the manual is being displayed.
Page 36 Figure 24: The welding system operates in fully or semi-automatic mode, depending on the state of the Automatic Operation option of the configuration menu (see Sect. 4.5 for a detailed description). In the facing stage, semi-automatic mode (with two-hand operation required) is always active, no matter what is set at that parameter: when the machine performs process steps involving movement of one of its movable parts, both pushbuttons starting a movement on the left-hand and right-hand sides of the machine have to be held down...
Page 38: Checking Alignment
starting movements for the facing tool to be moved back). Visually check the components when the screen prompts for this. If required, switch on the torch integrated in the machine enclosure using the toggle in the top left corner of the screen (refer to Sect. 4.7.2 for how it works). Touch button if the facing outcome is o.k.
Page 40: Pre-Heating The Component Butts And Inserting The Heating Element
Figure 29: . Without end caps, the temperature difference between the welded and the open butt may cause a suction effect, which would cool the bead, thereby adversely affecting the quality of the welded joint. After the confirmation that the caps have been installed, the machine moves the carriage apart.
Page 41: Heating Stage
Figure 30: Pre-heating is meant for mechanically produced fittings. If it is used for other applications or fittings, no warranty for a correct joint and no liability for any immediate or consequential damage are assumed. From the start of the welding process, with or without pre-heating, the machine controls and monitors constantly the temperature of the heating plate and the forces and times to be observed in its various stages.
Page 42: Jointing Stage
Figure 31: The welder has to monitor the change-over and must abort welding by touching , in case a malfunction occurs. 4.7.6 - Jointing Stage In the jointing stage (also called fusion stage) the machine increases the applied force to the computed fusion force in accordance with the force ramp defined for the weld.
Page 43: Assessing The Joint By A Visual Check At The End Of Welding
Figure 32: 4.7.9 - Assessing the Joint by a Visual Check at the End of Welding At the end of the welding process, the machine displays an overview of some welding and traceability data that will be saved to the report, and asks the welder to visually check the quality of the joint.
Page 44 Figure 33: On the relevant screen (see on the left), the welder will enter the total bead width b and the partial bead widths b1 and b2 of the bead in the lines P1 - P3 representing three points along the pipeline circumference.
Page 45: Aborted Welding Process, Error And Malfunction Messages
Figure 34: 4.8 - Aborted Welding Process, Error and Malfunction Messages All welding-relevant data are constantly monitored while the welding process is running. If one or more of the parameters are out of tolerance and the machine cannot adjust them, the welding process is aborted after a given period of time.
Page 46 Instead of the “OK” message, the tag and the report that can be viewed may tell you that something went wrong. The relevant meaning of the binary figure can be seen with the help of the code table below. Error Code Error Description Emergency stop Emergency stop actuated...
Page 47: Printing Pipe Labels, Downloading And Printing Welding Reports
Error Code Error Description Malfunction servo carriage heating elem./facing tool Malfunction message come in from the heating el./facing tool carriage servomotor Using joints identified as flawed is prohibited, no matter whether the machine detected an error in the course of the welding or the welder declared it flawed upon visual check.
Page 48: Downloading Reports As A File
Figure 35: on a desktop printer. Whether the report prints as a one-page or a multi-page report depends on the relevant setting in the configuration menu (see Sect. 4.4.4 for details). The USB stick icon shows only when a USB stick is currently present. By tapping it, the export of all or a filtered selection of reports as a file to the USB stick can be started (see Sect.
Page 50: Deleting The Contents From Memory
a certain commission or project, reports from no. x through to no. y, etc. Select or enter the values that defined the filter of the category you wish to apply and confirm everything by the button. The machine then returns to the file format selection screen, and when the transfer is now started by tapping the icon for the desired file format, only those reports that match the previously set filter will be transferred to the USB stick.
Page 51: Service And Repair
Figure 38: make the machine switch itself to sleep mode rather than off at the end of the workday, in order for it to be able to start the heating-up automatically when it is the programmed time. For the automatic heating feature to work, the welding machine has to be connected to the power supply and be in the sleep mode all the time from preprogramming a time of day to the start of heating.
Page 52: Service And Repair Contact
All machines that are new or newly programmed during maintenance or upon request are shipped with the most recent software version. At the date of shipment, the service and maintenance interval is set to 18 months or 5000 welding operations (different in some markets), whichever comes first.
Page 53 Central: 1-800-442-7244 West : 1-800-282-7244 Rental Administration, Billing & Returns 781-388-4505 Field Technician/Onsite Training Contact your distributor, Asahi/America District Sales Manager, or request a form here: https://www.asahi-america.com/resources-tools/submit-a-request/field-technician-request- form/ or Scan QR code below: General Tool Questions & Troubleshooting Rental Administration Department...
