Owner's Manual

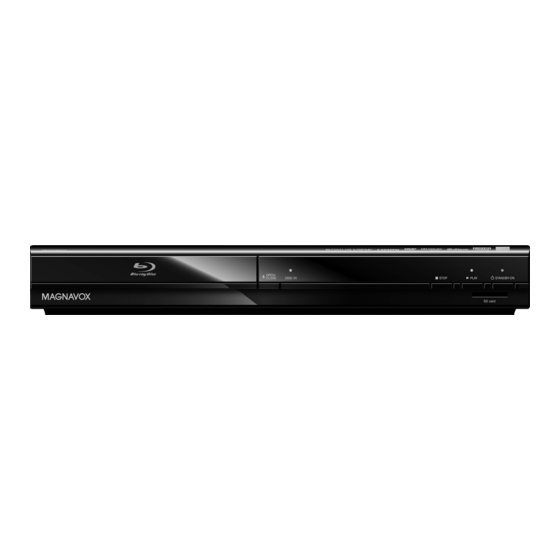

MBP1100/F7
Blu-ray Disc Player
Read your Owner's Manual first for
quick tips that make using your
Magnavox product more enjoyable.
If you have read assistance,
you may access our online help at
http://www.funai-corp.com
or call
1-800-605-8610
while with your product
(and Model / Serial number)
© 2009 Funai Electric Co., Ltd.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Magnavox MBP1100 -
Summary of Contents for Magnavox MBP1100 -

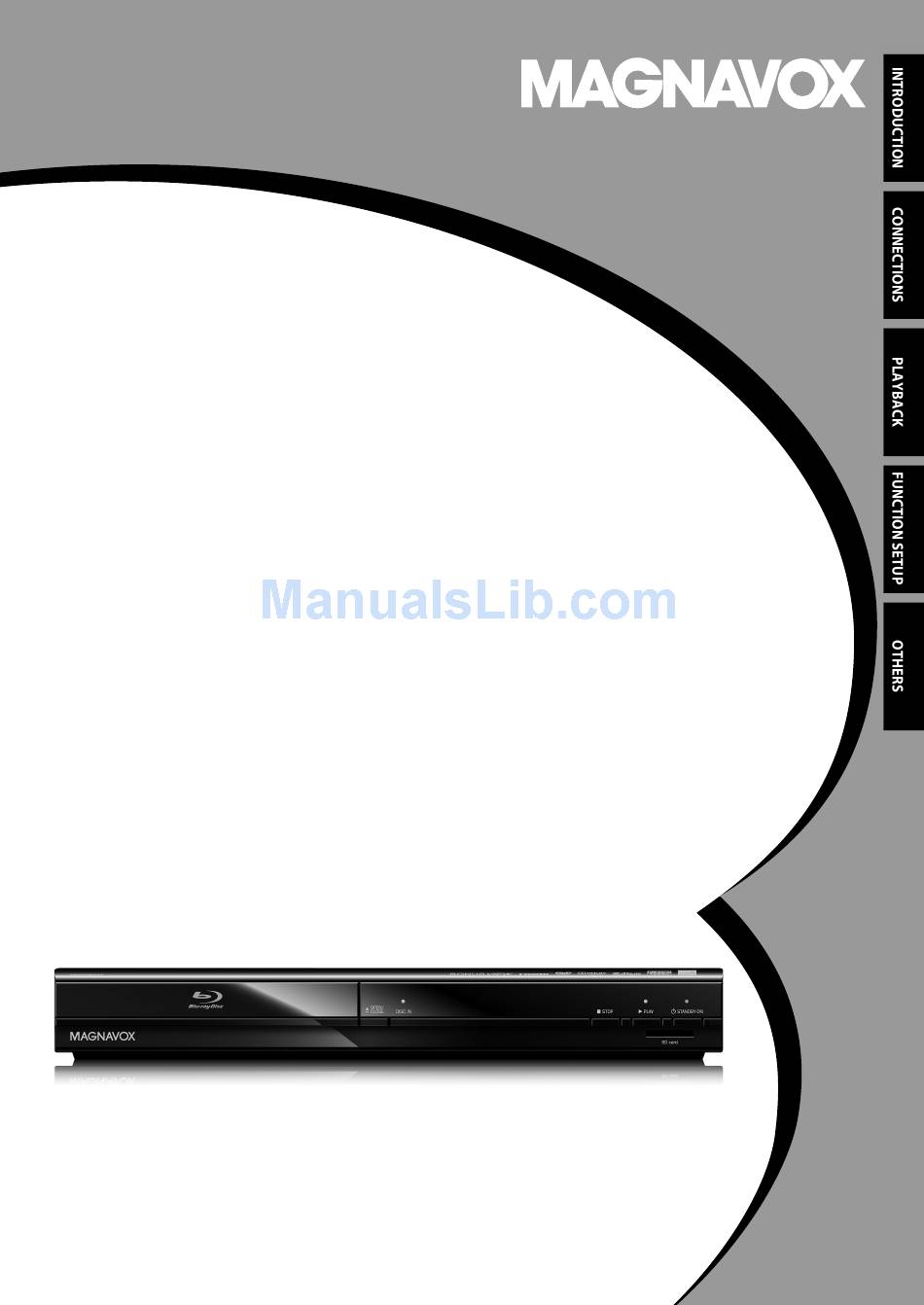

- Page 1 Owner’s Manual MBP1100/F7 Blu-ray Disc Player Read your Owner’s Manual first for quick tips that make using your Magnavox product more enjoyable. If you have read assistance, you may access our online help at http://www.funai-corp.com or call 1-800-605-8610 while with your product (and Model / Serial number) ©...
-
Page 2: Introduction
INTRODUCTION Safety Instructions The model and serial numbers of this unit may be found on the cabinet. Model No.: You should record and retain those numbers for future reference. Serial No.: WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. - Page 3 INTRODUCTION CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (Battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire, or the like. LASER SAFETY This apparatus employs a laser.
-
Page 4: Table Of Contents
INTRODUCTION Contents INTRODUCTION FUNCTION SETUP Safety Instructions ................2 Using the Setup Menu ..............29 Supplied Accessories ..............5 Quick..................29 Trademark Information ...............5 Custom ..................30 Features ....................6 Language ................31 Symbols Used in this Manual ............6 Video ..................32 Front Panel..................7 Audio..................34 Rear Panel..................7 Parental ................ -
Page 5: Supplied Accessories
INTRODUCTION Supplied Accessories Owner’s Manual remote control × 1 RCA audio / video cables owner’s manual (EN/ES/FR) quick start guide (EN/ES/FR) (NB950UD/NB900UD) (WPZ0102TM018 / (1VMN28573 /1VMN28574 / (1VMN28576 / 1VMN28577 / AAA (1.5V) battery × 2 WPZ0102LTE01) 1VMN28575) 1VMN28578) Trademark Information “BONUSVIEW”... -
Page 6: Features
INTRODUCTION Easy and simple connection to your HDTV via Features HDMI Full high-definition video playback Connect this unit to your HDTV with one single HDMI (High- Watch movies in the highest picture quality available for your Definition Multimedia Interface) cable. It is recommended to HDTV. -
Page 7: Front Panel
INTRODUCTION Front Panel 6* 7 OPEN/ CLOSE DISC IN STOP PLAY STANDBY-ON SD card (*) The unit can also be turned on by pressing these buttons. 7. PLAY indicator 1. Disc tray • This indicator lights up in green when discs or SD •... -
Page 8: Remote Control
INTRODUCTION Remote Control 12. REPEAT button • Press to toggle between various repeat modes. 13. OPEN/CLOSE A button* • Press to open or close the disc tray. 14. POP MENU / MENU button • Press to display the pop-up menu / disc menu. 15. - Page 9 INTRODUCTION Installing the Batteries in the Remote Control Using a Remote Control Install AAA (1.5V) battery × 2 matching the polarity Keep in mind the following when using the remote indicated inside battery compartment of the remote control: control. • Make sure that there are no obstacles between the remote control and the infrared sensor window on the unit.
-
Page 10: Connections
CONNECTIONS Connection to the TV Choose the appropriate connection, then proceed to the corresponding instruction (A, B or C) on the next page. Best (Supports up to 1080i / 1080p, 1080p24 resolution.) Your TV HDMI IN Go To High HDMI cable Video Definition Audio... - Page 11 CONNECTIONS Connect the cables by following the descriptions below. HDMI Video / Audio Connection Your TV HDMI IN HDMI cable Note • Do not tilt the connector when inserting it into the HDMI jack, and make sure the shapes of the jack and the connector are matched.
-
Page 12: Connection To An Audio System
CONNECTIONS Connection to an Audio System • When you change the connections, all devices should be turned off. • Refer to the manual accompanying external devices for more information. 2-Channel Analog Audio Connection Digital Audio Connection stereo system AV receiver / amplifier audio AUDIO IN DIGITAL AUDIO INPUT... -
Page 13: Finding The Video Channel On Your Tv
CONNECTIONS After you have completed all the connections, you must find the correct video channel (external input channel) on your TV. Finding the Video Channel on Your TV After you have made all the necessary connections, press [STANDBY-ON Q] to turn on the unit. -
Page 14: Playback
PLAYBACK Information on Playback Before you start playing back a disc, read the following information. Readable cards Playable files / data Playable Discs and Files SD Memory Card (8 MB - 2 GB) JPEG, picture-in-picture This unit is compatible to play back the following discs / files. SDHC Memory Card (4 GB - 8 GB) commentary, subtitles or To play back a disc / file, make sure that it meets the... - Page 15 PLAYBACK Color Systems On-Screen Display BD-video and DVD-video are recorded in different color You can check information about the current disc by systems throughout the world. The most common color pressing [DISPLAY]. system is NTSC (which is used primarily in the United To call the on-screen display menu, press [DISPLAY] States and Canada).
-
Page 16: Disc Information
PLAYBACK S Chapter information S Track / File information <Title / Chapter information for BD> 1 / 14 0 : 00: 51 1/10 Current track (file) number / Total number of track (file) <Chapter information for DVD> Elapsed time / Remaining time of the current track (except for JPEG files) Indication of SD Memory Card playback 3 / 5... -
Page 17: How To Insert A Disc
PLAYBACK Use [K / L] to select “SD Card”, How to Insert a Disc then press [OK]. Press [OPEN/CLOSE A] to open the disc tray. Media Select Place the disc on the disc tray with its Disc SD Card label side facing up. Align the disc to the Use [K / L] to select a desired track, disc tray guide. -
Page 18: Selecting The Media Mode
PLAYBACK Selecting the Media Mode For the playback media to be read by this unit, the correct media mode should be selected. You can switch the media mode by following the steps below. “Media Select” is available only when an SD Memory Card is inserted. In stop mode, press [SETUP]. -
Page 19: Playing Back (Bd / Dvd)
PLAYBACK Playing Back (BD / DVD) Press [STANDBY-ON Q]. Turn on the TV and select the appropriate input on the TV to which the unit is connected. Insert a disc (refer to page 17 on how to insert a disc). Playback may start automatically. -
Page 20: Playing Back (Audio Cd / Jpeg Files)
PLAYBACK Playing Back (Audio CD / JPEG Files) Using the Title / Disc / Pop-up Menu Before you begin, make sure the correct media mode is Many of BD-video and DVD-video discs contain title menu selected. Refer to “Selecting the Media Mode” on page 18. (BD-video / DVD-video), disc menu (DVD-video) or pop-up menu (BD-video) which guides you through the available functions in the disc. -
Page 21: Kodak Picture Cd
PLAYBACK It is recommended that files to be played back in this File information unit are recorded under the following specifications: Current page / Total page number <JPEG> • Upper limit : 2,560 x 1,900 dots (sub sampling is Operation guide: Press [BLUE] to go to the previous 4:4:4) page. -
Page 22: Fast Forward / Fast Reverse
PLAYBACK Fast Forward / Fast Reverse Step by Step Playback During playback, press [D (forward)] In pause mode, press [F (pause)] repeatedly. repeatedly for fast forward. Every time you press [F (pause)], playback will During playback, press [E (reverse)] repeatedly advance one step at a time. -
Page 23: Program Playback
PLAYBACK Press [B (play)] to start program playback. Program Playback • The program playback will start. efore 2 / 16 0 : 01 : 05 begin You can play back the disc/card in your desired order. 0 : 26 : 24 Program Total CD_DA... -
Page 24: Random Playback
PLAYBACK Random Playback Rapid Playback This function shuffles the playback order of tracks / files. This function plays back approximately at 1.3 times the normal playback while keeping the sound output. This In stop mode, press [MODE] twice. function is available only on discs recorded in the Dolby Digital format. -
Page 25: Virtual Surround
PLAYBACK S Noise reduction (DVD-video only) PIP (BONUSVIEW) Setting Reduces the noise of the playback picture. “Off” : Shows the original picture as recorded. “1” : Executes 3D noise reduction which detects and deletes the noise by comparing each picture Some BD-video have the PIP function which enables you frames. -
Page 26: Search
PLAYBACK Using [Number buttons] (Direct Search) Search Title Search Using [H / G (skip)] 1) In stop mode, enter the title number you want to search using [Number buttons]. During playback, press [G (skip)] to move to Playback of the title will start in a few seconds. the next track / title / chapter / file. -
Page 27: Switching Subtitles
PLAYBACK You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back. Switching Subtitles Switching Audio Soundtrack Some BD and DVD may have subtitles in 1 or more Some BD and DVD contain multiple audio streams. -
Page 28: Setting The Bd Audio Mode
PLAYBACK Setting the BD Audio Mode Note • The secondary audio will not be output when the secondary video is not displayed or when “BD Audio Mode” is set to “HD Audio Output”. (For some BD, secondary audio will be output even when There are 2 options for the “BD Audio Mode”... -
Page 29: Function Setup
FUNCTION SETUP Using the Setup Menu In the setup menu you can change the setting for audio, video, language, etc. You cannot change the setting during playback. Setting items displayed in gray indicates they are not available under the conditions at the time. Quick “... -
Page 30: Custom
FUNCTION SETUP Custom “ Custom” menu contains all the setting items. In stop mode, press [SETUP]. Use [K / L] to select , then press [OK]. Use [K / L] to select your desired setting category, then press [OK]. : Language : Video : Audio : Parental... -
Page 31: Language
FUNCTION SETUP Language Language Audio Original Subtitle Disc Menu English Player Menu English • To select the setting items and options, refer to “ Custom” on page 30. • “ Quick” menu consists of the setting menus frequently used, and they are accompanied with Setting items Options Audio... -
Page 32: Video
FUNCTION SETUP Video Video TV Aspect 16:9 Wide Auto HDMI Video Resolution HDMI Deep Color Auto Component Output 480i Progressive Mode Auto Still Mode Auto • To select the setting items and options, refer to “ Custom” on page 30. •... - Page 33 FUNCTION SETUP Setting items Options Auto*: Still Mode Automatically selects the best resolution setting (“Frame” or “Field”) based on Adjusts picture resolution and quality the data characteristics of the pictures. in still mode. Field: Stabilizes the pictures, although the picture quality may become coarse due to the limited amount of data.
-
Page 34: Audio
FUNCTION SETUP Audio Audio BD Audio Mode Mix Audio Output HDMI Multi(Normal) HDMI Audio Out Down Sampling • To select the setting items and options, refer to “ Custom” on page 30. • “ Quick” menu consists of the setting menus frequently used, and they are accompanied with Setting items Options BD Audio Mode... -
Page 35: Hdmi Audio Out Setting
FUNCTION SETUP HDMI Audio Out Setting When using HDMI connections make “HDMI Audio Out” setting in “Audio” menu according to the specifications of the device to be connected. Refer to page 34. Normally, set it to “HDMI Multi(Normal)” so that the unit automatically picks and outputs the best audio format suited to your connected device. -
Page 36: Digital Out Setting
FUNCTION SETUP Digital Out setting When “Audio Mute” is selected in “HDMI Audio Out” setting, HDMI audio signal will be mute and the audio signals output from DIGITAL OUT jack changes depending on “Digital Out” setting. Quick A HDMI Audio Out A Audio Mute A Digital Out Bitstream* : When playing back discs recorded in Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD, the corresponding core stream (Dolby Digital or DTS) are output. - Page 37 FUNCTION SETUP Speaker setting (Available when you have HDMI cable connected to HDMI OUT jack) This unit allows you to enjoy multi-channel surround sound such as 7.1-channel / 5.1-channel surround. To make the most of its feature, set up your speakers appropriately by referring to the following table. How to navigate through “HDMI Multi(LPCM)”: 1) Use [K / L] to select your desired menu item then press [OK].
- Page 38 FUNCTION SETUP Menu Setting items Options Descriptions Channel Level Test Tone: Off* Select “Off” to deactivate “Test Tone”. Tests or sets the “Test Tone” is the test Select “Manual”, then press [OK] to manually Manual volume for each tone which can be set the volume for the desired speaker.
-
Page 39: Parental
FUNCTION SETUP Parental Ratings control allows you to set a limit, which prevents your children from viewing inappropriate materials. Playback first will be stopped if the ratings exceed the levels you set, and it will require you to enter a password before playing back the disc. -
Page 40: Others
FUNCTION SETUP Others Others Angle Icon Auto Power Off HDMI CEC Media Select Disc Software Update • To select the setting items and options, refer to “ Custom” on page 30. • “ Quick” menu consists of the setting menus frequently used, and they are accompanied with Setting items Options Angle Icon... -
Page 41: Current Version
Use [K / L] to select “Current Version”, then press [OK]. Others Current Version Current Version x.xxx If you wish to check latest update or other product information, please check our Website. http://www.magnavox.com Press [OK] or [RETURN] to exit. Note • Please visit www.magnavox.com to download the latest firmware version. -
Page 42: Software Update
To update the firmware, you must first download the latest firmware to a disc, then execute “Software Update”. Prepare a firmware update disc: Please access www.magnavox.com, and download the latest firmware to a blank disc by following the direction described on the site. - Page 43 FUNCTION SETUP Use [s / B] to select “Yes”, then press [OK]. • Loading of the firmware will start. Software Update The indicators blinks for this procedure. Current Version : 1.000 1. Start Insert Version : 1.001 Select ‘Yes’ and press ‘OK’ button to start updating. Press ‘No’...
-
Page 44: Initialize
FUNCTION SETUP Initialize Initialize the setting or SD Memory Card. In stop mode, press [SETUP]. Use [K / L] to select , then press [OK]. Use [K / L] to select a desired option, then press [OK]. “Setup”: Resets the setup menu to the default. “Format SD Card”... -
Page 45: Others
OTHERS Troubleshooting If the unit does not perform properly when operated as instructed in this manual, check the unit, consulting the following checklist. Problem Solution No power - Check if the AC cord is properly connected. - Unplug the AC cord once, and wait for 5-10 seconds and then plug it in again. No sound or picture - Check if the connected TV is turned on. -
Page 46: Glossary
OTHERS Glossary Analog Audio Dolby TrueHD An electrical signal that directly represents sound. Dolby TrueHD is a lossless coding technology developed Compare this to digital audio which can be an electrical for next generation optical discs. Blu-ray Disc supports 7.1 signal, but is an indirect representation of sound. -
Page 47: Language Code List
OTHERS Language Code List Language Code Language Code Language Code Language Code French [FRE] 5264 Macedonian 5957 Siswat 6565 Abkhazian 4748 Frisian 5271 Malagasy 5953 Slovak [SLO] 6557 Afar 4747 Galician 5358 Malay 5965 Slovenian 6558 Afrikaans 4752 Georgian 5747 Malayalam 5958 Somali... - Page 48 OTHERS General Signal system NTSC color Power requirements 120 V AC, 60 Hz Power consumption 20 W (standby: 0.5 W) Dimensions (width x height x depth) 14-3/16 x 2 x 8-16/8 inches (360 x 50 x 215mm) Weight 4.2 lbs. (1.9 kg) Operating temperature 41°F (5°C) to 104°F (40°C) Operating humidity...
-
Page 49: Maintenance
Turn the unit to the standby mode, unplug the damage the unit. power plug, and please contact 1-800-605-8610 or visit : www.magnavox.com/support IR signal check Cleaning the cabinet • If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in •... - Page 50 MEMO...
- Page 51 MEMO...
-
Page 52: Limited Warranty
CORP. will not reimburse you for any service done by unauthorized service providers without prior written approval. To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at: FUNAI SERVICE CORPORATION Tel: 1-800-605-8610 www.magnavox.com/support 2200 Spiegel Drive, Groveport, OH 43125 E5P04UD_E5P05UD 1VMN28573 Printed in China...
