System Battery

Replacing the System Battery

WARNING:
installed. Replace the battery only with the same or equivalent type recommended
by the manufacturer. See your safety information for additional information.
CAUTION:
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
1 Turn off the system, including any attached peripherals, and disconnect
the system from the electrical outlet.
2 Remove the system-board assembly. See "Removing a System-Board
Assembly" on page 61.

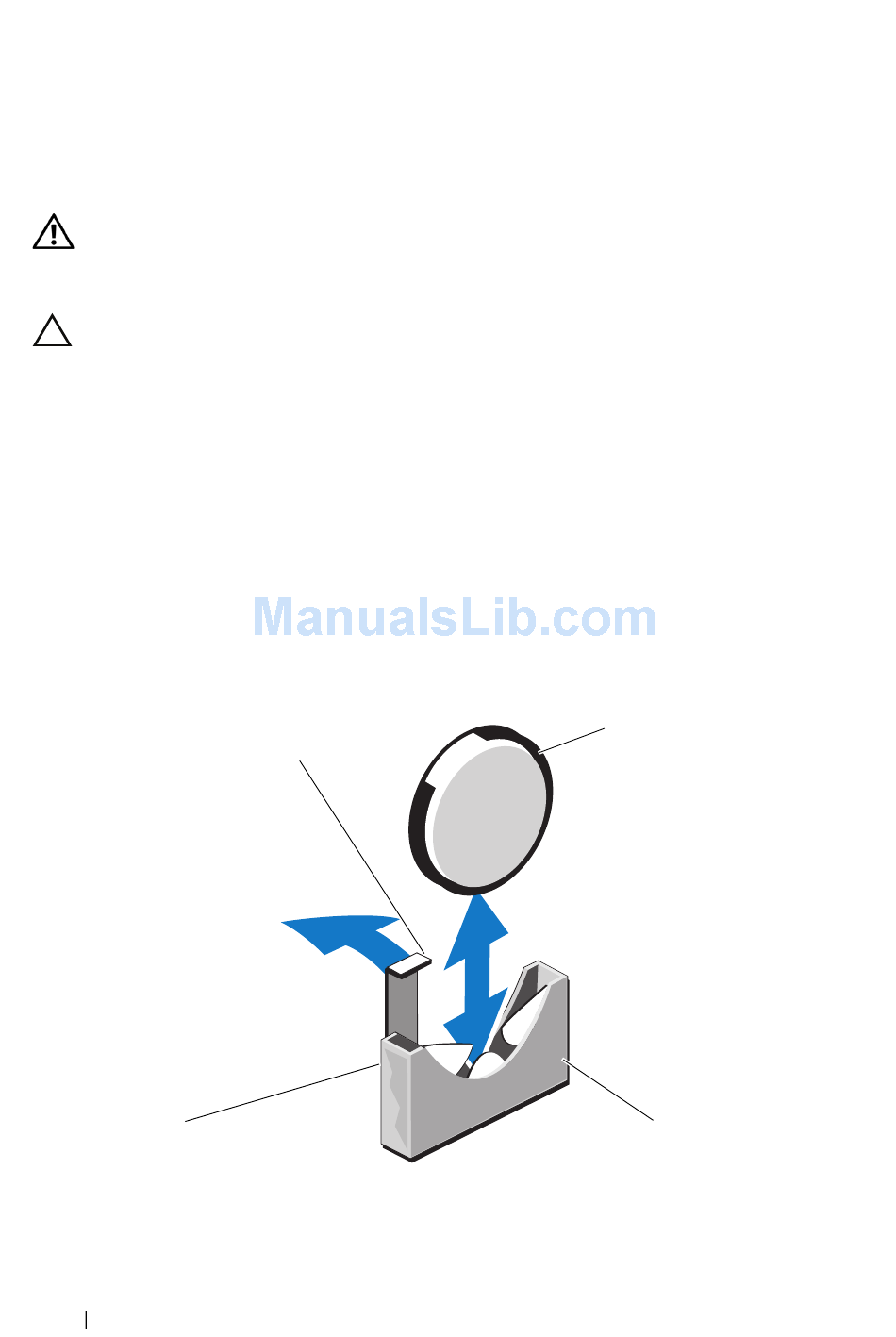

Figure 3-18. Replacing the System Battery
4
1 retention clip
3 negative side of battery connector
84
Installing System Components
There is a danger of a new battery exploding if it is incorrectly
Many repairs may only be done by a certified service technician.
1
2
2 system battery
4 positive side of battery connector
3
